3M Versaflo Powered Air Respirator TR-300+
User Manual
Care and Maintenance

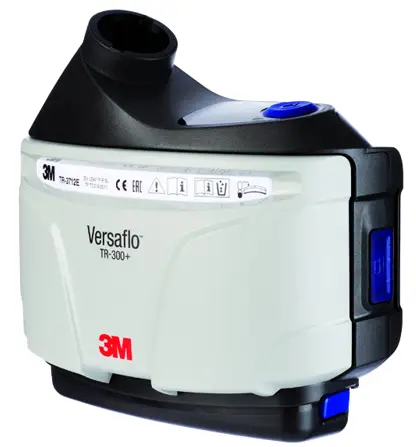

3M™ Versaflo ™ Powered Air Respirator TR-300+
To maintain protection levels, optimize the effective lifetime of the system and avoid the additional cost of replacement, it is extremely important to carry out regular checks and maintenance on Powered and Supplied Air Respirators.
Before use
- Use indicator button to confirm battery charge
- Ensure filter is correctly fitted
- If spark arrestor and / or pre-filter are used, ensure they are clean
- Perform airflow check – insert Airflow Indicator Tube. Refer to turbo user instructions for information
- Perform alarm check. Refer to turbo user instructions for information
- Visually inspect for damage
Monthly
- Carry out all the ‘Before Use’ inspections and create a record of this monthly check for the turbo
After use
- Clean with cloth dampened with a mild solution of water and liquid household soap
- Disinfect surfaces with 3M™ 105 Wipes
- Store in a dry, clean area / locker away from direct sunlight, high temperatures and solvents
Every filter change
- Inspect filter and inner seal and replace if damaged
- Always properly install the filter into the turbo
Ordering consumables, repair parts and accessories
- To request a quote or place an order for theses items, please contact your 3M Approved Distributor.
Further information and advice
- If you require additional guidance on the Care and Maintenance of your 3M Powered and Supplied Air Equipment, please contact the Helpline or your local 3M representative.
Replace all damaged parts immediately to ensure correct levels of protection.

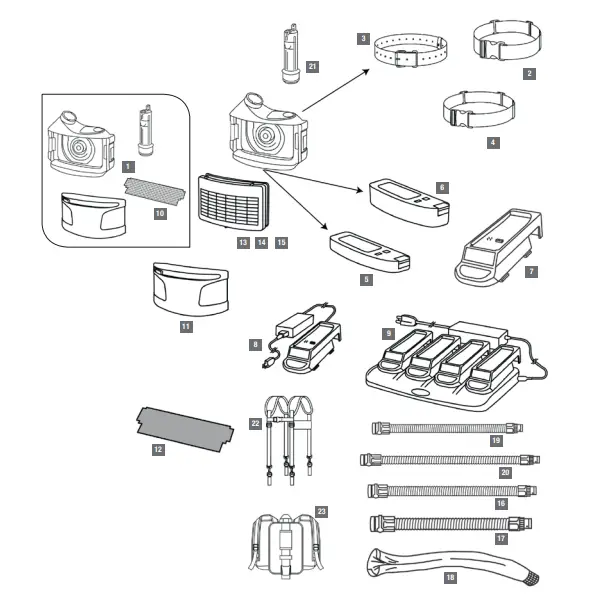

| Description | Part No. | |
| 1 | 3M™ Versaflo™ TR-302E+ Powered Air Turbo Unit (complete with Filter Cover, Spark Arrestors (x2) and Air Flow Indicator) | TR-302E+ |
| 2 | Standard Belt | TR-325 |
| 3 | Leather Belt | TR-326 |
| 4 | Easy-Clean Belt | TR-327 |
| 5 | Standard Battery Pack | TR-330 |
| 6 | High Capacity Battery Pack | TR-332 |
| 7 | Battery Charging Cradle | TR-340 |
| 8 | Single Station Charger Kit | TR-341E |
| 9 | 4 Station Battery Charging Kit | TR-344E |
| 10 | Spark Arrestor | TR-362 |
| 11 | Replacement Filter Cover | TR-371+ |
| 12 | Pre-Filter | TR-3600 |
| 13 | Particulate Filter | TR-3712E |
| 14 | P/Nuisance Level Organic Vapour Filter | TR-3802E |
| 15 | P/HF/Nuisance Level Acid Gas Filter | TR-3822E |
| 16 | Length Adjusting Breathing Tube | BT-30 |
| 17 | Heavy Duty Rubber Breathing Tube | BT-40 |
| 18 | Breathing tube cover – Flame and Heat Resistant, High Durability | BT-926 |
| 19 | Short Lightweight Breathing Tube | BT-20S |
| 20 | Long lightweight Breathing Tube | BT-20L |
| 21 | Airflow Indicator | TR-971 |
| 22 | Braces | TR-329 |
| 23 | Backpack | BPK-01 |
| Filter Surround Gasket | TR-380 |
