HONDA CB 500 F ’19 –
HONDA CBR 500 R ’19 – H0CB51SR
BCN

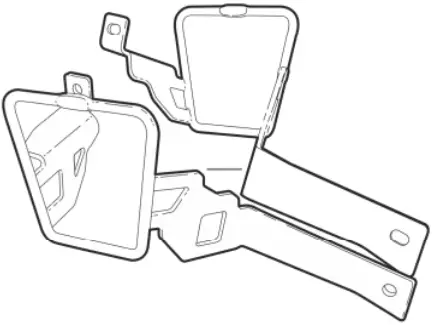

1
263059 x 1 →
263060 x 1 ←
2 260648 x 2
∅16 ∅9 x 5
3 303020 x 4
∅8
4 304053 x 4
M8x30 DIN 7380
5 260731 x 2
∅16 ∅11 x 10
6 303025x 6
∅10
7 304192 x 2
M10x40 DIN 961

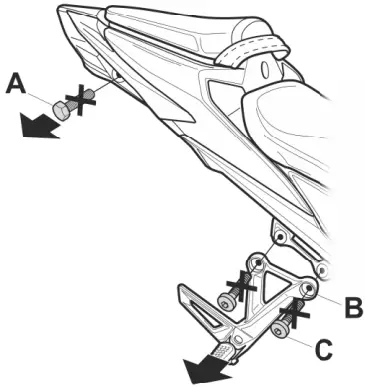

WARNING!
Do not fully tighten the screws until it is ensured that the KIT is correctly attached and aligned.

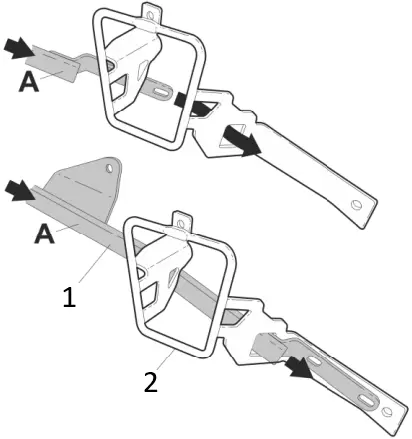

1 x2
- H0CB59ST
- H0CB51SR

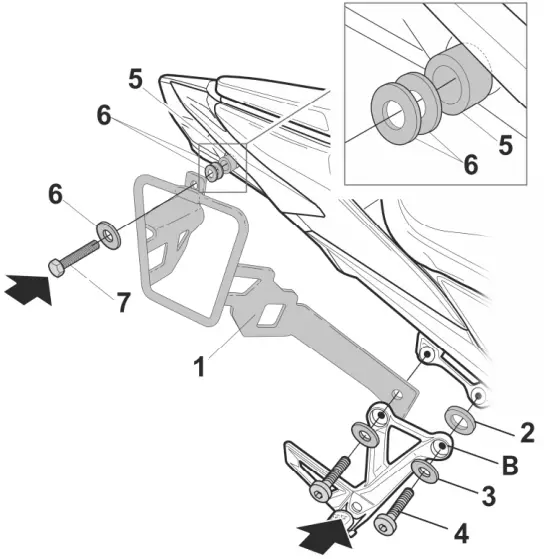

2 x2
4 x2
IMPORTANT: Based on European models. For compatibility with models in other continents, check www.shad.es
WWW.SHAD.ES
REF. 500479 Edition 2a
