Installation and user manual
LAPETEK LAVA & LAVA + BIDE
LAPETEK LETOS & LETOS + BIDE
All installation work must be carried out by a professional
| PRODUCT | CODE | VERSIONS |
| LAPETEK LAVA (faucet) chrome | 31631 | 001 |
| LAPETEK LAVA ( faucet + bidet) chrome | 31631B | 001 |
| LAPETEK LAVA (faucet) black | 31699 | 001 |
| LAPETEK LAVA ( faucet + bidet) black | 31699B | 001 |
| LAPETEK LAVA ( faucet ) gold | 31635 | 001 |
| LAPETEK LAVA ( faucet + bidet) gold | 31635B | 001 |
| LAPETEK LETOS ( faucet ) chrome | 31731 | 001 |
| LAPETEK LETOS ( faucet + bidet ) chrome | 31731B | 001 |
| LAPETEK LETOS ( faucet ) black | 31799 | 001 |
| LAPETEK LETOS ( faucet + bidet ) black | 31799B | 001 |
| LAPETEK LETOS ( faucet ) gold | 31735 | 001 |
| LAPETEK LETOS ( faucet + bidet ) gold | 31735B | 001 |
Max 70 °C
Not included in the package

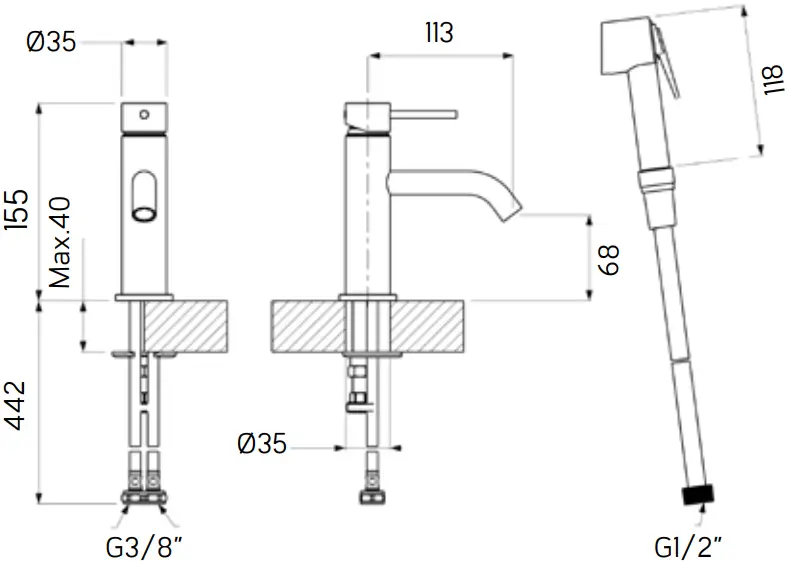

LAPETEK LAVA & LAPETEK LETOS

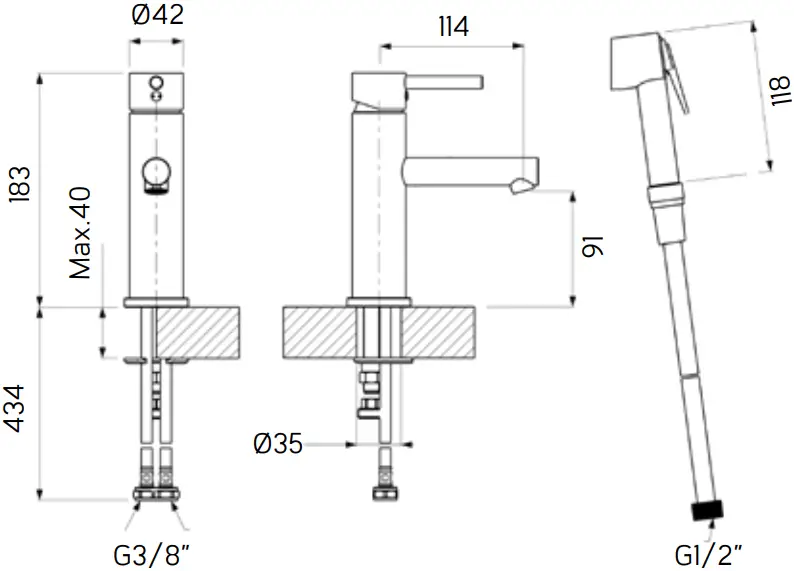

LAPETEK LAVA

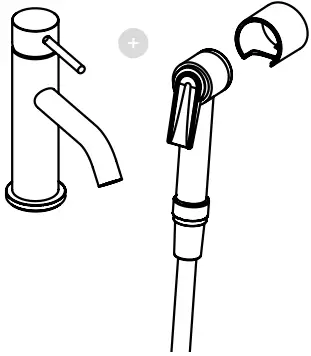

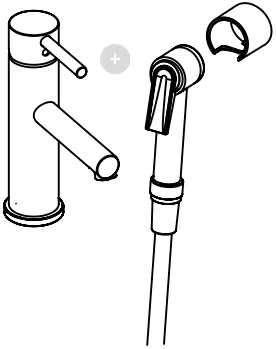

LAPETEK LAVA + BIDE
SFS-EN ISO 817
SFS-EN ISO 3822
EUFI29-22001926-TH
| Noise class | Test pressure | Operating pressure | Heat resistance |
| 1 | 1,6 MPa | max.1,0 MPa | max 70 °C |
LAPETEK LETOS
LAPETEK LETOS + BIDE
SFS-EN ISO 817
SFS-EN ISO 3822
EUFI29-22001926-TH
| Noise class | Test pressure | Operating pressure | Heat resistance |
| 1 | 1,6 MPa | max.1,0 MPa | max 70 °C |
1 2
3a 3b
4
CHANGING THE CARTRIDGE

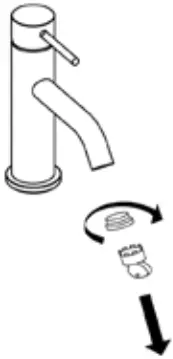

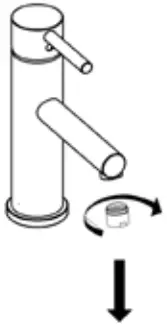

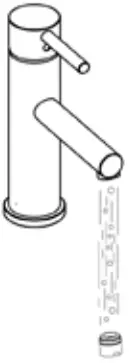

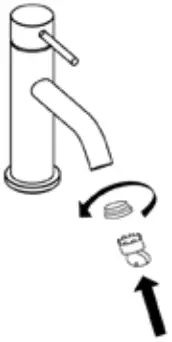

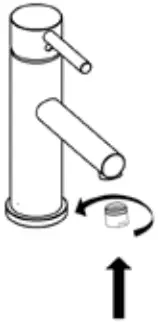

CLEANING THE AERATOR CACHE

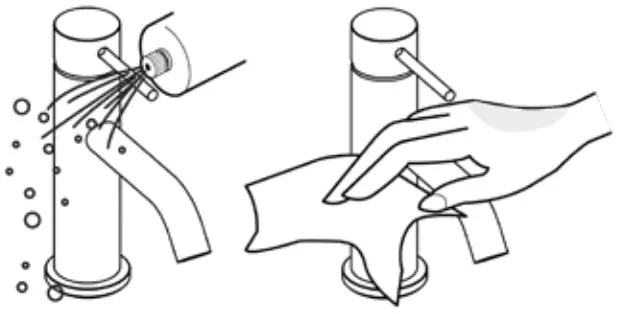

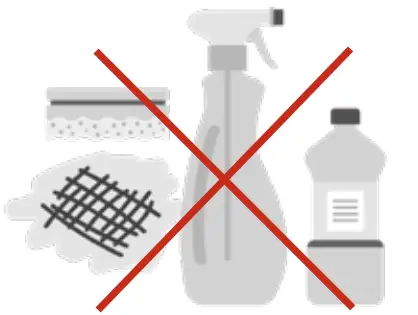

CLEANING
Alcohol

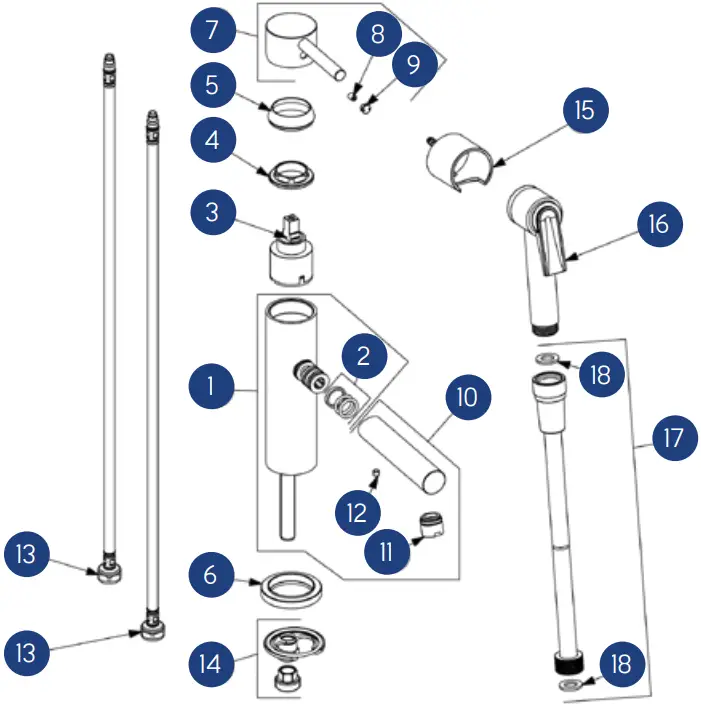

| PART-NO | CODE (XX) | PRODUCT |
| 1 | 16003451 (XX) | Lava tap body |
| 2 | 16000339 | Lava sealing set |
| 3 | 16000007 | Cartridge |
| 4 | 16000112 | Lava cartridge nut |
| 5 | 16000794 | Lava cartridge nut cover |
| 6 | 16000181 (XX) | Base cyrcus |
| 7 | 16000005 (XX) | Lava operating lever |
| 8 | 16000128 | Fixing screw |
| 9 | 16000444 (XX) | Lever plate ø 6 |
| 10 | 16001723 (XX) | Spout Lava chrome |
| 11 | 16000802 | Aerator cache |
| 12 | 16000657 | Lava spout screw |
| 13 | 16002264 | H/C water supply hose |
| 14 | 16003302 | Replacement fixing kit Letos |
| 15 | 16003445 (XX) | Bidet holder |
| 16 | 16003444 (XX) | Bidet |
| 17 | 16003446 (XX) | Bidet hose |
| 18 | 16000594 | Seal |
| 31 | Chrome |
| 99 | Black |
| 35 | Gold |

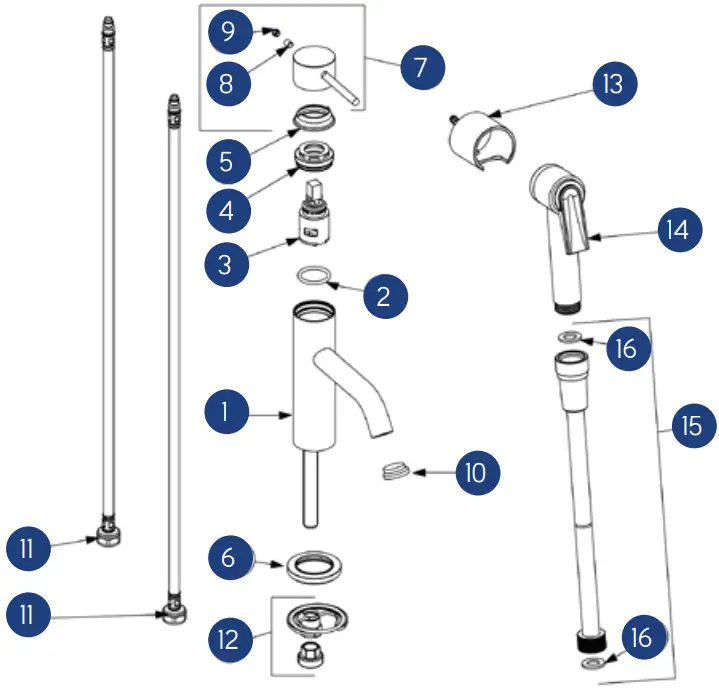

| PART-NO | CODE (XX) | PRODUCT |
| 1 | 16003330 (XX) | Letos tap body |
| 2 | 16001134 | Letos O-ring seal |
| 3 | 16002253 | Letos cartridge |
| 4 | 16001838 | Letos cartridge nut |
| 5 | 16001837 | Letos cartridge nut cover |
| 6 | 16001866 (XX) | Base cyrcus |
| 7 | 16002219 (XX) | Letos operating lever |
| 8 | 16000128 | Fixing screw |
| 9 | 16000141 (XX) | Lever plate ø 6 |
| 10 | 16002692 | Letos aerator cache |
| 11 | 16002264 | H/C water supply hose |
| 12 | 16003302 | Replacement fixing kit |
| 13 | 16003445 (XX) | Bidet holder |
| 14 | 16003444 (XX) | Bidet |
| 15 | 16003446 (XX) | Bidet hose |
| 16 | 16000594 | Seal |
| 31 | Chrome |
| 99 | Black |
| 35 | Gold |
INSTALLER SIGNED PRODUCT TEST DOCUMENT
During installation, the installer must must check the checklist below. Please note that the first checkpoints take place before the actual installation. By signing the document, the installer ensures the installation has been carried out in accordance with the installation instructions and that the faucet is functioning properly and is flawless.
| Before installation: |  |  | |
| 1. When removing the faucet from the packing check that all parts are included. Check also that the faucet has no visible surface defects / flaws / color defects / dents / scratches etc. | |||
| 2. All supply hoses are carefully fastened and tightened by hand. | |||
| 3. Check the tightness of the operating lever fixing screw. | |||
| After installation: | |||
| 4. The faucet and all its connections have been inspected and no leaks have been detected. | |||
| 5. The tightness of the joints between the bidet hose and the hand shower have been checked. | |||

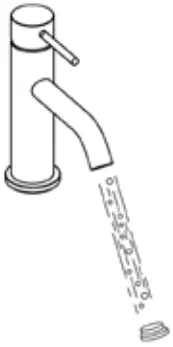

| 6. The aerator cache has been removed and water has been drained through the faucet. The aerator cache is put back in place. | |||
| 7. All functions in the faucet and hand shower have been checked and checked. | |||
- In case any of the checkpoints 1) to 7) above are not in order, the installer must immediately contact the seller/customer as well as Lapetek service at +358 9 2511 030 for further information.
- The warranty granted by Lapetek is conditional on the completion of this document and the certification of the condition of the checkpoints. A copy of the test document must be submitted with a product reclamation.
__________________ __________________
Installer’s signature Date and place
__________________ __________________
Clarification of the installer’s name Company name
CONTACT INFORMATION
Oy Lapetek Ab
www.lapetek.fi
Sales, technical support and service
[email protected]
Lapetek
