Dongguan Shangyuan Electronic H30 Active Noise Cancelling Headphones User Manual

Dongguan Shangyuan Electronic H30 Active Noise Cancelling Headphones

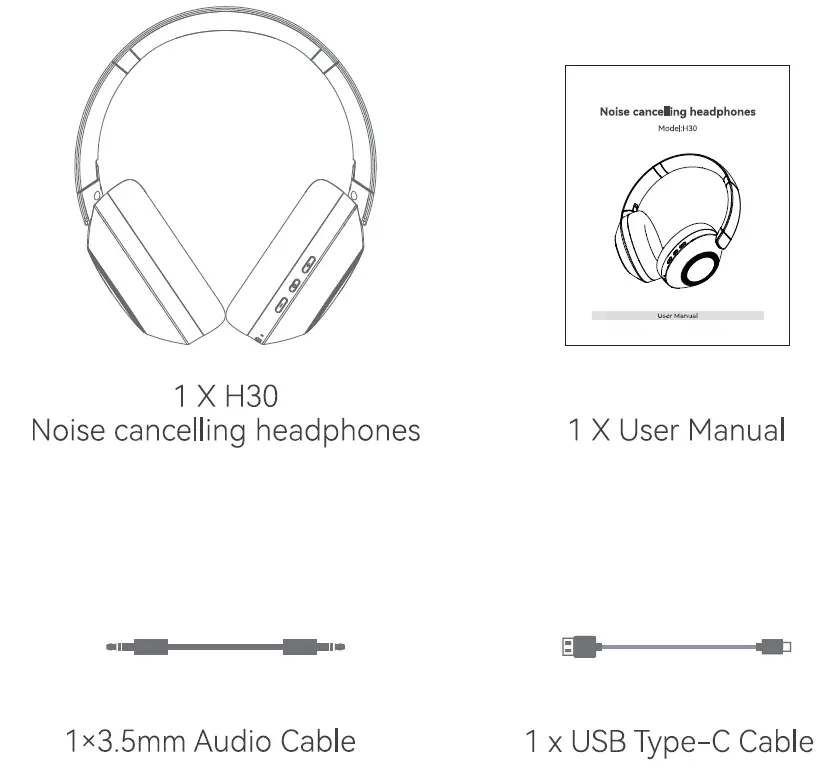

The packing accessories

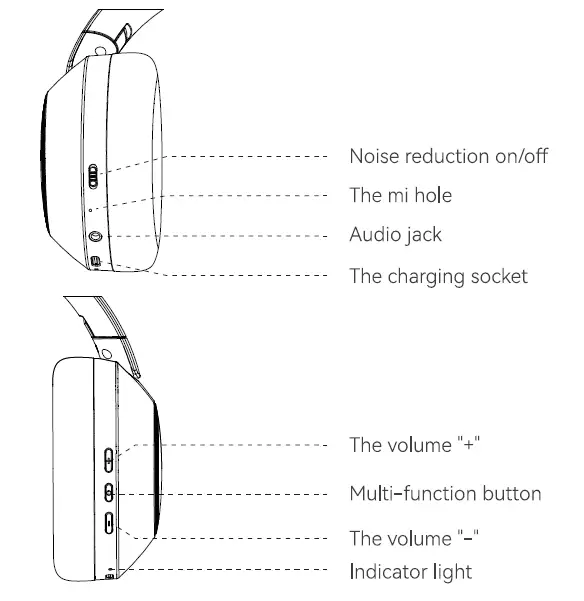

Product Features

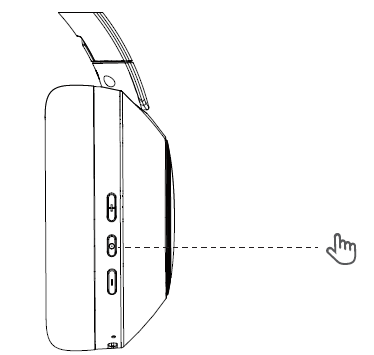

On/Off

1. The boot: Press and hold the multifunction button for 2 seconds and the LED indicator light will be blue and red after 1 second The lights blink alternately, and the headset enters the Bluetooth pairing mode.
2. To turn it off: Press and hold the multifunction button for 4 seconds, the LED indicator light will blink red twice and then go off.

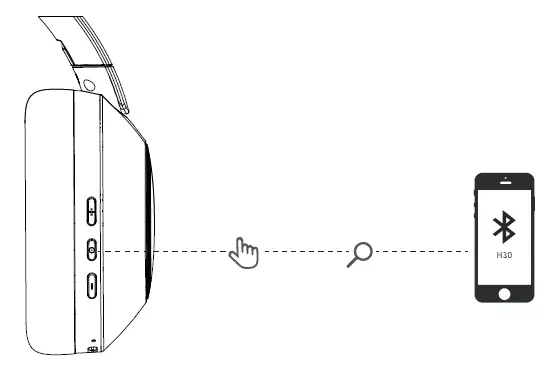

Bluetooth pairing

1. When the headset is powered and turned off, press and hold the multifunction button for 2 seconds, and the LED indicator light will be blue After 1 second, the blue and red lights blink alternately, and the headset enters the Bluetooth pairing mode
2. Enable the Bluetooth function of the mobile phone. In the device list, select “H30” Bluetooth pairing, pairing successfully can be used normally.

The noise reduction function

1. After the headset is powered on, push the noise reduction switch/key, and the headset indicator light will turn on Noise reduction mode.
2. After the headset is powered on, push the noise reduction SWitch/key, and the headphone indicator turns off Noise reduction mode

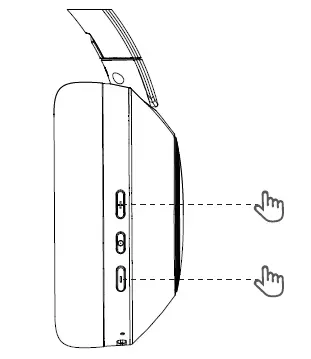

Factory data reset

Press and hold the “+” and “-” keys for 5 seconds at the same time, the headset will disconnect the Bluetooth connection and restore factory output settings. You need to turn on your phone’s Bluetooth again, and then find and select in the device list “H30” performs Bluetooth pairing and can be used normally after successful pairing

Audio features

1. When Bluetooth is connected, insert the 3.5mm audio cable, and the Bluetooth is disconnected. The headset is turned off.
2. When the headset is powered off, insert a 3.5mm audio cable to switch the audio The other end of the cable can be connected to mobile phones, computers and other devices to realize a wired Connection.

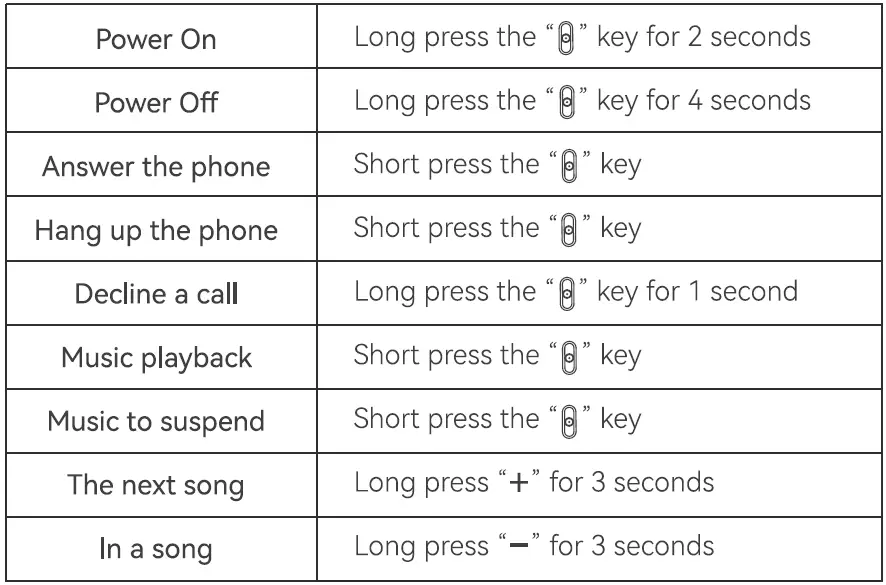

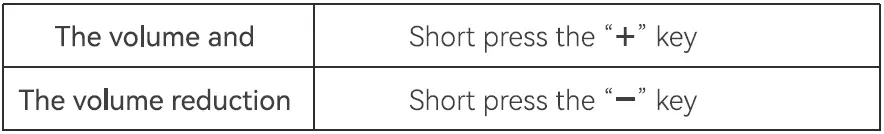

Instructions for

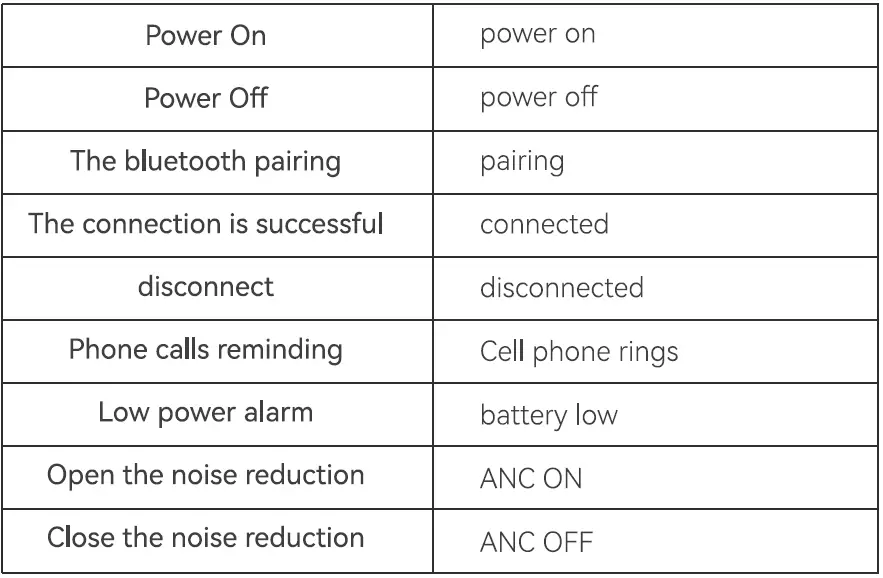

Voice prompt

Charging

1. Connect the Type-C plug of the charging cable to the Type-C port (USB) of the headset Plug into a 5V power outlet. (note: power adapter is not included).
2. When the headphone indicator is red, the headphone is charging. When the headphone is fully charged, indicate The indicator will change from red to blue.

EUBRIDGE ADVISORY GMBH
Virginia Str. 2 35510 Butzbach, Germany [email protected]

TANMET INTL BUSINESS LTD
9 Pantygraigwen Road, Pontypridd, Mid Glamorgan, CF37 2RR,UK [email protected]

Manufacturer: Dongguan Shangyuan Electronic Co., LTD
Manufacturer’s address: Building 4, Hengli Village Development Zone,
Hengli Town, Dongguan City, Guangdong Province
