GIMA 28206 Miniaspeed Battery Pro Suction Aspirators
MINIASPEED BATTERY PRO SUCTION ASPIRATORS

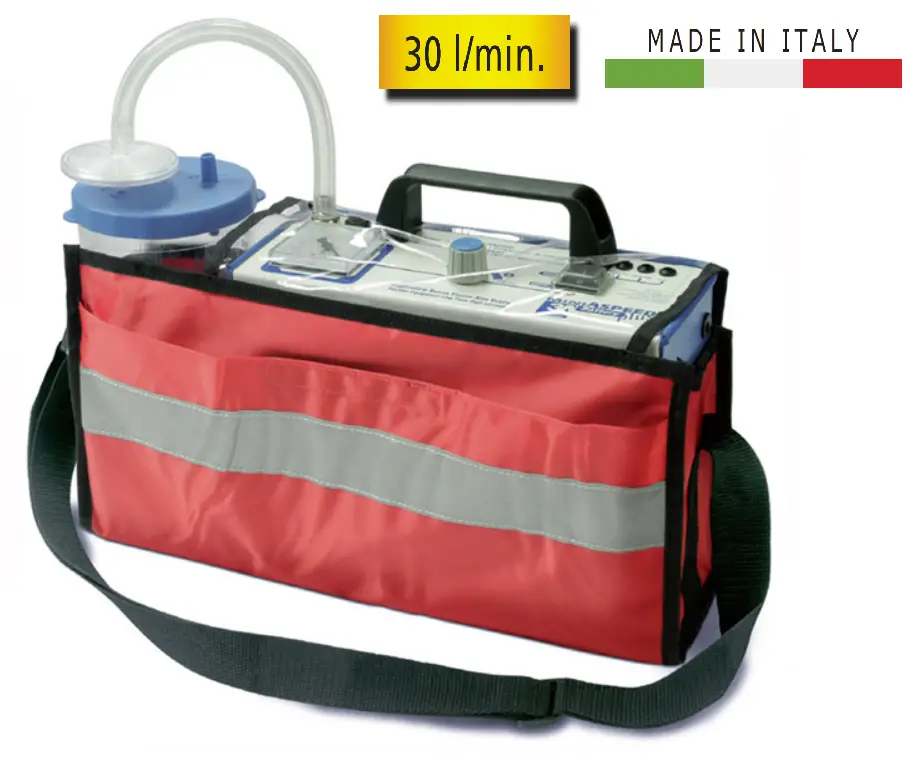

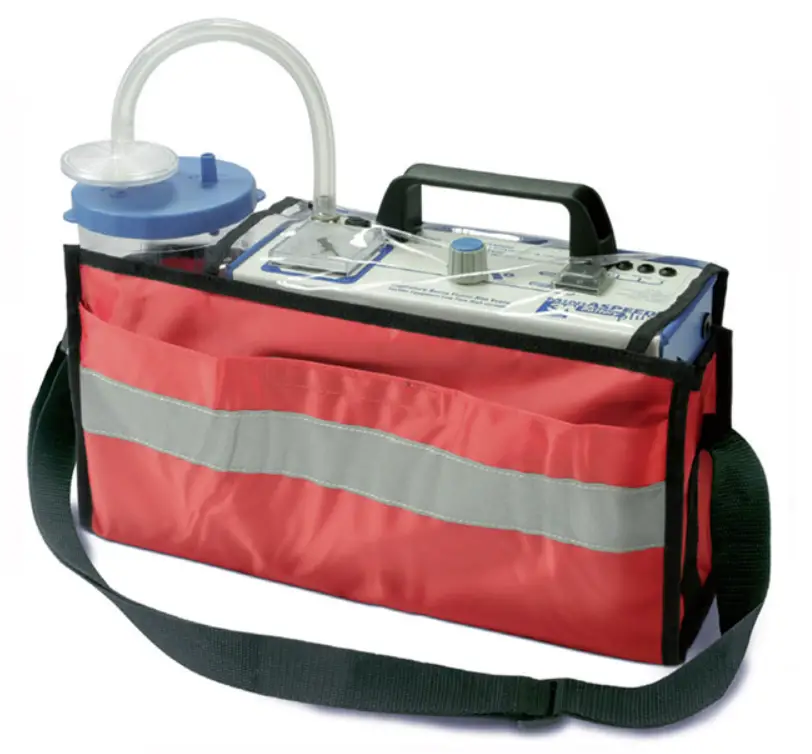

- 28206 MINIASPEED BATTERY PRO metal case – 30 l/min
High vacuum portable medical device for professional surgical aspiration.
– it can operate at 12 V (car) power supply, rechargeable batteries or directly by mains supply
– its two cylinders electro-compressor ensure high performances and long life
– up to 45 min. of autonomy with fully charged battery
– with 99% antibacterial hydrophobic filter

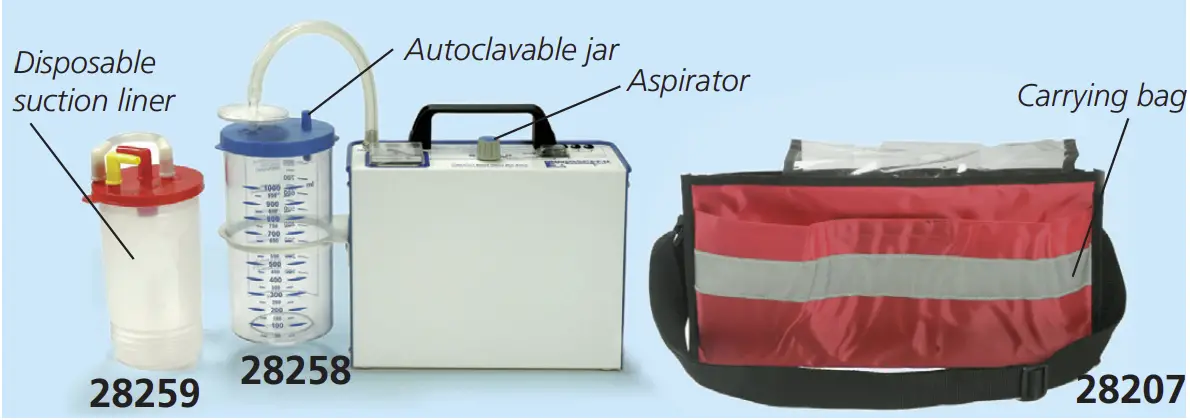

– equipped with autoclavable jar with safety valve, disposable suction liner and carrying bag. - 28207 CARRYING BAG for MiniAspeed Pro and Plus – spare
TECHNICAL SPECIFICATIONS MINI ASPEED
| Operating Voltage: | 100-240 V 50/60 Hz AC – 14 V DC 4.28 A |
| Size | 370x100x240 mm |
| Weight: | 5.8 kg (include kit) |
| Max suction: | -0.85 bar |
| Suction power: | 30 air l/min |
| Noise level: | 65 dBA |
| Norms: | MDD 93/42/ECC (class II a – annex IX) IEC 60601-1, UNI ENISO 10079-1 |
STANDARD ACCESSORIES
| Autoclavable jar 1000 cc with safety valve | Anti-bacterial hydrophobic filter Multi voltage battery charger |
| Silicone tubing set Ø 6×12 mm | Cigarette lighter power cord. |
| Disposable suction liner | Shoulder carrying bag |
| Sterile cannula | User manual (GB and IT) |

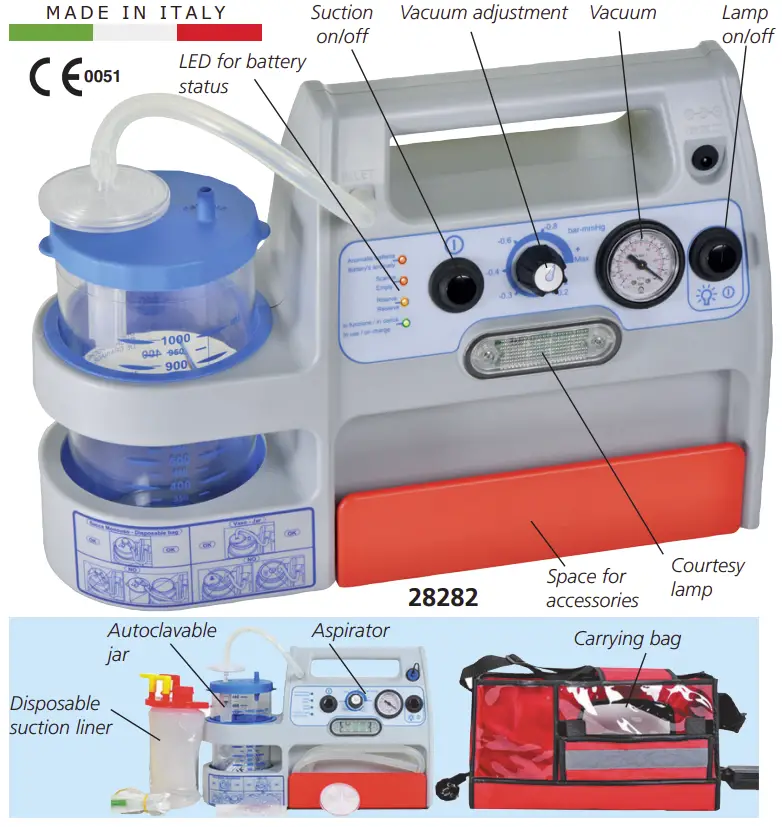

MINIASPEED BATTERY EVO PROFESSIONAL SUCTION ASPIRATORS
- 28282 MINIASPEED EVO BATTERY SUCTION – 1 l
- 28283 MINIASPEED EVO BATTERY SUCTION – 1 l for ambulance
- 28284 MINIASPEED EVO BATTERY SUCTION – 2 l
- 28278 MINIASPEED EVO BATTERY SUCTION – 2 l for ambulance
Professional portable high flow – high vacuum aspirators with integrated rechargeable batteries. It works at 12 V power supply with batteries or directly by mains supply, continuously at 110- 230 V while recharging batteries.
Up to 45 minutes of autonomy with fully charged battery.
TECHNICAL SPECIFICATIONS
| Operating voltage | with internal battery DC 12 V – 4 Ah with power supply 100÷240 V ~ 50/60 Hz – 14 VDC 4,28A |
| Power consumption: | Power consumption: |
| Battery autonomy | about 45 minutes, recharging time approx 6 hours |
| Size | 134x378xh 263 mm |
| Weight | 4.7 kg (5 kg version for ambulance) |
| Bottle capacity: | 1,000 or 2,000 ml |
| Flow | 30 air litres/min |
| Noise level: | 65 dBA at 1 m |
| Operating cycles: | continuous (45 min battery autonomy) |
| MAX vacuum: | 0 ± 85 kPa |
| Norms | MDD 93/42/EEC (Class lIa – annex IX) EN60601-1(IEC 60601-1) / EN60601-1-2 (IEC 60601-1-2) UNI EN ISO 10079-1/ UNI CEI EN ISO 14971 |
| Degree of protections against ingress of liquids: | IP34d (IEC 529) Class II – Type B |
STANDARD ACCESSORIES
| Autoclavable 1 or 2 l jar with safety valve | 2 bacterial hydrophobic filters |
| Sterile disposable cannula CH14 | User manual: GB, IT, FR, DE, ES |
| Sterile disposable manual regulator | Power supply cord – 2 m |
| Disposable silicone liner 1 l (28282-3 only) | Shoulder carrying bag |

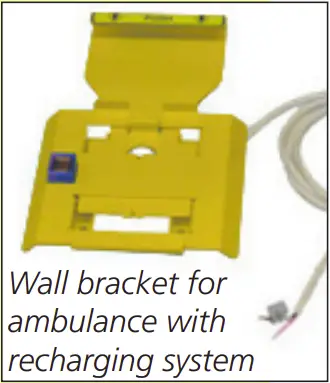

| Wall bracket for ambulance (only 28278, 28283 | Multi voltage battery charger |
| Cigarette lighter power cord (28282, 28284 only) | Silicone tubing set Ø 6×12 mm |
| Autoclavable 1 or 2 l jar with safety valve | 2 bacterial hydrophobic filters |
| Sterile disposable cannula CH14 | User manual: GB, IT, FR, DE, ES |
| Sterile disposable manual regulator | Power supply cord – 2 m |
| Disposable silicone liner 1 l (28282-3 only) | Shoulder carrying bag |
| Wall bracket for ambulance (only 28278, 28283 | Multivoltage battery charger |
| Cigarette lighter power cord (28282, 28284 only) | Silicone tubing set Ø 6×12 mm |
ACCESSORIES FOR MINIASPEED BATTERY PRO AND EVO
| GIMA code | ACCESSORIES AND SPARES FOR MINIASPEED |
| 25480 | Silicone tube 6×12 mm – roll of 30 m |
| 28254 | Adaptor for catheter |
| 28258 | Autoclavable jar 1,000 ml (with cover) |

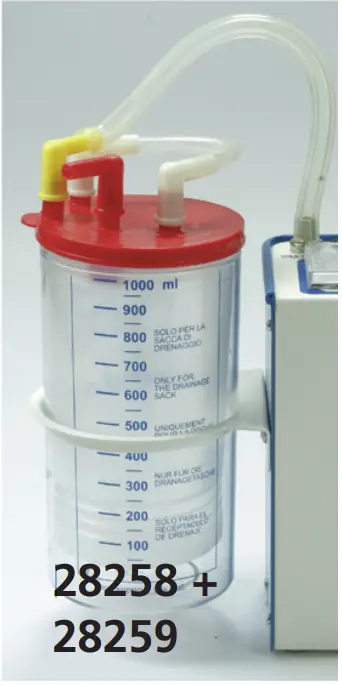

| 28259 | Disposable suction liner 1 l for use with 28258 |
| 28294 | Autoclavable jar 2,000 ml (with cover) for 28278, 28284 |
| 28255 | Hydrophobic 99% bacterial filter |
| 28153 | Cylinder 3A1062 – spare |
| 28263 | Battery |
| 28256 | Power supply with cable |
