P-1603 PAGA Alarm Control Panel
Note: This product is only available as spare part.
DESCRIPTION
- RS485 data communication with MPA 1600 Operation Unit
- 4 alarm keys marked with the text “ALARM” and red color
- Cancel key
- Protection against unauthorized use by means of time-trap functionality (the alarm keys and the cancel keys must be held for 1 sec. before activation)
- 6 LEDs indicating alarm status in each zone
- LED indicators for all keys
- Dimmable backlight and LEDs, remotely controlled from the adjacent MPA P-1601 Control Unit
- Complies with IEC 60945 Standard for Marine Equipment
- DNV-GL/ABS/RMRS/CCS/RINA type approval

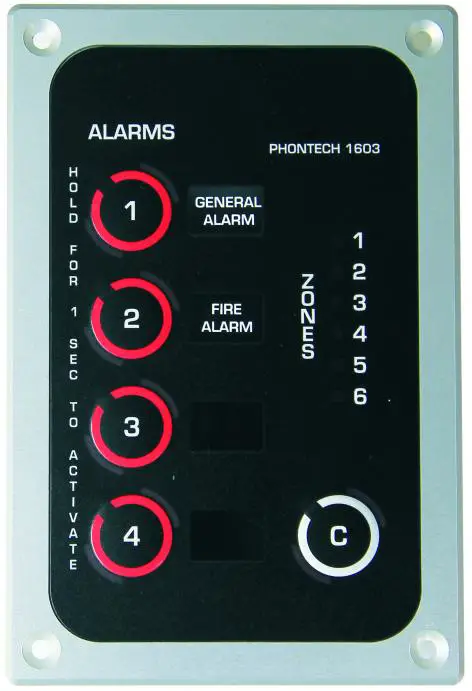

The P-1603 is a manual alarm control unit in the MPA 1600 system. It is designed for flush mounting.
SPECIFICATIONS
| MECHANICAL | |
| Dimensions (WxHxD) | 96x144x24 mm |
| Weight | 0.5 kg |
| Color | RAL 9005 / Natural |
| Material | Aluminium / Steel |
| Mounting | Console |
| Fixing | 4 x M4 bolts |
| Access | Front |
| Cable Entry | Rear |
| Cable Type | 2-pair cable, twisted pairs, min 2x2x0.5 mm2 |
| ELECTRICAL | |
| Power Supply | 24VDC from Control Rack (+/- floating) |
| Power Consumption | 2.4 W |
| Termination | Termination Block |
| Compass Safe Distance | 50 cm |
| ENVIRONMENTAL | |
| Temperature | -15°C to +55°C |
| Humidity | 20% to 80% non-condensing |
| Ingress Protection Rating | IP-44 |

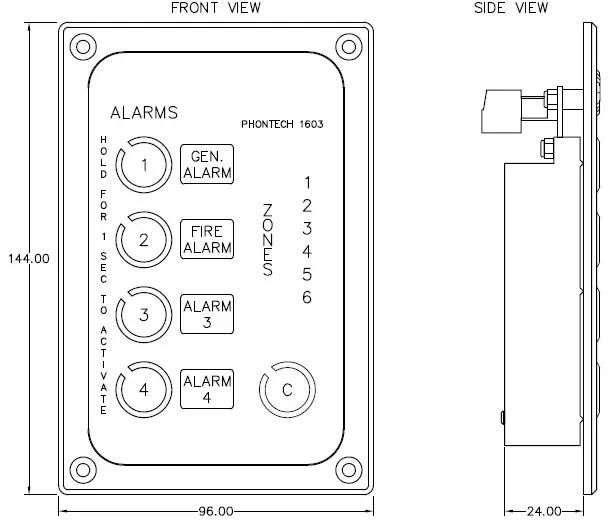

TECHNICAL DIMENSIONS
