SONY KD-85ZH8 Smart 8K Smart TV Remote Control Instruction Manual
Contents hide
MODEL LISTS
| MODE | REMOTE | DESTINATION |
| KD-75ZH | RMF-TX611E | CEI, UKA |
| KD-85ZH8 | RMF-TX611E | CEI, UKA |

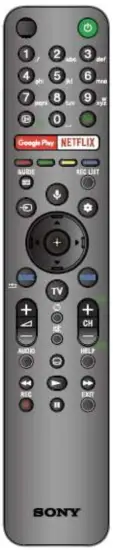

Remote RMF-TX611E
TOOLS & EQUIPMENTS
- LIST OF ITEMS TO BRING

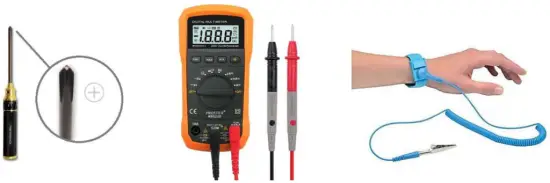

- Screwdriver (e.g. #2 Phillips Screwdriver)
- Multimeter
- ESD Wrist Straps

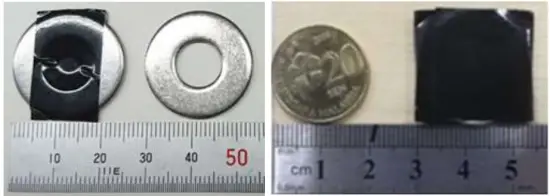

- Metal Washer (Flat) or Coin (for remove Rear Cover)

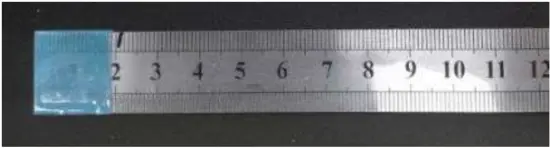

- Ruler (for remove Rear Cover)
Thickness: approx. 1.5mmDiameter: 20~25mm(wrap in tape (L=50mm))
Plastic or Metal Ruler(In case of Metal ruler, wrap in tape (L=50mm) for prevent scratches)
- OPTIONAL EQUIPMENT
- Screwdriver (e.g. #0 Phillips Screwdriver)

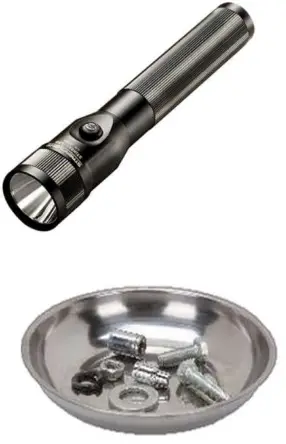

- Parts Tray for loose screws and small items
- Flashlight
For Surface Mounted Parts/Connectors;
Hot-Air Type soldering Iron is needed.

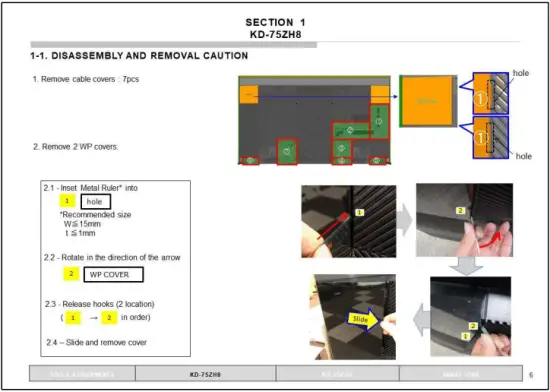

DISSASSEMBLY AND REMOVAL CAUTION 75”

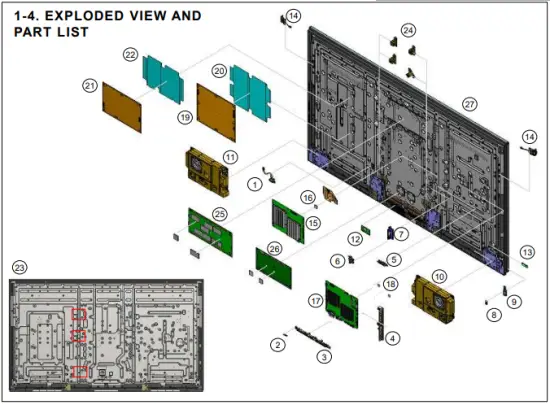

EXPLODED VIEW AND PART LIST 75”
- Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
and shaded parts are critical for safety. Replace only with part number specified.
Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced.- Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components. - Picture provided in this section might have slight difference from the actual sets.
- The reference number beside the part indicates the disassembly sequence.
- Remove screws before disassembly. Unplug connectors before disassembly
- Only on limited region / country / TV model.
Stand

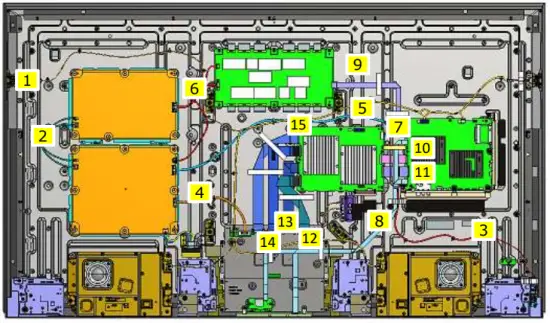

HARNESS/CABLES 75”
| REF. NO | PART NO. | DESCRIPTION | REMARKS |
| 1 | 1-007-210-11 | HARNESS ASSY (SP) | CN9005(B)-SP-PZSP-CN9002(B)(1) |
| 2 | 1-912-989-11 | CONNECTOR ASSY 2P | CN6504(PSU)-CN6502(PSU)-CN6501(PSU)-CN6503(PSU)(1) |
| 3 | 1-007-207-11 | CONNECTOR ASSY 6P (KEY) | CN1203(B)-KEY-TSA(1) |
| 4 | 1-007-211-11 | CONNECTOR ASSY 16P | CN6403(PSU)-J101(TCON)(1) |
| 5 | 1-007-208-11 | CONNECTOR ASSY 28P (PWR1) | CN6401(PSU)-CN800(B)-CN5601(ONT)(1) |
| 6 | 1-007-209-11 | CONNECTOR ASSY 28P (PWR2) | CN6402(PSU)-CN6601(PSU)-CN1000(LD)-CN1001(LD)(1) |
| 7 | 1-007-504-11 | FLEXIBLE FLAT CABLE 14P | CN9409(B)-CN5400(ONT)(1) |
| 8 | 1-007-169-11 | FLEXIBLE FLAT CABLE 20P/25P | CN4801(B)-CN1201(B)-H-BT(1) |
| 9 | 1-007-171-11 | FLEXIBLE FLAT CABLE 30P | CN8200(B)-CN1002(LD)(1) |
| 10 | 1-007-172-11 | FLEXIBLE FLAT CABLE 41P(B-ONT) | CN9200(B)-CN2401(ONT)(1) |
| 11 | 1-007-173-11 | FLEXIBLE FLAT CABLE 51P(BONT) | CN9201(B)-CN2400(ONT)(1) |
| 12 | 1-007-174-11 | FLEXIBLE FLAT CABLE 51P (OT1) | CN2600(ONT)-J102(TCON)(1) |
| 13 | 1-007-175-11 | FLEXIBLE FLAT CABLE 51P (OT2) | CN2601(ONT)-J103(TCON)(1) |
| 14 | 1-007-176-11 | FLEXIBLE FLAT CABLE 51P (OT3) | CN4600(ONT)-J104(TCON)(1) |
| 15 | 1-007-177-11 | FLEXIBLE FLAT CABLE 51P (OT4) | CN4601(ONT)-J105(TCON)(1) |
PARTS LIST 75”
SET PART LIST
REF. NO | PART NO | DESCRIPTION | REMARKS |
16  | A-5014-378-A | COMPL SVC ONTJ_NE | Printed Circuit Board, incl. capacitors |
18  | A-5014-136-A | COMPL SVC BM3J20_EUUK_NE | Printed Circuit Board, incl. capacitors |
| 20 | 1-006-774-1 | G97C(CH) – STATIC CONVERTER(TV | Internal Power Supply |
| 22 | -006-775-1 | G98C(CH) – STATIC CONVERTER(TV | Internal Power Supply |
| 27 | A-5012-963-A | 20LD288A1 COMPL | Printed Circuit Board, incl. capacitors |
| 28 | 1-007-509-11 | MOUNTED PWB E-T-CON(85) | Printed Circuit Board, incl. capacitors |
| 29 | A-5017-288-A | P-MOD (HDAS085DTU02)(SERVICE) | Liquid Crystal Display |
OTHER PARTS
| PART NO | DESCRIPTION | REMARKS |
| 1-002-007-11 | C17 AC CORD SET(SWISS) | CEI |
| 1-912-832-11 | POWER-SUPPLY CORD SET(EU) | CEI |
| 1-001-115-11 | POWER-SUPPLY CORD SET(UK) | UKA |

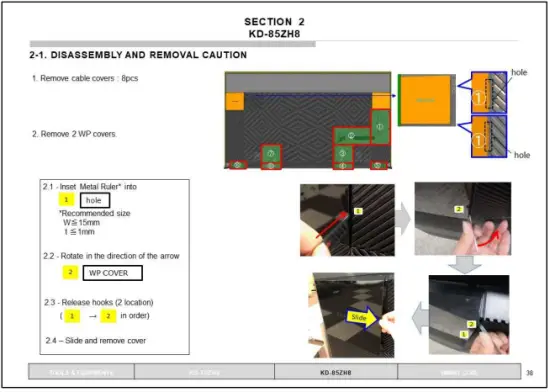

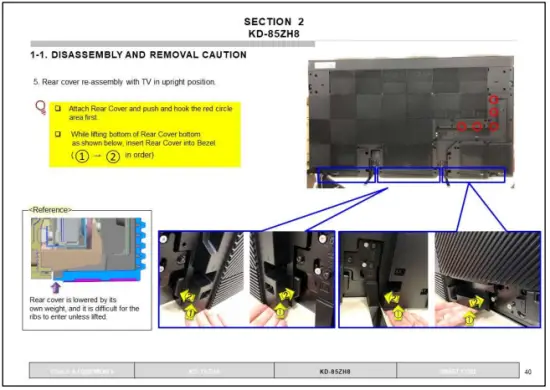

DISSASSEMBLY AND REMOVAL CAUTION 85”
- Only on limited region / country / TV model

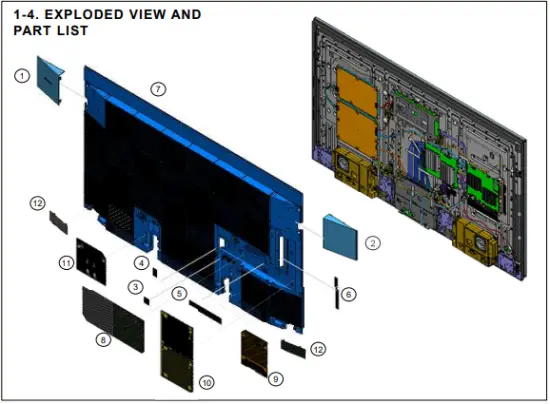

EXPLODED VIEWS 85”
- Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
- and shaded parts are critical for safety. Replace only with part number specified.
- Parts contain confidential information. Strictly follow the instruction whenever the components are repaired and/or replaced.
- Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components. - Picture provided in this section might have slight difference from the actual sets.
- The reference number beside the part indicates the disassembly sequence.
- Remove screws before disassembly. Unplug connectors before disassembly.

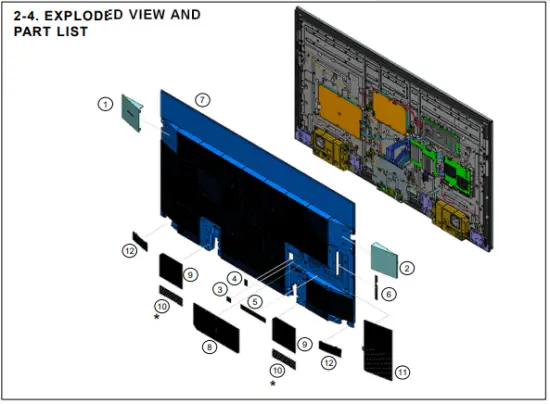

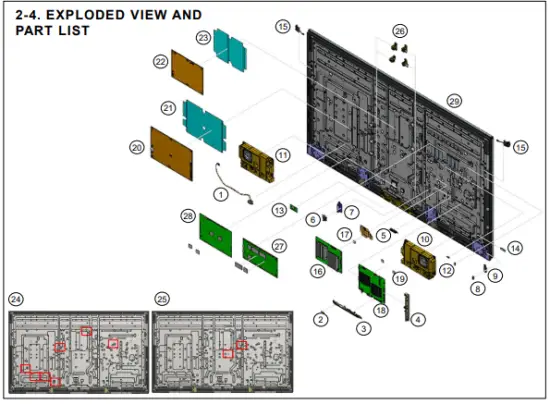

2-4. EXPLODED VIEW AND PART LIST
Stand

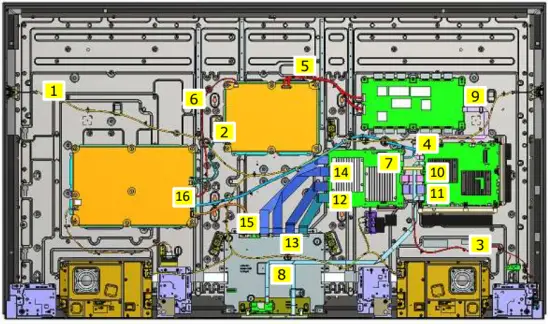

SECTION 2 KD-85ZH8
| REF. NO | PART NO. | DESCRIPTION | REMARKS |
| 1 | 1-007-215-11 | HARNESS ASSY (SP) | CN9005(B)-SP-PZSP-CN9002(B)(1) |
| 2 | 1-912-989-11 | CONNECTOR ASSY 2P | CN6504(PSU)-CN6502(PSU)-CN6501(PSU)-CN6503(PSU)(1) |
| 3 | 1-007-207-11 | CONNECTOR ASSY 6P (KEY) | CN1203(B)-KEY-TSA(1) |
| 4 | 1-007-212-11 | CONNECTOR ASSY 30P (PWR1) | CN6401(PSU)-CN800(B)-CN5601(ONT)(1) |
| 5 | 1-007-213-11 | CONNECTOR ASSY 30P (PWR2) | CN6602(PSU)-CN1004(LD)-CN1005(LD)(1) |
| 6 | 1-007-214-11 | CONNECTOR ASSY 6P (PWR3) | CN6403(PSU)-CN6603(PSU)(1) |
| 7 | 1-007-504-11 | FLEXIBLE FLAT CABLE 14P | CN9409(B)-CN5400(ONT)(1) |
| 8 | 1-007-170-11 | FLEXIBLE FLAT CABLE 20P/25P | CN4801(B)-CN1201(B)-H-BT(1) |
| 9 | 1-007-180-11 | FLEXIBLE FLAT CABLE 30P | CN8200(B)-CN1003(LD)(1) |
| 10 | 1-007-172-11 | FLEXIBLE FLAT CABLE 41P(B-ONT) | CN9200(B)-CN2401(ONT)(1) |
| 11 | 1-007-173-11 | FLEXIBLE FLAT CABLE 51P(BONT) | CN9201(B)-CN2400(ONT)(1) |
| 12 | 1-007-181-11 | FLEXIBLE FLAT CABLE 51P (OT1) | CN2600(ONT)-J102(TCON)(1) |
| 13 | 1-007-182-11 | FLEXIBLE FLAT CABLE 51P (OT2) | CN2601(ONT)-J103(TCON)(1) |
| 14 | 1-007-183-11 | FLEXIBLE FLAT CABLE 51P (OT3) | CN4600(ONT)-J104(TCON)(1) |
| 15 | 1-007-184-11 | FLEXIBLE FLAT CABLE 51P (OT4) | CN4601(ONT)-J105(TCON)(1) |
| 16 | 1-007-216-11 | CONNECTOR ASSY 20P | CN6402(PSU)-J101(TCON)(1) |
PARTS LIST 85”
SET PART LIST
REF. NO | PART NO | DESCRIPTION | REMARKS |
| 16 | A-5014-378-A | COMPL SVC ONTJ_NE | Printed Circuit Board, incl. capacitors |
| 18 | A-5014-136-A | COMPL SVC BM3J20_EUUK_NE | Printed Circuit Board, incl. capacitors |
| 20 | 1-006-774-1 | G97C(CH) – STATIC CONVERTER(TV | Internal Power Supply |
| 22 | -006-775-1 | G98C(CH) – STATIC CONVERTER(TV | Internal Power Supply |
| 27 | A-5012-963-A | 20LD288A1 COMPL | Printed Circuit Board, incl. capacitors |
| 28 | 1-007-509-11 | MOUNTED PWB E-T-CON(85) | Printed Circuit Board, incl. capacitors |
| 29 | A-5017-288-A | P-MOD (HDAS085DTU02)(SERVICE) | Liquid Crystal Display |
OTHER PARTS
PART NO | DESCRIPTION | REMARKS |
| 1-002-007-11 | C17 AC CORD SET(SWISS) | CEI |
| 1-912-832-11 | POWER-SUPPLY CORD SET(EU) | CEI |
| 1-001-115-11 | POWER-SUPPLY CORD SET(UK) | UKA |

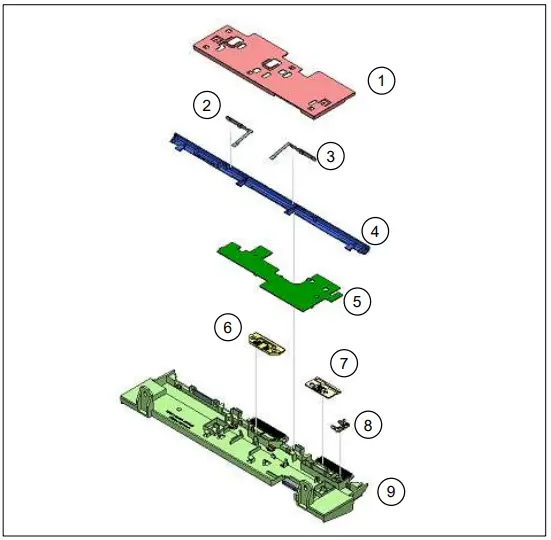

SMART CORE
PART LIST
REF. NO | PART NO. | DESCRIPTION |
| 1 | 5-009-848-01 | COVER, TOP(LMN) |
| 2 | 1-003-571-21 | FPC-MIC(R) |
| 3 | 1-003-571-11 | FPC-MIC(L) |
| 4 | 5-009-849-01 | OP, INNER (LMN) |
| 5 | A-5011-916-B | HT1_8K_MIC_CT MOUNT |
| 6 | 5-009-264-11 | LIGHT, GUIDE ILM(BNN) |
| 7 | 5-009-265-11 | LIGHT, GUIDE OPT(BNN) |
| 8 | 5-009-266-11 | LIGHT, GUIDE LED(PCH) |
| 9 | 5-009-847-01 | COVER, BTM (LMN) |
