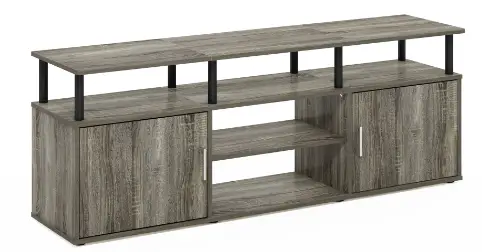

21250 Furinno Jensen TV Stand
Hardware and Parts
| NO | HARDWARE LIST | QTY |
| 1 | MINIFIX HOUSING | 12pcs |
| 2 | MINIFIX BOLT 34mm | 8pcs |
| 3 | BARREL NUT | 4pcs |
| 4 | MINIFIX BOLT 40mm | 4pcs |
| 5 | WOOD DOWEL 40mm | 12pcs |
| 6 | WOOD DOWEL 30mm | 16pcs |
| 7 | C/B SCREW 38mm | 8pcs |
| 8 | TRUSS HEAD SCREW | 64pcs |
| 9 | METAL PLATE | 8pcs |
| 10 | POWER PIN | 28pcs |
| 11 | HINGE KIT SET 11a 11b 11c (x4pcs) (x4pcs) (x4pcs) | 1set |
| 12 | U SHAPE HANDLE | 2pcs |
| 13 | HANDLE SCREW | 4pcs |
| 14 | MAGNET | 2pcs |
| 15 | FLAT HEAD SCREW | 2pcs |
| 16 | SHELF SUPPORT | 12pcs |
| 17 | SHORT POLE | 8pcs |
| 18 | MINI ROUND LEG | 8pcs |
| 19 | PVC PLUG LEG | 8pcs |

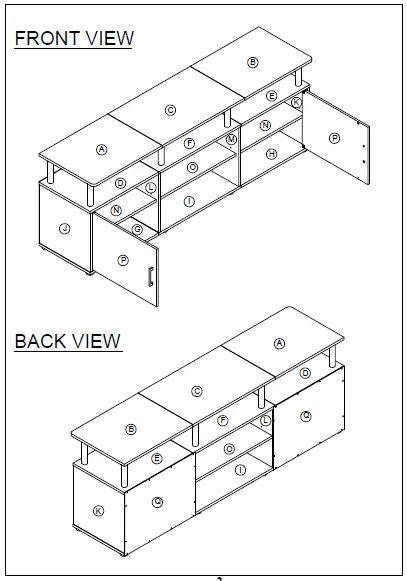

| NO | PART LIST | QTY |
| A | LEFT TOP PANEL | 1pc |
| B | RIGHT TOP PANEL | 1pc |
| C | CENTER TOP PANEL | 1pc |
| D | LEFT SHELF PANEL | 1pc |
| E | RIGHT SHELF PANEL | 1pc |
| F | CENTER SHELF PANEL | 1pc |
| G | LEFT BOTTOM PANEL | 1pc |
| H | RIGHT BOTTOM PANEL | 1pc |
| I | CENTER BOTTOM PANEL | 1pc |
| J | LEFT SIDE PANEL | 1pc |
| K | RIGHT SIDE PANEL | 1pc |
| L | LEFT CENTER SIDE PANEL | 1pc |
| M | RIGHT CENTER SIDE PANEL | 1pc |
| N | L/R SHELF PANEL | 2pcs |
| O | SHELF PANEL | 1pc |
| P | L/R DOOR | 2pcs |
| Q | BACK PANEL | 2pcs |
