MobileMark IBR1100LP6-NA Novotech Technologies Router User Manual
Instruction

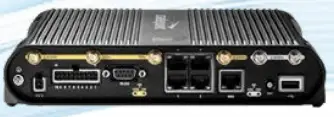

- Mobile Router

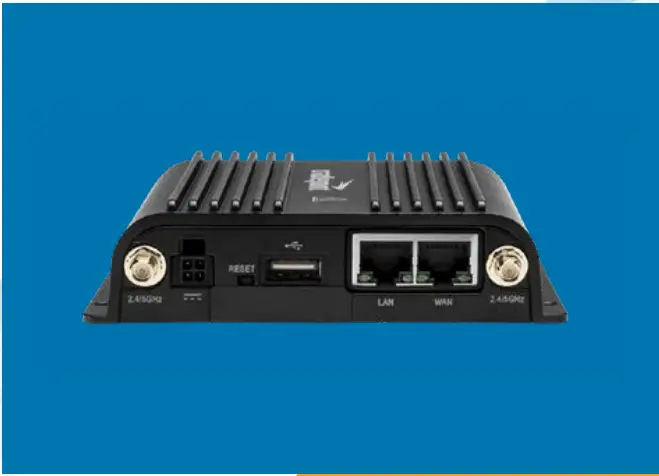

- Iot Router

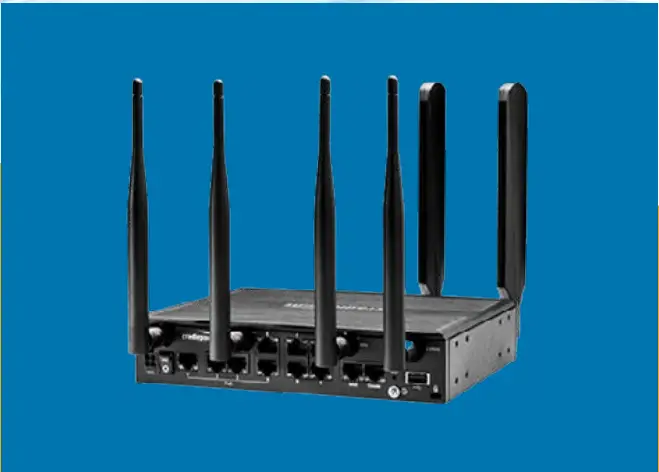

- Branch Router

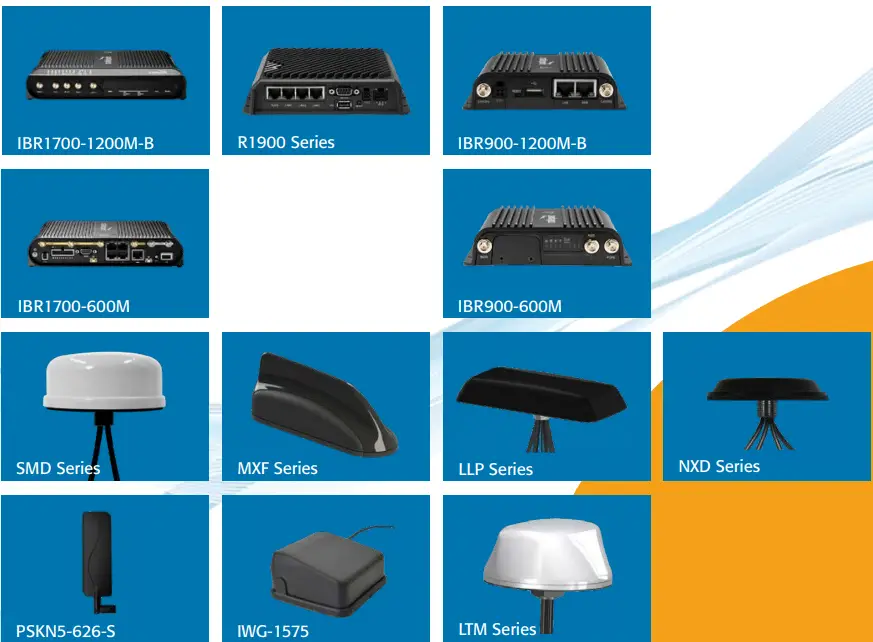

MOBILE ROUTERS
Router

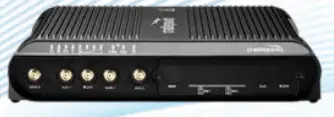

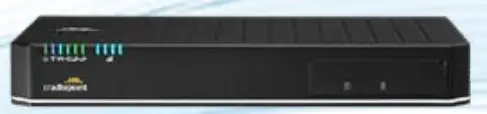

FRONT

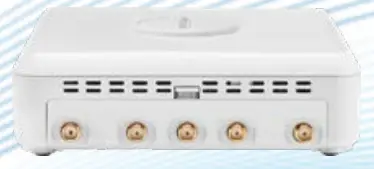

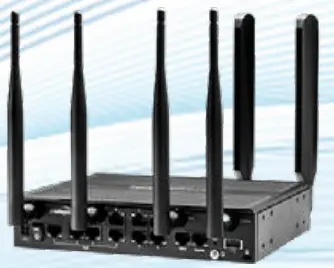

Back

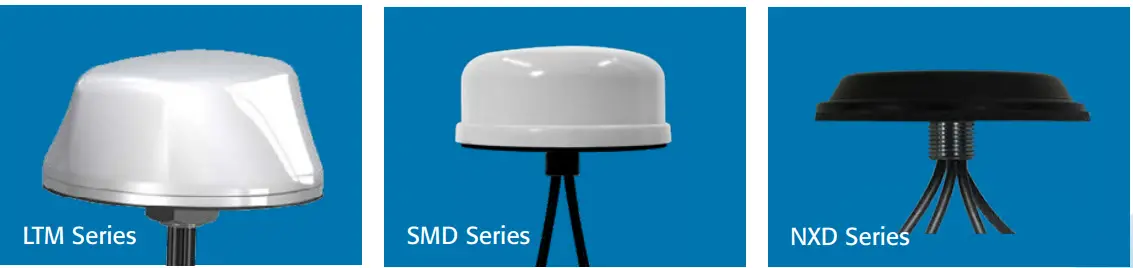

| 4G LTE & 5G Ready 617 – 6000 MHz | GNSS | WiFi 2.4 & 5 GHz Dual-band | |||||||||
| Connections: | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| Option #1 | |||||||||||

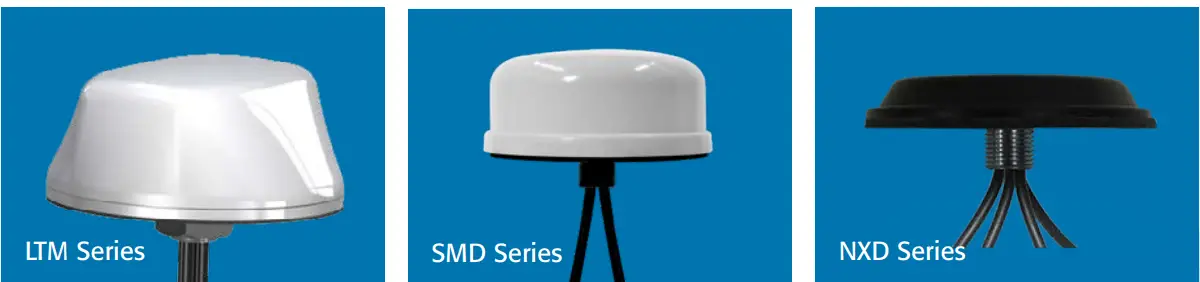

| LTMWG944-A3CB3CW3JG2C ( 4x LTE, 4x WiFi 6E, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||
| SMD-W-3J3J ( 2x WiFi ) | √ | √ | |||||||||
| Option #2 | |||||||||||
| LTMWG944-A3CB3CW3JG2C ( 4x LTE, 4x WiFi 6E, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||
| LTM404-3J3J0000 or NXD-W-7JX2 ( 2x WiFi ) | √ | √ | |||||||||
| Option #3 | |||||||||||
| LTMG708-3C3C3J3J3J3J2C ( 2x LTE, 4x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | ||||
| LTM508-3C3C3J3J00 ( 2x LTE, 2x WiFi, No GNSS ) | √ | √ | √ | √ | |||||||
| Option #4 | |||||||||||
| LTMWG942-A3CB3CW3JG2C ( 4x LTE, 2x WiFi 6E, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | ||||
| LTM404-3J3J3J3J or NXD-W-7JX4 ( 4x WiFi ) | √ | √ | √ | √ | |||||||
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA plug connectors.
WiFi antennas elements attached with LL-195 cable ( LMR-100 cable for NXD ) and Rev Pol SMA plug connectors. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & SMD radomes available in either Black or White. NXD radome available n Black. For in-vehicle WiFi coverage, mount the SMD-W or the LTM404 inside the vehicle. WiFi antennas can be mounted inside the vehicle, e.g. bus, for in-vehicle passenger iFi coverage. Mag Mount Versions Include: MSMD-W, MLTM404, MLTMG708, MLTM508
Router
FRONT

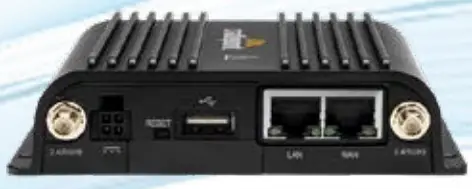

BACK
| LTE ADVANCED 694 – 3700 MHz | GNSS | WiFi 2.4 & 5 GHz Dual-band | |||||||
| Connections: | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| Option #1 | |||||||||
| LTMG702-3C3C3J3J3J3J2C ( 2x LTE, 4x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | ||
| SMD-W-3J3J ( 2x WiFi ) | √ | √ | |||||||
| Option #2 | |||||||||
| LTMG702-3C3C3J3J3J3J2C ( 2x LTE, 4x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | ||
| LTM404-3J3J0000 or NXD-W-7JX2 ( 2x WiFi ) | √ | √ | |||||||
| Option #3 | |||||||||
| LTMG502-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ | ||||
| LTM404-3J3J3J3J or NXD-W-7JX4 ( 4x WiFi ) | √ | √ | √ | √ | |||||
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA plug connectors.
WiFi antennas elements attached with LL-195 cable ( LMR-100 cable for NXD ) and Rev Pol SMA plug connectors. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & SMD radomes available in either Black or White. NXD radome available in Black. For in-vehicle WiFi coverage, mount the SMD-W or the LTM404 inside the vehicle. WiFi antennas can be mounted inside the vehicle, e.g. bus, for in-vehicle assenger iFi coverage. Mag Mount Versions Include: MSMD-W, MLTM404, MLTMG502.
Router
FRONT
BACK
| 4G LTE & 5G Ready 617 – 6000 MHz | GNSS | WiFi 2.4 & 5 GHz Dual-band | |||
| Connections: | 1 | 2 | 3 | 4 | 5 |
| Option #1 | |||||

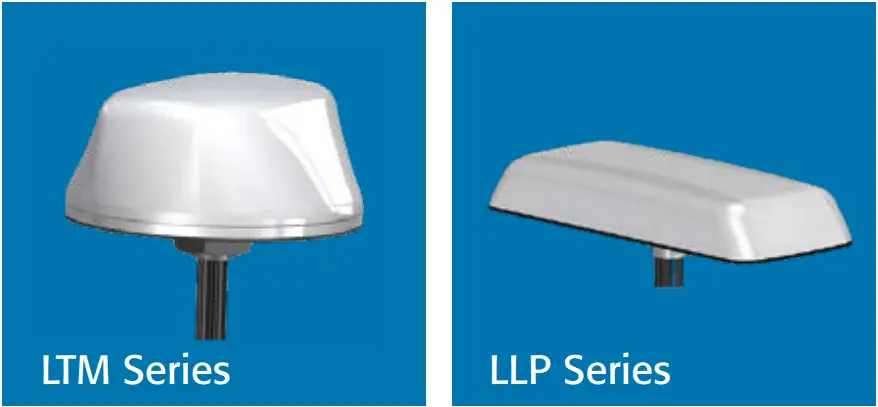

| LTMG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #2 | |||||
| LLPG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA plug connectors.
WiFi antennas elements attached with LL-195 cable and Rev Pol SMA plug connectors. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & LLP radomes available in either Black or White. Mag Mount Versions Include: MLPG508, MLTMG508
Router
FRONT
BACK

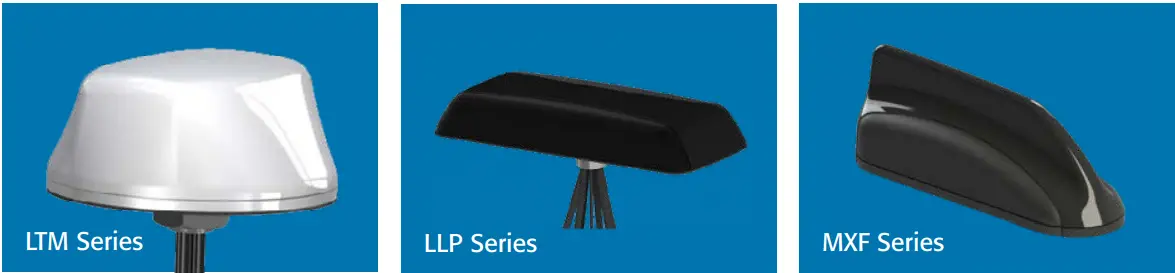

| LTE ADVANCED 694 – 3700 MHz | GNSS | WiFi 2.4 & 5 GHz Dual-band | |||
| Connections: | 1 | 2 | 3 | 4 | 5 |
| Option #1 | |||||

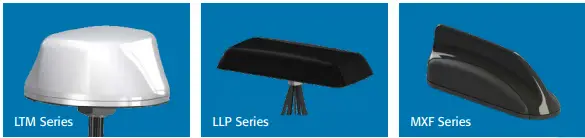

| LTMG502-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #2 | |||||
| LLPG502-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #3 | |||||
| MXFG502-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA plug connectors.
WiFi antennas elements attached with LL-195 cable and Rev Pol SMA plug connectors. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & SMD radomes available in either Black or White. MXF radome available lack. Mag Mount Versions Include: MLTMG502, MLPG502, MMXFG502
Router
FRONT

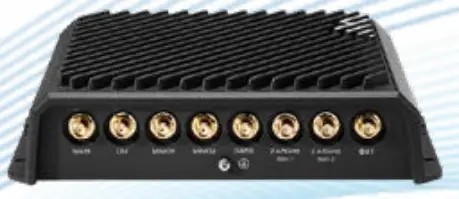

BACK
| 4G LTE & 5G-Ready617-6000 MHz | GNSS | WiFi 2.4 & 7.125 GHzDual-band | 2.4 GHz Bluetooth | |||||
| Connections: | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
| Option #1 | ||||||||
| LTMWG943-A3CB3CW3JG2C ( 4x 5G LTE, 3x WiFi 6E, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | √ |
| Option #2 | ||||||||
| LLPG608-3C3C3J3J3J2C ( 2x 5G LTE, 3x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ | √ | ||
| LLP308-3C3C00 ( 2x 5G LTE ) | √ | √ | ||||||
| Option #3 | ||||||||
| LTMWG940-A3CB3C00G2C ( 4x 5G LTE & 1x GNSS ) | √ | √ | √ | √ | √ | |||
| NXD-W-7CX3 ( 3x WiFi ) | √ | √ | √ | |||||
| Option #4 | ||||||||
| LTMG608-3C3C3J3J3J2C ( 2x 5G LTE, 3x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ | √ | ||
| LTM308-3C3C00 ( 2x 5G LTE ) | √ | √ | ||||||
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA plug connectors, coverage from 617 – 6000 MHz. WiFi antennas elements attached with LL-195 cable and Rev Pol SMA plug connectors, coverage on 2.4-2.5 GHz / 4.9-7.125 GHz. Please Note, that one of the WiFi connections will be used for Bluetooth at 2.4 GHz. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & LLP radomes available in either Black or White. NXD-W radome is vailable in Black. Mag Mount Models Include: MLPG608, MLPG308, MLTMG608, & MLTM308

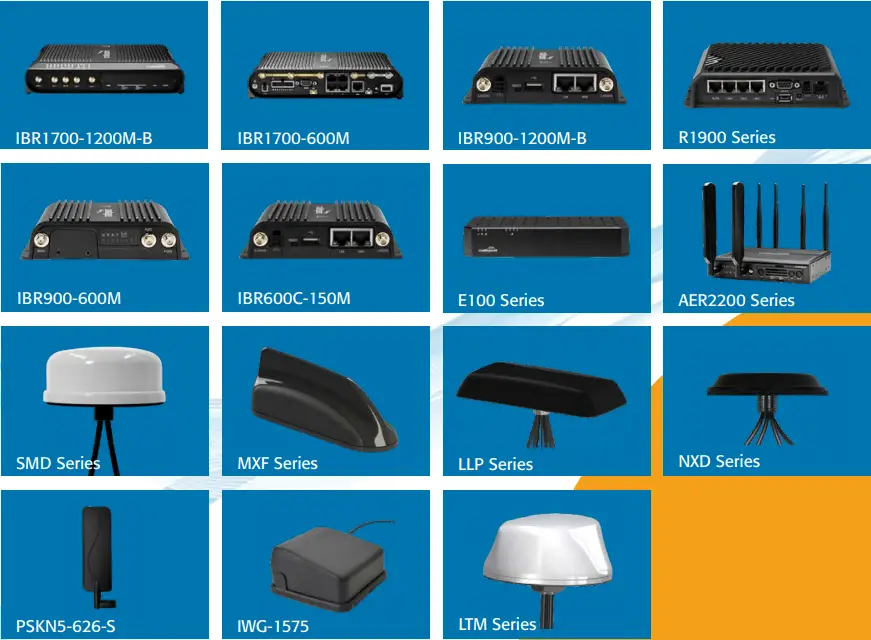

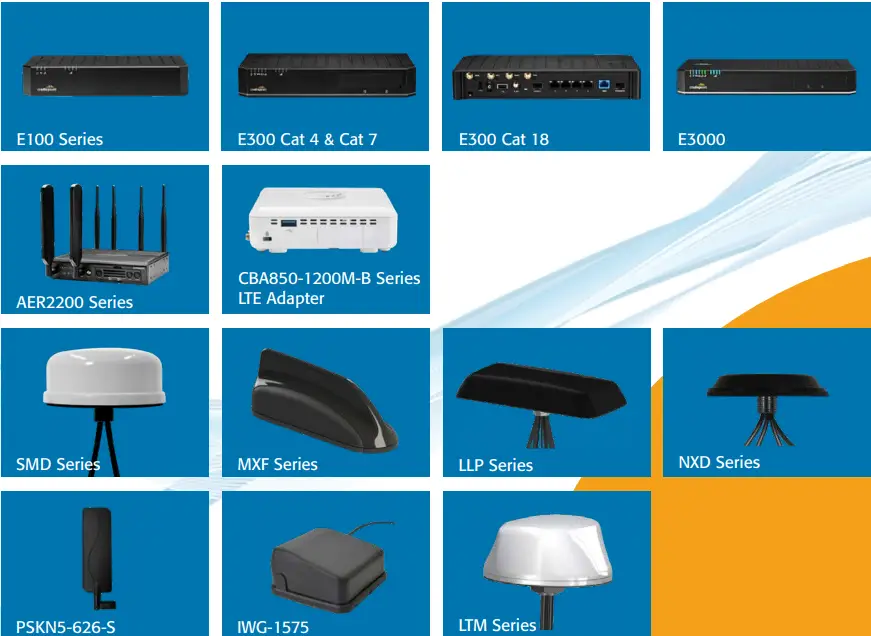

Routers
Routers

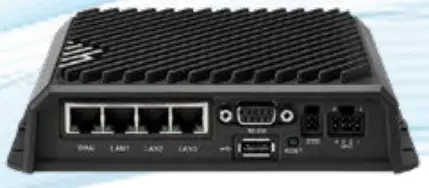

FRONT
BACK
| 4G LTE & 5G Ready 617 – 6000 MHz | GNSS | WiFi 2.4 & 5 GHz Dual-band | |||
| Connections: | 1 | 2 | 3 | 4 | 5 |
| Option #1 | |||||
| LTMG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #2 | |||||
| LLPG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA plug connectors.
WiFi antennas elements attached with LL-195 cable and Rev Pol SMA plug connectors. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & LLP radomes available in either Black or White. MXF radome available in Black. Mag Mount Versions Include: MLTMG502, MLPG502, MMXFG502
ROUTER
FRONT
BACK
| LTE ADVANCED 694 – 3700 MHz | GNSS | WiFi 2.4 & 5 GHz Dual-band | |||
| Connections: | 1 | 2 | 3 | 4 | 5 |
| Option #1 | |||||
| LTMG502-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #2 | |||||
| LLPG502-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #3 | |||||
| MXFG502-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA plug connectors.
WiFi antennas elements attached with LL-195 cable and Rev Pol SMA plug connectors.GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & LLP radomes available in either Black or White. MXF radome available in ack. Mag Mount Versions Include: MLTMG502, MLPG502, MMXFG502

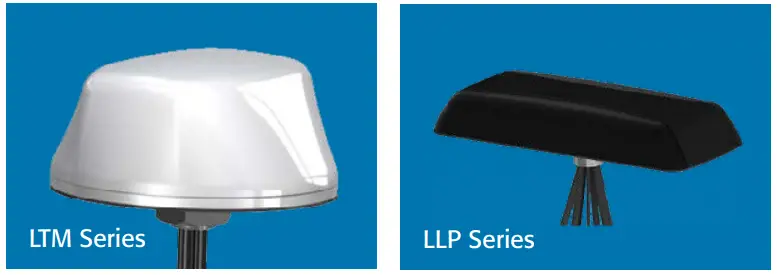

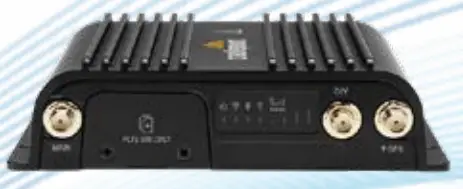

Routers
FRONT

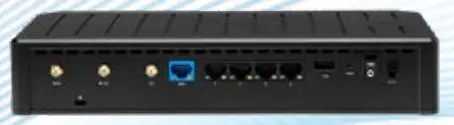

BACK
| Cellular LTE 746 – 2155 MHz | WiFi 2.4 & 5 GHz Dual-band | Passive GNSS | ||
| Connections: | 1 | 2 | 3 | Internal |
| Option #1 | ||||
| LTM402-3C3C3J00 ( 2x LTE & 1x WiFi ) 694 – 3700 MHz | √ | √ | √ | |
| Option #2 | ||||
| LLP402-3C3C3J00 ( 2x LTE & 1x WiFi ) 694 – 3700 MHz | √ | √ | √ | |
| Option #3 | ||||
| MXF402-3C3C3J00 ( 2x LTE & 1x WiFi ) 694 – 3700 MHz | √ | √ | √ | |
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA plug connectors.
WiFi antennas elements attached with LL-195 cable and Rev Pol SMA plug connectors. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & LLP radomes available in either Black or White. CVW radome is available Black. Mag Mount Versions Include: MLTMG508 & MLPG508.
ROUTERS
ROUTER
ROUTER

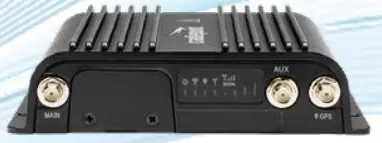

BACK
FRONT
| 4G LTE & 5G-Ready617-6000 MHz | GNSS | WiFi 2.4 & 5 GHz Dual-band | |||
| Connections: | 1 | 2 | 3 | 4 | 5 |
| Option #1 | |||||
| LTMG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #2 | |||||
| LLPG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #3 | |||||
| MXFG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA Plug connectors, coverage from 617 – 6000 MHz. WiFi antenna elements attached with LL-195 and Rev Pol SMA Plug connectors. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & LLP radomes available in either Black or White.

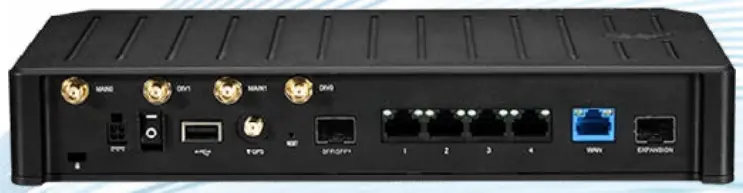

E300 Series Cat 4 & 7 Router
| Advanced LTE 3400 – 3800 MHz | GNSS | WiFi 2.4 & 5 GHz Dual-band | |||
| Connections: | 1 | 2 | 3 | 4 | 5 |
| Option #1 | |||||
| LTMG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #2 | |||||
| LLPG508-3C3C3J3J2C ( 2x LTE, 2x WiFi, 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #3 | |||||
| CVWG509-3C3C3J3J2C ( 2x LTE, 2x WiFi 6E, 1x GNSS ) | √ | √ | √ | √ | √ |
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA Plug connectors, coverage from 617 – 6000 MHz. SKN5-626-S provides an SMA Plug Connection and a Reverse Polarity Option is Available. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length ically 15-feet but can be specified. LTM, LLP, MXF radomes available in either ck or White. PSKN -626 & IWG-1575 radomes are available in Black.Mag Mount Models Include: MLTG308, MLPG308, MMXFG308 Antenna Matches above for Cradlepoint E300 Series Cat 4 & Cat 7. These outers provide an internal WiFi Element.

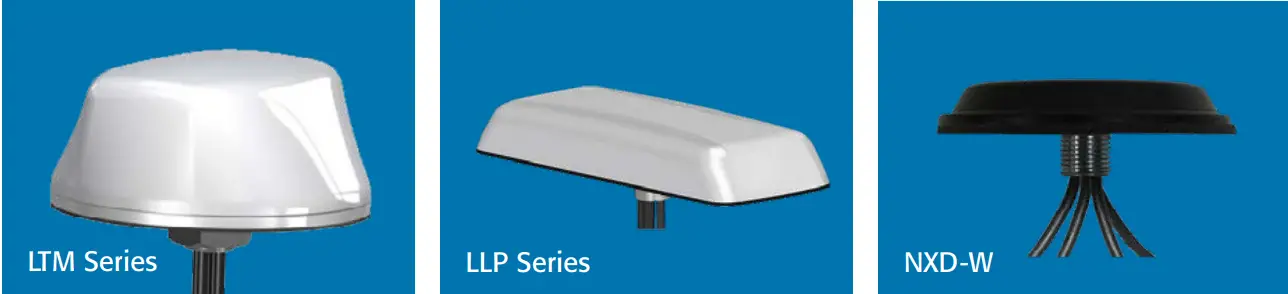

Router
| 4G LTE & 5G-Ready617-6000 MHz | GNSS | ||||
| Connections: | 1 | 2 | 3 | 4 | 5 |
| Option #1 | |||||
| LTMWG940-A3CB3C00G2C ( 4x 5G FR1 Sub-6 & 1x GNSS ) | √ | √ | √ | √ | √ |
| Option #2 | |||||
| LLPG308-3C3C2C ( 2x 5G LTE & 1x GNSS ) | √ | √ | √ | ||
| LLP308-3C3C00 ( 2x 5G LTE ) | √ | √ | |||
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA Plug connectors, coverage from 617 – 6000 MHz. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM & LLP radomes available in either Black or White. Antenna Matches above for Cradlepoint E300 Series Cat 18. These Routers Povide an internal WiFi Element

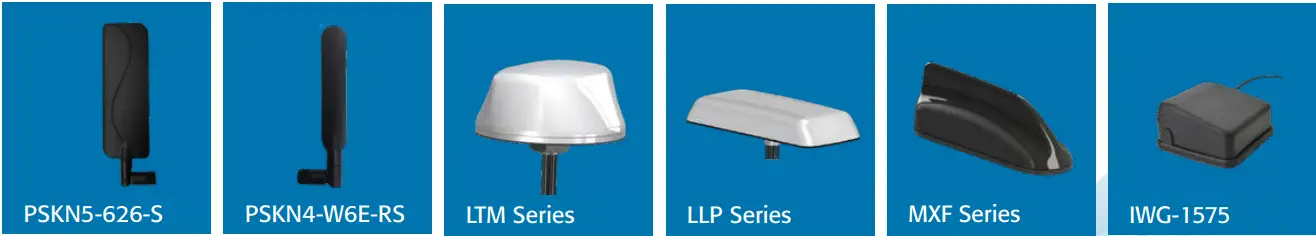

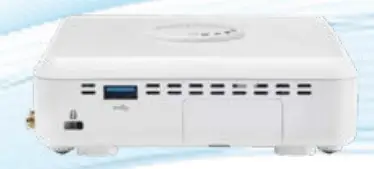

Router

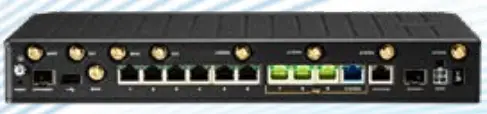

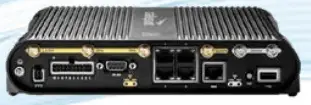

Back
| 4G LTE & 5G-Ready617-6000 MHz | GNSS | WiFi 2.4/5 GHz | WiFi 5 GHz | OPTIONAL Removable Modem: MC400-600M | ||||||
| Connections: | 1 | 2 | 3 | 4 | 5 | 6 | 7 | LTE | LTE | GNSS |
| Option #1 – with Optional Removable Modem | ||||||||||
| LTMWG944-A3CB3CW3JG2C ( 4x 5G LTE, 4x WiFi 6E, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| IWG-1575-2C (1x GNSS ) | √ | |||||||||
| Option #2 – Without Optional Removable Modem | ||||||||||
| LLPG709-3C3C3J3J3J3J2C ( 2x 5G LTE, 4x WiFi 6E, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | |||
| Option #3 – Without Optional Removable Modem | ||||||||||
| LTMG708-3C3C3J3J3J3J2C ( 2x 5G LTE, 4x WiFi 6, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | |||
| Option #4 – Without Optional Removable Modem | ||||||||||
| MXFG708-3C3C3J3J3J3J2C ( 2x 5G LTE, 4x WiFi 6, 1x GNSS ) | √ | √ | √ | √ | √ | √ | √ | |||
| Option #5 – Without Optional Removable Modem & NO GNSS | ||||||||||
| 2x PSKN5-626-S ( 2x 5G LTE ) | √ | √ | ||||||||
| 4x PSKN4-W6E-RS ( 4x WiFi 6E ) | √ | √ | √ | √ | ||||||
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA Plug connectors; coverage from 617 – 6000 MHz. WiFi antenna elements attached with LL-195 cable and Reverse Polarity SMA Plug Connectors; WiFi 6E Coverage up to 7.125 GHz. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. PSKN Device Antennas directly screw in. LTM, LLP, MXF radomes available in either Black or White. PSKN & IWG-1575 radomes are available in Black.

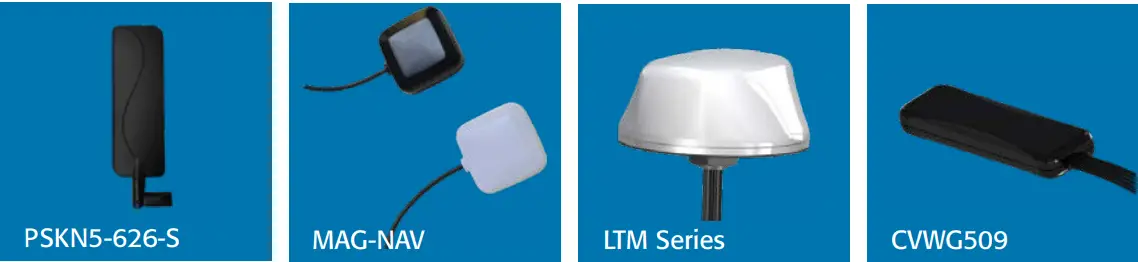

Lite Adapter
BACK
Front
| 4x MIMO LTE Advanced 617 – 2690 MHz | GNSS | ||||
| Connections: | 1 | 2 | 3 | 4 | 5 |
| Option #1 | |||||

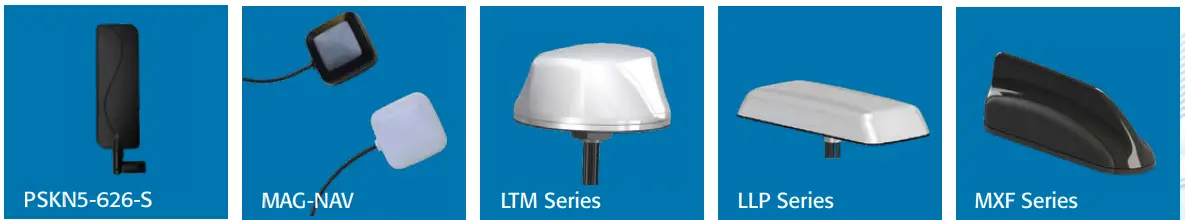

| PSKN5-626-S ( Single Element Device Antenna ) 617 – 6000 MHz | √ | ||||
| PSKN5-626-S ( Single Element Device Antenna ) 617 – 6000 MHz | √ | ||||
| PSKN5-626-S ( Single Element Device Antenna ) 617 – 6000 MHz | √ | ||||
| PSKN5-626-S ( Single Element Device Antenna ) 617 – 6000 MHz | √ | ||||
| MAG-NAV-2C ( GNSS ) 1561, 1575, & 1602 MHz | √ | ||||
| Option #2 | |||||
| LTMWG940-A3CB3C00G2C ( 4x 5G R1 Sub-6 & GNSS ) 617 – 6000 MHz | √ | √ | √ | √ | √ |
| Option #3 | |||||
| CVWG509-7C7C002C ( 2x 5G FR1 Sub-6 ) 617 – 6000 MHz | √ | √ | √ | ||
| CVW309-7C7C00 ( 2x 5G FR1 Sub-6 ) 617 – 6000 MHz | √ | √ | |||
Router

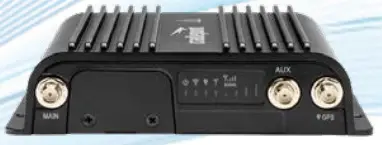

Back

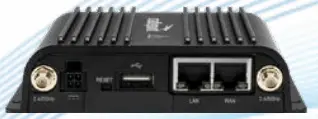

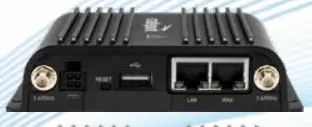

Front
| 4G LTE & 5G-Ready617-6000 MHz | GNSS | ||
| Connections: | 1 | 2 | 3 |
| Option #1 | |||
| PSKN5-626-S ( Single Element Device Antenna ) | √ | ||
| PSKN5-626-S ( Single Element Device Antenna ) | √ | ||
| MAG-NAV-2C ( Single Element Glass Mount ) | √ | ||
| Option #2 | |||
| LTMG308-3C3C2C ( 2x 5G LTE &1x GNSS ) | √ | √ | √ |
| Option #3 | |||
| LLPG308-3C3C2C ( 2x 5G LTE &1x GNSS ) | √ | √ | √ |
| Option #4 | |||
| MXFG308-3C3C2C ( 2x 5G LTE &1x GNSS ) | √ | √ | √ |
ANTENNA CONNECTION NOTES:
Cellular antenna elements attached with LL-195 cable and SMA Plug connectors, coverage from 617 – 6000 MHz. PSKN5-626-S provides an SMA Plug Connection. The MAG-NAV provides 10 Feet of Cable, But Custom Lengths are Available. GNSS antenna element attached with RG-174 cable and SMA Plug. Cable length typically 15-feet but can be specified. LTM, LLP, MXF & MAG-NAV radomes available in either Black or White. PSKN5-626 is available in Black. Mag Mount Models Include: MLTG308, LPG308, MMXFG308
Routers
