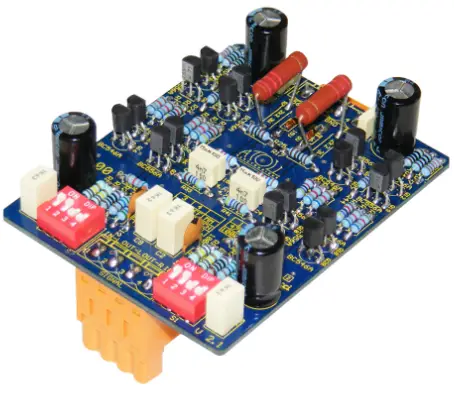

Atoll Electronique P50 - P100 Phono Boards Instruction Manual

ATOLL ELECTRONIQUE P50 – P100 Phono Boards

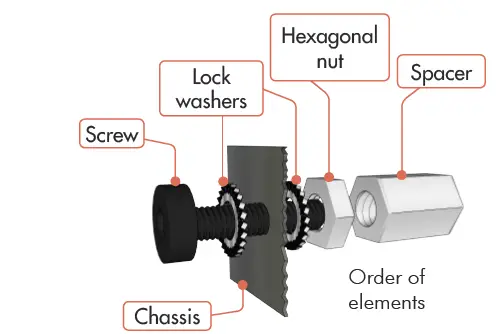

Screw the ground material on the chassis

• The hole is near the AUX input.
• Place a lock washer on either side of the chassis then tighten the nut up with a spanner to ensure good electrical contact.
• Then screw the column with your fingers.

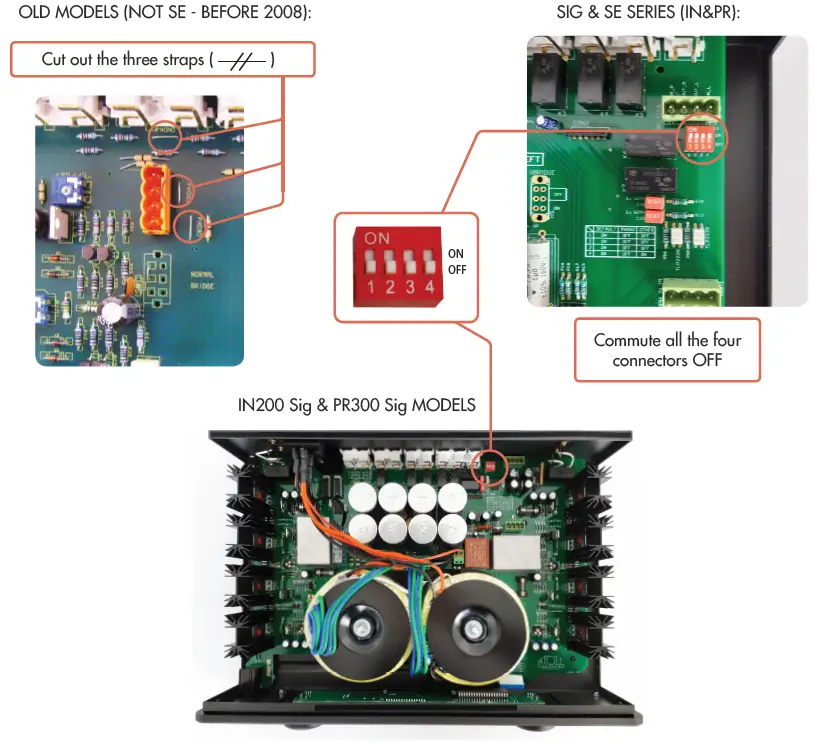

Preparation on main board

1. Place the phono stage on the orange connectors of the main board. (Only one way possible).
2. Important: the phono input is an AUX input. (Phono on display).
