 Safety Precautions

WARNING: Safety Instructions
Do not place the monitor in a rain, humid environment or open the monitor case to avoid any shock, electrical hazards, and/or mechanical hazards.

Operation

• Keep the monitor out of direct sunlight and away from stoves or any other heat source.
• Keep the monitor out of the water source
• Remove any object that could fall into ventilation holes or prevent proper cooling of the monitor’s electronics.
• Do not block the ventilation holes.
• Do not knock or drop the monitor during operation or transportation.

Maintenance Guidelines

CAUTION
Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

Caring for Your Monitor

• To clean your screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air. Use a slightly
• dampened, warm cloth to clean the frame. Avoid using detergent of any kind as some detergents might leave a milky film on the plastics.
• Unplug the monitor if you are not going to use it for an extended period of time.
• To avoid the risk of shock or permanent damage to the set, do not expose the monitor to dust, rain, water, or excessive moisture environment. If your monitor gets wet, wipe it with dry cloth as soon as possible.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

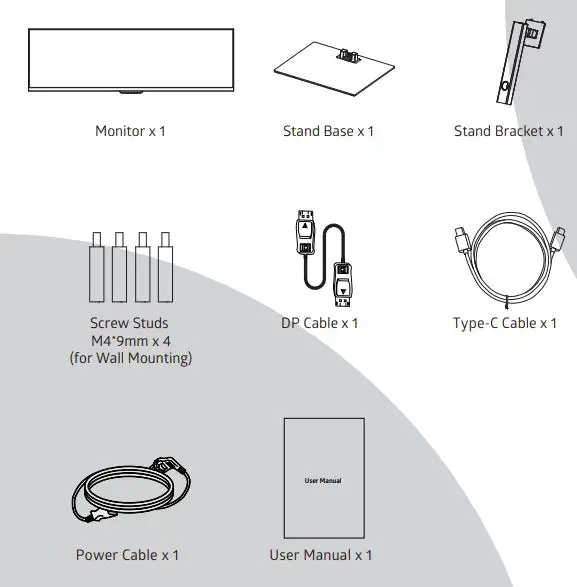

Box Contents

 Product Overview

Monitor Buttons

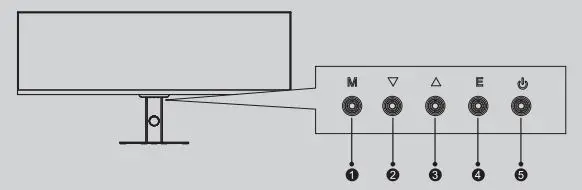

1. M Menu Button: Press to display the OSD menu or enter sub-menus.
2. Down Button: Press to move down in the menus or adjust brightness.
3. Up Button: Press to move up in the menus or adjust contrast.
   E Exit Button: Press to exit or select input signal.
4. Power Button: Press to turn the monitor on/off.

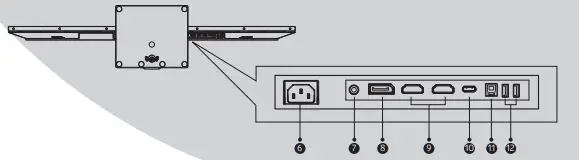

5. Power Connector: Insert the power adapter to supply power to the monitor.

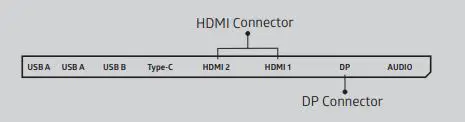

6. HDMI Connectors: Insert one end of the HDMI cable into the computer’s HDMI output and connect the other end to the monitor’s HDMI port.
7. DP Connector: Insert one end of the DP cable into the computer’s DP output and connect the other end to the monitor’s DP port.
8. Audio Output: Insert one end of the Audio cable into the computer’s Audio output to receive the Audio signals from your monitor.
9. Type-C: Connect to this monitor from your compatible computer using an Type-C cable to receive a high-quality digital video signal.
10. The Type-C interface can also be used as an external power supply to your mobile phone.
11.  USB B: Obtain a USB Type B to USB Type A up-link cable and connect the Type B end to the back of the monitor and the other end to the back of the computer’s USB port.
12. USB A: Connect any USB device.

Stand Installation

Keep the styrfoam underneath the monitor before attaching the stand.

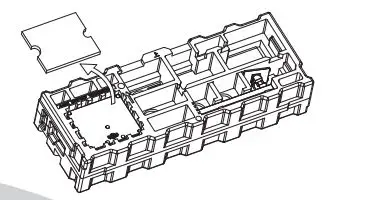

1.  Open the package, take out the styrofoam and place it on a horizontal table. Take out the fixed base EPE.
2.  Remove the upper styrofoam, take out the monitor bag, and put the monitor into the original lower styrofoam.

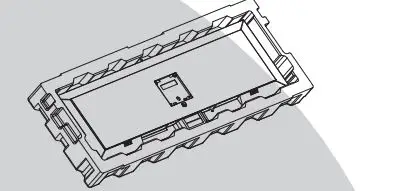

3.  Take out the bracket and the base, and lock them with the M6*L8 hand screw that comes with the base.

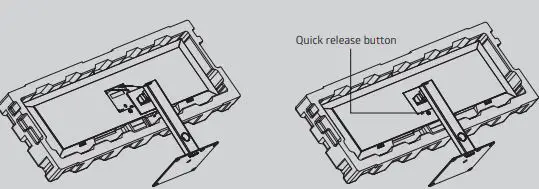

4.  Insert the hook at the front end of the lifting bracket shaft diagonally into the rear shell bayonet, and gently press the tail end perpendicular to the surface of the rear shell, so that the lock of the lifting bracket can be buckled to the quick release button of the rear shell, and the quick-release button has a return. The bounce action means that the tail end has also been stuck in place.

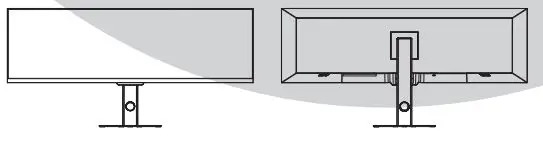

5.  Grasp the bracket with your hands to stand up the machine. (note: during the process of erecting the machine, the machine is still in the lower styrofoam without taking it out, please do not pinch the screen directly with your hands to prevent the screen from breaking)

Wall Mounting

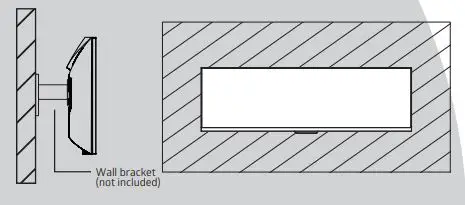

This monitor only includes screws that may be used when attaching the monitor to a VESA 100*100mm type mount. No VESA mount or mounting accessory is included.

1.  Open the package, take out the styrofoam and place it on a horizontal table. Take out the fixed base EPE. Remove the upper styrofoam, take out the monitor bag, and put the monitor into the original lower styrofoam. Remove the four screws in the middle of the back of the rear case of the whole machine.

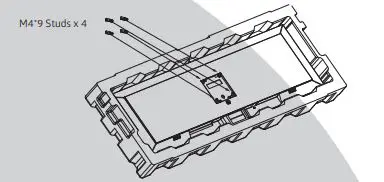

2.  Find 4 (M4*9) studs from the accessories, lock them in the threaded holes of the bracket, and lock them with a flat-blade screwdriver.
3.  Do not pinch the screen directly with your hands while hanging the product to prevent the screen from breaking.

Connectivity Options

 Connecting the Power Cable

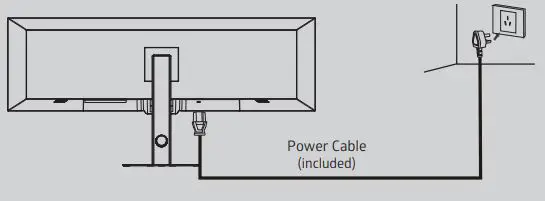

Connect the included power cable to the power connector, and then plug the other end into an wall outlet.

 Connecting Your Earphones

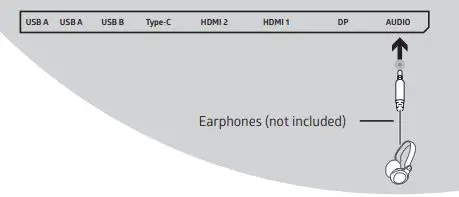

Plugin your earphones to receive audio signals from your monitor. If your earphones are connected to the monitor and audio devices are connected to your computer at the same time, the audio devices will not produce sound. Earphones and other audio devices not included.

Exposure to loud audio for prolonged periods of time may permanently damage your hearing.

 Connecting Type-C

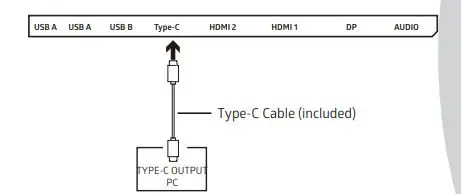

Connect to this monitor from your compatible computer using an Type-C cable to receive a high-quality digital video signal. The Type-C interface can also be used as an external power supply to your mobile phone.

 DP Connectivity
In order for the monitor to receive DP signals from the computer，use the DP cable to connect the monitor to the computer.

 HDMI Connectivity

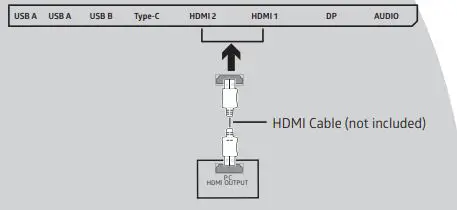

In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.

Basic Operation

1.  Insert one end of the DP cable into your PC’s graphics card. A HDMI cable or Type-C cable may also be used.
2. Connect the other end of the cable to the corresponding connector on your monitor.
3.  Connect the power cable to your monitor then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.
4.  Locate the power button on the monitor and press it to turn the monitor on.

Adaptive-Sync
This feature is off by default. To activate, you must have hardware with Adaptive-Sync capability, a DP or HDMI cable, and the latest graphic drivers. After connecting your computer and monitor with a DP or HDMI cable, you may receive a prompt to enable the feature on your computer. If you do not, you may need to enable the function in your graphics card menu. See your graphics card manufacturer’s documentation for instructions.

 Indicator Light

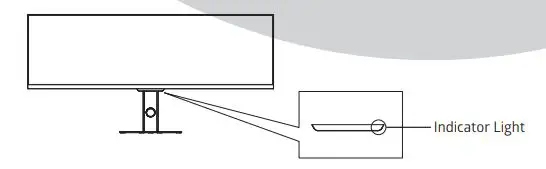

Solid blue light indicates power is on and the monitor is operating normally. Flashing blue light indicates no video source, no horizontal or vertical signal has been detected or power is low.Please ensure your computer is on and all video cables are fully inserted and/or connected.

 OSD

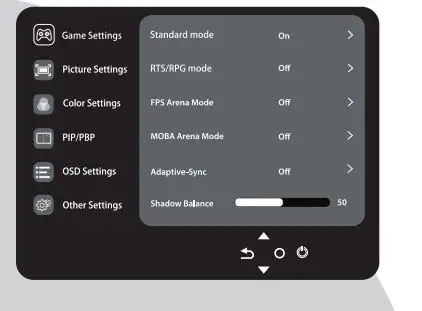

The On-Screen Display ( OSD ) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button. When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc.

1.  Press one of the buttons ( ) to activate the navigation window.
2. Press M ( ) to enter the OSD screen.
3.  Press or browse function.
   Select the desired function and press M to enter the submenu.
   Press or browse the submenu, and then press M to confirm the selection of the desired function.
   Press or select an option, then press M to confirm the settings and exit the current menu.
4.  Press E to exit the menu interface

OSD Menu Functions

Display Mode and Game plus Switching

1.  Press one of the buttons ( ) to activate the navigation window.
2.  Press the button to adjust the brightness, you can adjust the brightness of the display according to your needs.
3.  Press the button to adjust the contrast, you can adjust the contrast of the display according to your needs.

 Technical Specifications
