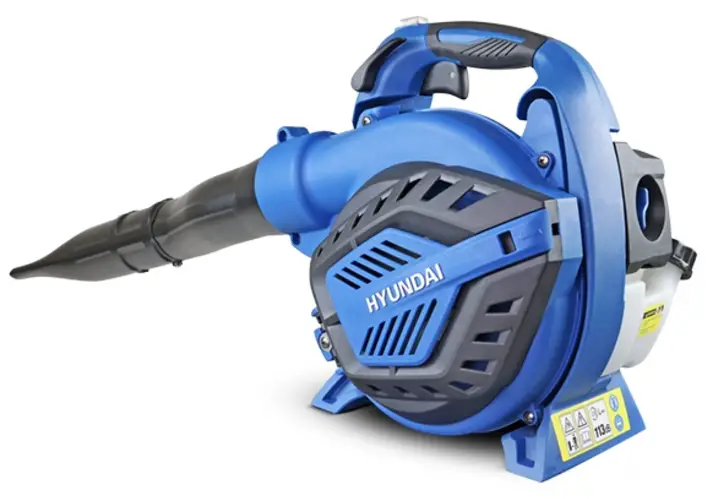

Hyundai 57203 Leaf Collector Instruction Manual

BLADBLAZER/-ZUIGER
57203
Instruction manual

57203 Leaf Collector

WARNING
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury. Save all warnings and instructions for future reference.

SAFETY WARNINGS

When using the machine, always observe the enclosed safety warnings as well as the additional safety warnings.
The following symbols are used throughout this manual:
Denotes risk of personal injury or damage to the machine.
The following pictograms are shown on the appliance:

	Read all safety warnings and all instructions.
	Keep children and bystanders away.
	Keep the cord away from heat, oil, sharp edges, or moving parts.
	Before performing maintenance on the appliance, always unplug the appliance.
	Do not use the appliance in precipitation or in humid surroundings.
	Take measures to protect hearing.
	Wear safety glasses.
	Keep your hands away from sharp parts.

ADDITIONAL SAFETY INSTRUCTIONS FOR LEAF BLOWERS/VACUUMS

• Leaf blowers/vacuums must not be used by children or untrained persons.
• Never aim the airflow at people or animals.
• Make sure that the openings are not blocked.
• Only use the appliance for blowing and vacuuming leaves and small debris.
• Never place the appliance on the sand, gravel, or any similar ground while it is switched on.

ELECTRICAL SAFETY

Always check that the power supply corresponds to the voltage on the rating plate.

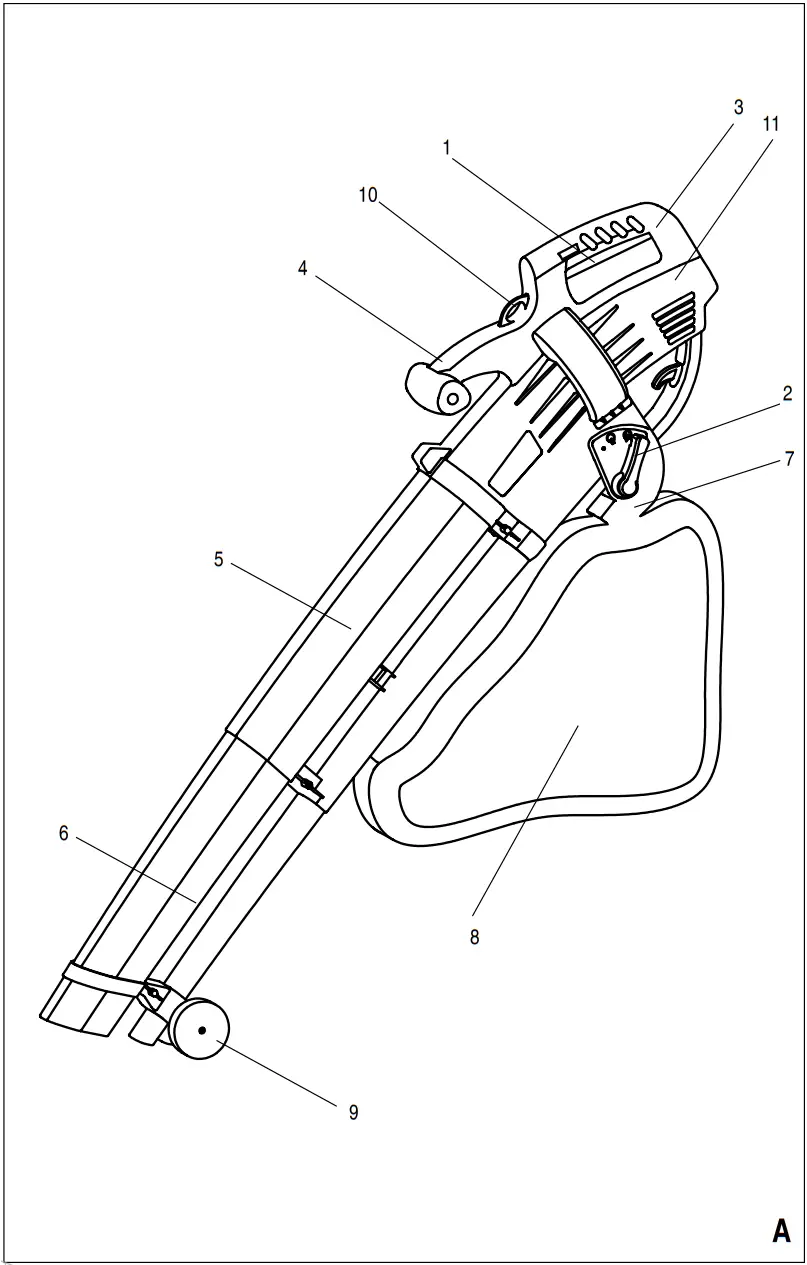

DESCRIPTION (fig. A)

Your leaf blower/vacuum has been designed for blowing and vacuuming leaves and dirt.

1. On/off switch
2. Operating mode switch
3. Main handle
4. Guide handle
5. Upper tube set
6. Lower tube set
7. Collection bag connection
8. Collection bag
9. Wheels
10. Connection carrying strap
11. Motor housing

Package contents

The package contains the following parts:

• Leaf blower/vacuum
• Suction/blow tube set
• Collection bag
• Carrying strap
• Wheels guide set
• 2 screws
• Instruction manual
• Safety warnings
• Guarantee and service

ASSEMBLING

• Slide the lower tube (6) into the upper tube (5) and lock the lower tube with the screw on the upper tube.
• Slide the upper tube into the motor housing (11) and fasten it with two screws.
• Slide the opening of the collection bag over the collection bag connection (7) and hook the bag to the lower tube (6).
• Hook the strap onto the attachment point (10).
  The carrying strap must be worn around the shoulder during use to achieve a good balance.
• Slide the wheel guide set over both tubes and fix it with the screw.

Instructions for use

• Connect the appliance to a suitable extension cord.
• Hold the appliance with both hands and with the carrying strap around the shoulder.
• Slowly move the appliance back and forth.
• Keep the wheels on the ground during use to reduce the workload.
• If the collection bag is full, unzip the bag and discharge the shredded leaves.

Selecting the operating mode
Select the required operating mode before use (blowing or vacuuming).

• For blowing, turn the switch (2) to the blowing symbol.
• For vacuuming, turn the switch to the vacuuming symbol.

Switching on and off

• To switch the appliance on, press the on/off switch (1).
• To switch the appliance off, release the on/off switch (1).

CLEANING AND MAINTENANCE

The appliance does not require any special maintenance.

• Regularly clean the ventilation slots.
• Regularly remove leaves and dirt from the tube, the housing, and the outlet opening.

Before performing maintenance on the machine, always unplug the machine.

NOISE AND VIBRATION
Measured values determined according to 2000/14/EC: Typically the A-weighted sound pressure level of the machine is 85.1 dB(A).
Uncertainty K = 3 dB(A). The noise level when working can exceed 100.1 dB(A).
Wear hearing protection!
Vibration total values (triax vector sum) determined according to EN 28662-1: Vibration emission value aw = 4,813 m/s² Uncertainty K = 1.5 m/s²
GUARANTEE
Refer to the enclosed guarantee conditions for the terms and conditions of the guarantee.

ENVIRONMENT
Disposal
Your product, accessories, and packaging should be sorted for environmental-friendly recycling.
Do not dispose of power tools into domestic waste. According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly way.
Subject to change; specifications can be changed without further notice.

DECLARATION OF CONFORMITY
ART. NR. 57203 TYPE NR. QT6268
HYUNDAI Bladblazer/-zuiger 3000 W
Vacuum/blower
Dvize bv declares under its sole responsibility that this product is in conformity with the following standards or standardization documents
EN 55014-1: 2006/A2:2011,
EN 55014-2:1997/A2:2008, EN 61000-3-2: 2014,
EN 61000-3-3: 2013, EN 60335-1:2012/A11:2014,
EN 50636-2-100:2014, EN 62233:2008,
AfPS GS 2014:01 PAK

According to the provisions of the directives
2006/42/EC, 2006/95/EC 2014/30/EU,
2000/14/EC &2005/88/EC:
LwA: 98 dB(A) LpA 85.1 dB(A)

Keeper of the technical documentation:

A.N.P van Oort
Directeur
01-01-2018

Dvize bv
Witte Vlinderweg 51,1521 PS Wormerveer, Nederland
+31 (0)75 303 0013, www.hyundaitools-nl.com

Dvize bv
Witte Vlinderweg 51
1521 PS Wormerveer
Nederland
+31 (0)75 303 0013
www.hyundaitools-nl.com
Imported/Distributed by Dvize bv, The Netherlands
Licensed by Hyundai Corporation, Korea
