Oricom Ap8030 Air Purifier User Guide

oricom AP8030 Air Purifier

KEEP THIS USER GUIDE FOR FUTURE REFERENCE
Always retain your proof of purchase in case of warranty service.
www.oricom.com.au

Need Help?

If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support.

Australia
(02) 4574 8888
www.oricom.com.au
Mon-Fri 8am ­ 6pm AEST

New Zealand
0800 674 266
Mon-Fri 10am ­ 8pm NZST

Safety Information and Warnings

This product should be used only in accordance with the specifications outlined in this user guide. Usage other than what has been specified here may result in serious injury.

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following;

• Prior to first use, remove and safely discard any packaging material and promotional labels before using the AP8030 air purifier.
• To eliminate a potential choking hazard for young children, discard the protective cover fitted to the power plug of this air purifier.
• Read all instructions before use.
• Keep the cord out of heavy traffic areas. To avoid a fire hazard, NEVER put the power cord under rugs, near heat registers, radiator, stoves or heaters.
• To protect against electrical hazards, DO NOT immerse in water or other liquids. DO NOT use near water.
• DO NOT use in high humidity areas such as bathrooms / showers / swimming pools or spas.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should always be supervised, in ensuring that they do not play with the air purifier.
• NEVER drop or insert any object into any openings.
• DO NOT cover cord.
• Arrange cord away from high traffic areas and where it is not a trip hazard.
• DO NOT operate if cord or plug has any signs of damage, if motor fan fails to rotate, or if it has been dropped or damaged in any way.
• This device is intended for indoor use only. Use Air Purifier only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. DO NOT use for commercial or industrial use.
• When not in use, always turn off and unplug the air purifier before moving, opening the grill, changing filters, or cleaning the unit.
• Do not unplug the air purifier by pulling on the power cord. Always unplug using the power plug.
• DO NOT place anything on top of the Air Purifier.
• NEVER block the air openings, grills/outlets or place on a soft surface such as a bed or sofa.
• DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by qualified personnel only.
• The Air purifier should not be used with an external timer, or any other device that switches the air purifier on automatically.
• WARNING: To reduce the risk of fire or electric shock, do not use this air purifier with any solid-state speed control device.

Important warnings for all electrical products.

• The power cord should be fully unwound before use.
• A 230V AC power source should be used to power the Air purifier.
• Regular checking and inspection is recommended, please contact Oricom Support should you have any inquiries.
• Do not attempt any repairs on your Air Purifier. Contact Oricom Support.
• During the event of an electrical storm, the Air Purifier should be disconnected from the mains power source, to avoid damage to the components.
• When not in use, the Air Purifier should be turned off and unplugged.
• The Air Purifier should be placed at a minimum distance of 20cm from walls, curtains, fixtures, or any other steam sensitive material, as adequate circulation is required on all sides of the Air Purifier.

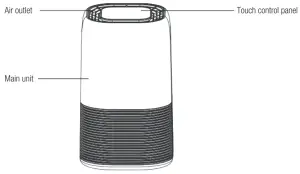

Product Structure

Air Purifying System

Improve your indoor air quality with multiple levels of air purification to ensure a fresh and odour free ambiance is maintained in the room. Easy-to-use controls are complimented by a stylish compact design, meaning you can easily move from room to room.
Pre-Filter: Captures initial dust and allergen particles.
HEPA-13 Filter: Captures dust, smoke, pollen and other allergens.
Activated Carbon Filter: Removes odours from the air.

Instructions for Before First Use:

• All packaging from the Air Purifier should be removed and discarded, before assembling and powering on.
• Ensure any packaging is removed from the filter before it is installed in the Air Purifier and powered on.
• Select a suitable flat location and environment for the unit to be setup.
• For proper air flow, locate the unit at least 20cm away from walls and fixtures, to ensure adequate air intake.
• Check and confirm there is no blockage to air intake.
• Once the above has been checked, the Air Purifier is OK to be plugged into mains power, and switched on. See below operating instructions.

Operating Instructions

Before Operating the Air Purifier:

1. Carefully remove your air purifier from box and dispose of packaging.
2. Take out the filter from the air purifier and dispose of the plastic packaging.
3. Select a firm, level and flat location for the air purifier.
   Note: For proper air flow, locate the unit at least 20cm from any wall or furniture.
4. Plug the power cord into a 230V AC outlet.

IMPORTANT: When moving the air purifier, take care to securely lift the unit with two hands, and carefully place in the desired location, as per the warnings listed in this user guide.

Operating the Air Purifier

1. POWER button:
   Press this button to switch the unit ON/OFF.
   Note: Press and hold POWER Button for 5 seconds to reset the Filter Reset indicator.
   IMPORTANT:
   Always set the Air Purifier down gently on a flat and level surface. When moving the Air Purifier, always lift using two hands.
2. TIMER button:
   1) By pressing this button, the purifier can be timed to operate for intervals of 2 hours, 4 hours and 8 hours, stopping automatically when the selected operating time has elapsed.
   2) Press the (TIMER) button to select the required operating time. A light automatically indicates the operating time duration selected.
   3) To select the continuous operating mode, press the button repeatedly until there are no more indicator lights lit up.
3. LIGHT/SLEEP button:
   1) Press this button one time to turn on the night light.
   2) Press this button twice to turn on Sleep mode. The indicator flickers before all indicators dim and air purifier will turn to low speed automatically.
   3) Press this button three times to turn off the night light.
   4) Press this button four times to turn off the sleep model & night light.
4. SPEED button:
   The fan speed can be adjusted when the Air Purifier is in operation (L/I M/II H/III Turbo/IV). Each time that you press the (SPEED) button, the speed is adjusted from L (Low) to M (Medium) to H (High) to TB (Turbo).
   When in sleep mode, press any button to activate the machine, and sleep mode will turn off.
   IMPORTANT: When the unit is not in use, switch it off and unplug it.

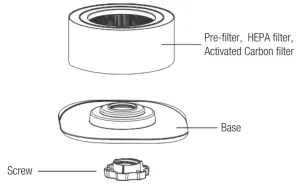

Installing & Removing Filters

Filters Filter replace indicator

When the FILTER RESET light switches on in red continuously, this indicates that it is time to replace the filter.
Replace the filter according to the directions below, then press the POWER button holding for 5 seconds to reset the filter indicator. The FILTER RESET light will then turn off.
*True HEPA Filter life is approximately 6 months.

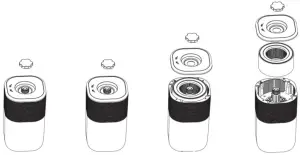

1. Turn off and unplug the Air purifier, turn the air purifier upside down.
2. Remove the screw from the base then twist the base to open.
3. Remove the dirty filter and insert the new filter into the Air Purifier.
4. Reattach the base to the unit and secure it with the screw. Note: If the filter is not in place or not fitted correctly the Air purifier will not operate.

Cleaning & maintaining

The Air Purifier should be cleaned at least monthly using a clean, dry and soft cloth. More frequent cleaning may be required depending on environmental conditions. Ensure the air purifier is switched off and disconnected from the power outlet and allow all parts to cool before cleaning or storing.

NOTE:
– Do NOT stick any foreign objects or your fingers inside of the unit.
– Do NOT use gasoline, benzine, thinner, harsh cleaners, etc. on and/or in the unit while cleaning as they will damage the Air Purifier. NEVER use alcohol or other solvents.

Filters

– The filter set is not washable.
– The filter should be cleaned once each month using a vacuum cleaner.
Note: The filter life is approximately 6 months if used 24 hours daily or 12 months if used 12 hours daily. Filter life will vary depending on environmental conditions.

Replacement Filters

Replacement filter part number: 2B0136
Replacement filters can be purchased from www.oricom.com.au.

Specifications & Troubleshooting

Specifications

Filter Life: Approx. 6 months depending on usage and environmental conditions.
Product Dimension: 200.5 x 200.5 x 327mm
For Room Size: 10-15 m2
Noise Level: 30dB-55dB
Power Consumption: 45W
Weight: 2.73kg (net weight)

Troubleshooting

Before reading through the troubleshooting below, ensure that the unit is unplugged from the mains.
