USER
MANUAL
MODEL NO.: MF18228
MF18228
Packing List:
Floor lamp + Adapter + Remote Control

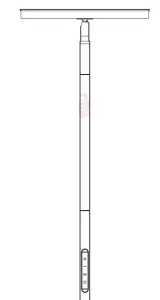

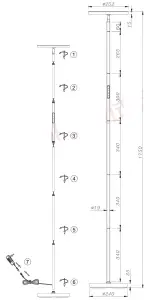

Product structure and size:
Installation:
It’s very easy to install, as shown below:
Step 1: Connect the iron pipe with the light base by spinning clockwise.
Step 2: Then connect the iron pipe with the other iron pipes by spinning clockwise.
Step 3: At last, connect their pipe with the LED round light by spinning clockwise. The installation is finished, then plug in the adapter, you can touch the control or remote control the light.
Specification
| Input Voltage | 100-240V50/60HZ |
| Adapter Voltage | 24V |
| Material | Iron + PC |
| Light Source | 126pcs LED |
| Power Consumption | 30W |
| Luminous Flux | 2700 lumens |
| Color Temperature | 3000K~6000K |
| Battery For Remote Control | 2*AAA Batteries |
| Remote Distance | Up to 33ft |
Product Care
- Please do not bend violently the lamp head to avoid damage when adjusting the angle of the lamp.
- Please read the user manual before use.
- Suggest Indoor use. It is nonwaterproof. Do not use this product in humid environments or at high temperatures.
- Cut off the power when cleaning it or not using it.
- Do not use it to exceed the voltage, the proper voltage for the US is AC110-120V, 60Hz.
- Please use the included power adapter, do not use other brands’ adapters. Do not plug or unplug the power cord with wet hands.
- Please stop using it if there are any defective issues found in the product.

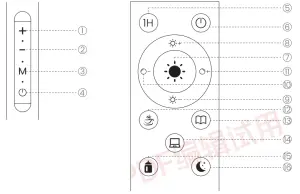

Diagram
| 1 Brightness plus | 9 Color temperature minus |
| 2 Brightness minus | 10 Brightness minus |
| 3 Color temperature adjustment | 11 Brightness plus |
| 4 Power button | 12 Coffee mode |
| 5 One hour timer shutdown | 13 Reading mode |
| 6 Power button | 14 Office mode |
| 7 Daylight mode | 15 Feeding mode |
| 8 Color temperature plus | 16 Sleep mode |

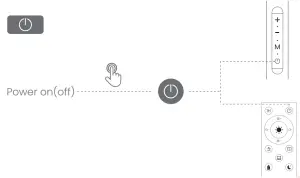

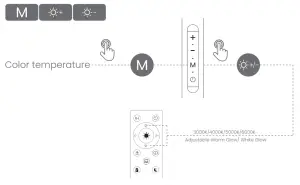

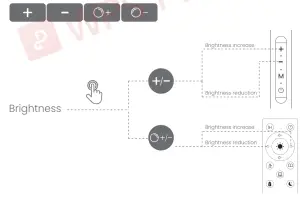

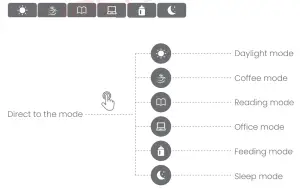

Function Description
 |  |
 |  |
FCC STATEMENT
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Brand:Poison
