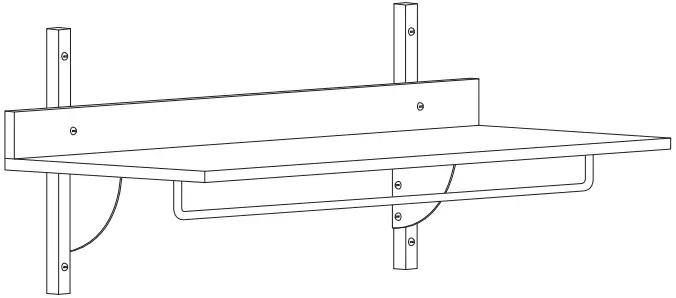

SECTOR RACK SHELF
ASSEMBLY MANUAL
BOX CONTENT
x12 A) Truss Head Screw x2 B) Machine Screw
x4 C) Truss Head Screw x2 D) Truss Head Screw
x6 Rawlplug x2 Bracket
x2 Back profile x1 Rod
x1 Shelf
NEEDED TOOLS
Electrical drill Screwdriver notched
1

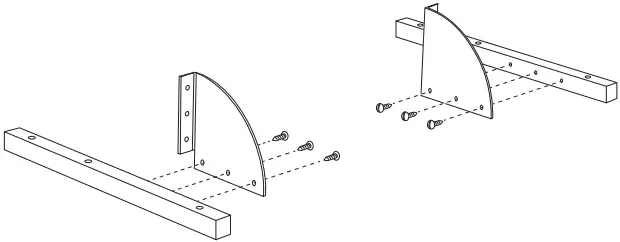

1. Mount the brackets on the back profiles with 6 screws (A).
2

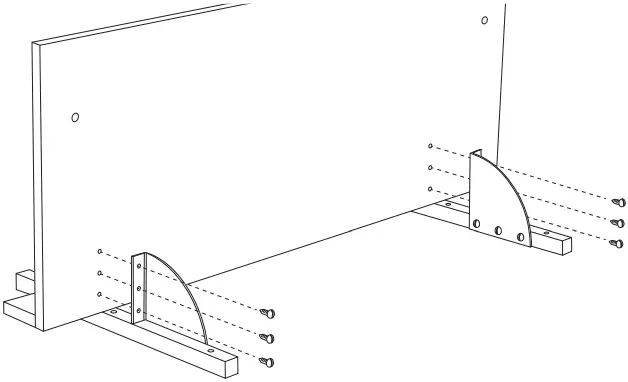

2. Mount the shelf on the bracket with 6 screws (A).
3

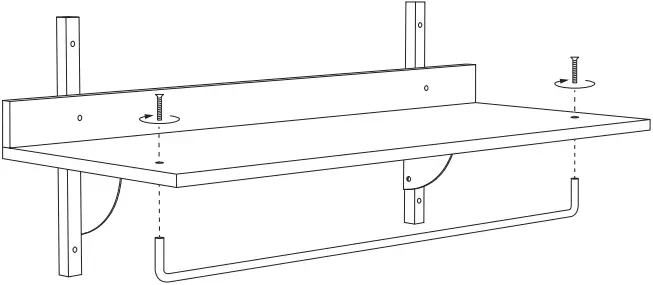

3. Mount the rod with 2 screws (B).
4

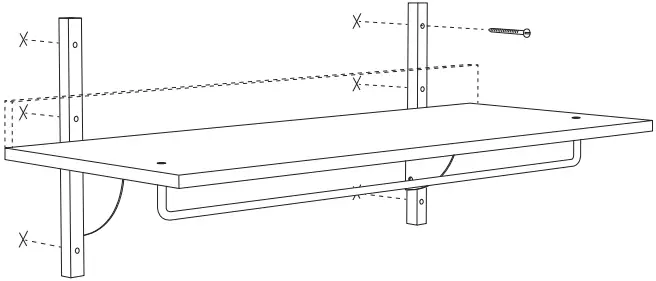

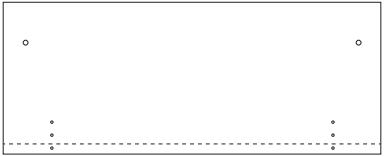

4. Place the shelf on the wall and mark the holes with a screw. Then drill 6 holes with a 5mm drill.
5

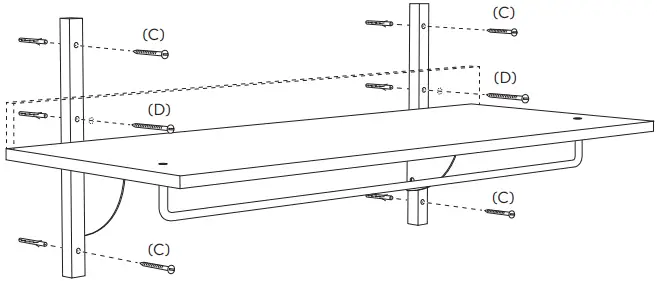

5. Mount the shelf on the wall with 6 rawlplugs and 6 screws (4x C and 2x D).
