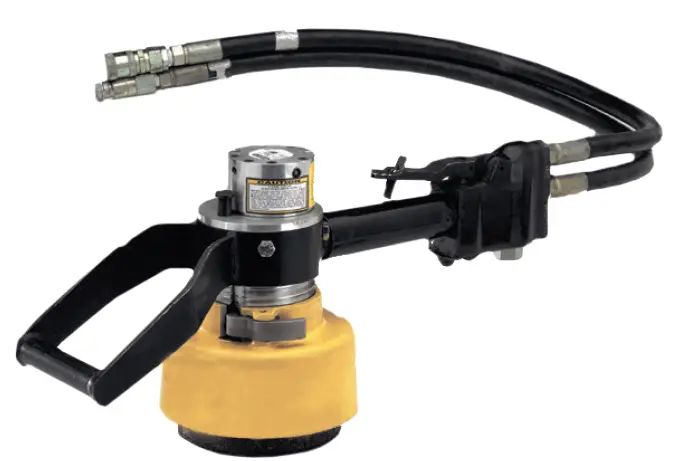

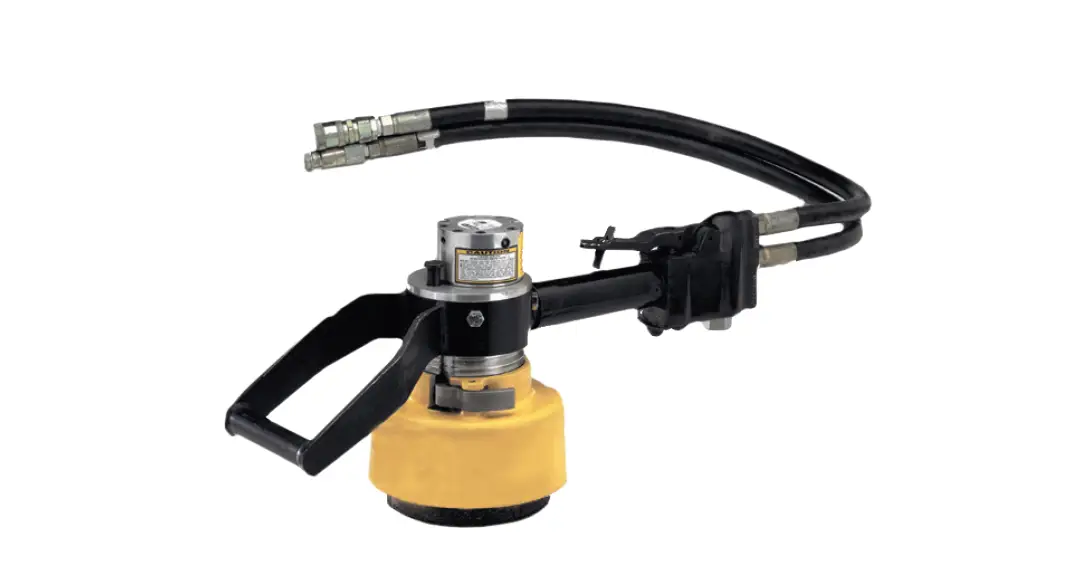

STANLEY GR60 Cupstone Grinder

GR60 HYDRAULIC GRINDER USER MANUAL

Safety, Operation and Maintenance
The GR60 Hydraulic Grinder is a powerful tool designed to complete heavy-duty grinding tasks. This user manual contains safety, operation, and routine maintenance instructions for the proper use of the grinder.

Table of Contents:

• Product Warranty Validation
• Servicing Instructions
• Safety Symbols
• Local Safety Regulations
• Safety Precautions

Product Warranty Validation: To fill out a product warranty validation form and for information on your warranty, visit www.stanleyinfrastructure.com and select the Company tab > Warranty. Note: The warranty validation record must be submitted to validate the warranty.

Servicing Instructions: STANLEY Infrastructure recommends that servicing of hydraulic tools, other than routine maintenance, must be performed by an authorized and certified dealer. Repairs and service to this tool must only be done by an authorized and certified dealer. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative.

Safety Symbols: Safety symbols and signal words are used to emphasize all operator, maintenance, and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury, or damage to equipment.

Local Safety Regulations: Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel.

Safety Precautions:

• Ensure safe operation.
• Research and understand the materials you are cutting.
• Follow correct safety procedures and comply with all applicable national, state or provisional health and safety regulations relating to them, including, if appropriate arranging for the safe disposal of the materials by a qualified person.
• Do not operate the tool unless thoroughly trained or under the supervision of an instructor.
• Always wear safety equipment such as goggles, ear and head protection at all times when operating the tool.
• Do not inspect or clean the tool while the hydraulic power source is connected. Accidental engagement of the tool can cause serious injury.
• Always connect hoses to the tool hose couplers before energizing the hydraulic power source. Be sure all hose connections are tight.
• Do not operate a damaged, improperly adjusted or incompletely assembled tool.
• To avoid personal injury or equipment damage, all tool repair, maintenance and service must only be performed by authorized and properly trained personnel.
• Always replace parts with replacement parts recommended by STANLEY.
• Do not operate the tool with the wheel guard removed.
• Never wear loose clothing that can get entangled in the working parts of the tool.
• Keep all parts of your body away from the rotating wheel. Long hair or loose clothing can become drawn into rotating components.
• Do not overreach. Maintain proper footing and balance at all times.
• Keep the wheel off all surfaces when starting the grinder.
• Always hold the tool with both hands when the unit is running. Use a firm grip.
• Keep all parts of your body away from the rotating wheel.

Usage Instructions

Before using the GR60 Hydraulic Grinder, ensure that you have read and understood the safety precautions listed in this user manual. Follow these usage instructions for the proper use of the grinder:

1. Research and understand the materials you are cutting.
2. Wear appropriate safety equipment such as goggles, ear and head protection at all times when operating the tool.
3. Do not inspect or clean the tool while the hydraulic power source is connected. Accidental engagement of the tool can cause serious injury.
4. Connect hoses to the tool hose couplers before energizing the hydraulic power source. Be sure all hose connections are tight.
5. Do not operate a damaged, improperly adjusted or incompletely assembled tool.
6. Keep all parts of your body away from the rotating wheel. Long hair or loose clothing can become drawn into rotating components.
7. Maintain proper footing and balance at all times. Do not overreach.
8. Keep the wheel off all surfaces when starting the grinder.
9. Use a firm grip and hold the tool with both hands when the unit is running.

Note: These usage instructions are not comprehensive and do not replace the safety precautions listed in this user manual. Always follow the safety precautions and usage instructions listed in this user manual for the proper use of the GR60 Hydraulic Grinder.

To fill out a product warranty validation form, and for information on your warranty, visit www.stanleyinfrastructure.com and select the Company tab > Warranty.

Note: The warranty validation record must be submitted to validate the warranty.

SERVICING: This manual contains safety, operation and routine maintenance instructions. STANLEY Infrastructure recommends that servicing of hydraulic tools, other than routine maintenance, must be performed by an authorized and certified dealer. Please read the following warning.

SERIOUS INJURY OR DEATH COULD RESULT FROM THE IMPROPER REPAIR OR SERVICE OF THIS TOOL.
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER.

SAFETY SYMBOLS

Safety symbols and signal words, as shown below, are used to emphasize all operator, maintenance and repair actions which, if not strictly followed, could result in a life-threatening situation, bodily injury or damage to equipment.

• This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
• This safety alert and signal word indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
• This safety alert and signal word indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
• This safety alert and signal word indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
• This signal word indicates a potentially hazardous situation which, if not avoided, may result in property damage.
• This signal word indicates a situation which, if not avoided, will result in damage to the equipment.
• This signal word indicates a situation which, if not avoided, may result in damage to the equipment.

Always observe safety symbols. They are included for your safety and for the protection of the tool.

LOCAL SAFETY REGULATIONS
Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel.

SAFETY PRECAUTIONS

Tool operators and maintenance personnel must comply with the safety precautions given in this manual and on the stickers and tags attached to the tool and hose.
These precautions are given for your safety. Review them carefully before operating the tool and before performing general maintenance or repairs.
Supervising personnel should develop additional precautions relating to the specific work area and local safety regulations. Place the added precautions in the space provided.
The GR60 Hydraulic Grinder will provide safe and dependable service if operated in accordance with the instructions given in this manual. Read and understand this manual and any stickers and tags attached to the tool and hoses before operation. Failure to do so could result in personal injury or equipment damage.

• Operators must start in a work area without bystanders. The operator must be familiar with all prohibited work areas such as excessive slopes and dangerous terrain conditions.
• Establish a training program for all operators to ensure safe operation.
• WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:
  • Lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.
    Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
    Protect yourself and those around you. Research and understand the materials you are cutting. Follow correct safety procedures and comply with all applicable national, state or provisional health and safety regulations relating to them, including, if appropriate arranging for the safe disposal of the materials by a qualified person.
• Do not operate the tool unless thoroughly trained or under the supervision of an instructor.
• Always wear safety equipment such as goggles, ear and head protection at all times when operating the tool.
• Do not inspect or clean the tool while the hydraulic power source is connected. Accidental engagement of the tool can cause serious injury.
• Always connect hoses to the tool hose couplers before energizing the hydraulic power source. Be sure all hose connections are tight.
• Do not operate the tool at oil temperatures above 140°F/60°C. High temperatures can cause operator discomfort.
• Do not operate a damaged, improperly adjusted or incompletely assembled tool.
• To avoid personal injury or equipment damage, all tool repair, maintenance and service must only be performed by authorized and properly trained personnel.
• Always replace parts with replacement parts recommended by STANLEY.
• Do not operate the tool with the wheel guard removed.
• Never wear loose clothing that can get entangled in the working parts of the tool.
• Keep all parts of your body away from the rotating wheel. Long hair or loose clothing can become drawn into rotating components.
• Do not overreach. Maintain proper footing and balance at all times.
• Keep the wheel off all surfaces when starting the grinder.
• Always hold the tool with both hands when the unit is running. Use a firm grip.
• Keep all parts of your body away from the rotating wheel.

TOOL STICKERS & TAGS

P/N-74821
Name Tag

P/N-74820 Stanley Logo Sticker

P/N-73680
Railroad Help Desk Sticker

P/N-25790 Caution Sticker

P/N-03787 GPM Sticker

NOTE:
THE INFORMATION LISTED ON THE STICKERS SHOWN, MUST BE LEGIBLE AT ALL TIMES.
REPLACE DECALS IF THEY BECOME WORN OR DAMAGED. REPLACEMENTS ARE AVAILABLE FROM YOUR LOCAL STANLEY DISTRIBUTOR.

The safety tag (P/N 15875) at right is attached to the tool when shipped from the factory. Read and understand the safety instructions listed on this tag before removal. We suggest you retain this tag and attach it to the tool when not in use.

DANGER

1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CER-TIFIED AS NON-CONDUCTIVE WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
   BEFORE USING HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE ON OR NEAR ELECTRIC LINES BE SURE THE HOSE IS MAINTAINED AS NON-CONDUCTIVE. THE HOSE SHOULD BE REGULARLY TESTED FOR ELECTRIC CUR-RENT LEAKAGE IN ACCORDANCE WITH YOUR SAFETY DEPARTMENT INSTRUCTIONS.
2. A HYDRAULIC LEAK OR BURST MAY CAUSE OIL INJEC-TION INTO THE BODY OR CAUSE OTHER SEVERE PERSONAL INJURY.
   1. DO NOT EXCEED SPECIFIED FLOW AND PRESSURE FOR THIS TOOL. EXCESS FLOW OR PRESSURE MAY CAUSE A LEAK OR BURST.
   2. DO NOT EXCEED RATED WORKING PRESSURE OF HYDRAULIC HOSE USED WITH THIS TOOL. EXCESS PRESSURE MAY CAUSE A LEAK OR BURST.
   3. CHECK TOOL HOSE COUPLERS AND CONNECTORS DAILY FOR LEAKS. DO NOT FEEL FOR LEAKS WITH YOUR HANDS. CONTACT WITH A LEAK MAY RESULT IN SEVERE PERSONAL INJURY.
   4. D. DO NOT LIFT OR CARRY TOOL BY THE HOSES. DO NOT ABUSE HOSE. DO NOT USE KINKED, TORN OR DAMAGED HOSE.
3. MAKE SURE HYDRAULIC HOSES ARE PROPERLY CON-NECTED TO THE TOOL BEFORE PRESSURING SYSTEM. SYSTEM PRESSURE HOSE MUST ALWAYS BE CON-NECTED TO TOOL “IN” PORT. SYSTEM RETURN HOSE MUST ALWAYS BE CONNECTED TO TOOL “OUT” PORT. REVERSING CONNECTIONS MAY CAUSE REVERSE TOOL OPERATION WHICH CAN RESULT IN SEVERE PERSONAL INJURY.
4. DO NOT CONNECT OPEN-CENTER TOOLS TO CLOSED-CENTER HYDRAULIC SYSTEMS. THIS MAY RESULT IN LOSS OF OTHER HYDRAULIC FUNCTIONS POWERED BY THE SAME SYSTEM AND/OR SEVERE PERSONAL INJURY.
5. BYSTANDERS MAY BE INJURED IN YOUR WORK AREA. KEEP BYSTANDERS CLEAR OF YOUR WORK AREA.
6. WEAR HEARING, EYE, FOOT, HAND AND HEAD PRO-TECTION.
7. TO AVOID PERSONAL INJURY OR EQUIPMENT DAMAGE, ALL TOOL REPAIR MAINTENANCE AND SERVICE MUST ONLY BE PERFORMED BY AUTHORIZED AND PROPERLY TRAINED PERSONNEL.

IMPORTANT
READ OPERATION MANUAL AND SAFETY INSTRUCTIONS FOR THIS TOOL BEFORE USING IT.
USE ONLY PARTS AND REPAIR PROCEDURES APPROVED BY STANLEY AND DESCRIBED IN THE OPERATION MANUAL.
TAG TO BE REMOVED ONLY BY TOOL OPERATOR.
SEE OTHER SIDE

SAFETY TAG P/N 15875 (Shown smaller then actual size)

HOSE TYPES

The rated working pressure of the hydraulic hose must be equal to or higher than the relief valve setting on the hydraulic system. There are three types of hydraulic hose that meet this requirement and are authorized for use with STANLEY hydraulic tools. They are:

• Certified non-conductive — constructed of thermoplastic or synthetic rubber inner tube, synthetic fiber braid reinforcement, and weather resistant thermoplastic or synthetic rubber cover. Hose labeled certified non-conductive is the only hose authorized for use near electrical conductors.
• Wire-braided (conductive) — constructed of synthetic rubber inner tube, single or double wire braid reinforcement, and weather resistant synthetic rubber cover. This hose is conductive and must never be used near electrical conductors.
• Fabric-braided (not certified or labeled non-conductive) — constructed of thermoplastic or synthetic rubber inner tube, synthetic fi ber braid reinforcement, and weather resistant thermoplastic or synthetic rubber cover. This hose is not certifi ed non-conductive and must never be used near electrical conductors.

HOSE SAFETY TAGS
To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS.
If the information on a tag is illegible because of wear or damage, replace the tag immediately. A new tag may be obtained from your STANLEY Distributor.

THE TAG SHOWN BELOW IS ATTACHED TO “CERTIFIED NON-CONDUCTIVE” HOSE
DANGER

1. FAILURE TO USE HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE WHEN USING HYDRAULIC TOOLS ON OR NEAR ELECTRIC LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
   FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND ELECTRIC LINES.
2. BEFORE USING HYDRAULIC HOSE LABELED AND CERTIFIED AS NON-CONDUCTIVE ON OR NEAR ELECTRIC LINES. WIPE THE ENTIRE LENGTH OF THE HOSE AND FITTING WITH A CLEAN DRY ABSORBENT CLOTH TO REMOVE DIRT AND MOISTURE AND TEST HOSE FOR MAXIMUM ALLOWABLE CURRENT LEAKAGE IN ACCORDANCE WITH SAFETY DEPARTMENT INSTRUCTIONS.
   SEE OTHER SIDE
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT CONTACT DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION AND SEVERE PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, ABRASION, CUTTING, OR CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAM-AGE TO COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.
   SEE OTHER SIDE

(Shown smaller than actual size)
THE TAG SHOWN BELOW IS ATTACHED TO “CONDUCTIVE” HOSE.

DANGER

1. DO NOT USE THIS HYDRAULIC HOSE ON OR NEAR ELECTRIC LINES. THIS HOSE IS NOT LABELED OR CERTIFIED AS NON-CONDUCTIVE. USING THIS HOSE ON OR NEAR ELECTRICAL LINES MAY RESULT IN DEATH OR SERIOUS INJURY.
2. FOR PROPER AND SAFE OPERATION MAKE SURE THAT YOU HAVE BEEN PROPERLY TRAINED IN CORRECT PROCEDURES REQUIRED FOR WORK ON OR AROUND ELEC-TRIC LINES.
3. DO NOT EXCEED HOSE WORKING PRESSURE OR ABUSE HOSE. IMPROPER USE OR HANDLING OF HOSE COULD RESULT IN BURST OR OTHER HOSE FAILURE. KEEP HOSE AS FAR AWAY AS POSSIBLE FROM BODY AND DO NOT PERMIT DIRECT CONTACT DURING USE. CONTACT AT THE BURST CAN CAUSE BODILY INJECTION AND SEVERE PERSONAL INJURY.
4. HANDLE AND ROUTE HOSE CAREFULLY TO AVOID KINKING, CUTTING, OR CONTACT WITH HIGH TEMPERATURE SURFACES. DO NOT USE IF KINKED. DO NOT USE HOSE TO PULL OR LIFT TOOLS, POWER UNITS, ETC.
5. CHECK ENTIRE HOSE FOR CUTS CRACKS LEAKS ABRASIONS, BULGES, OR DAMAGE TO COUPLINGS IF ANY OF THESE CONDITIONS EXIST, REPLACE THE HOSE IMMEDIATELY. NEVER USE TAPE OR ANY DEVICE TO ATTEMPT TO MEND THE HOSE.
6. AFTER EACH USE STORE IN A CLEAN DRY AREA.

HOSE RECOMMENDATIONS

Tool to Hydraulic Circuit Hose
Recommendations
The chart to the right shows recommended minimum hose diameters for various hose lengths based on gallons per minute (GPM)/liters per minute (LPM). These recommendations are intended to keep return line pressure (back pressure) to a minimum acceptable level to ensure maximum tool performance.
This chart is intended to be used for hydraulic tool applications only based on STANLEY tool operating requirements and should not be used for any other applications.
All hydraulic hose must have at least a rated minimum working pressure equal to the maximum hydraulic system relief valve setting.
All hydraulic hose must meet or exceed specifications as set forth by SAE J517.

HTMA / EHTMA REQUIREMENTS

CLASSIFICATION

EHTMA HYDRAULIC SYSTEM REQUIREMENTS
Flow range	3.5-4.3 GPM (13.5-16.5 LPM)	4.7-5.8 GPM (18-22 LPM)	7.1-8.7 GPM (27-33 LPM)	9.5-11.6 GPM (36-44 LPM)	11.8-14.5 GPM (45-55 LPM)
Nominal operating pressure (At the power supply outlet)	1870 psi (129 bar)	1500 psi (103 bar)	1500 psi (103 bar)	1500 psi (103 bar)	1500 psi (103 bar)
System relief valve setting (At the power supply outlet)	2495 psi (172 bar)	2000 psi (138 bar)	2000 psi (138 bar)	2000 psi (138 bar)	2000 psi (138 bar)

Note: These are general hydraulic system requirements. See tool specification page for tool specific requirements.

OPERATION

PREPARATION PROCEDURES
Each unit, as shipped, has no special unpacking or assembly requirements prior to usage. Inspection to assure the unit was not damaged in shipping and does not contain packing debris is all that is required. After installation of a grinding wheel a unit may be put to use.

CHECK HYDRAULIC POWER SOURCE

1. Using a calibrated flow meter and pressure gauge, check that the hydraulic power source develops a flow of 7-10 GPM/26-38 LPM at 1500-2000 psi/105-140 bar.
2. Make certain the hydraulic power source is equipped with a relief valve set to open at 2100-2250 psi/145-155 bar minimum.
3. Check that the hydraulic circuit matches the tool for open-center (OC) or closed-center (CC) operation.

CHECK TOOL

1. 1. Make sure all tool accessories are correctly installed. Failure to install tool accessories properly can result in damage to the tool or personal injury.
   2. There should be no signs of leaks.
   3. The tool should be clean, with all fittings and fasteners tight.

CHECK TRIGGER MECHANISM

• Check that the trigger operates smoothly and is free to travel between the “ON” and “OFF” positions.

CHECK GUARD ASSEMBLY

1. Inspect the wheel guard assembly for cracks and other structural damage.

INSTALLING AND REMOVING GRINDING WHEELS
Read and become familiar with the sections in this manual on safety precautions, tool stickers and tags, hydraulic hose requirements, hydraulic requirements, and pre-operation procedures before using this product.

Never over-tighten the grinding wheel by impacting the wrench with a mallet or hammer. Sufficient torque is attained by hand-tightening the wheel with a strap wrench or for wheels secured with caps crews, hand tightening with a socket wrench while depressing the push lock.

Note: Use 6-inch diameter up to 3-inch thick (Type 6 for USA/Type 36 for CE) grinding wheels with a 5/8-11 threaded arbor hole. Only use grinding wheels which comply with ANSI B7.5/ISO 525, 603.

• Depress the push lock (6) and screw the grinding wheel onto the main shaft (13) and tighten using a strap wrench.
• Adjust guard to desired height.

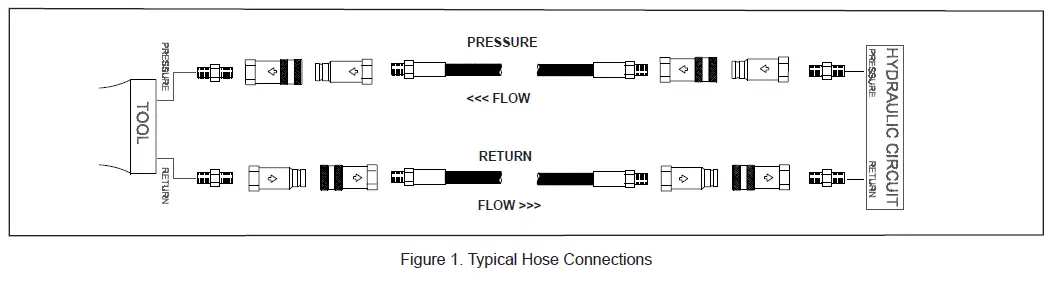

CONNECT HOSES

• Wipe all hose couplers with a clean lint-free cloth before making connections.
• Connect the hoses from the hydraulic power source to the hose couplers on the grinder. It is a good practice to connect the return hose first and disconnect it last to minimize or avoid trapped pressure within the grinder motor.
• Observe flow indicators stamped on hose couplers to be sure that oil will flow in the proper direction. The female coupler is the inlet coupler.

Note: The pressure increase in uncoupled hoses left in the sun may result in making them difficult to connect. When possible, connect the free ends of operating hoses together.

OPERATING PROCEDURES

• Observe all safety precautions.
• Always start the grinder with the grinding wheel away from the work surface.
• Move the hydraulic circuit control valve to the “ON” position.
• Disengage the safety thumb latch (42) and squeeze the trigger momentarily. If the grinder does not operate, the hoses might be reversed. Verify correct connection of the hoses before continuing.
• Start the grinder and move the grinding wheel or cone to the work surface.
• Grind a small amount of material at a time.
• As the grinding stone wears, adjust guard height by depressing the guard latch (26) and rotate the guard to lower or raise height.

COLD WEATHER OPERATION
If the grinder is to be used during cold weather, preheat the hydraulic fluid at low engine speed. When using the normally recommended fluids, fluid temperature should be at or above 50° F/10° C (400 ssu/82 centistokes) before use.

TROUBLESHOOTING

If symptoms of poor performance develop, the following chart can be used as a guide to correct the problem. When diagnosing faults in operation of the grinder, always check that the hydraulic power source is supplying the correct hydraulic flow and pressure to the grinder as listed in the table. Use a flowmeter known to be accurate. Check the flow with the hydraulic oil temperature at least 80°F/27°C.

TOOL PROTECTION & CARE

In addition to the safety precautions found in this manual, observe the following for equipment protection and care.

• Make sure all couplers are wiped clean before connection.
• The hydraulic circuit control valve must be in the “OFF” position when coupling or uncoupling hydraulic tools. Failure to do so may result in damage to the quick couplers and cause overheating of the hydraulic system.
• Always store the tool in a clean dry space, safe from damage or pilferage.
• Make sure the circuit PRESSURE hose (with male quick disconnect) is connected to the “IN” port. The circuit RETURN hose (with female quick disconnect) is connected to the opposite port. Do not reverse circuit flow. This can cause damage to internal seals.
• Always replace hoses, couplings and other parts with replacement parts recommended by STANLEY. Supply hoses must have a minimum working pressure rating of 2500 psi/172 bar.
• Do not exceed the rated flow (see “SPECIFICATIONS” on page 14) in this manual for correct flow rate and model number. Rapid failure of the internal seals may result.
• Always keep critical tool markings, such as warning stickers and tags, legible.
• Tool repair should be performed by experienced personnel only.
• Make certain that the recommended relief valves are installed in the pressure side of the system.
• Do not use the tool for applications for which it was not intended.

SPECIFICATIONS

• Wheel Capacity ………………………………………………..6 inch dia. x 3 inch thick x 5/8-11 threaded arbor (Type 6) USA
  …………………………………………………………………………………150 mm x 60 mm x 5/8-11 threaded arbor (Type 36) CE
• Pressure Range………………………………………………………………………………………………….1000-2000 psi / 70-140 bar
• Maximum Back Pressure…………………………………………………………………………………………………….. 250 psi / 17 bar
• Flow Range……………………………………………………………………………………………………………..7-10 GPM / 26-38 LPM
• Porting……………………………………………………………………………………………………………………………….. -8 SAE O-Ring
• Couplers……………………………………………………………………………..EHTMA / HTMA Flush Face Type Male & Female
• Connect Size & Type……………………………………………………………………………………………3/8 inch Male Pipe Adapter
• Hose Whips…………………………………………………………………………………………………………………………………………Yes
• Overall Length (w/o Hose Whips)……………………………………………………………………………………..18 inches / 45.7 cm
• Overall Width………………………………………………………………………………………………………………10.5 inches / 26.7 cm
• Weight (w/couplers)……………………………………………………………………………………………………………..20.3 lbs / 9.2 kg
• Maximum Fluid Temperature………………………………………………………………………………………………….. 140° F / 60° C
• RPM………………………………………………………………………………………………………………………………………….. 4000 Max

ACCESSORIES

• Cup Stone Grinding Wheel (6 inch x 3 inch x 5/8-11 Norton Norzon IV)……………………………………………………28597

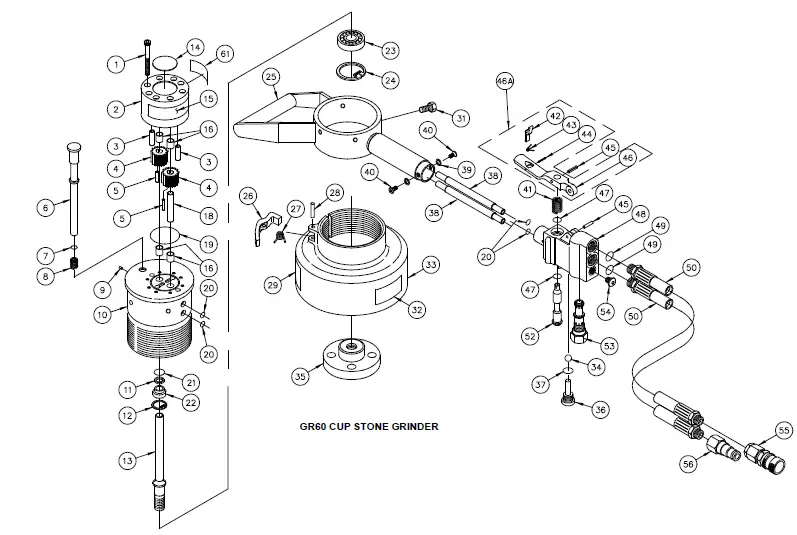

GR60 PARTS ILLUSTRATION

GR60 PARTS LIST

COUPLER SET P/N-03971 (ONE EACH OF ITEM # 55 & 56) USED ON MODEL GR601215, GR601215C.
COUPLER SET P/N-81160 (ONE EACH OF ITEM # 55 & 56) USED ON MODEL GR60121B.
COUPLER SET P/N-88685 (ONE EACH OF ITEM # 55 & 56) USED ON MODEL GR60121S.

STANLEY Infrastructure
6430 SE Lake Road
Portland, Oregon 97222 USA
(503) 659-5660 / Fax (503) 652-1780
www.stanleyinfrastructure.com

References

• Stanley Infrastructure - World’s Largest Handheld Hydraulic Tool Manufacturer
