LED RECHARGEABLE TREK-LIGHT
HEADLAMP | FLASHLIGHT | FLOODLIGHT | EMERGENCY LIGHT
USER MANUAL

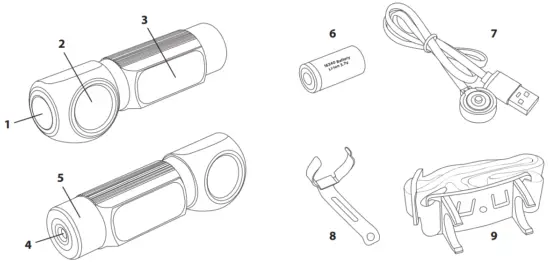

Parts
| 1. Power button 2. Flashlight (White) 3. Floodlight (White/Red) | 4. Charging Port/Magnetic Base 5. Battery Cap 6. Rechargeable Li-ion 3.7V Battery (16340) | 7. USB Charging Cable w/Magnetic Head 8. Body Clip 9. Headband |
Charging the Rechargeable Trek-Light

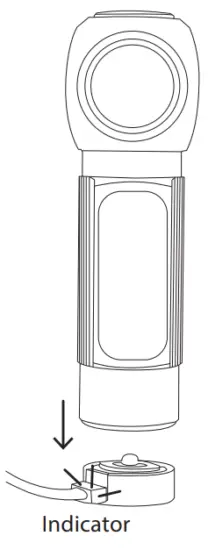

The Trek-Light uses a magnetic charging head to recharge the included battery.
To recharge the battery, plug the USB charging cable into a power source and attach the magnetic head to the magnetic base of the Trek-Light.
The indicator displays blue when connected to a power source, turns red when charging, and back to blue when fully charged. Max charging time is about 2 hours.
It is recommended to regularly charge the Trek-Light after months of storage to maintain optimal battery performance.
Battery Replacement

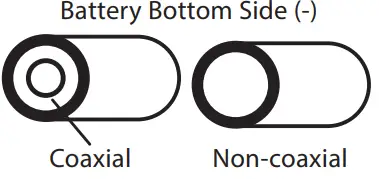

Unscrew the battery cap, remove the battery, and insert the new battery with the anode side (+) towards the inner side, then screw the battery cap back on. It is recommended to use a coaxial rechargeable Li-ion 16340 3.7V battery.
NOTE: If a non-coaxial battery is used, the included charger will not charge the battery and will need to be charged per the battery manufacturer’s guidelines.
WARNING: Avoid charging non-rechargeable batteries.
Output Selection

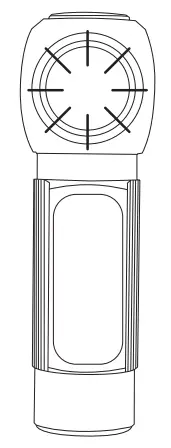

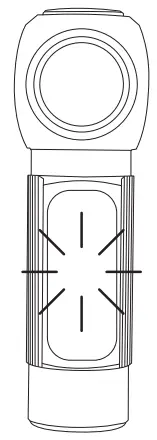

With the Trek-Light switched off, press the Power button to turn it on and cycle through each light mode, 1-6.
| Flashlight Modes | Floodlight Modes |
 |  |
| OFF Press 1 – High Mode Press 2 – Low Mode | Press 3 – High Mode Press 4 – Low Mode Press 5 – Red Light Press 6 – Red SOS |

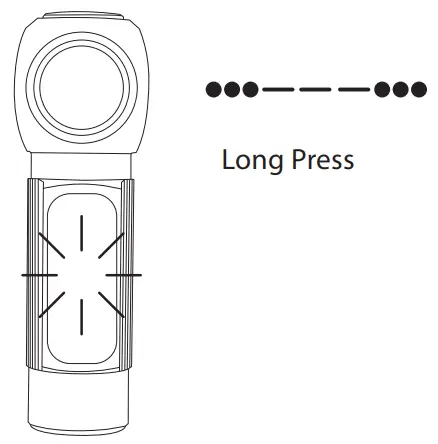

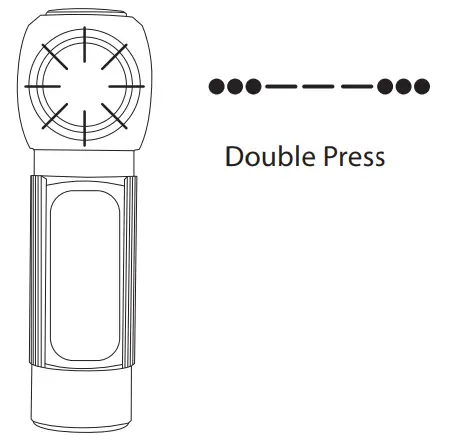

| Flashlight SOS White | Floodlight SOS Red |
 |  |
Specifications
| Flashlight | Floodlight | ||||
| High | Low | High | Low | Red | |
| Lumens | 500 | 100 | 250 | 55 | 30 |
| Runtime | 1.5 hr | 3-4 hrs | 3 hrs | 5 hrs | 5 hrs |
| Distance | 100m 325 ft | 40m 131 ft | 18m 59 ft | 8m 26 ft | 6m 19.6 ft |
| Impact Resistance | 1 meter | ||||
| Weatherproof | IPX4; splash resistant | ||||
| Size | Length: 3.5″ (89mm) Width: 1″ (24nnnn) Height 1″ (24mm) | ||||
| Battery | Rechargeable Li-ion 16340 3.7V | ||||
| Charge Time | 2 hours | ||||
Warranty
Limited 1 Year Warranty once registered within 60 days of purchase from Explore Scientic, LLC.
Visit explorescientificusa.com/productregistration or scan the QR code to register your product online and familiarize yourself with the applicable warranty coverage.
http://explorescientificusa.com/productregistration
© 2021 National Geographic Partners LLC.
All rights reserved. NATIONAL GEOGRAPHIC and Yellow Border Design are trademarks of the National Geographic Society, used under license.
© 2021 Explore Scientific, LLC.
1010 S 48th Street, Springdale, AR 72762 explorescientificusa.com | 866.252.3811
All rights reserved. Made in China.
V052021
