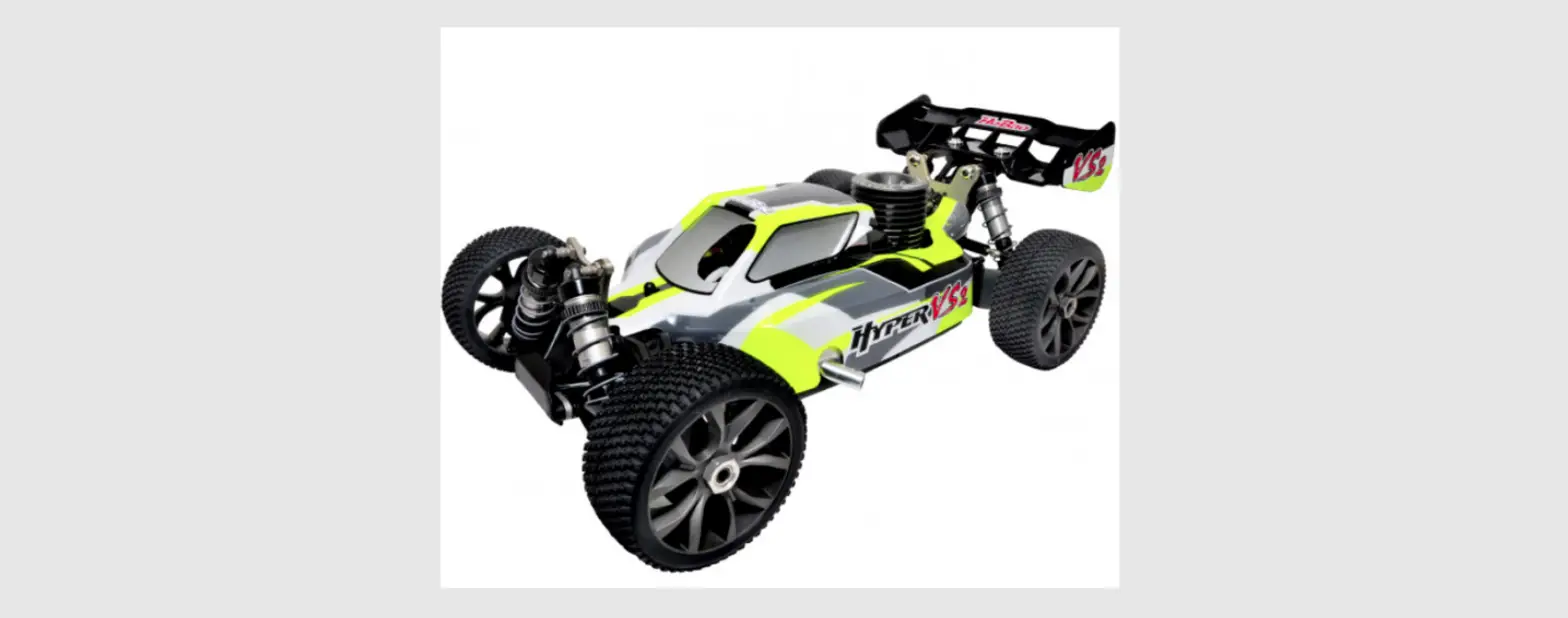

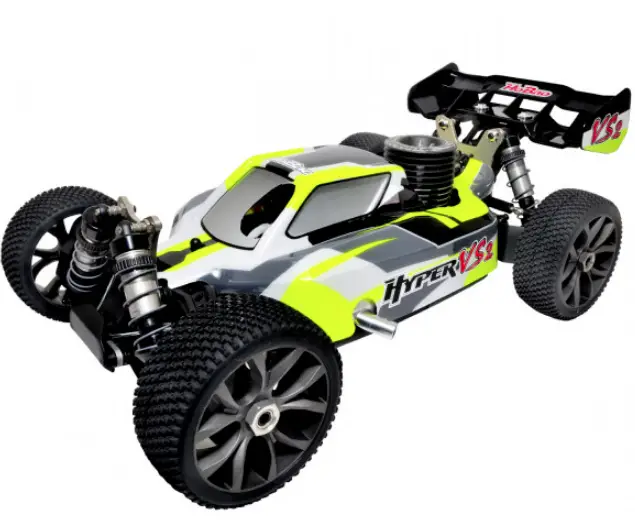

HoBao Hyper VS2 Nitro Buggy yellow body
Required

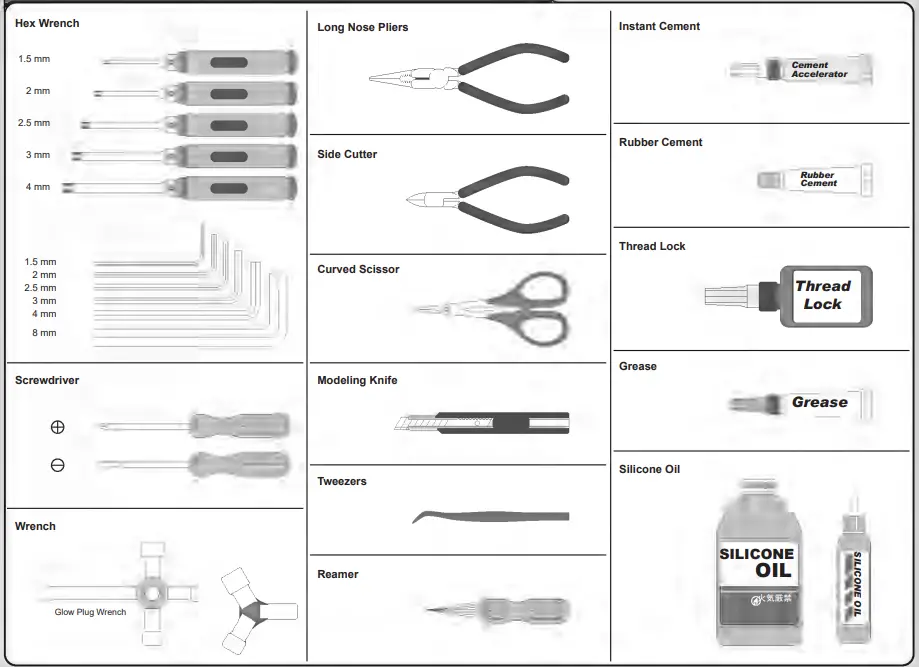

Tools Recommended

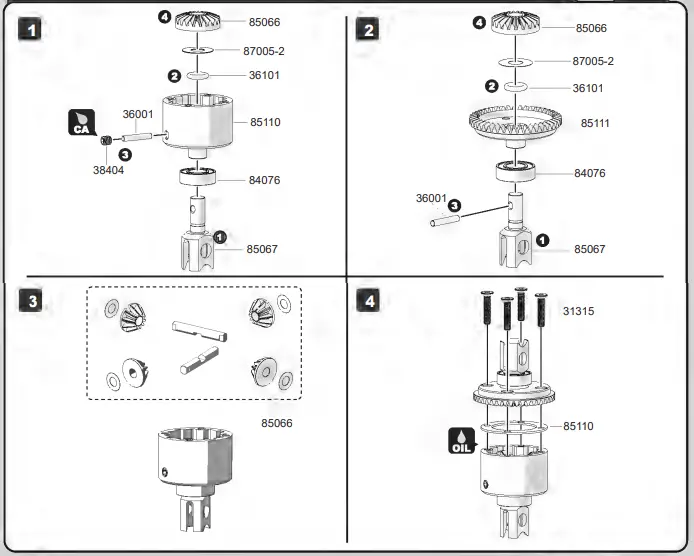

Front / Rear Differential Assembly

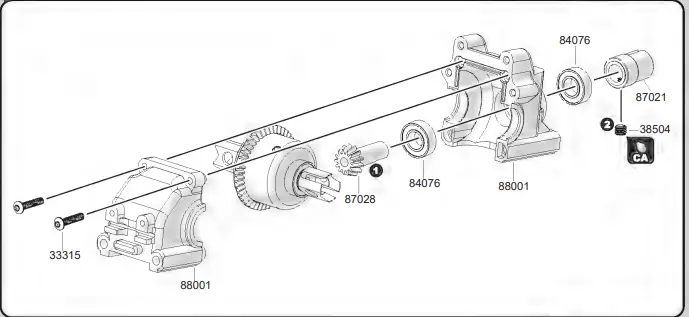

Front / Rear Gear Box Assembly

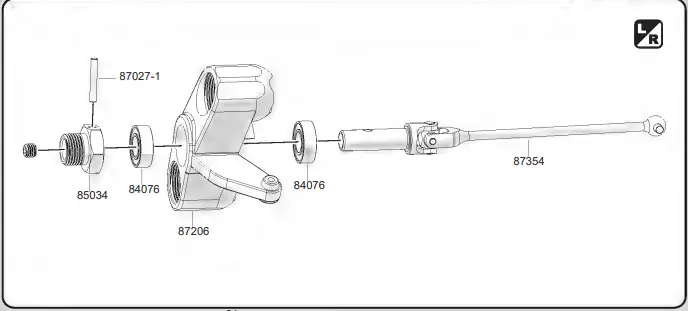

Front Pivot Ball Steering And CVA Shaft Assembly

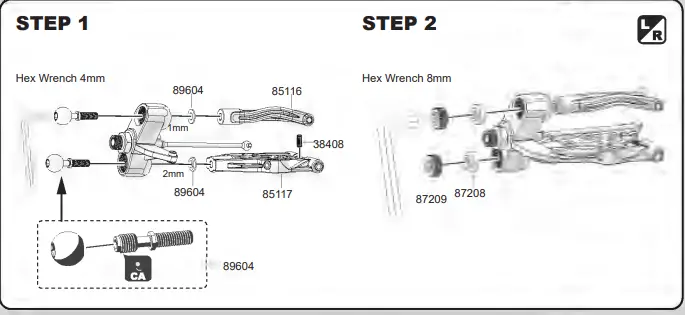

Front Ball Steering And Suspension Arm Assembly

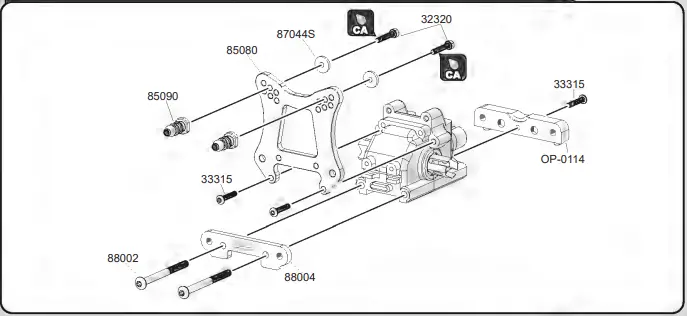

CNC Alum Front Shock Tower and Lower Arm Holder Assembly

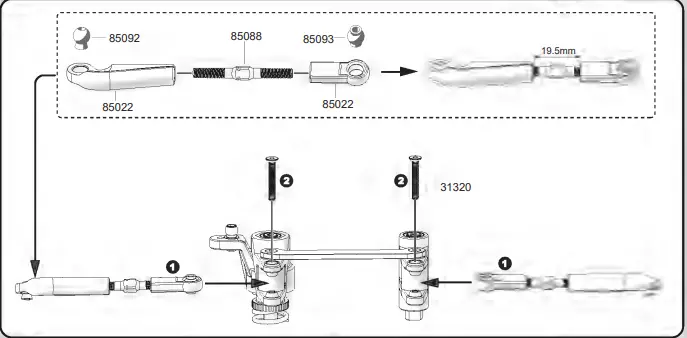

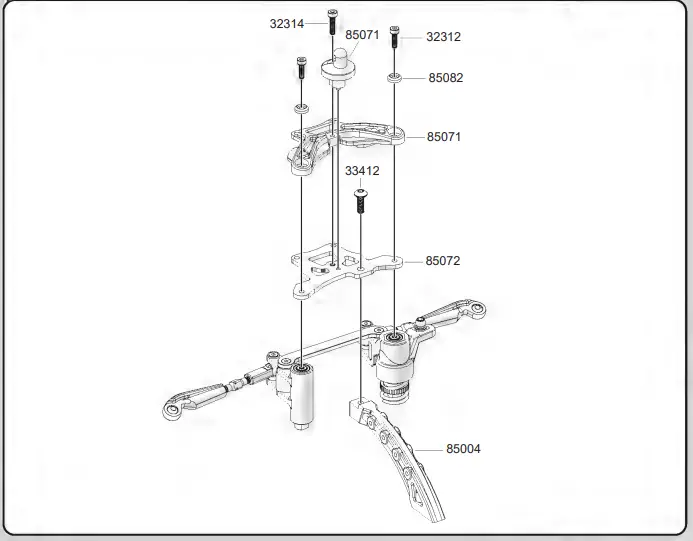

Servo Saver Assembly 1
Servo Saver Assembly 2
Servo Saver Assembly 3
Servo Saver Assembly 4

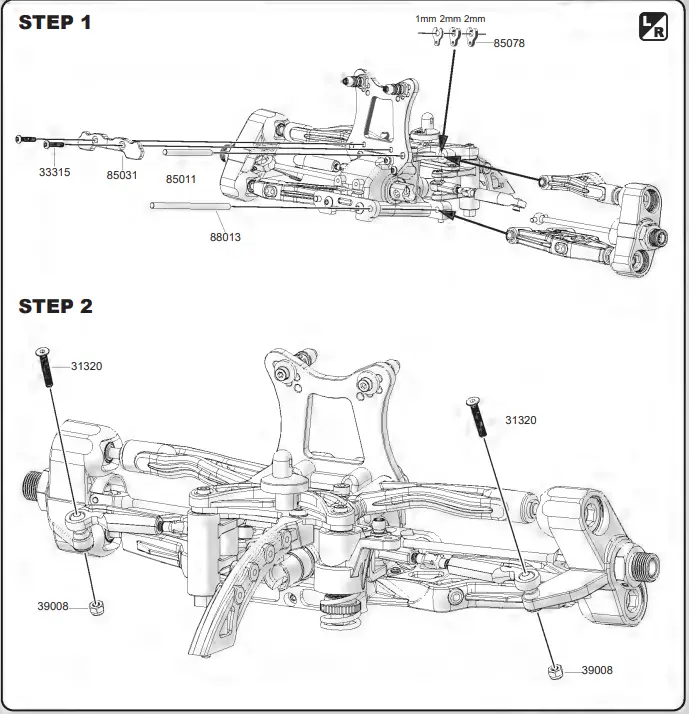

Front Suspension Arm Assembly

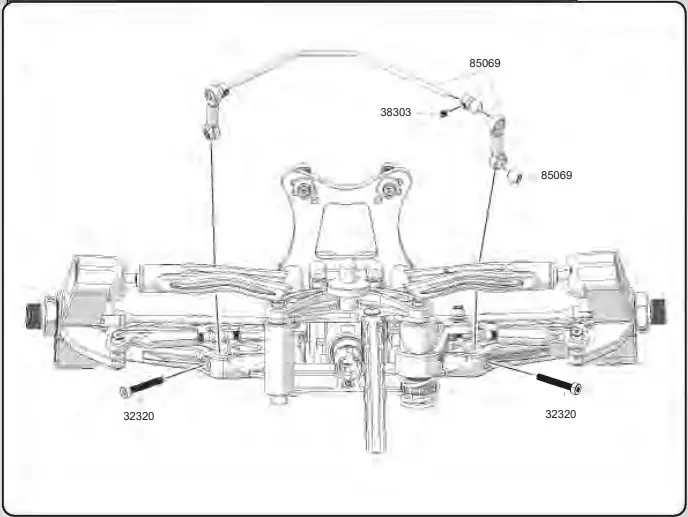

Front Sway Bar Assembly

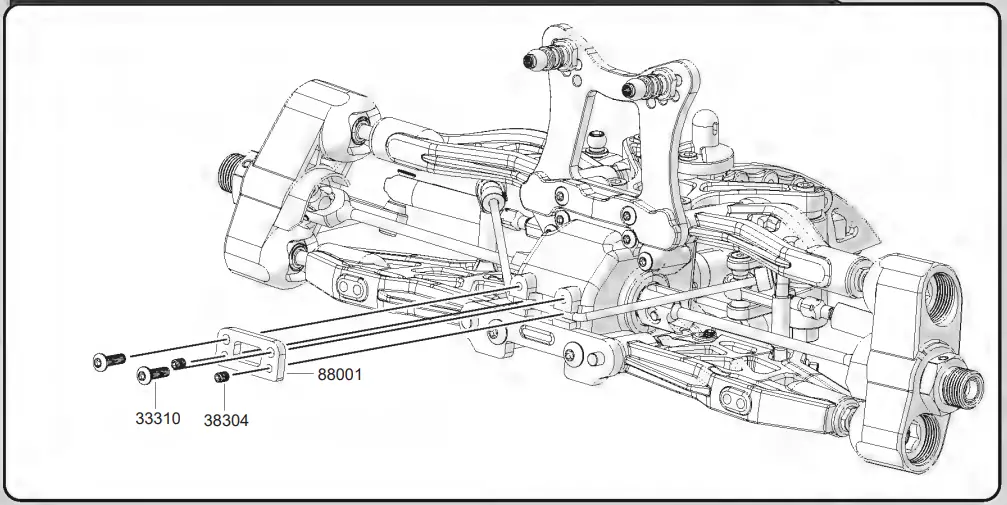

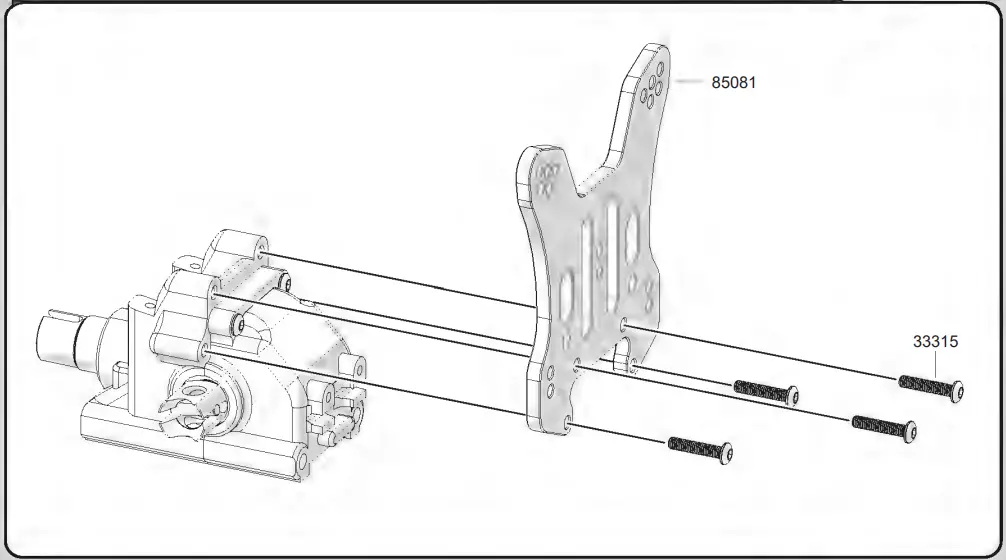

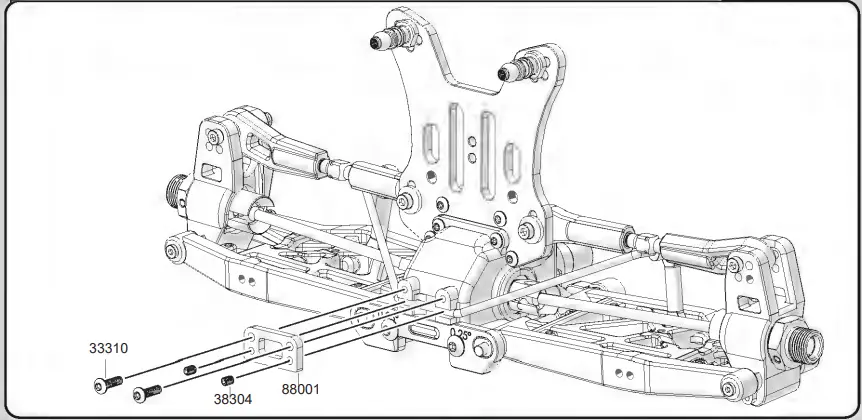

CNC Alum Rear Shock Tower And Gear Box Assembly

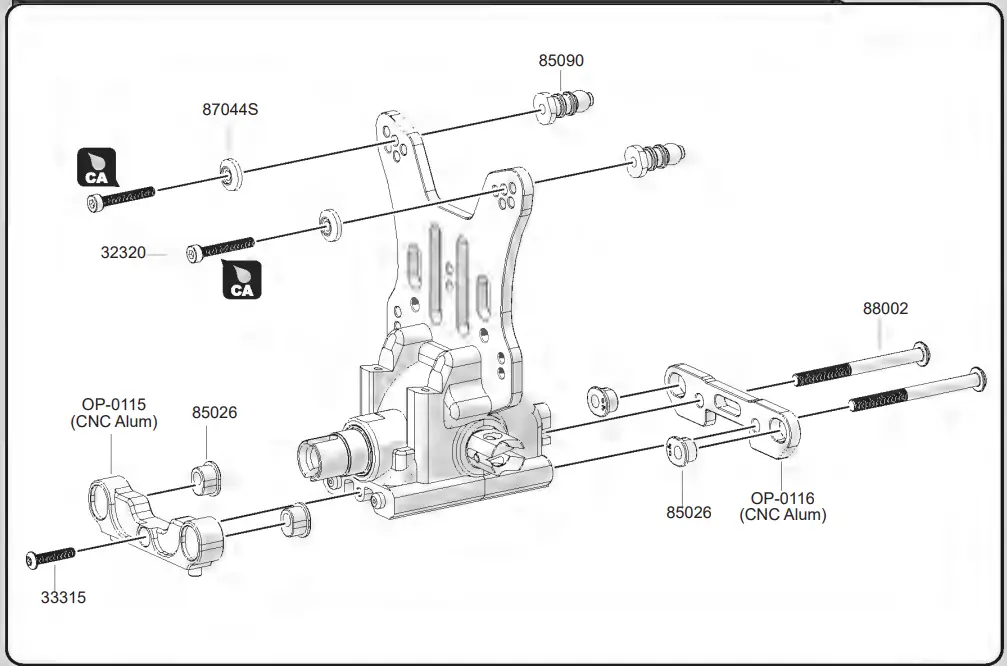

CNC Alum Rear Shock Tower And Lower Arm Holder Assembly

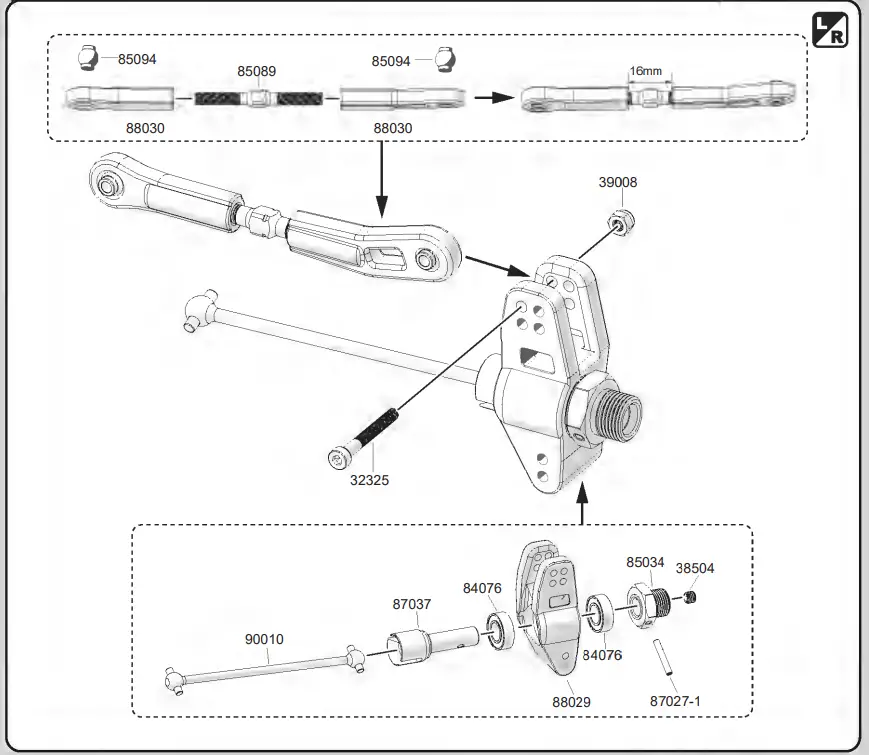

Rear Suspension Arm And Axle Assembly 1
Rear Suspension Arm And Axle Assembly 2

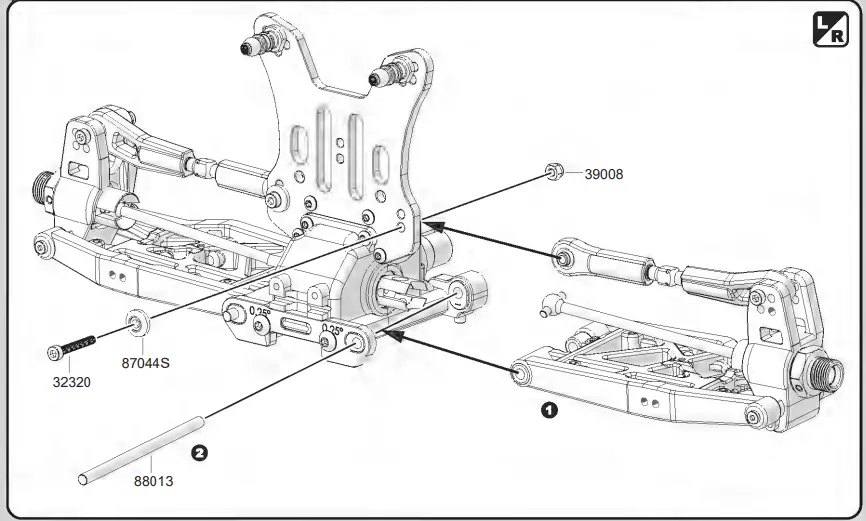

Rear Suspension Arm Assembly

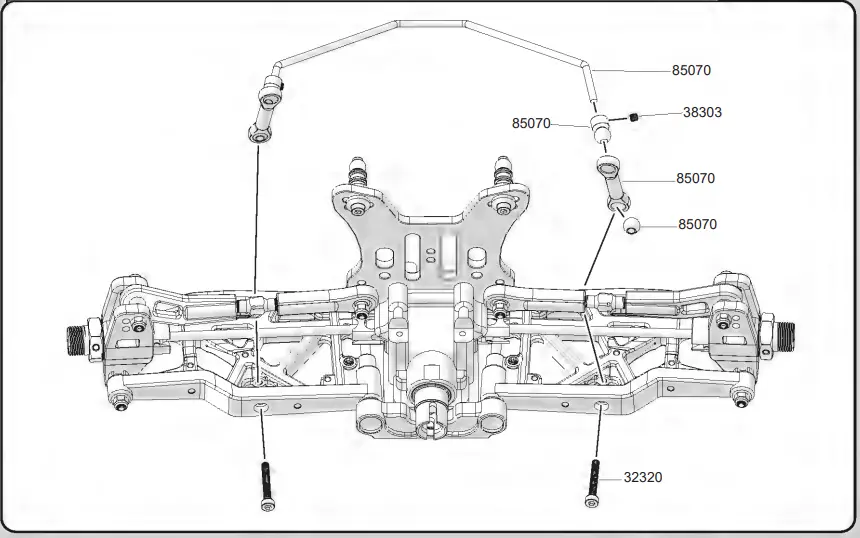

Rear Sway Bar Assembly 1
Rear Sway Bar Assembly 2

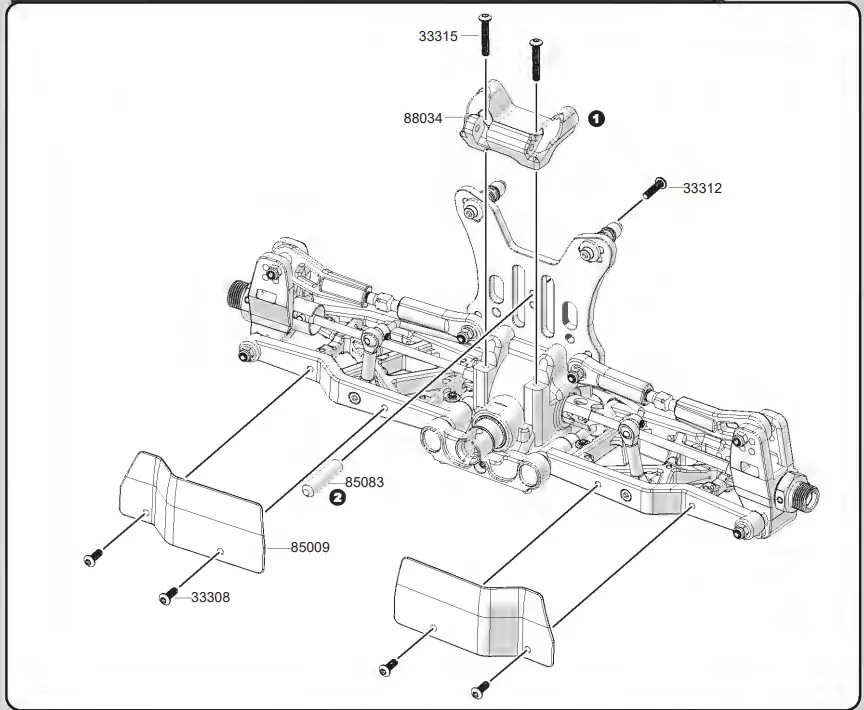

Rear Body Mount And Mud Guard Assembly

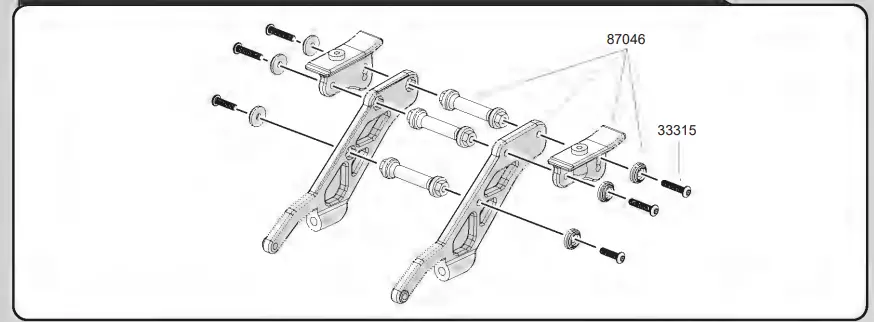

Wing Mount Assembly 1

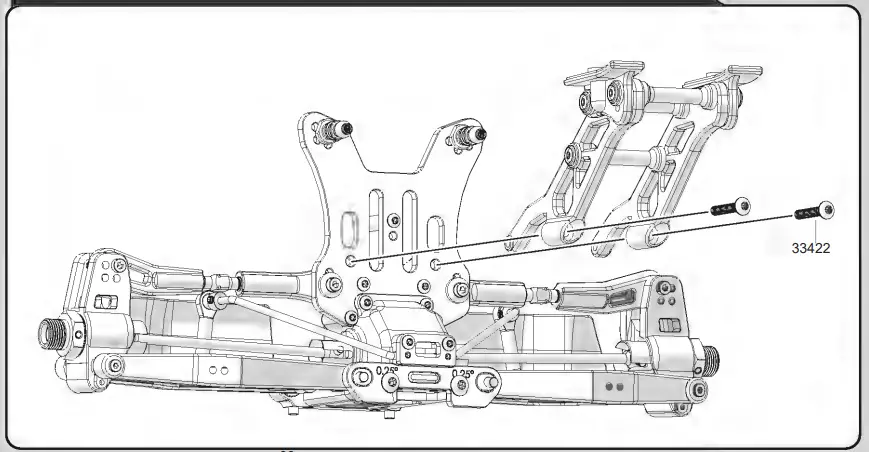

Wing Mount Assembly 2

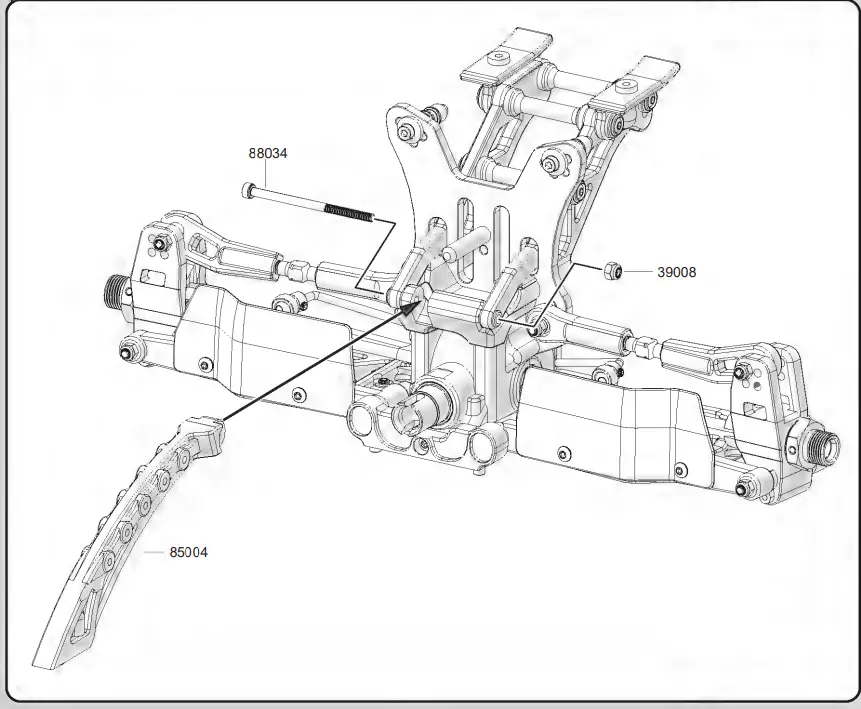

Rear Chassis Brace Assembly
Center Differential Assembly

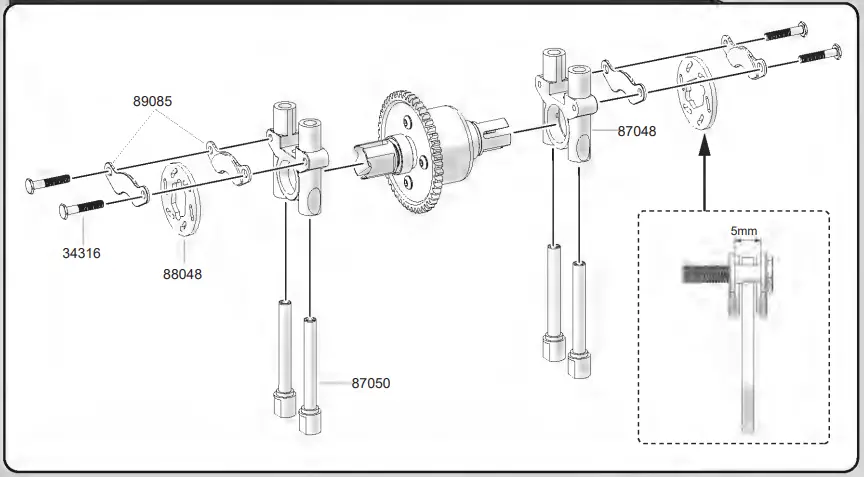

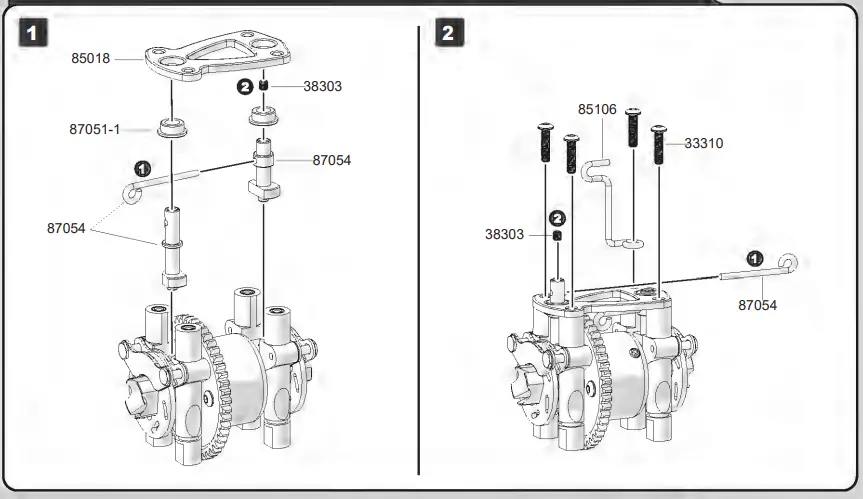

Center Differential And Brake Mount Assembly
Center Differential And Brake Mount With Air Filter Holder Assembly

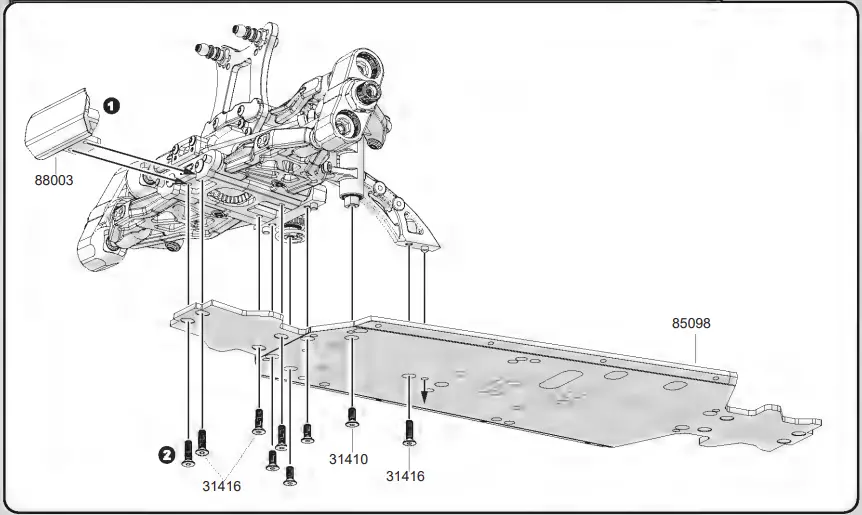

Front Clip Assembly

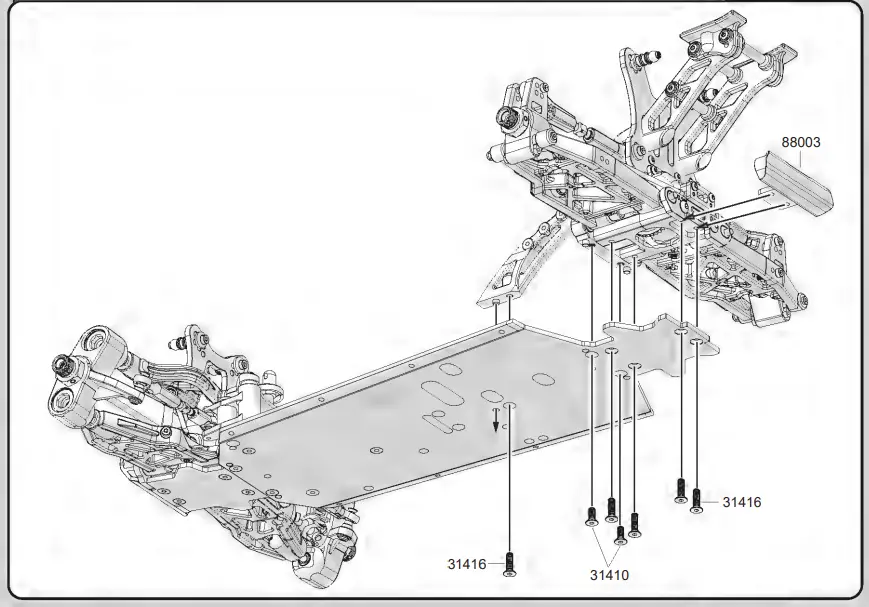

Rear Clip Assembly

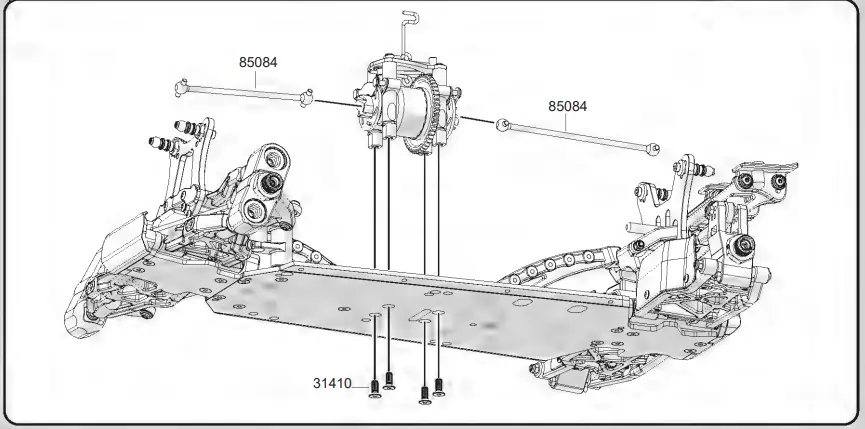

Center Differential And Drive Shaft Assembly

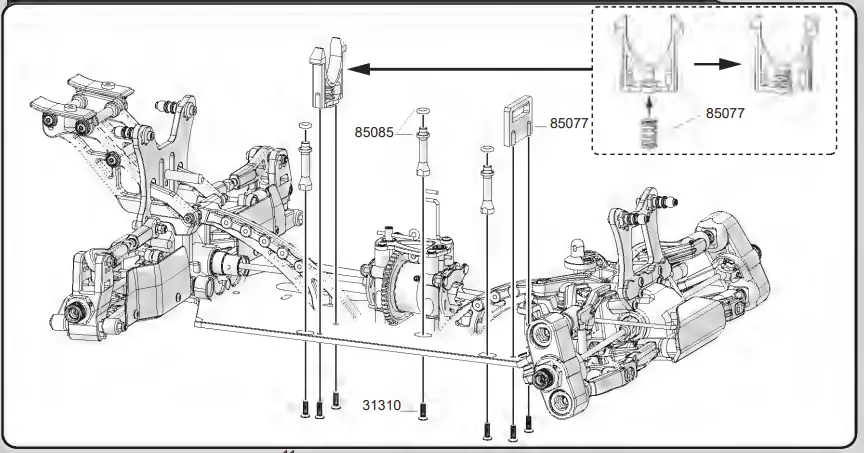

Servo Tray Mounting Holder Assembly

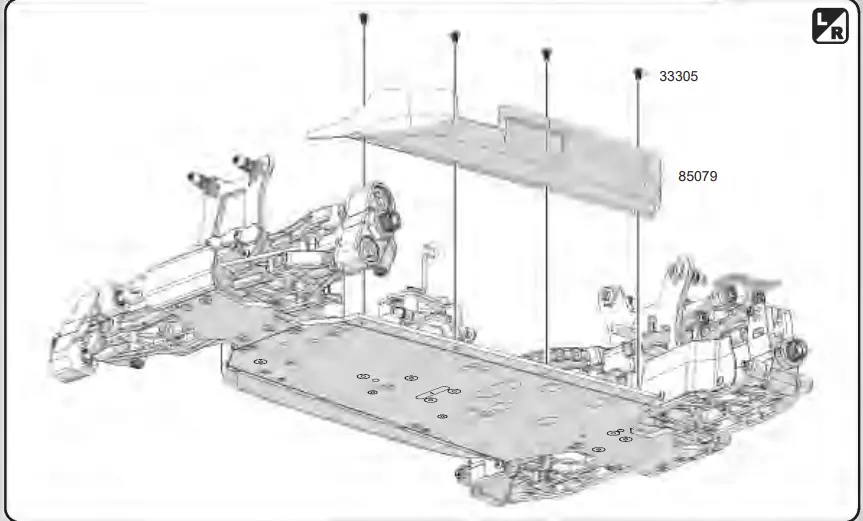

Side Guard Assembly

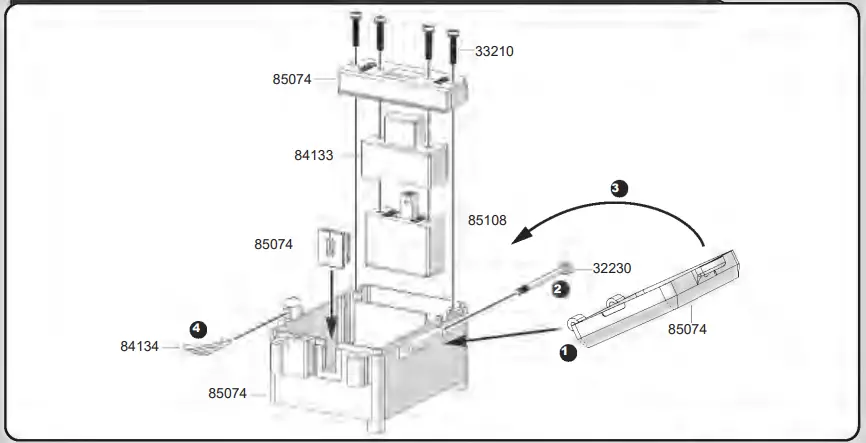

Receiver Box And Switch Assembly

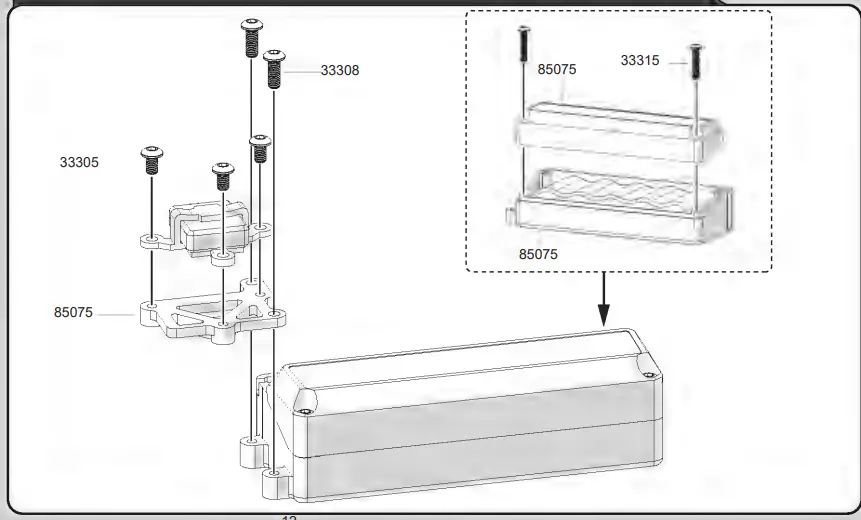

Battery Box Assembly

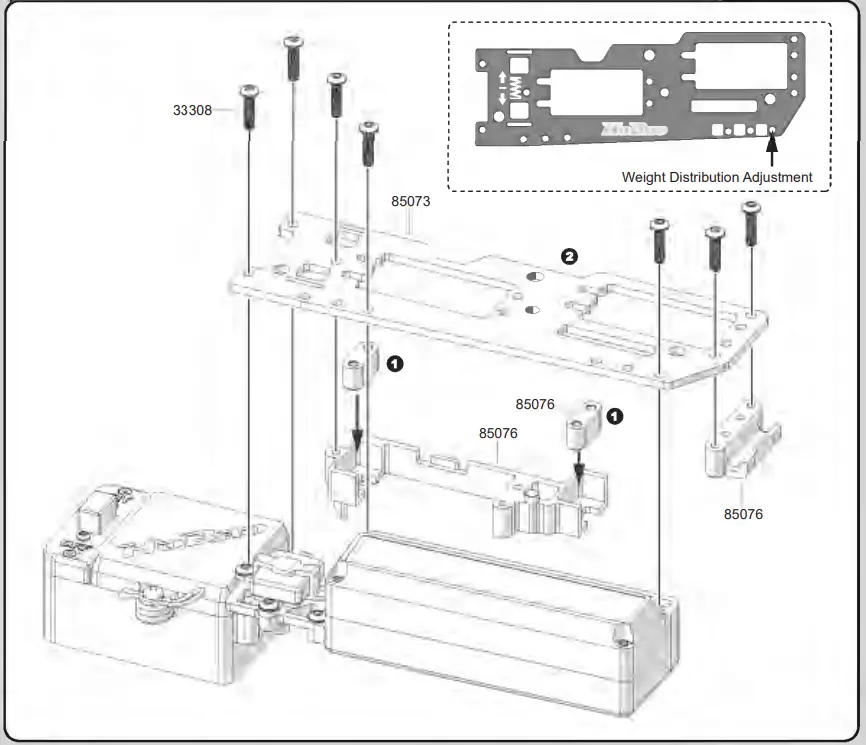

CNC Alum Servo Tray With Mount And Battery Box Assembly
Servo Horn And Mounting Holder Assembly

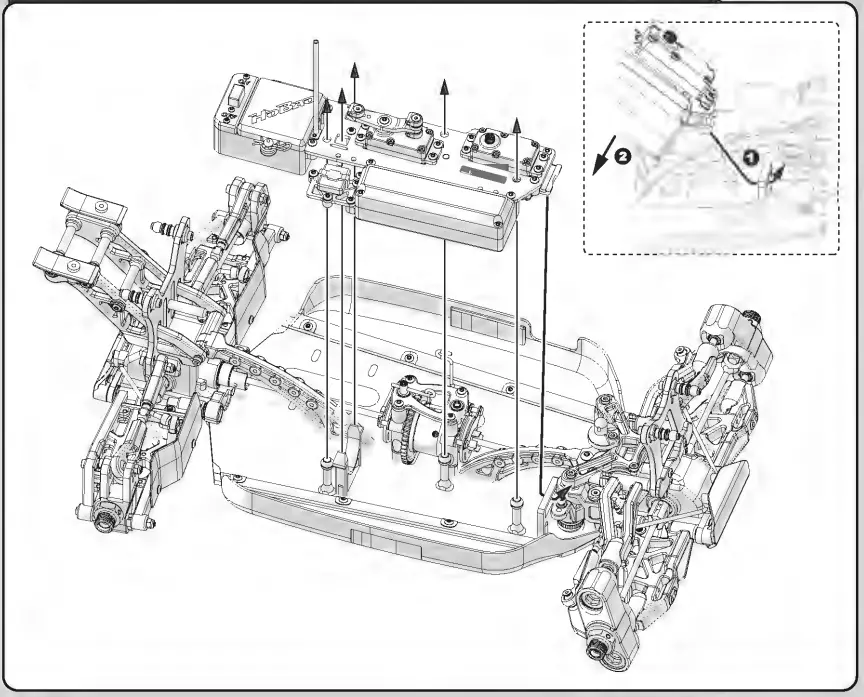

Servo Tray Assembly

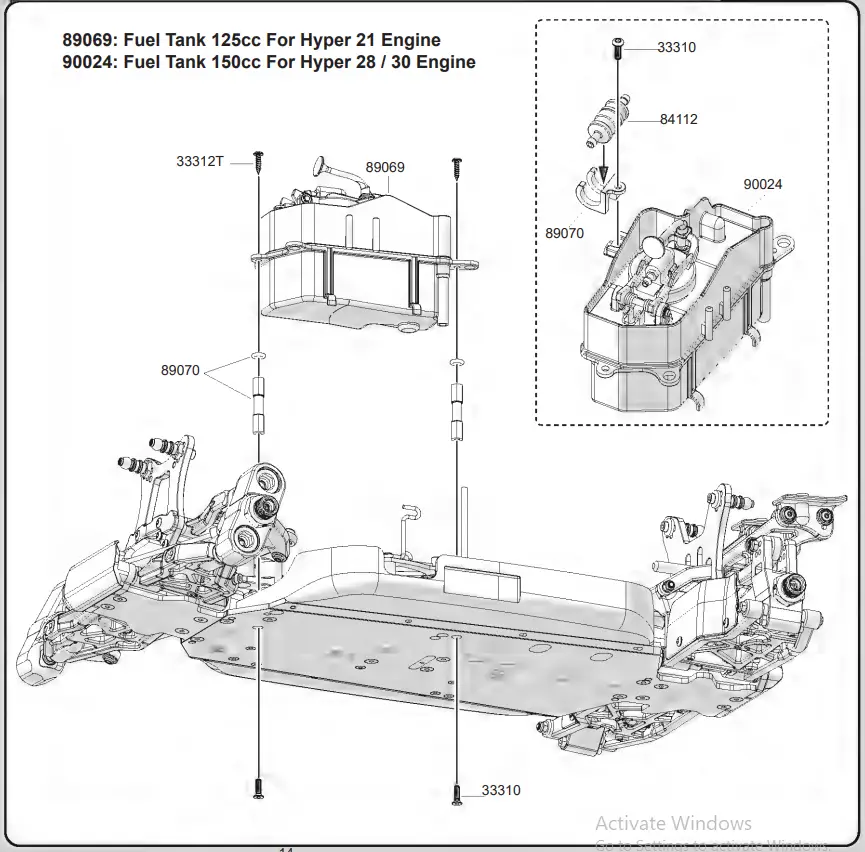

Fuel Tank Assembly

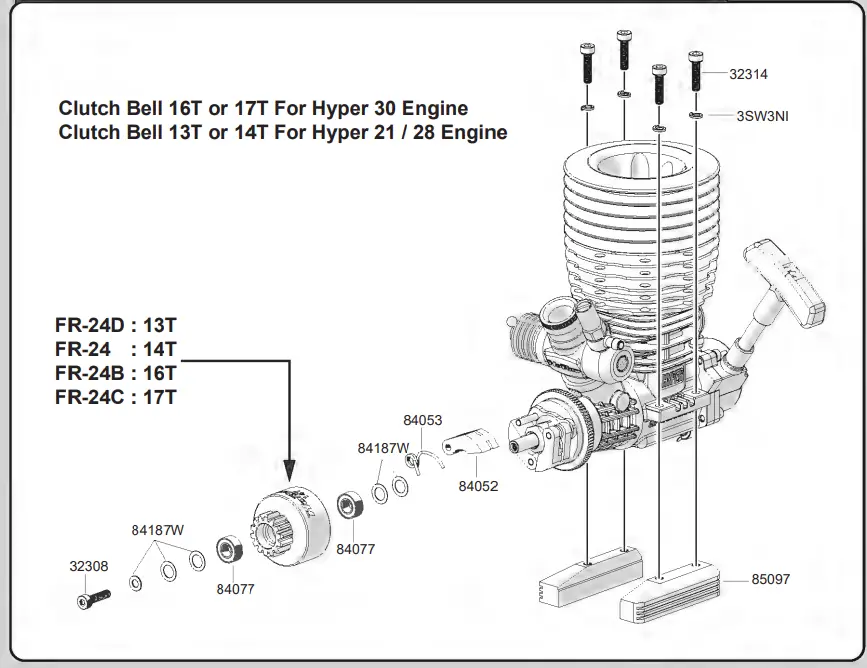

Engine Mount And Clutch Assembly
In-Line Muffler And Manifold Assembly 1

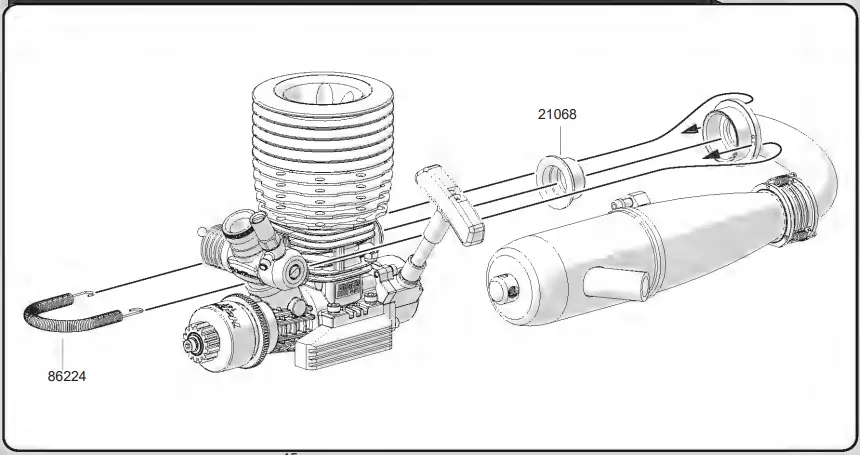

In-Line Muffler And Manifold Assembly 2
Engine Mount And Exhaust System Assembly

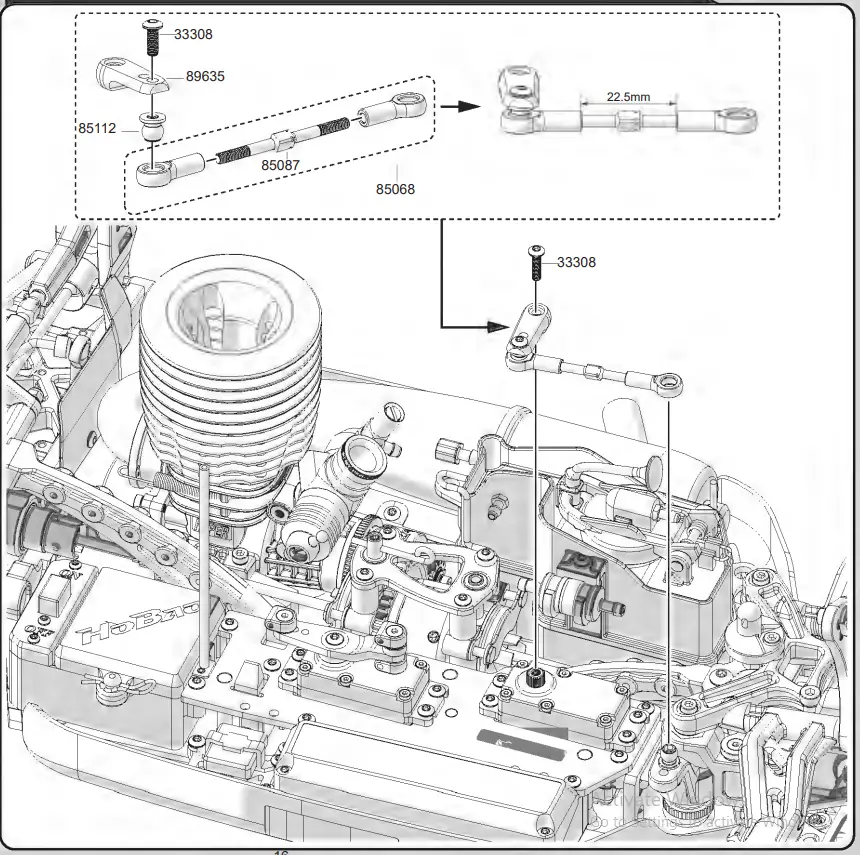

Steering Linkage Assembly
Throttle Linkage Assembly

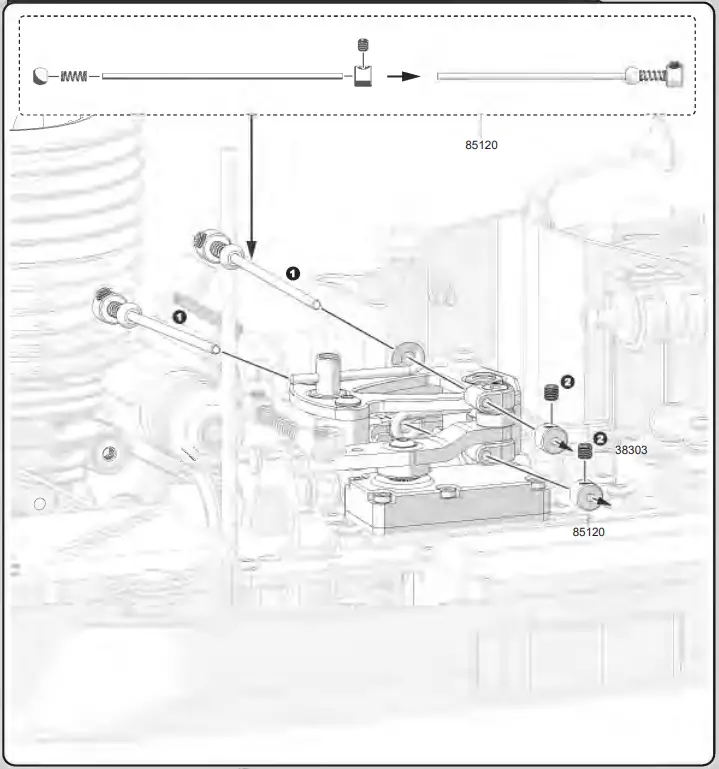

Steering And Brake Linkage Assembly

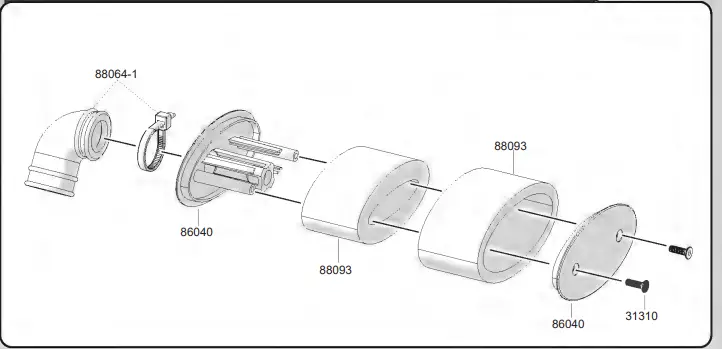

Air Filter Assembly

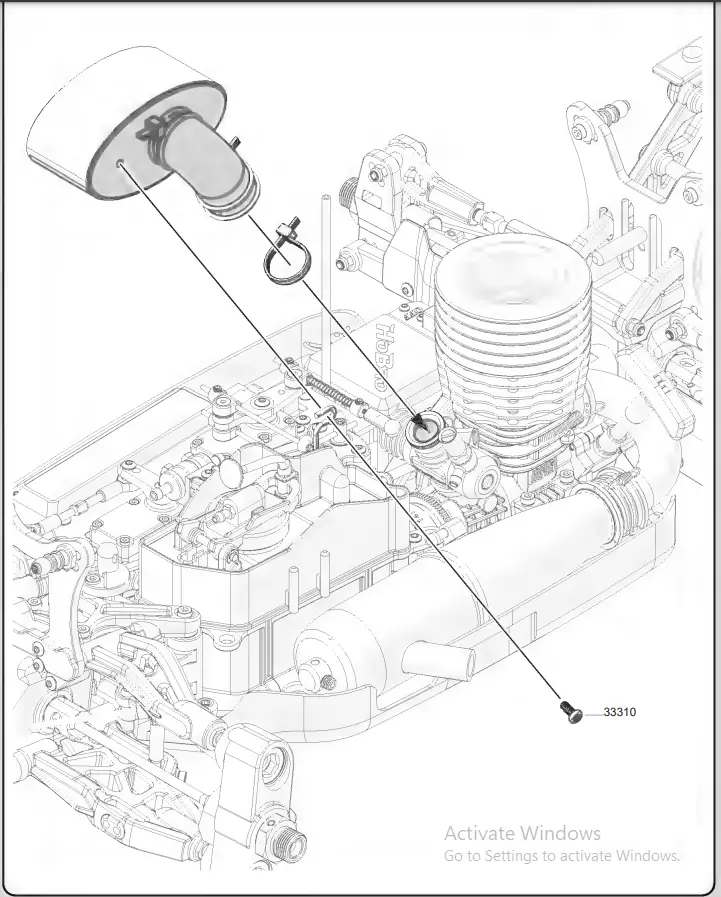

Air Filter And Holder Assembly

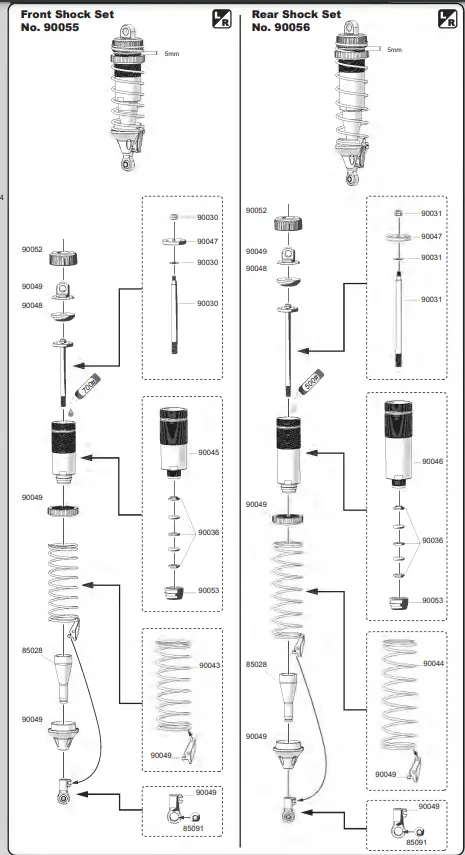

Front / Rear Shock Absorber Assembly
Front Shock Assembly

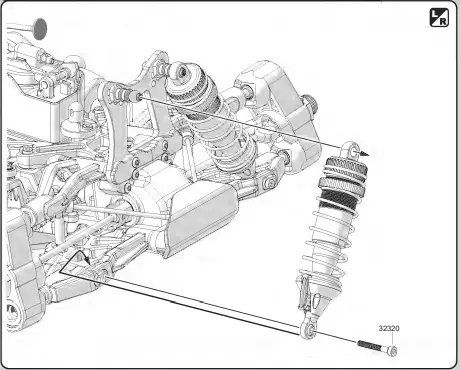

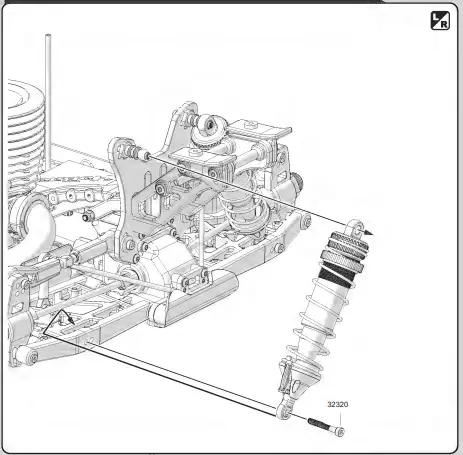

REAR SHOCK ASSEMBLY
Tire Assembly

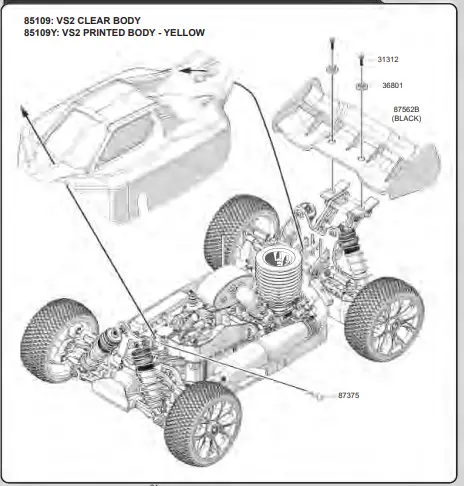

Body And Wing Assembly
LIST

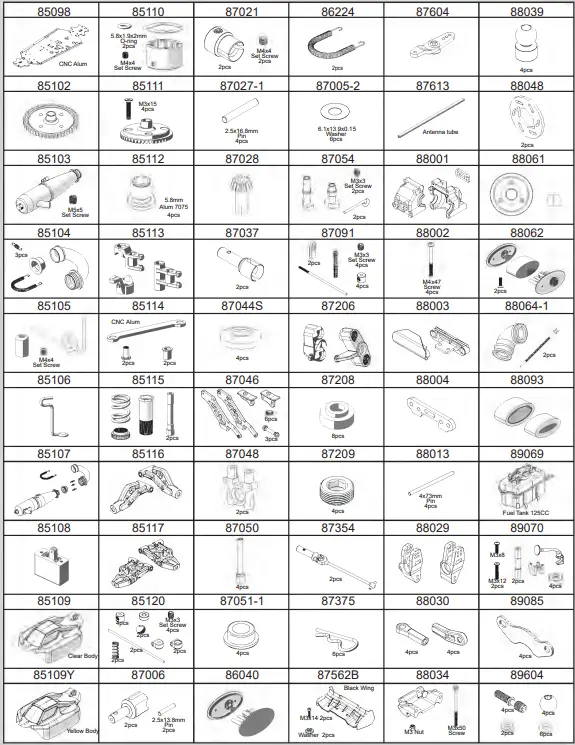

PARTS LIST

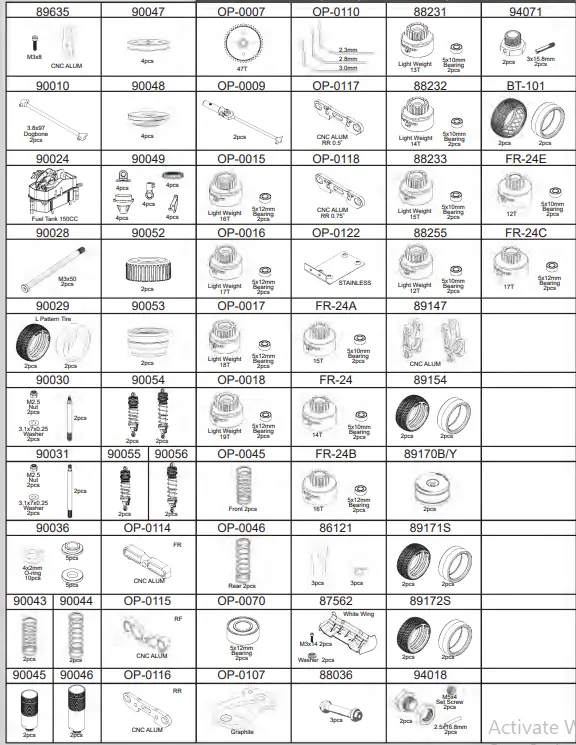

OPTIONAL PARTS
STANDARD PARTS
| STANDARD PARTS | 85085 | NEW ALUM SERVO TRAY MOUNT POSTS | 87209 | PIVOT BALL NUTS | SCREW | OPTIONAL PARTS | |||
| 21068 | SILICONE MANIFOLD SEALS, 2 PCS | 85086 | NEW 10 SPOKES WHEEL | 87354 | FRONT UNIVERSAL JOINT DRIVESHAFTS | 31310 | M3x10 FLAT HEAD SCREW | OP-0007 | CENTER SPUR GEAR 47T |
| 22148 | 3 SPRINGS FOR CONNECTING MANIFOLD | 85087 | ALUM 7075 TURNBUCKLE 3X43MM | 87375 | BODY CLIPS | 31317 | M3x17 FLAT HEAD SCREW | OP-0009 | REAR UNIVERSAL DRIVE SHAFT |
| 224044 | FLYWHEEL NUT | 85088 | ALUM 7075 TURNBUCKLE 4X40MM | 87562B | REAR WING – BLACK | 31318 | M3x18 FLAT HEAD SCREW | OP-0015 | CNC LIGHT WEIGHT CLUTCH BELL 16T |
| 3SW3NI | SPRING WASHER 3.1x5x1.5MM | 85089 | ALUM 7075 TURNBUCKLE 5X50MM | 87604 | SERVO HORN (PLASTIC) | 31320 | M3x20 FLAT HEAD SCREW | OP-0016 | CNC LIGHT WEIGHT CLUTCH BELL 17T |
| FR-24D | CNC CLUTCH BELL 13T | 85090 | ALUM 7075 SHOCK BALLS – 6.8MM | 87613 | ANTIENNA TUBE, 6 PCS | 31408 | M4x8 FLAT HEAD SCREW | OP-0017 | LIGHT WEIGHT CNC CLUTCH BELL 18T |
| 34316 | BRAKE SCREW 3×16.5MM | 85091 | ALUM 7075 BALLS – 6.8MM | 88001 | GEAR BOX | 31410 | M4x10 FLAT HEAD SCREW | OP-0018 | CNC LIGHT WEIGHT CLUTCH BELL 19T |
| 36001 | PIN 2.5×13.8MM | 85092 | ALUM 7075 FLANGED BALLS – 6.8MM | 88002 | HEX SCREW 4x47MM | 31416 | M4x16 FLAT HEAD SCREW | OP-0045 | FRONT SHOCK SPRING-ORANGE |
| 36101 | O-RING 5.8×1.9MM | 85093 | ALUM 7075 FLANGED BALLS – 6.8MM | 88003 | BUMPER SET | 32308 | M3x8 CAP HEAD SCREW | OP-0046 | REAR SHOCK SPRING-ORANGE |
| 36113 | O RING 4X2MM | 85094 | ALUM 7075 FLANGED BALLS – 7.8MM | 88004 | FRONT LOWER ARMS HOLDER | 32310 | M3x10 CAP HEAD SCREW | OP-0070 | BEARING 5x12MM |
| 36801 | ALUM COLLAR 15×4.5MM | 85095 | HOBAO STANDARD VIPER TIRES WITH INSERT | 88013 | ARM SHAFT 4x73MM | 32312 | M3x12 CAP HEAD SCREW | OP-0107 | VS GRAPHITE CENTER DIFFERENTIAL TOP PLATE – 2.5MM |
| 84052 | CLUTCH SHOE | 85096 | HOBAO STANDARD INDEX TIRES WITH INSERT | 88029 | REAR HUB SET | 32314 | M3x14 CAP HEAD SCREW | OP-0110 | VS FRONT SWAY BARS SET- 2.3MM, 2.8MM & 3MM |
| 84053 | CLUTCH SPRING | 85097 | CNC ALUM ENGINE MOUNT | 88030 | REAR UPPER ARM PLASTIC ROD END | 32320 | M3x20 CAP HEAD SCREW | OP-0111 | VS REAR SWAY BARS SET – 2.3MM, 2.5MM & 3MM |
| 84076 | BEARING 8x16x5MM | 85098 | HYPER VS2 CNC ALUM CHASSIS – NITRO | 88034 | REAR WING MOUNT | 32325 | M3x25 CAP HEAD SCREW | OP-0117 | VS CNC ALUM REAR LOWER ARM HOLDER 0.5 DEG. – RR. |
| 84077 | BEARING 5x10x4MM | 85102 | SUPR GEAR 48T | 88039 | STABILIZER BALL | 33210 | M2x10 BUTTON HEAD SCREW | OP-0118 | VS CNC ALUM REAR LOWER ARM HOLDER 0.75 DEG. – RR. |
| 84078 | BEARING 6x10x3MM | 85103 | NEW IN-LINE MUFFLER | 88048 | BRAKE DISC | 33306 | M3x6 BUTTON HEAD SCREW | OP-0122 | VS STAINLESS SKID PLATE |
| 84112 | FUEL FILTER | 85104 | NEW MANIFOLD SET | 88061 | FLYWHEEL | 33308 | M3x8 BUTTON HEAD SCREW | FR-24 | CNC CLUTCH BELL 14T |
| 84133 | SWITCH COVER | 85105 | NEW IN-LINE MUFFLER MOUNT WIRE SET | 88062 | AIR FILTER SET | 33310 | M3x10 BUTTON HEAD SCREW | FR-24A | CNC CLUTCH BELL 15T |
| 84134 | BODY CLIPS | 85106 | NEW STEEL AIR FILTER HOLDER | 88064-1 | AIR FILTER INTAKE TUBE | 33310T | M3x10 BUTTON HEAD TAP SCREW | FR-24B | CNC CLUTCH BELL 16T |
| 84187W | CLUTCH BELL WASHER | 85107 | NEW MUFFLER WITH MANIFOLD SET | 88093 | AIR FILTER FOAM | 33312 | M3x12 BUTTON HEAD SCREW | 86121 | CNC CLUTCH SHOES |
| 85002 | REAR LOWER ARM SET | 85108 | ON/OFF SWITCH FOR VS2 | 89069 | FUEL TANK 125CC | 33315 | M3x15 BUTTON HEAD SCREW | 87562 | REAR WING – WHITE |
| 85004 | FRONT/REAR CHASSIS BRACES SET | 85109 | HYPER VS2 CLEAR BODY | 89070 | FUEL TANK POST & MOUNT | 33318 | M3x18 BUTTON HEAD SCREW | 88036 | CNC WING MOUNT POST |
| 85009 | REAR MUD GUARDS | 85109Y | HYPER VS2 PRINTED BODY – YELLOW | 89085 | BRAKE PAD | 33325 | M3x25 BUTTON HEAD SCREW | 88231 | CNC LIGHT WEIGHT CLUTCH BELL 13T |
| 85011 | PIN 4×43.5MM | 85110 | NEW DIFFERENTIAL CASE SET | 89604 | STEERING PIVOT BALL SET | 33412 | M4x12 BUTTON HEAD SCREW | 88232 | CNC LIGHT WEIGHT CLUTCH BELL 14T |
| 85018 | CENTER DIFFERENTIAL TOP PLATE | 85111 | NEW CROWN GEAR 43T FOR # 85110 | 89635 | CNC ALUM FUTABA SERVO HORN (25T) | 33418 | M4x18 BUTTON HEAD SCREW | 88233 | CNC LIGHT WEIGHT CLUTCH BELL 15T |
| 85022 | STEERING KNUCKLE ARM | 85112 | ALUM 7075 FLANGED BALLS – 5.8MM | 90010 | REAR AXLE, 2 PCS | 33422 | M4x22 BUTTON HEAD SCREW | 88255 | CNC CLUTCH BELL 12T |
| 85026 | ADJUSTABLE ARM INSERT | 85113 | NEW SERVO SAVER ARM | 90024 | FUEL TANK 150 CC | 34316 | M3x16 HEX SCREW | 89147 | CNC ALUM REAR WHEEL HUB |
| 85028 | SHOCK BOOTS | 85114 | CNC ALUM STEERING RACK SET | 90028 | SCREW 3x50MM | 35208 | M2x8 PAN HEAD SCREW | 89154 | HIGH PERFORMANCE TIRES WITH HIGH INSERT |
| 85031 | FRONT UPPER ARM HOLDER | 85115 | SERVO SAVER POST SET | 90029 | STANDARD TIRE WITH INSERT | 38303 | M3x3 SET SCREW | 89170B/Y | REVO WHEEL – BLACK / YELLOW |
| 85034 | WHEEL HUB SET 1.0MM | 85116 | FRONT UPPER ARM | 90030 | FRONT SHOCK SHAFT | 38304 | M3x4 SET SCREW | 89171S | HOBAO PRO VIPER TIRES – SOFT, W/O INSERT |
| 85066 | NEW BEVEL GEAR SET | 85117 | FRONT LOWER ARM | 90031 | REAR SHOCK SHAFT | 38308 | M3x8 SET SCREW | 89172S | HOBAO PRO INDEX TIRES – SOFT, W/O INSERT |
| 85067 | LIGHTWEIGHT DIFFERENTIAL OUTDRIVE CUPS | 85120 | BRAKE LINKAGE SET | 90036 | SHOCK ABSORBER REPAIR SET | 38404 | M4x4 SET SCREW | 94018 | WHEEL HEX HUB & ANTI-LOOSE-NUT |
| 85068 | ALUM 7075 SERVO LINKAGE SET 3 x 43MM FOR STEERING | 86040 | AIR FILTER BASE AND CAP | 90043 | FRONT SHOCK SPRING | 38408 | M4x8 SET SCREW | 94071 | WHEEL HEX HUB 1.0MM |
| 85069 | FRONT SWAY BAR SET | 86224 | MANIFOLD SPRING | 90044 | REAR SHOCK SPRING | 38504 | M5x4 SET SCREW | BT-101 | 1/8 PRO TIRES WITH HIGH INSERT |
| 85070 | REAR SWAY BAR SET | 87005-2 | SPACER 6.1×13.9×0.15MM | 90045 | FRONT SHOCK BODY | 39004 | M3 NUT | FR-24E | CNC CLUTCH BELL 12T |
| 85071 | FRONT UPPER ARM HOLDER PLATE (PLASTIC) | 87006 | CENTER DIFFERENTIAL OUTDRIVE CUP | 90046 | REAR SHOCK BODY | 39008 | M3 NYLON NUT | FR-24C | CNC CLUTCH BELL 17T |
| 85072 | CNC ALUM FRONT SERVO SAVER TOP PLATE | 87021 | OUTDRIVE CUP | 90047 | SHOCK PISTON | ||||
| 85073 | CNC ALUM SERVO TRAY | 87027-1 | PIN 2.5×16.8MM | 90048 | SHOCK BLADDER | ||||
| 85074 | RECEIVER BOX | 87028 | DIFFERENTIAL PINION GEAR 13T | 90049 | SHOCK NYLON SET | ||||
| 85075 | EXTRA BATTERY COMPARTMENT FOR LIPO | 87037 | AXLE CUP | 90052 | SHOCK CAP TOP | ||||
| 85076 | SAVER TRAY MOUNT SET | 87044S | ALUM COLLAR 3x10MM | 90053 | SHOCK CAP BOTTOM | ||||
| 85077 | QUICK RELEASE SERVO TRAY MOUNT | 87046 | WING MOUNT SET | 90054 | FRONT/REAR SHOCK ABSORBER SET | ||||
| 85078 | ADJUSTABLE ARM RETAINER CLIP | 87048 | CENTER DIFFERENTIAL MOUNT | 90055 | FRONT SHOCK ABSORBER SET | ||||
| 85079 | HYPER VS2 SIDE GUARD SET | 87050 | CENTER DIFFERENTIAL MOUNT POST | 90056 | REAR SHOCK ABSORBER SET | ||||
| 85080 | CNC ALUM FRONT SHOCK TOWER | 87051-1 | BRAKE CAM SPACER | OP-0114 | VS CNC ALUM FRONT LOWER ARM HOLDER – FR | ||||
| 85081 | CNC ALUM REAR SHOCK TOWER | 87054 | BRAKE CAM SET | OP-0115 | VS CNC ALUM REAR LOWER ARM HOLDER – RF | ||||
| 85082 | ALUM COLLAR FOR SERVO SAVER | 87091 | THROTTLE LINKAGE SET | OP-0116 | VS REAR LOWER SUSPENSION ARMS HOLDER | ||||
| 85083 | CNC ALUM REAR BODY SHELL POST | 87206 | PIVOT BALL FRONT STEERING HUBS | ||||||
| 85084 | CENTER DRIVESHAFT | 87208 | PIVOT BALL PLASTIC BALL WASHERS/SPACERS | ||||||
