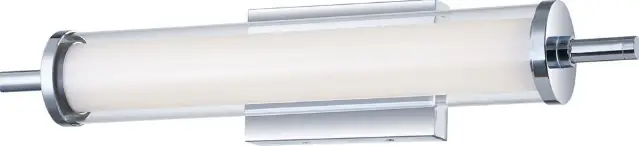

QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light

QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig1

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble, install or operate the product.

WARNING
RISK OF ELECTRIC SHOCK – Before beginning installation, turn off electricity at the circuit breaker box or the main fuse box.

CAUTION

  • For your safety, read instructions completely before beginning installation.
  • If in doubt about electrical installation, consult a licensed electrician.

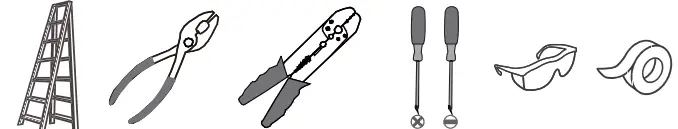

TOOLS REQUIRED

QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig2

CARE AND MAINTENANCE

Wipe clean using soft, dry cloth or static duster. Always avoid using harsh chemicals and abrasives to clean fixture as they may damage the finish.

If you need further assistance call Quoizel Customer Care at 1-800-645-3184 (9:00am – 5:00pm EST), or visit us on-line at www.quoizel.com

PACKAGE CONTENTS

QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig3

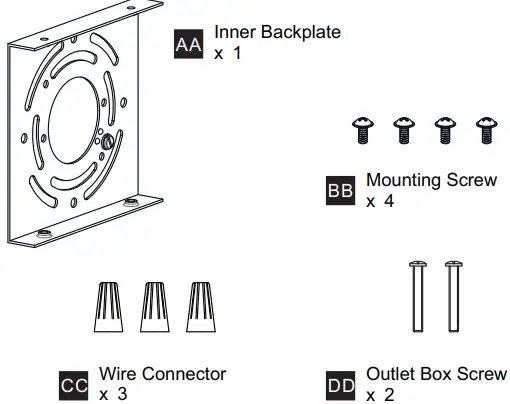

MOUNTING HARDWARE

QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig4

INSTALLATION

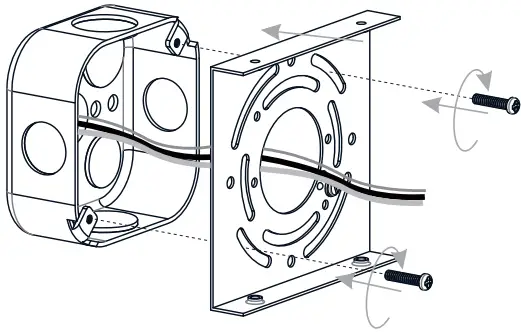

  1. Install Inner Backplate

    QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig5

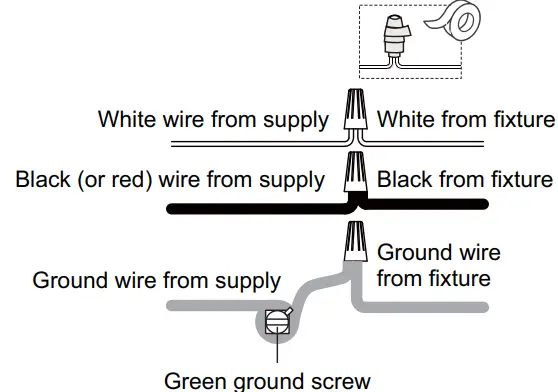

  2. Wiring

    QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig6

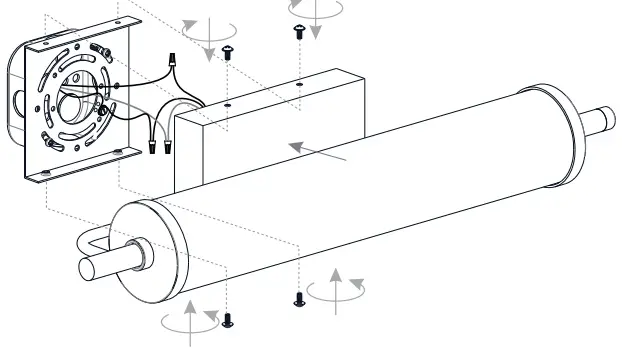

  3. Install Fixture Bod

    QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig7
    Your installation is now complete! Restore electricity and save this sheet for future reference.

HOW TO REPLACE SHADES

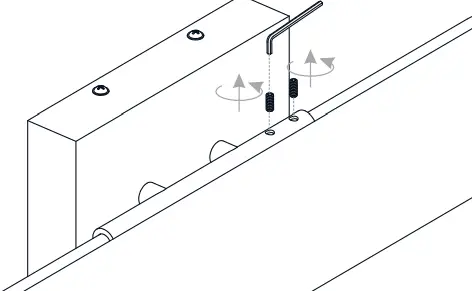

  1. Remove Set Screws

    QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig8

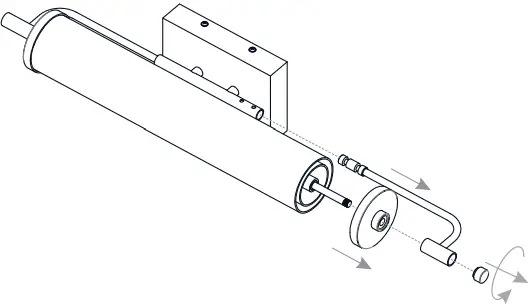

  2. Remove Finial and End Cap

    QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig9

  3. Replace Shades

    QUOIZEL PCCAL8523C Caledon Chrome Bath Light Wall Light-fig10
    Reverse the above steps to assemble previously removed parts back.
