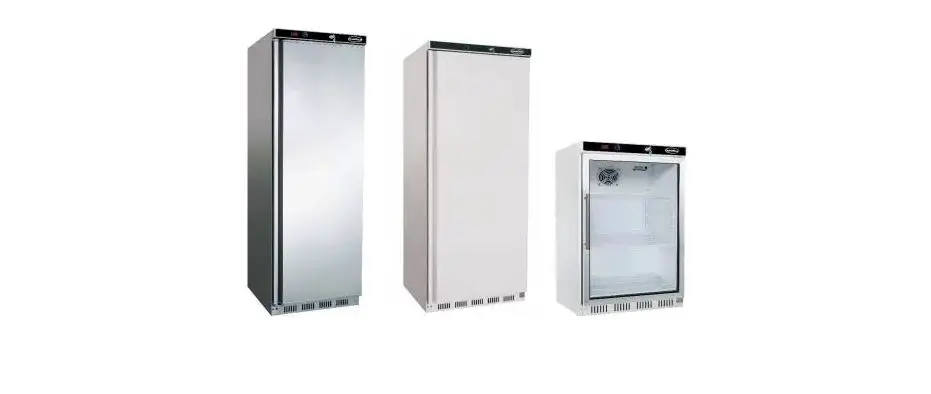

Combisteel 7450.0550 Under Counter Stainless Steel Refrigerator User Manual

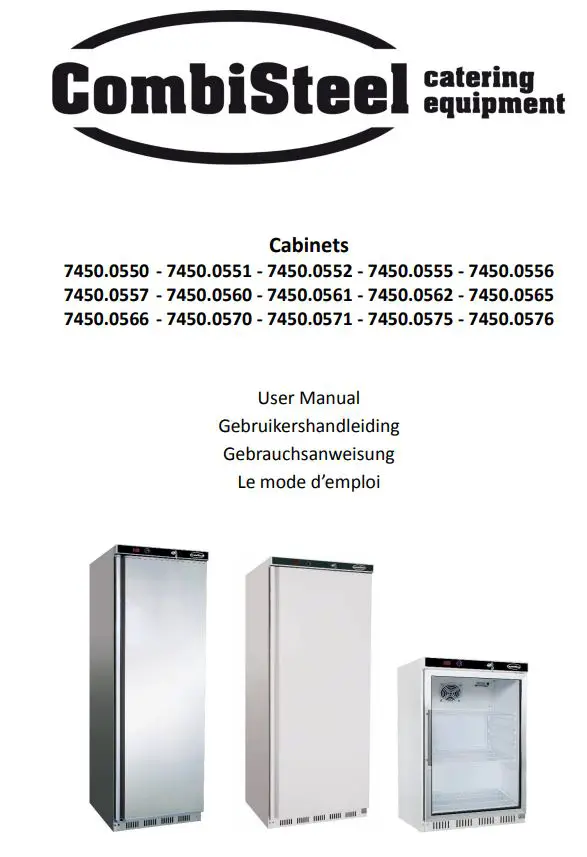

CombiSteel 7450.0550 Under Counter Stainless
Steel Refrigerator User Manual

Safety tips

• Position on a flat, stable surface
• A service agent/qualified technician should carry out installation and any repairs if Do not remove any components or service panels on this product.
• Consult Local and National Standards to comply with the following:
  • Health and Safety at Work Legislation
  • BS EN Codes of Practice
  • Fire Precautions
  • IEE Wiring Regulations
  • Building Regulations
• DO NOT use jet/pressure washers to clean the appliance
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT use electrical appliances inside the appliance (e.g. heaters, ice cream makers ).
• DO NOT allow oil or fat to come into contact with the plastic components or door Clean immediately if contact occurs.
• DO NOT store products on top of the supplies.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the supplies.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the supplies.
• Always switch off and disconnect the power supply to the unit before supplies.
• Keep all packaging away from Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a agent or a recommended qualified technician in order to avoid a supplies.
• This appliance is not attended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their supplies.
• Children should be supervised to ensure that they do not play with the appliance.

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Warning: Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.
• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your product.

Pack Contents

The following is included:

• Refrigerator / Freezer
• Shelves – Refrigerator only
  7450.0551/7450.0550/7450.0552 x 3
  7450.0556/7450.0555/7450.0557 x 4
  7450.0561/7450.0560/7450.0562 x  4
• Keys x 2
• Spacers x 2
• Instruction Manual

Prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.

Should you find any damage as a result of transit, please contact your dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for Increase this distance if the obstacle is a heat source.

Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

 Operation

Control Panel

The control panel is located on the front of the appliance.

Turn On

1. Close the door of the appliance
2. Connect the appliance to a mains power supply.
3. Set the temperature to the desired setting: 0 (Off), 1 (Cool) to 7 (Cold)

Storing Food

To get the best results from your appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating instructions:
• Do not place uncovered hot food or liquid inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance
• Avoid opening the doors for prolonged periods of time.

Lock/Unlock the Doors

• A lock is fitted to the doors to ensure foodstuffs are kept secure within your appliance.
• Use the keys provided to lock/unlock the door.

Cleaning, care & maintenance

Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible
• Do not use abrasive cleaning These can leave harmful residues.
• Clean the door seal with water only.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• Take care when cleaning the rear of the Sharp edges can cut.
• A agent or qualified technician must carry out repairs if required.

Cleaning the Condenser
Periodically cleaning the condenser can extend the life of the appliance.

Replacing the Lamp (7450.0552 – 7450.0557 – 7450.0562)

1. Switch Off and disconnect the appliance from the power supply
2. Remove the plastic cover
3. Twist the lamp in its socket and release
4. Remove the lamp and replace the new one of the same power rating
5. Replace the plastic cover

Troubleshooting

If your appliance develops a fault, please check the following table before making a call to the Helpline or your dealer.

Technical specifications

Electrical wiring

Appliances are supplied with a 3 pin, moulded, BS1363 plug and lead, with a 13 amp fuse as standard. The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

All POLAR appliances must be earthed, using a dedicated earthing circuit. If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

Parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

Products have been approved to carry the following symbol:
