HUR-S
HOLD-UP RAIL
Stock No. 2020019
Owner’s Manual

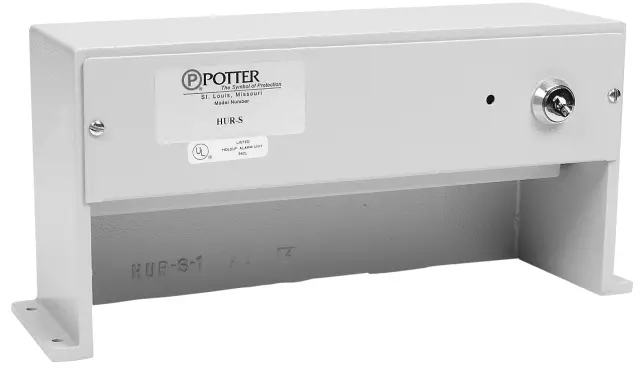

HUR-S Hold-Up Rail
UL Listed
Dimensions: 11 1/2″W x 5 1/4″H x 3 1/4″D 29,2 cm W x 13,3 cm H x 8,26 cm D
Weight: 3.25 lbs. (1,46 kg.)
Enclosure: Aluminum with gray spatter enamel finish
Switch Rating: DPDT Switch
1.75 Amps at 24VAC, 1.50 Amps at
28VDC 0.23 Amp at 115VAC, 0.10 Amp at 130VDC
DESCRIPTION
The model HUR-S is a foot operated holdup switch. The unit is self locking and has a visual indication to show if unit is operated. A key switch is required to reset the device after it has been operated.
DPDT contacts are provided, so that the device may be used on open or closed circuit alarm systems, and also to operate annunciators, remote lamps, cameras, etc., at the same time

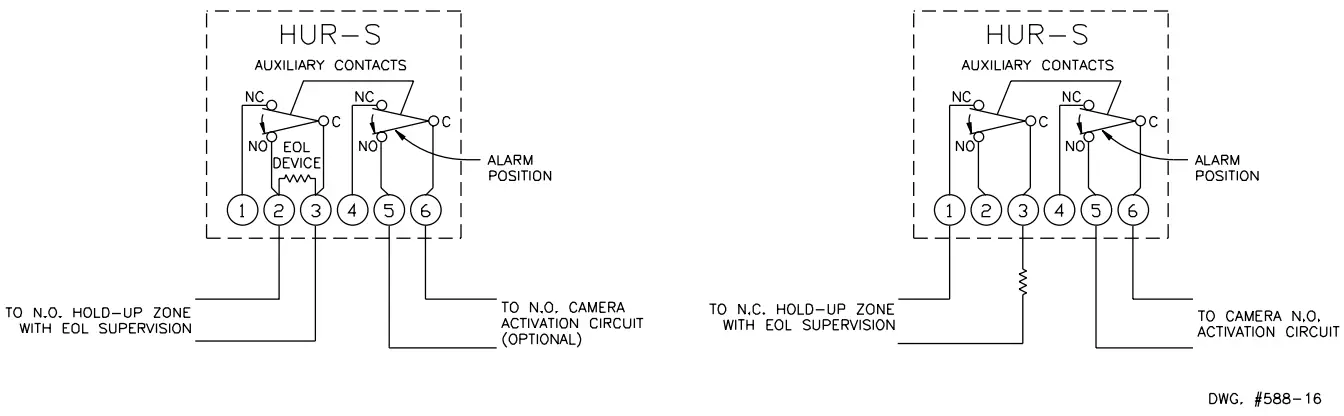

HOLDUP DEVICES (SHOWN IN NORMAL UNACTUATED CONDITION)
Potter Electric Signal Company
• 2081 Craig Road, St. Louis, MO, 63146-4161
• Phone: 800-325-3936/Canada 888-882-1833
• www.pottersignal.com
MKT. #8870006 – REV E
MFG. #5400588 – 12/01
