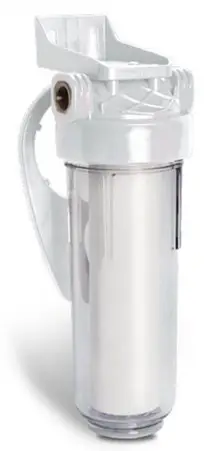

ECOSOFT SEDIMENT FILTER
DESCRIPTION:
Perfect for apartments with 1 bathroom.
Transparent housing allows to see when the filter is clogged and needs to be replaced.
In and out ports are lined with female threaded brass bushings.
KEY FEATURES:
- Affordable price for excellent quality from the Ukrainian manufacturer
- Filter housing made of pure European first grade plastic
- Protection of sanitary ware and plumbing
- Compact and easy to install
SPECIFICATIONS:
| FPV12ECO | FPV34ECO | FPV1ECO | |
| Filter size | 2.5″ × 10″ | ||
| Connection size | 1/2” | 3/4″ | 1″ |
| Maximum flow capacity | 10 L/min (2.5 gpm) | ||
| Operating pressure | 3.5–4 bar (50–60 psi) | ||
| Maximum pressure | 6 bar (87 psi) | ||
| Water temperature | +3…+43 °C (37…109 °F) |
COMPONENTS:
- Filter housing
- 5 micron PP melt blown sediment filter
- Bracket
- Service wrench
- Screws
- User manual
ECOSOFT SEDIMENT FILTERS
| Code | Product | Pieces inbox | Boxes on pallet | Pieces on pallet |
| FPV12ECO | 1/2″ Ecosoft Sediment Filter Individual carton box, color packing Unit weight (net/gross), kg: 1.0/1.05 (lb: 2.2/2.31) Box dimensions, m: 0.58 х 0.45 х 0.39 (in: 22.8 x 17.7 x 15.4) | 12 | 20 | 240 |
| FPV34ECO | 3/4″ Ecosoft Sediment Filter Individual carton box, color packing Unit weight (net/gross), kg: 1.0/1.05 (lb: 2.2/2.31) Box dimensions, m: 0.58 х 0.45 х 0.39 (in: 22.8 x 17.7 x 15.4) | 12 | 20 | 240 |
| FPV1ECO** | 1″ Ecosoft Sediment Filter Individual carton box, color packing Unit weight (net/gross), kg: 1.0/1.05 (lb: 2.2/2.31) Box dimensions, m: 0.58 х 0.45 х 0.39 (in: 22.8 x 17.7 x 15.4) | 12 | 20 | 240 |
* List prices are without VAT
** The product is going to be available in 2020
Minimum order is 1 pallet of any product
