Owner’s Manual
HDZ-110
CONTENTS
EXTERNAL DIMENSIONS
WIRING CONNECTION

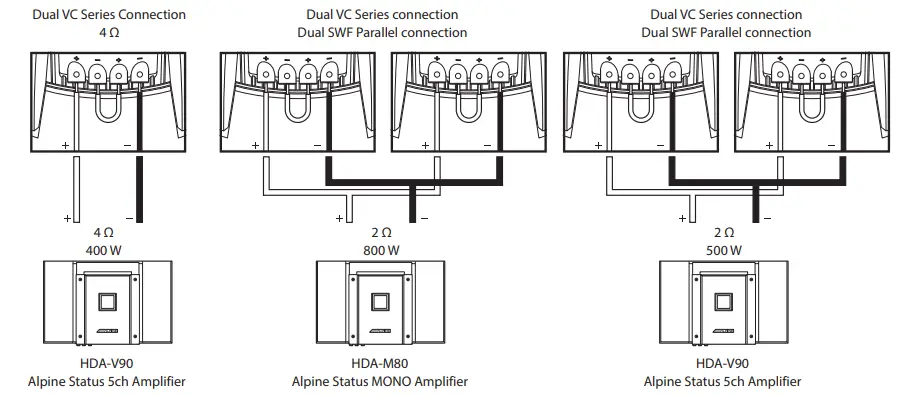

Recommended connection
ptional connection

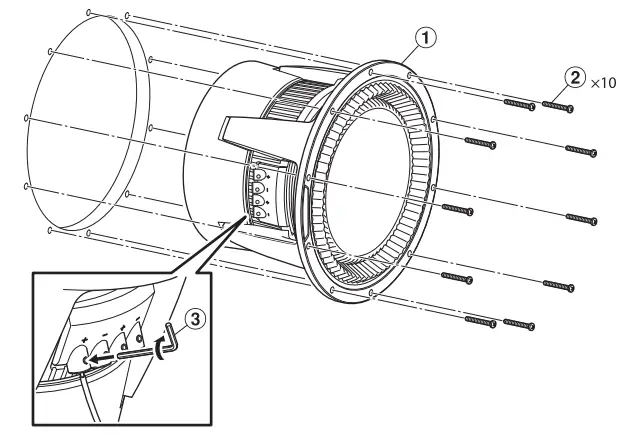

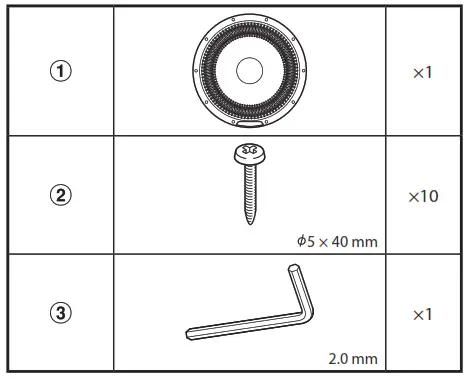

INSTALLATION
SPECIFICATIONS
| Units Type | 11″(27.9 cm) Carbon Cone |
| Maximum Peak Power | 1,200 Watts (600 Watts in each VC) |
| Maximum RMS Power | 400 Watts (200 Watts in each VC) |
| Impedance | 2+2 ohms |
| Sensitivity | 84 dB (2.83 V x 2 @ 1 m) |
| Mounting Deps/Drop-in Mounting | 7-3/4″(19.6 cm) |
| Cutout Diameter | 10″(25.1 cm) |
| Recommended Amplification For Subwoofer each channel | Up to 200 Watts /2 ohm RMS. per channel, or Up to 400 Watts / 4-ohm RMS. in VC series connection. |
• Design and specifications are subject to change without notice.

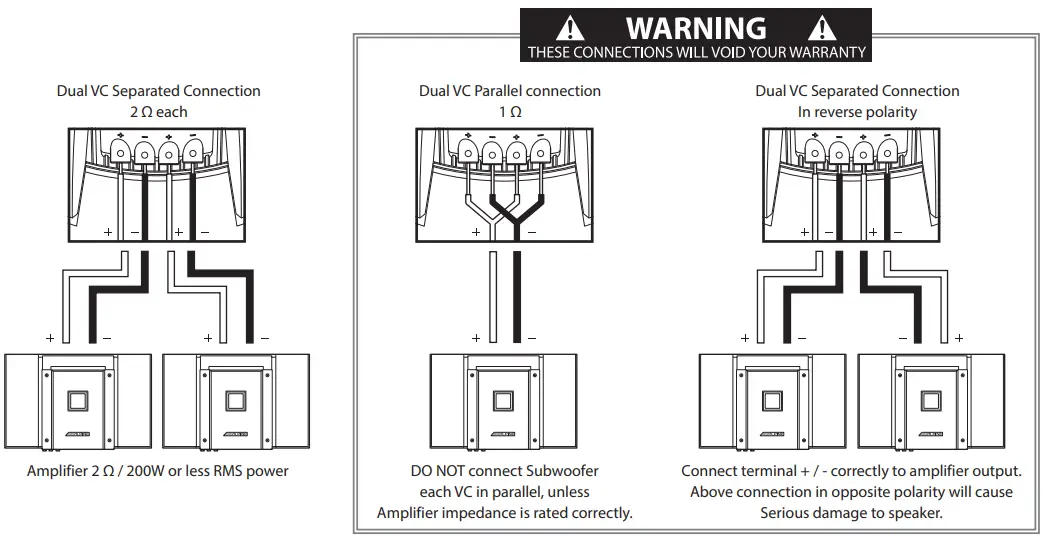

[Warning]
This product is a dual voice coil subwoofer, Parallel connection of each voice coil makes 1 ohm.
Please make sure the amplifier impedance is properly rated for the power handling specification of the subwoofer.
SHEN ZHEN QICAI TECHNOLOGY CO., LTD.
Building 197, Tongyufu Industrial Zone, Weizai New Village, Kukeng Community, Guanlan street, Longhua District, Shenzhen City, China
Printed in China
68-44781Z27-A (Y-A3)
