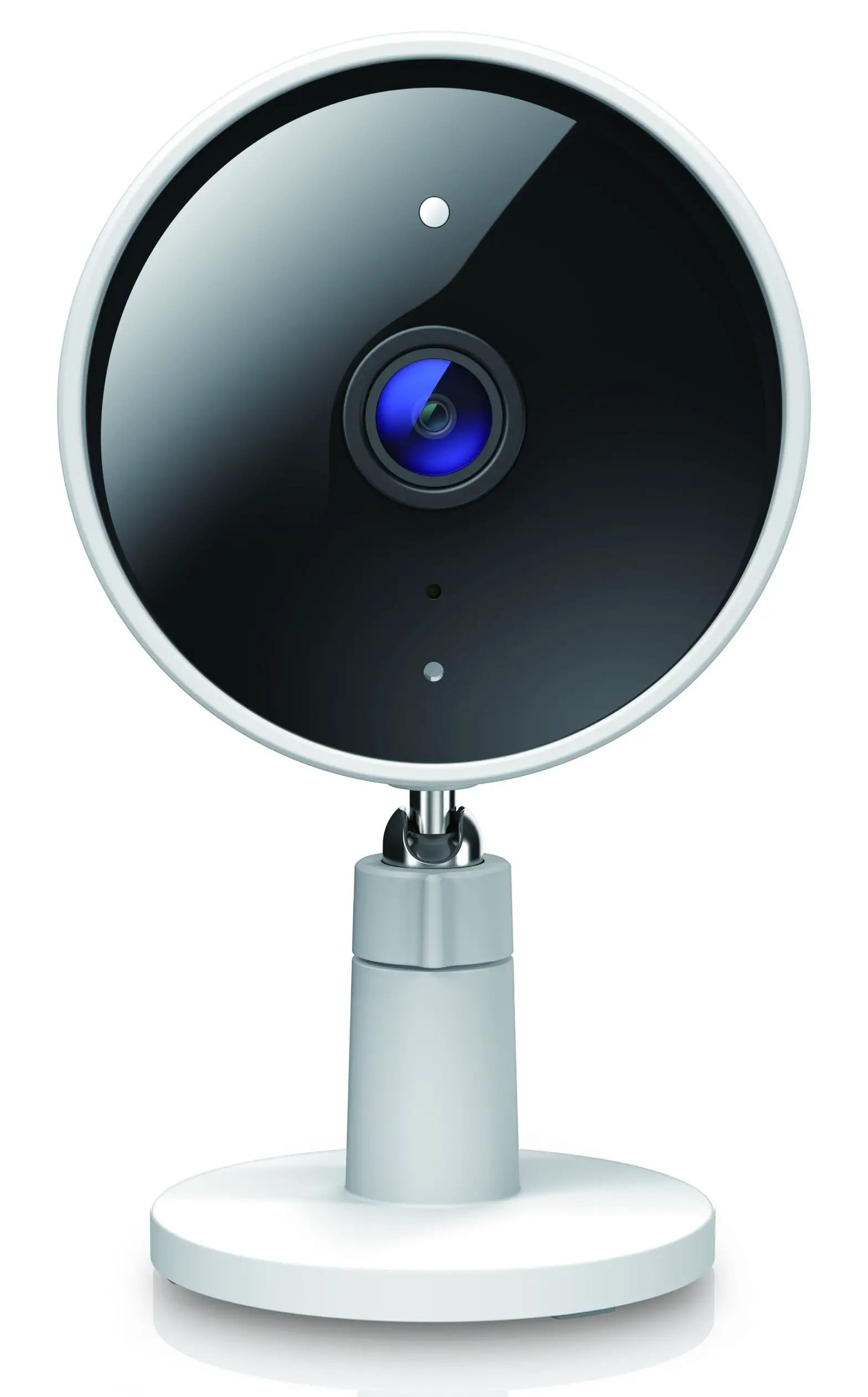

Full HD Outdoor Wi-Fi Camera
Home Surveillance, Unconfined
Stylish enough for your living room and tough enough for your front porch, the DCS-8302LH reimagines home surveillance in vivid Full HD 1080p clarity.
DCS-8302LH
- True Full HD 1080p resolution at 30 fps with 135-degree FOV so you never miss a thing
- IR night vision up to 5 m (16 ft.) lets you see what’s happening even in total darkness
- AI-based person detection intelligently identifies human motion
- Enhanced sound and motion detection add new lines of defense to your home surveillance
- Weather-resistant for outdoor installation
- Operates in extreme temperatures of -20 to 45°C (-4 to 113°F)
- Two-way audio with built-in microphone and speaker lets you hear and be heard
- 95 dB siren wards off intruders and alerts you to a detection
- Wi-Fi and Ethernet connectivity options
- Built-in Bluetooth Low Energy technology for faster setup
- Supports cloud / microSD (max. 256 GB) / phone and ONVIF Profile S recording1
- Futureproof with next-generation IPv6 support
- Supports WPA3TM encryption for more protection
- Versatile rotating stand for optimal angle adjustment
- Wall, ceiling and pole mountable (hardware included)
- Access anytime, anywhere with the free mydlink app
- Works with the Google Assistant and Alexa²
 | True Full HD Clarity 1080p at 30 FPS resolution |  | Two-Way Audio Transmit and receive audio withbuilt-in microphone and speaker |
 | Weather Resistant Suitable for outdoor installation |  | Supports WPA3 The latest Wi-Fi security for more protection |
 | Built-In AI-Based Person Detection Intelligently identifies human motion |  | Built-In Siren 95 dB siren sounds when triggered |
 | Day & Night See up to 5 meters in the dark |  | ONVIF Compliant Supports ONVIF for continuous recording with compatible NVR, VMS or NAS |
Technical Specifications / DCS-8302LH
General
| Video Compression | H.264 |
| Max. Resolution | 2 Megapixel (Full HD) |
| Max. Frame | 1080p (1920 x 1080) |
| Image Sensor | 1/2.9” Progressive CMOS sensor |
| Day & Night – IR LED | 5 m (16 ft) |
| Focal Length | 3 mm |
| Aperture | F2.4 |
| Angle of View | (H) 109° (V) 57° (D) 135° |
| Mechanical PTZ | No |
| Audio | Built-in microphone and speaker |
| Audio Codec | MPEG-2 AAC LC |
Functionality
| Wireless IEEE Standard | 802.11n/g wireless |
| Wi-Fi Operation Band | 2.4 GHz |
| Security Protocol | WPA3 |
| Bluetooth | Bluetooth Low Energy 4.0 |
| Network Protocols | IPv4, IPv6 dual stack, Bonjour (mDNS and DNS-SD), ONVIF Profile S, RTSP, SRTP (D-Link private), HTTPS |
Software
| Device Management | mydlink app (iOS and Android), mydlink Portal |
| Features | Motion detection, person detection, sound detection |
| Recording | mydlink Cloud Recording, microSD card recording (Up to 256 GB capacity)3 |
| Notifications | Push notifications with a snapshot and quick action buttons (2 designated contact numbers and live view) |
| Voice Assistants | Amazon Alexa, the Google Assistant |
General
| Power Input | 100 to 240 V AC, 50/60 Hz |
| Power Output | 12 V DC 1.0 A |
| Max. Power Consumption | 7 W ± 5% |
| Cable Length | 3 m (9.8 ft) |
| Indoor/Outdoor | For indoor and outdoor use |
| Operating Temperature | -20 to 45 °C (-4 to 113 °F) |
| Storage Temperature | -20 to 70˚ C (-4 to 158 °F) |
| Operating/Storage Humidity | Max. 90% non-condensing |
| Weight | 250 g (8.8 oz) |

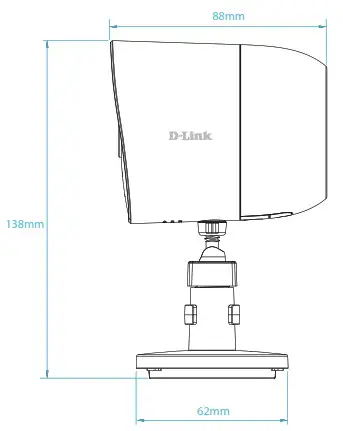

| Dimensions | 138 x 88 x 62 mm (5.4 x 3.5 x 2.4 in) |
| Certifications | CE, LVD, RCM, FCC Class B, IC, NCC/BSMI |
1 Alexa service and the Google Assistant may not be available in all regions. 2 Use of audio or video equipment for recording the image or audio of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws. 3 microSD card not included. Supports capacity up to 256 GB.
