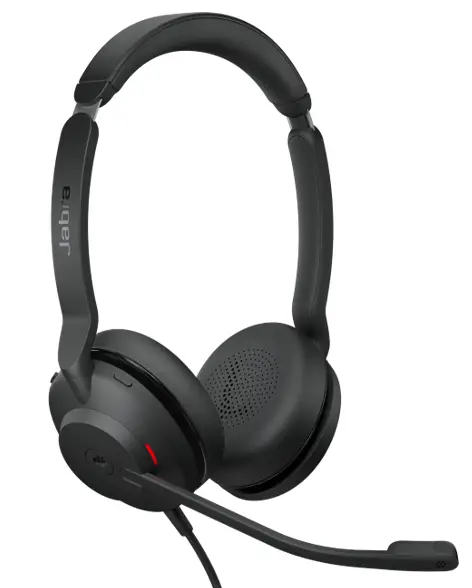

Jabra Evolve2 30 Wired Mono Headset User Manual

EVOLVE2 30
User manual

© 2021 GN Audio A/S. All rights reserved. Jabra®is a trademark of GN Audio A/S.
Declaration of Conformity can be found on www.jabra.com/doc

Welcome

Thank you for using the Jabra Evolve2 30. We hope you will enjoy it!

Jabra Evolve2 30 features

• 2-microphone call technology
• Designed for all-day comfort
• Built-in Busylight
• 28mm speaker for exceptional sound

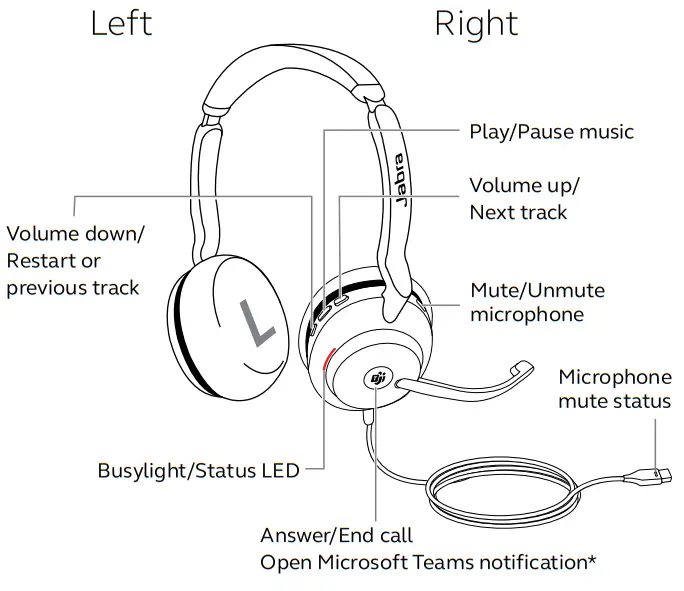

Jabra Evolve2 30 overview

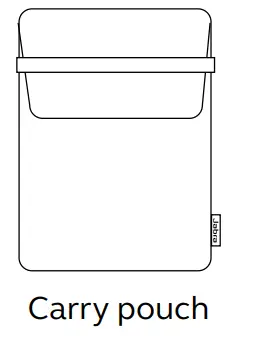

Included accessories

How to connect

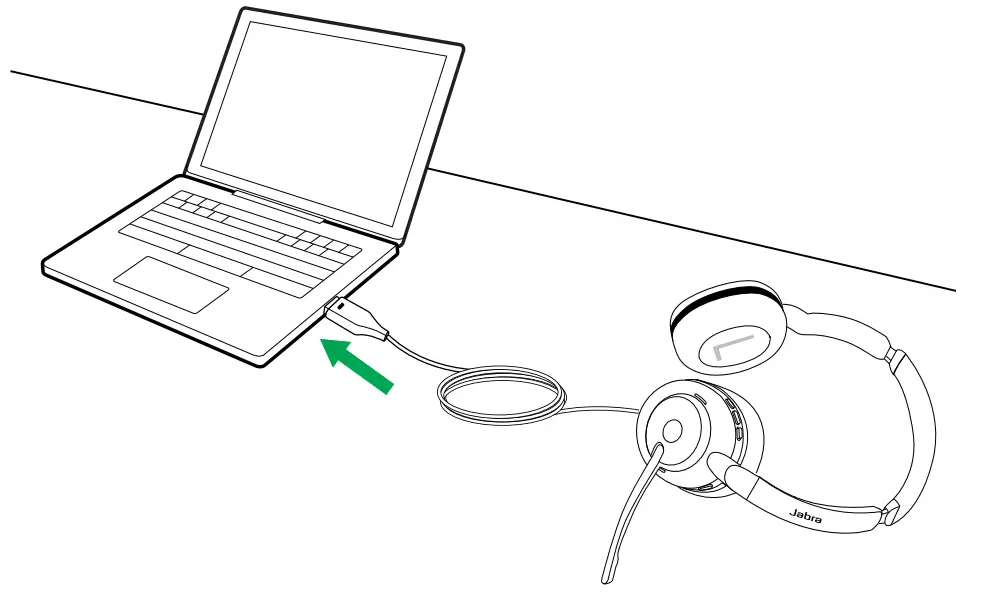

Connect to computer
Plug the Jabra Evolve2 30 into either a USB-A or USB-C port on your computer, depending on the USB variant of the headset.

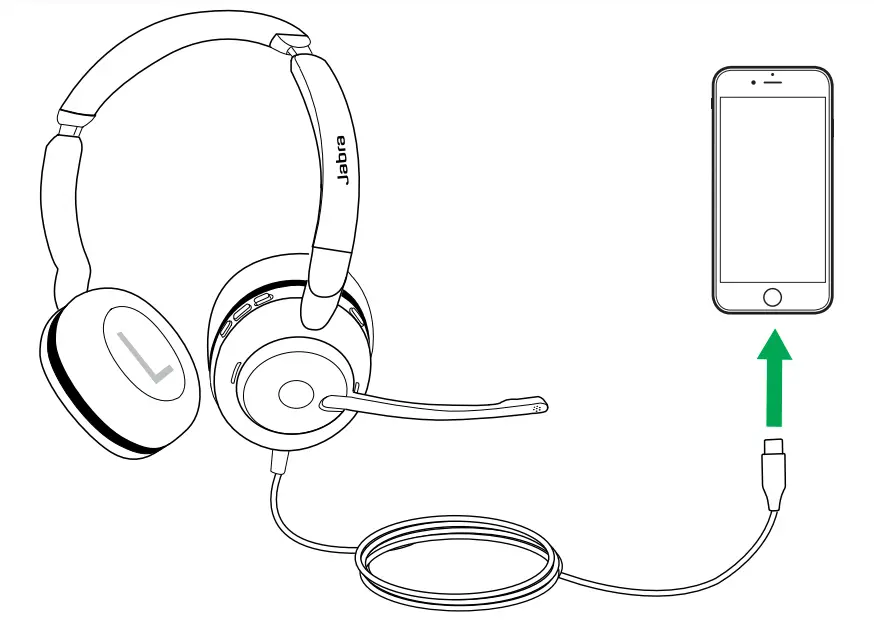

Connect to mobile devices

Plug the Jabra Evolve2 30 into a USB-C port on your mobile device. Not all USB-C devices or apps support an audio connection to the Jabra Evolve2 30.

How to wear

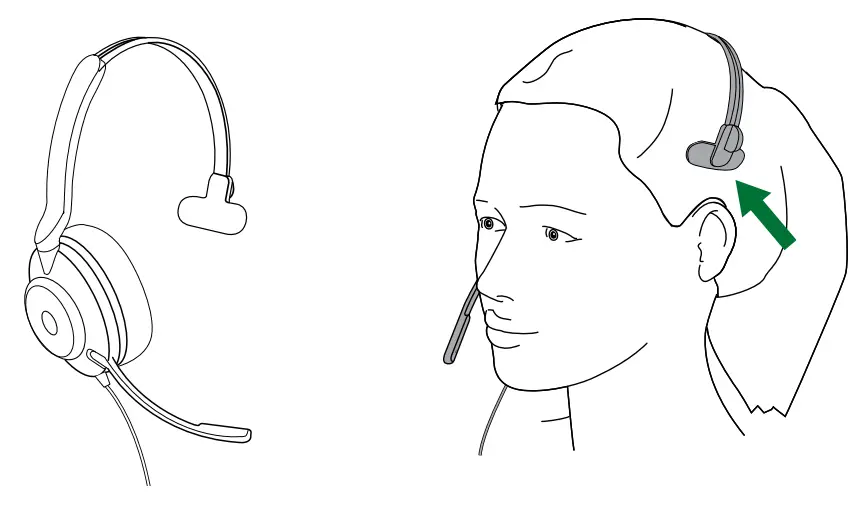

Wearing styles

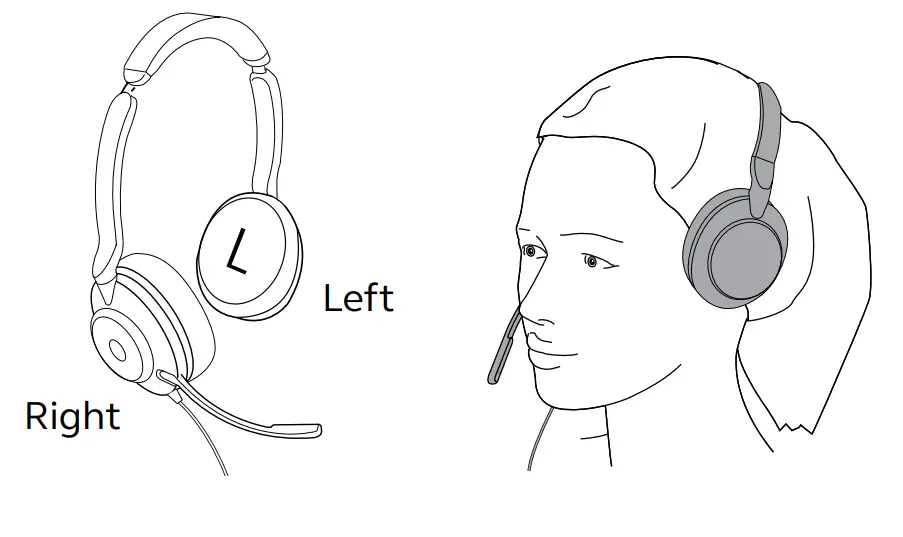

Stereo variant

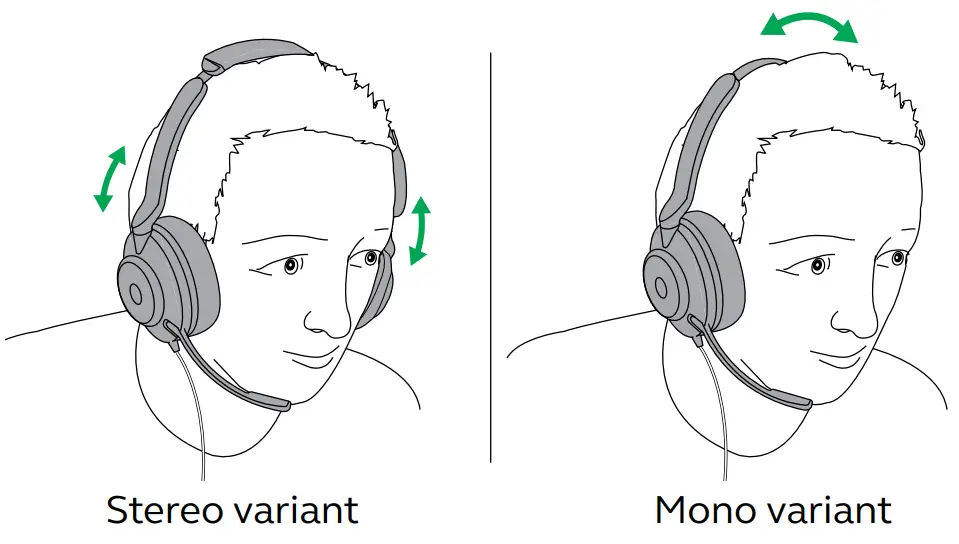

Adjusting the headset

While wearing the headset, adjust the headband so that it fits your head comfortably
When using the microphone, it should be positioned close to your mouth.

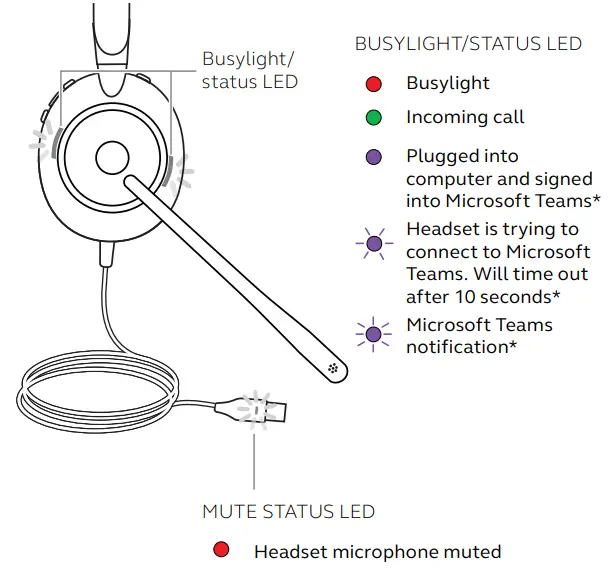

What the LEDs mean

When the headset is being worn, the LEDs will turn off to avoid distracting other people. The Busylight and mute status LEDs will not turn off.

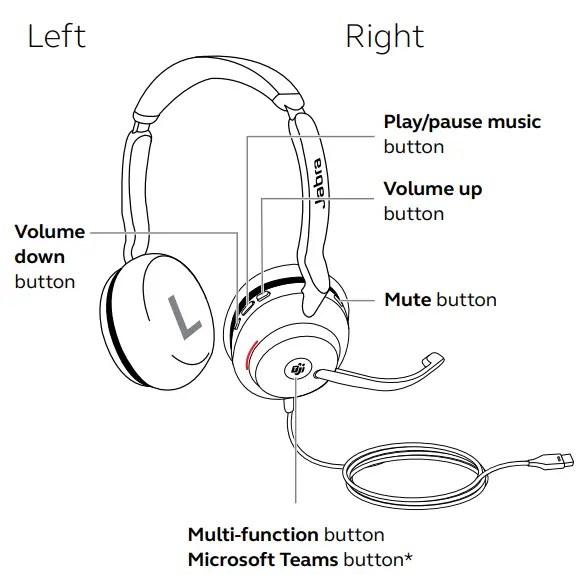

How to use

Calls & music

Right	Calls and music
	Press the Multifunction button
	Answer call	Alternatively, move the microphone boom-arm down to  answer an incoming call
	End call	Press the Multifunction button
	Reject call	Double-press the Multi-function button
	Bring Microsoft Teams to foreground on computer	Press the Microsoft Teams button* (when signed into Microsoft Teams)
	Join active Microsoft Teams meeting	Press the  Microsoft Teams button* (when signed into Microsoft Teams)
	View Microsoft Teams missed  calls and voicemails	Press the Microsoft Teams button* (when signed into Microsoft Teams)
	Play/pause music	ENGLISH Press the Play/pause music button
	Raise volume	Press the Volume up button
	Next track	Press and hold (1 sec) the Volume up button
	Lower volume	Press the Volume down button
	Restart track	Press and hold (1 sec) the Volume down button to restart  the current track. Press and hold twice to play the previous track.
	Busylight on/off	Press the Volume up and Volume down buttons at the  same time
	Mute/unmute microphone	Press the Mute button, when on a call. Alternatively,  move the microphone boom-arm up to mute, or down to unmute.

Sidetone

Sidetone enables you to better hear your own voice when you are on a call.
Sidetone settings can be configured using Jabra Direct.

Voice guidance

Right	Voice guidance
	Turn Voice guidance on/off	Press and hold (5 sec) the Mute button and the Volume up button  until you hear an announcement

Alternatively, use Jabra Direct to turn Voice guidance on or off.

Right	Multiple call handling
	End current call and answer incoming cal	Press the Multifunction button
	Put current call on hold and answer incoming call	Hold (2 secs) the Multi-function button
	Switch between held call and active call	Hold (2 secs) the Multi-function button
	Activate Cortana	Hold (2 secs) the Microsoft Teams button*
	Reject incoming call, when on a call	Double-press the Multi-function button

Software and firmware

1. Connect the Jabra Evolve2 30 to a computer.
2. Use Jabra Direct to check for the latest firmware updates.


Support

• Always store the headset in the supplied pouch.
• Avoid storage at extreme temperatures (above 55°C/131°F or below -5°C/23°F).
• Do not expose the headset to rain or other liquids.
