COYOTE Dimensional Renderings CSSD36

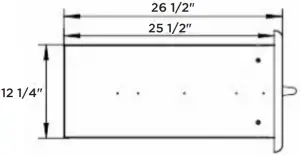

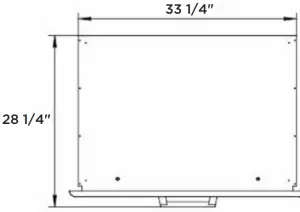

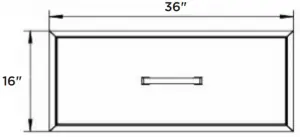

Overall Product Dimensions
Model No. | Height | Width | Depth |
CSSD36 | 16″ | 36″ | 26 1/2″ |

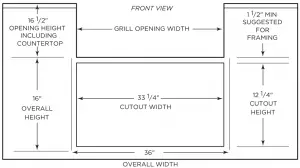

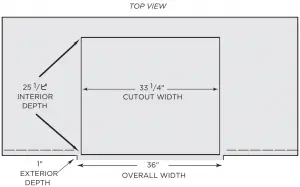

Cutout Dimensions for Island
| Model No | Height | Width | Depth |
CSSD36 | 12 1/4″ | 33 1/4″ | 25 1/2″ |
Install Notes
- The drawer has a gasket to keep moisture out and is capable of holding 120 lbs
- 2 anchor points are located on each side of the doors interior frame (top, bottom, left and right)
- Due to wide variance of possible building materials, anchors are not included
- When inserting your anchors be sure to use a framing square to ensure the door is not pulled out of square
- Additional framing and/or support underneath the rear (hanging portion) of the cabinet is recommended
- These specs are accurate but we always suggest having the product physically on site to ensure full understanding of how this product will coordinate with your build
