ASSEMBLY & MAINTENANCE
INSTRUCTIONS
for everdure by heston blumenthal Prep Kitchen
Model Number:
HBPK
MAINTENANCE
CLEANING:
Using a soft cloth thoroughly wipe down all surfaces with a mild detergent and warm water
DO NOT use scourers or harsh detergentsDO NOT put cutting boards or wooden lids in the dishwasherDO NOT put seasoning boxes in a microwave or oven to reheat food
STORAGE:
When the prep kitchen is not in use, it can be stored outdoors but MUST be undercover and covered (preferably with a purpose-made cover HBPKCOVERL) out of the weather ensuring the cutting surfaces are clean before storing away.
NOTE: These instructions are also available at www.everdurebyheston.com/international
PACKAGING:Remove all external packaging and remove the Prep Kitchen from the packaging before useRemoval all internal cartons and packaging from within the Prep Kitchen assembly
Recycle as per local government laws
ASSEMBLY
NOTE: 2 people required for assembly

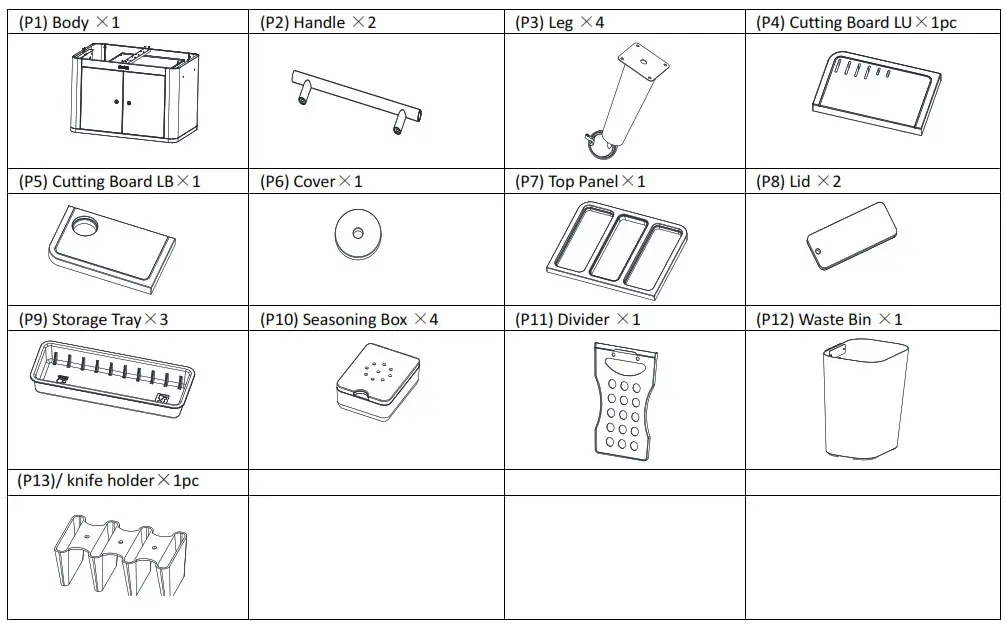

Main Parts

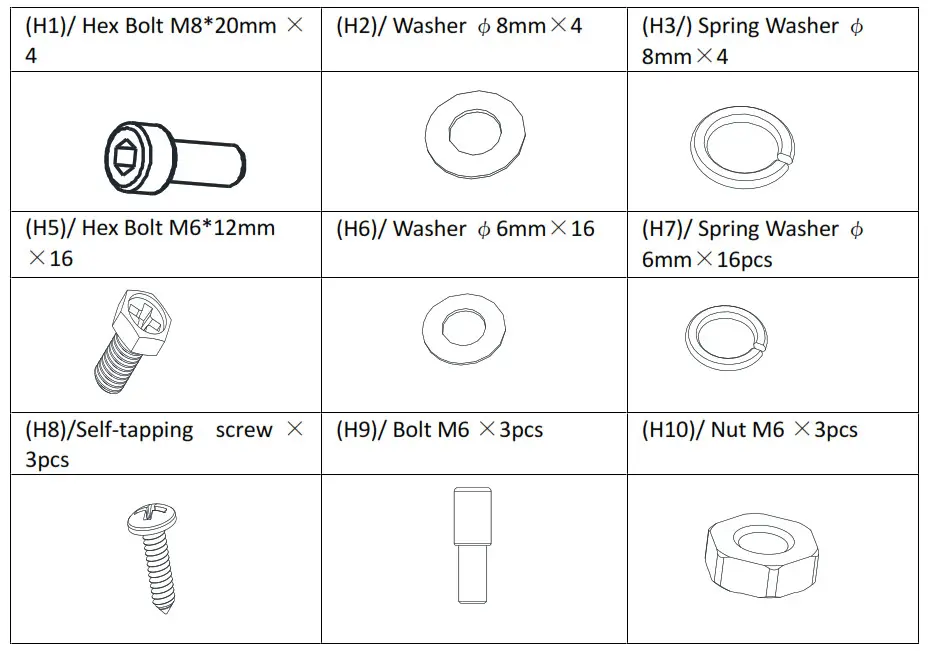

Hardware

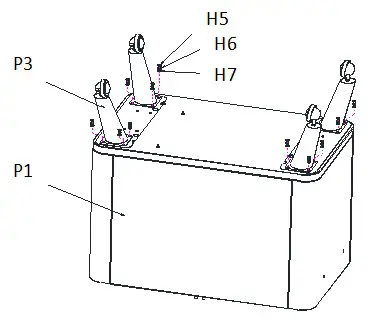

Step 01
/Rotate (P1) upside-down onto a clean and flat surface, ensuring the body is protected using a sheet or cardboard. Assemble (P3 x 4) to the bottom plate using (H5 x 16, H6 x 16, H7 x 16) Ensure the legs are angled outwards (see final image for reference) and rotate the body to the upright position.

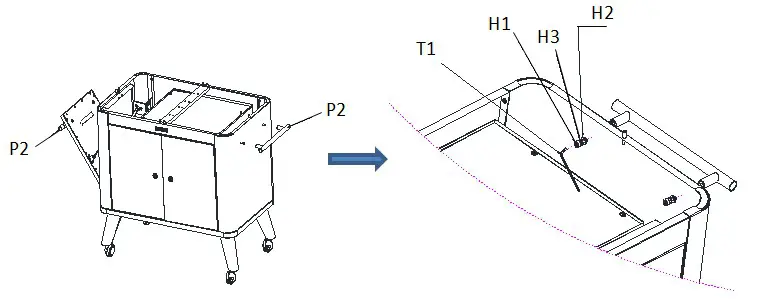

Step 02
/Fix and fully tighten (P2 x 2) onto main body and the side door using (H1 x 4, H2 x 4, H3 x 4).

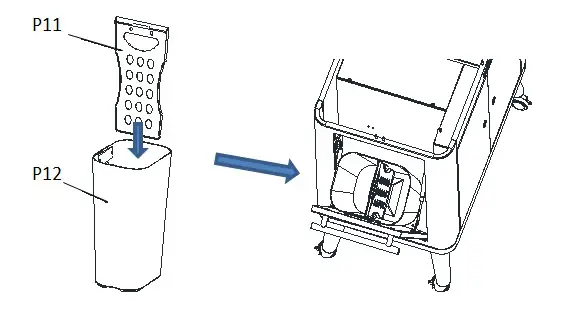

Step 03
/Slide (P11 x 1) into (P12 x 1)

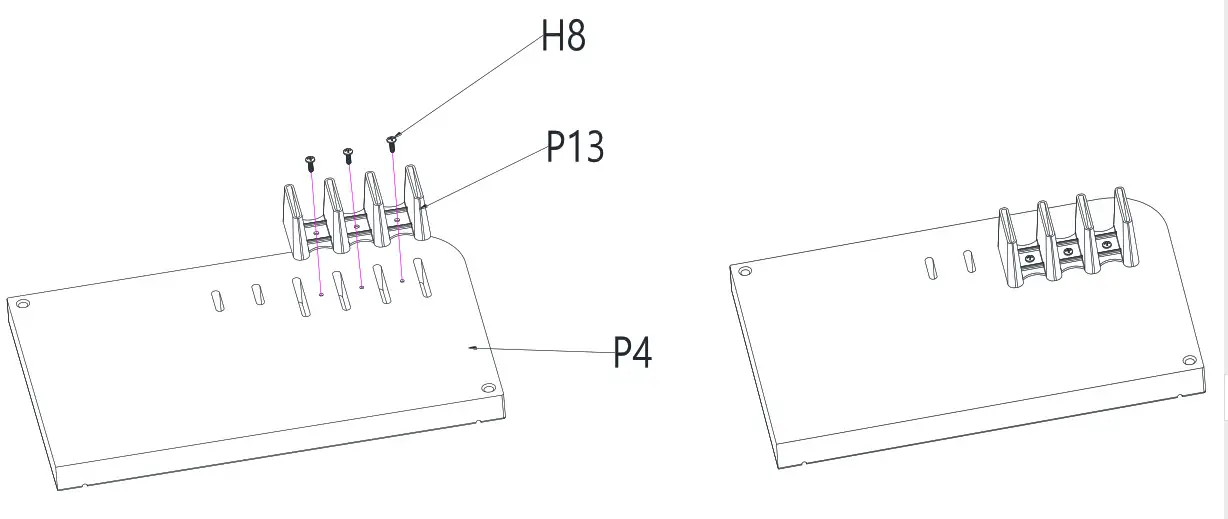

Step 04
/ Assemble (P13 x 1) to the bottom of the Cutting Board LU (P4 x 1) using (H8 x 3).
*Note, please remove the plastic protection from all wooden boards before assembly.
There are 3 reserved small holes at the bottom of the Cutting Board LU, corresponding to the installation screws

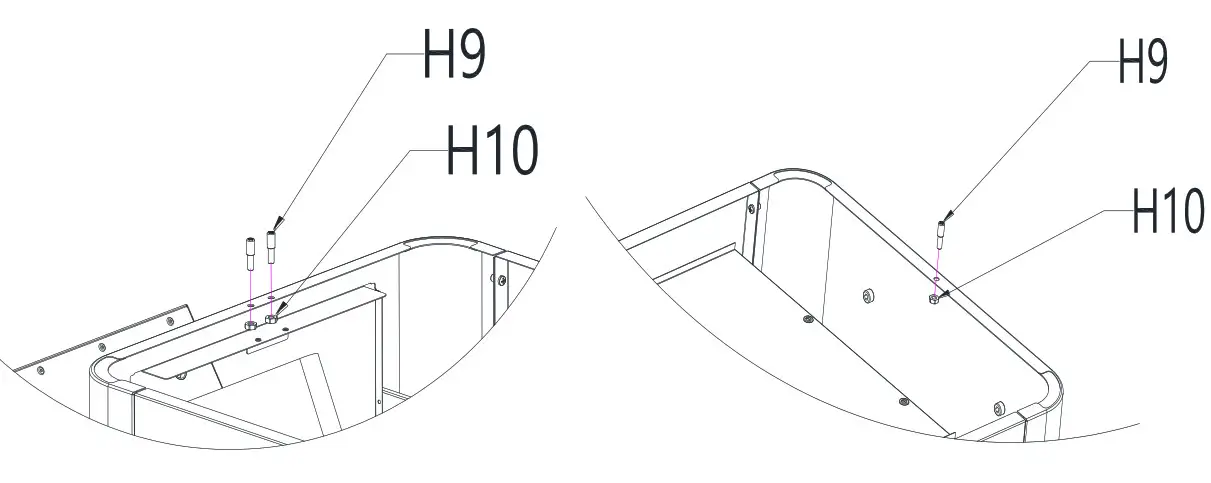

Step 05
/Fix and fully tighten (H9 x 3) onto both sides at the top of the main body (H10 x 3).

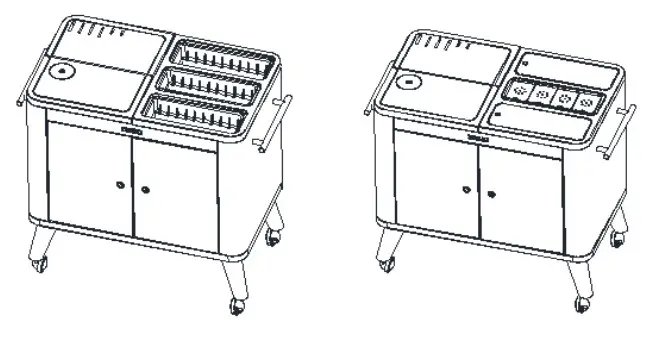

Step 06
/Place (P4 x 1, P5 x 1, P6 x 1, P7 x 1, P8 x 2, P9 x 3, P10 x 4) into positon. See final image for reference
*Note, ignore this section if product arrived with parts pre-assembled
