AIRAM Over P Office Luminaire

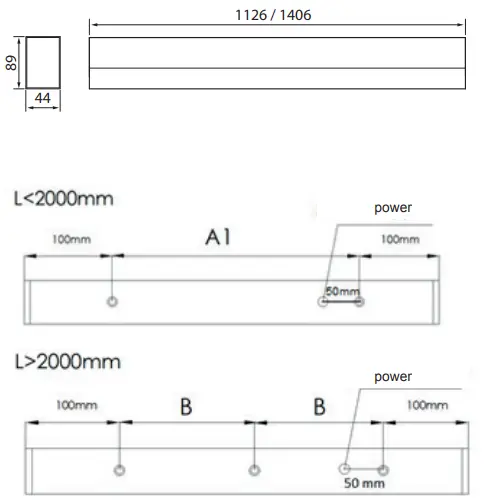

Dimensions (MM)
| L | A1 | B |
| 846 | 646 | – |
| 1126 | 926 | – |
| 1406 | 1206 | – |
| 1686 | 1486 | – |
| 1967 | 1767 | – |
| 2247 | – | 1023 |
| 2527 | – | 1163 |
| 2807 | – | 1303 |
| 3087 | – | 1443 |
| 3367 | – | 1583 |
CAUTION: Only a professional electrician is allowed to do the installation. Use only rated voltage and frequency as marked in the fixture/driver. Switch off the current before installation or service. This mounting instruction must be kept available during installation and for future maintenance. The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a
similar qualified person.

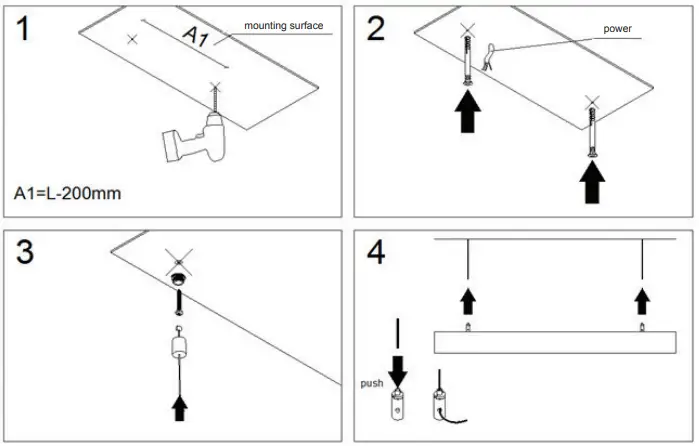

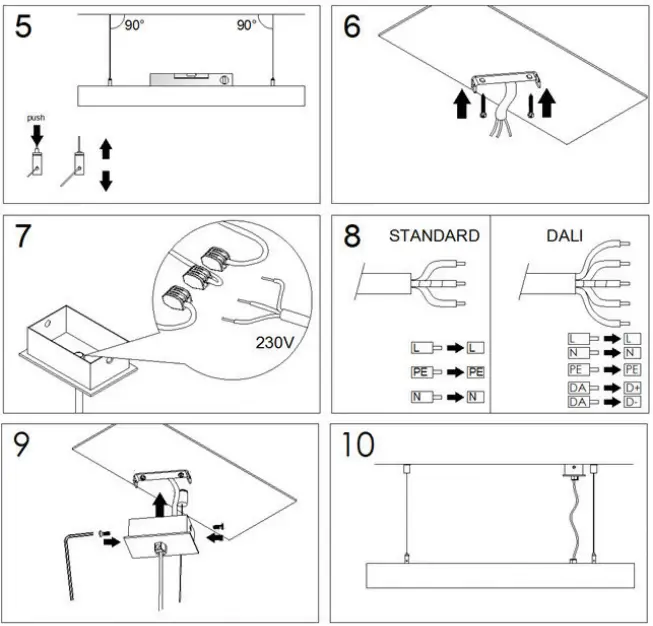

Mounting instructions
