AIRAM LUMINAIRE KETO PRO IP54 Instruction Manual

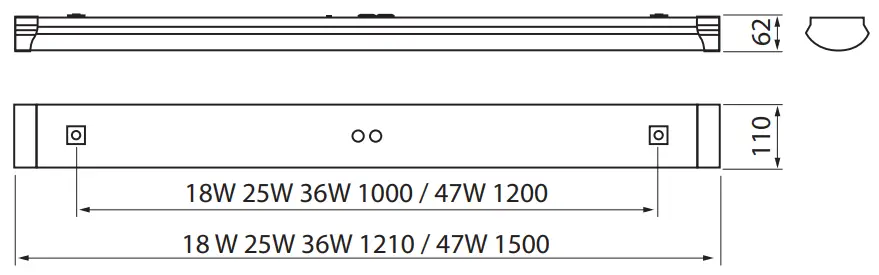

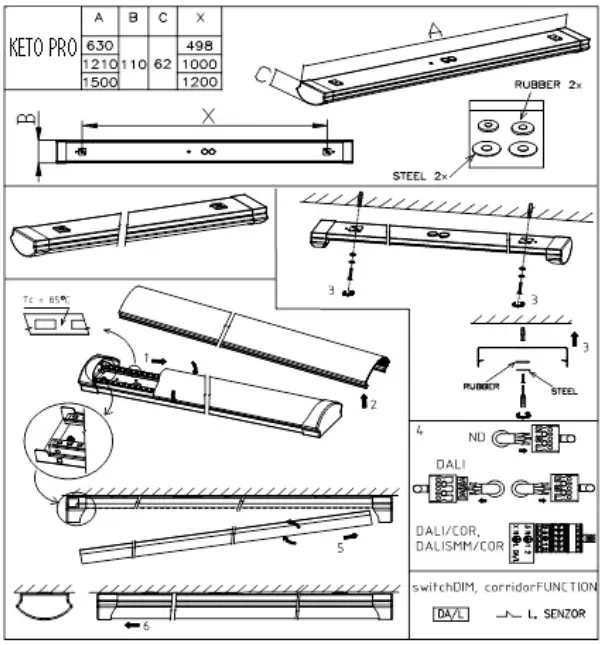

Dimensions
Only a professional electrician is allowed to do the installation. Use only rated voltage and frequency as marked in the fixture/driver.
Switch off the current before installation or service. This mounting instruction must be kept available during installation and for future maintenance. The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole luminaire shall be replaced.

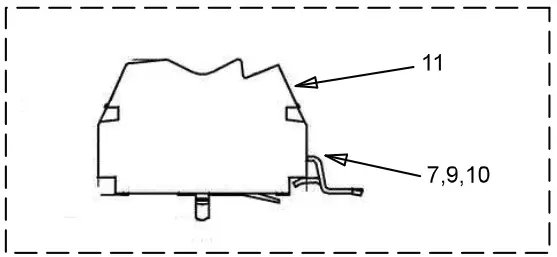

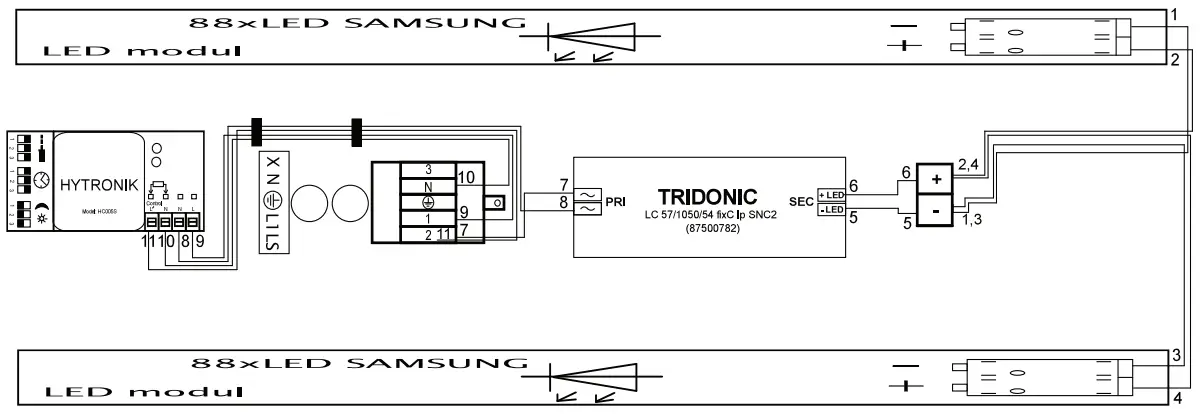

M/S wiring diagram
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| 26 | 26 | 28 | 28 | 14 | 14 | 8 | 32 | 30 | 30 | 34 |
