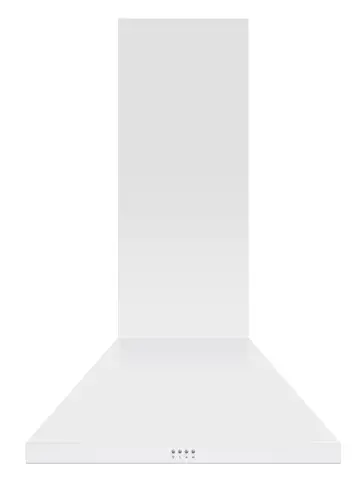

HC30PCW1 30 Inch Pyramid Chimney Wall Range Hood
QUICK REFERENCE GUIDE > HC30PCW1
Wall Range Hood, 30″, Pyramid Chimney
Series 7 | Classic White
Pairing well with the white Classic Range, this wall chimney range hood extracts steam, grease and cooking odors effectively.
- With three fan speeds, select the perfect extraction rate for your cooking
- Dishwasher-safe filters that are easy to remove and clean
- Powerful 600 CFM maximum airflow with edge-to-edge extraction
- Energy-efficient LED lighting to illuminate your cooktop
DIMENSIONS
| Height | 38 3/8 – 21 1/16″ |
| Width | 29 3/4″ |
| Depth | 19 11/16″ |
FEATURES & BENEFITS
Complementary Design
This wall chimney range hood is designed to match the classic Range in both color and style, including stylish chrome touch buttons.
Cleaner air
Odors can linger in the kitchen well after cooking is finished. With three fan speeds and a maximum airflow of 600CFM, this range hood removes cooking odors effectively, as well as grease and steam while cooking.
Intuitive controls
Classic-style chrome touch buttons are simple to use, giving you full control of your extraction.
Simple to clean
Three stainless steel filters is easy to remove and can be cleaned in the dishwasher or washed by hand in hot soapy water.
Design quality
With durable powder-coated coloring and robust product design, this range hood is both visually appealing and durable.
Considered efficiency
The extraction rate ensures interior air is not excessively removed to the outside, while LED lighting on the range hood has been chosen for energy efficiency.
EASY INSTALLATION
This wall chimney range hood is the perfect partner to your Fisher & Paykel Cooktop or Range. It can be either externally ducted or internally recirculated, for simple installation.
SPECIFICATIONS
| Accessories | |
| Aluminum filter | 792558 |
| Chimney extension | 793224 |
| Light bulb | 792579 |
| Recirculation carbon filter | 793162 |
| Recirculation diverter | 793163 |
| Fan ratings | |
| Maximum air movement | 600CFM |
| Installation and cleaning | |
| Air outlet size | 8″” |
| Ducted | Vertical only |
| Stainless steel filter cover | • |
| Two-piece height adjustable | • |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 2 |
| Power requirements | |
| Lighting power | 8W |
| Supply frequency | 60Hz |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 19 11/16″ |
| Height | 38 3/8 – 21 1/16″ |
| Width | 29 3/4″ |
| Product information | |
| Control type | Classic style chrome touch |
| Ventilation features | |
| Light type | LED |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 50158 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
