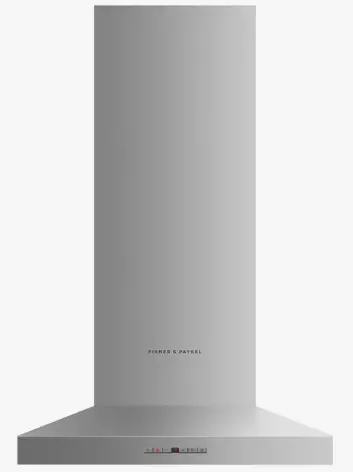

HC24PHTX1 24 Inch Pyramid Chimney Wall Range Hood
User Guide
Series 7 | Contemporary
Stainless Steel
This wall chimney range hood has contemporary styling, extracting steam, grease, and cooking odors quietly and efficiently.
- With four fan speeds, select the perfect extraction rate for your cooking
- Edge-to-edge extraction for increased performance
- Powerful 600CFM maximum airflow

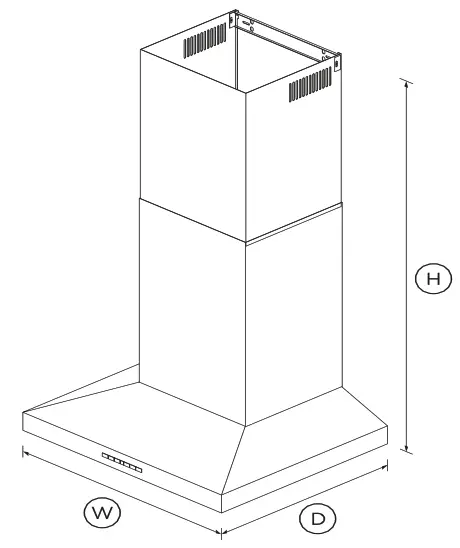

DIMENSIONS
| Height | 25 13/16 – 43 1/16″ |
| Width | 23 9/16″ |
| Depth | 19 11/16″ |
FEATURES & BENEFITS
Quiet and effective
Odors can linger in the kitchen well after cooking is finished. This vent hood offers four fan speeds for powerful extraction to ensure steam and smells are quickly removed.
Easy installation
This wall chimney vent hood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.
Simple to clean
Two filters effectively trap grease particles during extraction.
They are easy to remove and dishwasher safe or can be cleaned by hand in hot soapy water.
Complementary Design
This wall chimney ventilation hood’s sleek stainless steel finish will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel’s kitchen appliance family.
SPECIFICATIONS
| Accessories | |
| Ducting solution | • |
| Recirculation diverter | • |
| Fan ratings | |
| Maximum sound rating | 67dBA |
| Installation and cleaning | |
| Air outlet size | 6″ |
| Dishwasher safe filters | 2 |
| Stainless steel filter cover | • |
| Two-piece height adjustable | • |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 4 |
| Filter type | Mesh |
| Power requirements | |
| Supply voltage | 120V |
| Product dimensions | |
| Depth | 19 11/16″ |
| Height | 25 13/16 – 43 1/16″ |
| Width | 23 9/16″ |
| Product information | |
| Control type | soft-touch button |
| Ventilation features | |
| Light type | LED |
| Timer function | • |
| Warranty | |
| Parts and labor | 2 years |
| SKU | 50132 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
Other product downloads available at fisherpaykel.com
