PISEN C05PD-3 Mobile Power Bank
Thank you for purchasing PISEN mobile power products, please read this guide carefully to ensure safe and satisfactory operation, please keep it properly for future reference.
Technical Specifications
| Product model | Input | Output | Power | Product size | Product weight | Operating temperature | Charging time |
|---|---|---|---|---|---|---|---|
| CCY-DY05 | 5V 3A, 9V 2A | USB: 5V 3A, 5V 4A, 5V 4.5A, 4.5V 5A, 9V 2A, 12V 1.5A Type-C: 5V 3A, 9V 2.2A, 12V 1.5A | 30000mAh (Average), 111Wh | 169.5*81.5*33mm | Approx. 670g | -10℃ ~ 45℃ | Approx. 6-10h (18W Charger) Note: the charger is an optional accessory. |
| Product model | CCY-DY05 |
| Input | 5V 3A 9V 2A |
| Output | USB: 5V 3A 5V 4A 5V 4.5A 4.5V 5A 9V 2A 12V 1.5A Type-C: 5V 3A 9V 2.2A 12V 1.5A |
| Power | 30000mAh(Average)111Wh |
| Product size | 169.5*81.5*33mm |
| Product weight | Approx 670g |
| Operating temperature | -10℃~35℃ / 14℉~95℉ |
| Charging time | Approx 6-10h (18W Charger) |
18W charger refers to the charger with 9V 2A output on the market;
Note: the charger is an optional accessory.
Reminders
- Design By Pisen
- Made In China
- Guangdong PISEN Electronics Co., Ltd
- AddNo.9, Qinfu 1st street, Jintang Industrial Park, Henggang Town, Longgang Distrist, Shenzhen, P.R.China
- Do not place this product on carpets, heaters, textile materials or exposed to direct sunlight
- Do not touch, squeeze, disassemble or pierce the product by yourself.
- Do not put this product in high temperature and humid environment
- Do not put this product into fire, water or corrosive liquid.
- Do not charge the battery in a way that is too high.
- Do not touch the battery when the human body is wet.
- Please keep the temperature between 0 ℃ – 35 ℃ during charging.
- Do not put this product on flammable substances during charging.
- If the built-in battery is disassembled and replaced by itself, there may be explosion hazard.
- In case of expansion or other undesirable phenomena and faults, please stop using the product immediately and contact us.
- Unless there is a professional to supervise and guide and ensure the safety of users, the following people (including children) are not suitable for using this product:For those with physical or mental deterioration who do not know enough about the equipment and lack operation experience, children must be supervised to ensure safe use.
For FAQs and more help information, please visit PisenGroup.com/support
Contact [email protected]
Product Usage Instructions
To use the PISEN Power Bank, follow these steps:
- Charge the power bank using the provided charger or another charger with 9V 2A output. The charging time is approximately 6-10 hours.
- Connect your device to the power bank using a USB cable or Type-C cable.
- Press the key control switch to turn on/off the power bank.
- The LED display will show the remaining battery level.
- The power bank will automatically stop charging when your device is fully charged.
- To charge the power bank itself, connect it to a charger using the Type-C input port.

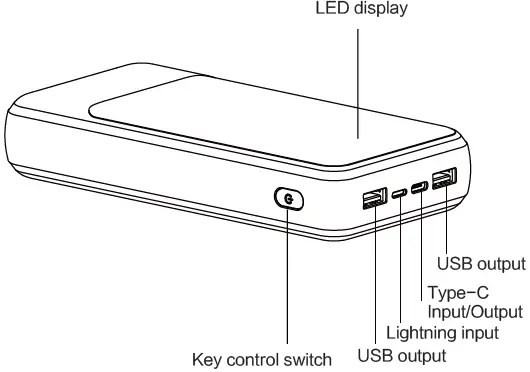

Product structure diagram
Design By Pisen Made In China
Guangdong PISEN Electronics Co., Ltd
Add：No.9, Qinfu 1st street, Jintang Industrial Park, Henggang Town, Longgang Distrist, Shenzhen, P.R.China
PISEN The brand belongs to Guangdong
PISEN Electronics Co., LTD.
https://en.pisengroup.com
For FAQs and more help information, please visit：
PisenGroup.com/support
Contact：
[email protected]
Pisen | Fast Charging Safe
