Prerequisites

Download the Wiser by SE app to your smartphone.

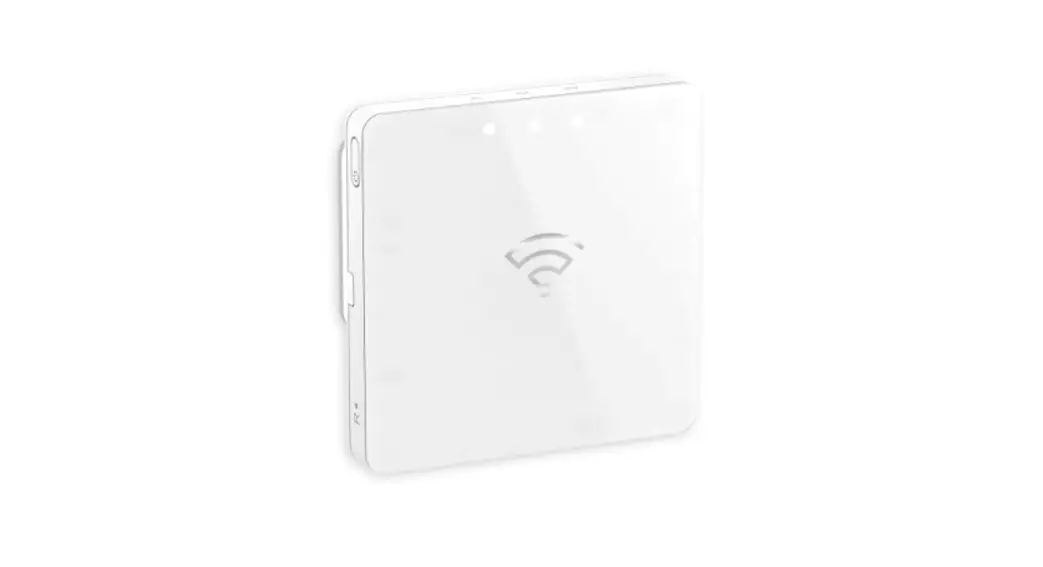

About this product

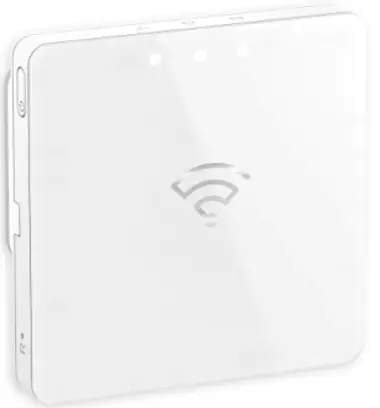

The Wiser Hub (hereinafter known as Hub) is a communication interface that can be connected to all your Wiser Zigbee devices, enabling you to easily manage your home environment.

Functions

Monitors and controls Wiser Zigbee devices through the mobile app, Ethernet or Wi-Fi® .
Create Moments or Automations to operate Wiser Zigbee devices through the mobile app.

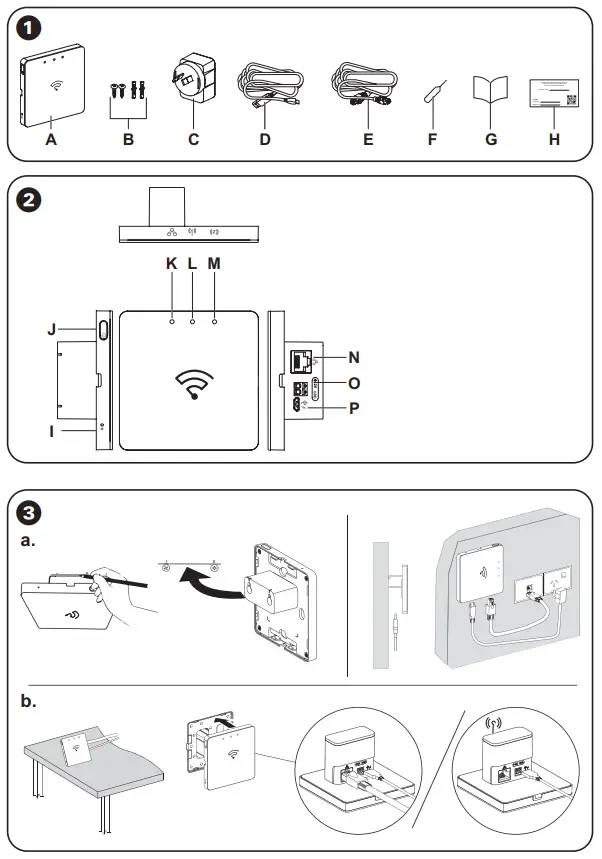

Package contents

A Wiser Hub
B Screws: 2 × ST4.2 × 25 mm with wall plug
C AC adaptor
D AC adaptor USB cable
E Ethernet cable
F Reset pin
G Installation instructions
H Hand over card

Operating elements

I Reset button
J Power button
K Ethernet LED
L Wi-Fi® LED
M Zigbee LED
N Ethernet port
O Terminals for power supply (12 VDC)
P Micro USB port for the AC adaptor

Installing the Hub

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH

It is illegal for persons other than an appropriately licensed electrical contractors or other persons authorised by legislation to work on the fixed wiring of any electrical installation.
To comply with all safety standards, the product must be used only for the purpose described in this instruction and must be installed in accordance with the wiring rules and regulation in the location where it is installed.
Lock out and tag the input circuit before accessing the wiring connections.
There are no user serviceable parts inside the product.

Failure to follow these instructions will result in death or serious injury.

NOTICE
EQUIPMENT DAMAGE

If the Hub is powered through the micro USB port, use the provided AC adaptor only.
If the Hub is powered on through the terminals, use a suitable 12 VDC power supply only.
Failure to follow these instructions can result in equipment damage.

DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
Make sure that the 12 VDC power supply is turned off before making connections to the Hub.
Failure to follow these instructions will result in death or serious injury.

a. Wall
It is recommended to use the supplied AC adaptor to power the Hub.
b. Table

Use the tablestand for Wiser Hub CLP501902_0001 or PDL501902_0001 when placing the Hub on a table.
It is recommended to use the supplied AC adaptor to power the Hub.

Read full system user guide online

Scan the QR code to access the Wiser – System User Guide for complete information about the device, including operation, configuration and using the system.

Technical data

AC power adaptor	Model number: KA0601A-0501000AUU Input: 100-240 VAC, 50/60 Hz Output: 5.0 VDC, 1.0 A, 5.0 W Average active efficiency: 73.7% @115 VAC, 230 VAC No-load power consumption: 0.1 W @115 VAC, 230 VAC
Power supply	5 VDC/1.0 A AC power adap- tor through micro USB port 12 VDC/0.5 A power supply through 2-pin terminal block (not included in the package)
Connector type	Micro USB port for the AC adaptor 2-pin terminal block cable type: 0.25 mm 2 to 1.50 mm2
Communication interface	Ethernet: IEEE802.3, 10/100 base-T (LAN) Wi-Fi ®: 2.4 GHz, IEEE802.11 b/g/n Zigbee: 2.4 GHz, IEEE802.15.4
Operating frequency	2405 – 2480 MHz (Zigbee) 2412 – 2472 MHz (Wi-Fi ®)
Max. radio frequency power transmitted	<10 mW (Zigbee) <67 mW (Wi-Fi ®)
System clock	RTC function with coin battery (CR1220)
IP rating	IP20
Operating temperature	0 °C to 40 °C, indoor use only
Relative humidity	10 % to 90 %, non-condensing
Dimensions (H × W × D)	86 × 86 × 34 mm
Communication protocol	Zigbee 3.0 certified
Compliance
