Wiring Configuration
INSTALL ATION ADDENDUM
ADVANCED MODELS (HE150/HE250/HE300)
HE150/HE250 USES A 15 VA TRANSFORMER WIRED INTO 24V IN. HE300 USES A LINE CORD PLUG.
CONNECT G TO HUMIDIFY WHEN THERE IS A FAN CALL. CONNECT W TO HUMIDIFY WHEN THERE IS A HEAT CALL. NEVER CONNECT BOTH. CONNECT C WHEN USING G OR W.
M35152
Fig. 1. Wiring HumidiPRO (H6062) to humidify only with a call for Heat or Fan.

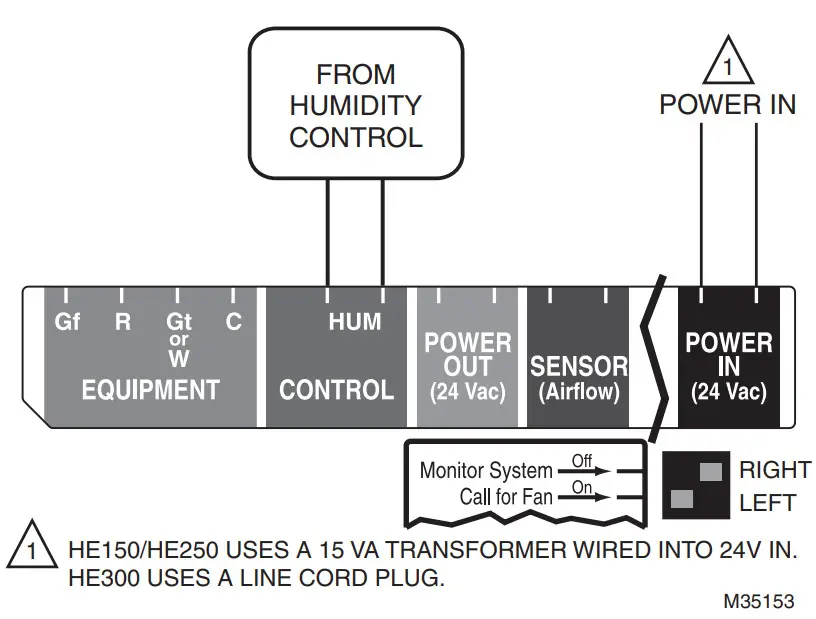

Fig. 2. Wiring TrueIAQ, VisionPRO IAQ, or Prestige, using the intelligent control to program humidity calls with heat, cool, or on demand.
WIRING CONFIGURATION

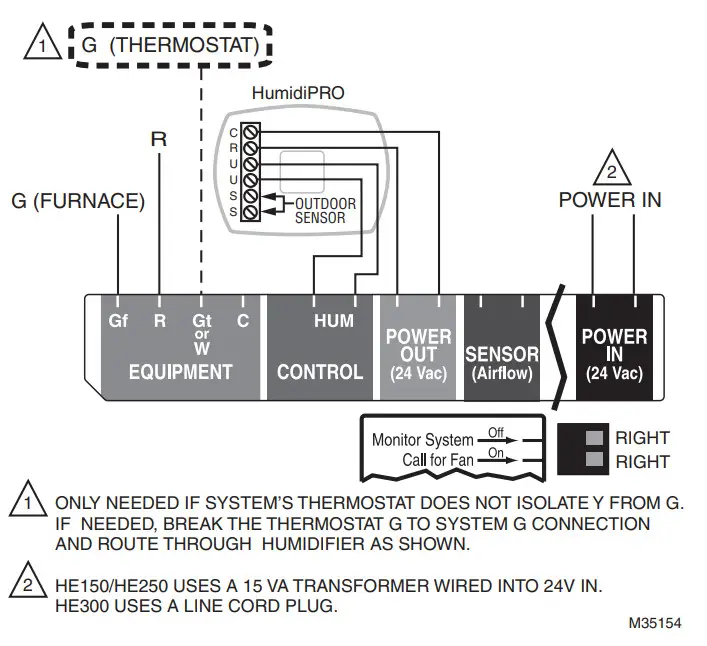

Fig. 3. Wiring to force the HVAC system fan on whenever humidity is needed (on demand).

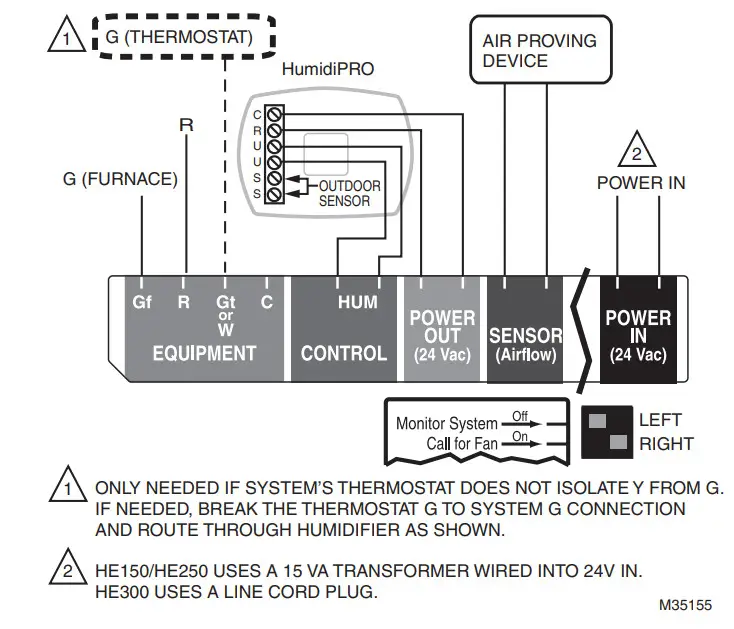

Fig. 4. Wiring to force fan on and prove airflow in the duct.

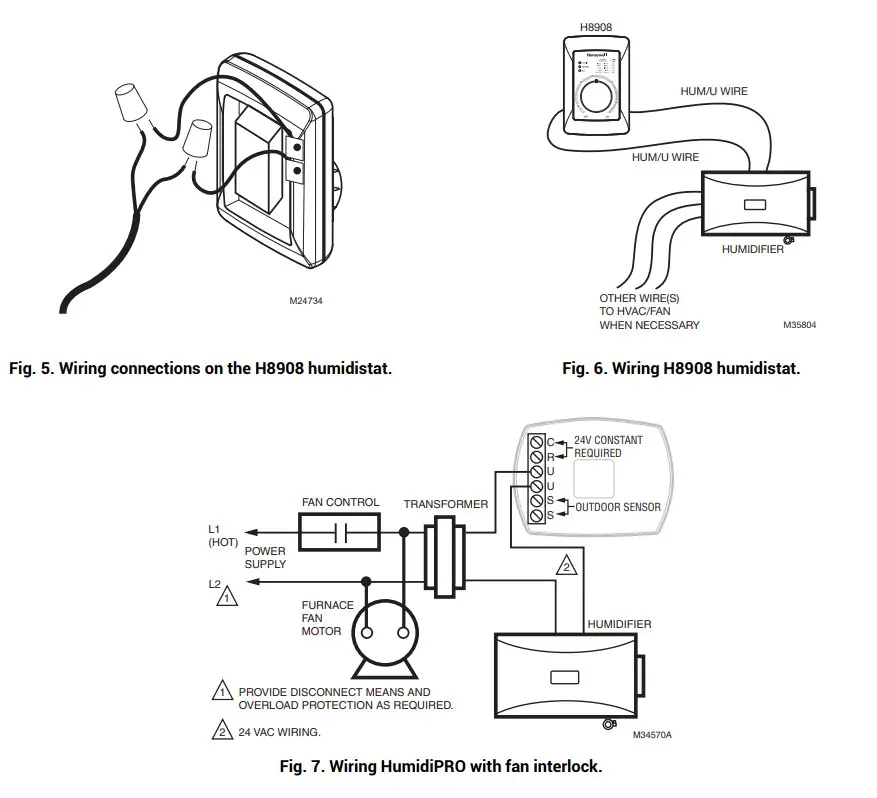

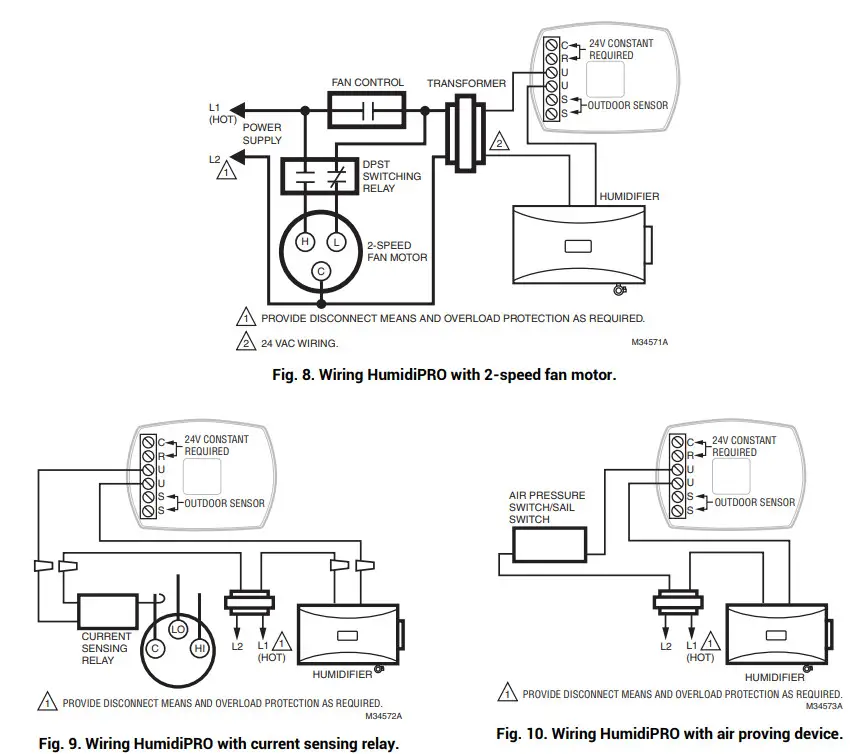

BASIC MODELS (HE100/HE200)
WIRING CONFIGURATION
