500mm WC Unit
BeBa_27054/BeBa_27055/BeBa_27056
User Manual

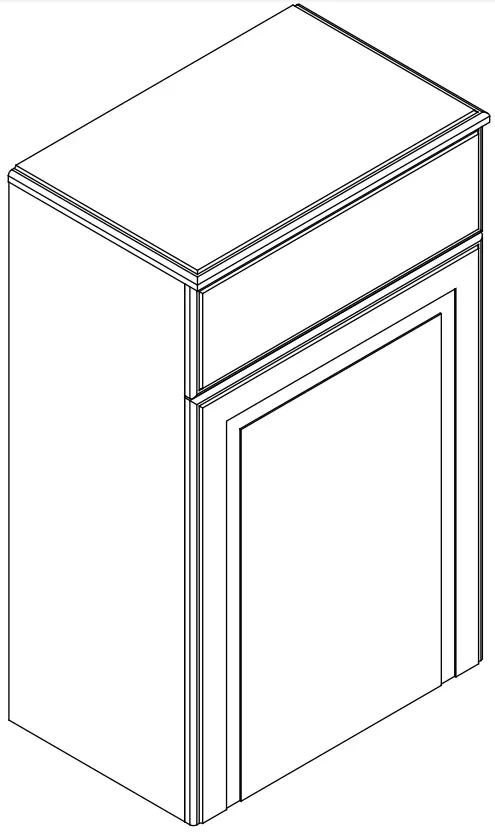

500mm WC Unit
All furniture must be installed in a room with good ventilation and must be wiped dry after every use to prolong the life of the product.
- Multi-person assembly
- We always recommend using professional tradespeople to install your product
Congratulations on your purchase
And welcome to our growing gang of savvy shoppers
We’re on a mission to bring you extraordinary bathroom products, for less. From modern to traditional style ceramics, plus the gorgeous fixtures, fittings and furniture to match. So, you can fall in love with your space every single day.
As one of the UK’s largest independent bathroom stores, we’ve received countless awards; including the National Business Awards UK, the Digital Entrepreneur Awards and being placed on The Sunday Times Fast Track 100.
We hope your new product goes above and beyond your expectations. However, should any problems occur, please:
- log in to your account and contact our customer services team via your self-serve portal – betterbathrooms.com/CustomerAccount/Login
- contact us via betterbathrooms.com/content/contact-us
Important information
- Please read these instructions thoroughly and retain for future reference
- Please check for pipes and cables before drilling the wall
| Unit Weight(Kg) | Basin Weight(Kg) | Max loading weight in addition to Unit, basin and full capacity Drawer or Shelf(Kg) | Each Drawer or Shelf Loading Capacity (Kg) |
| 12,75 | / | 30,00 | / |

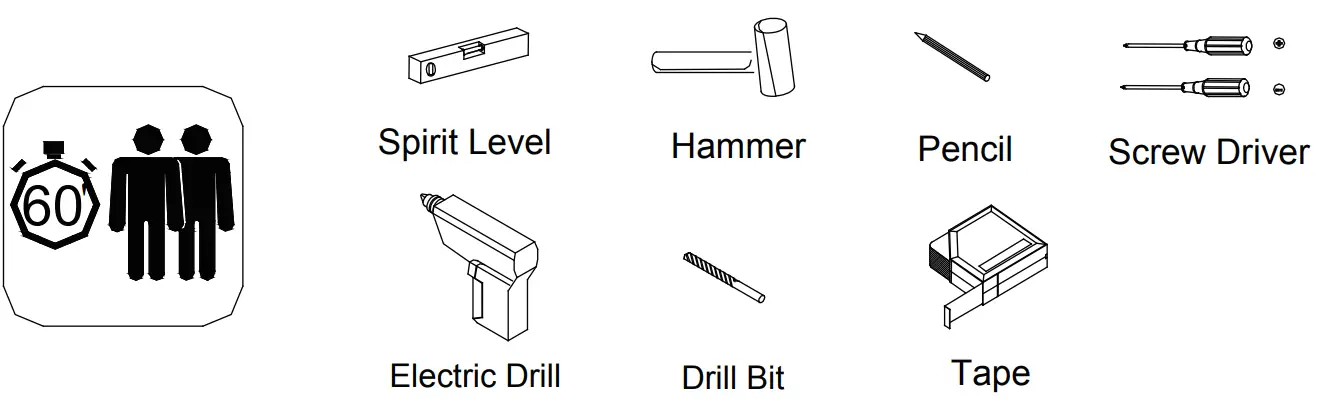

Tools required(Tools not provided)
Important information Please read carefully.Keep this information for further reference.

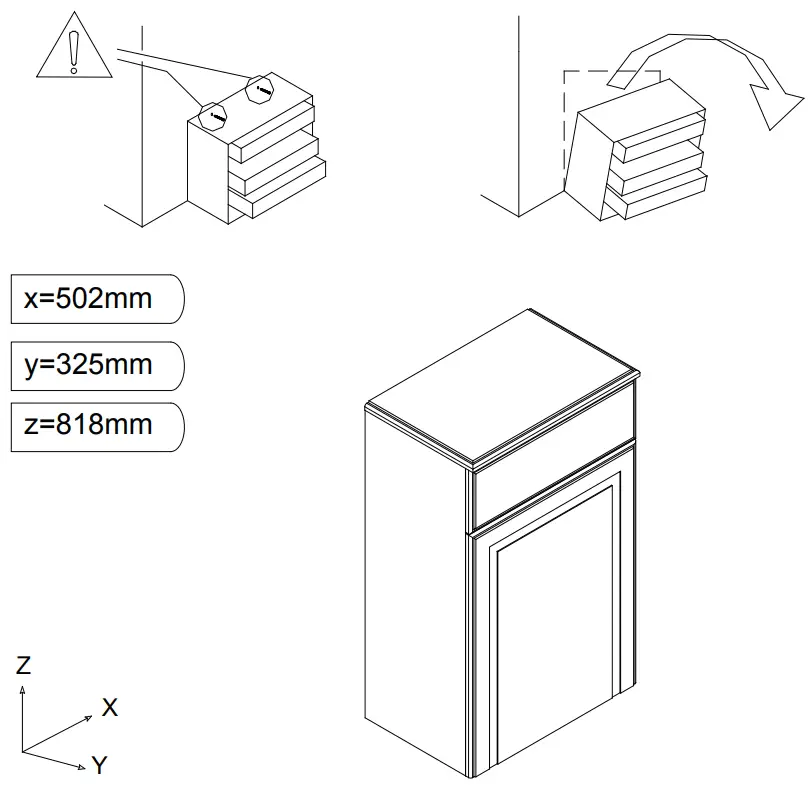

Serious or fatal crushing injuries can occur if furniture is not secured correctly.To prevent furniture from tipping over it must be permanently fixed to the wall.
Fittings for the wall are not included since different wall materials require different types of fittings .
Use fittings suitable for the walls in your home.For advice on suitable fittings,contact your local dealer.

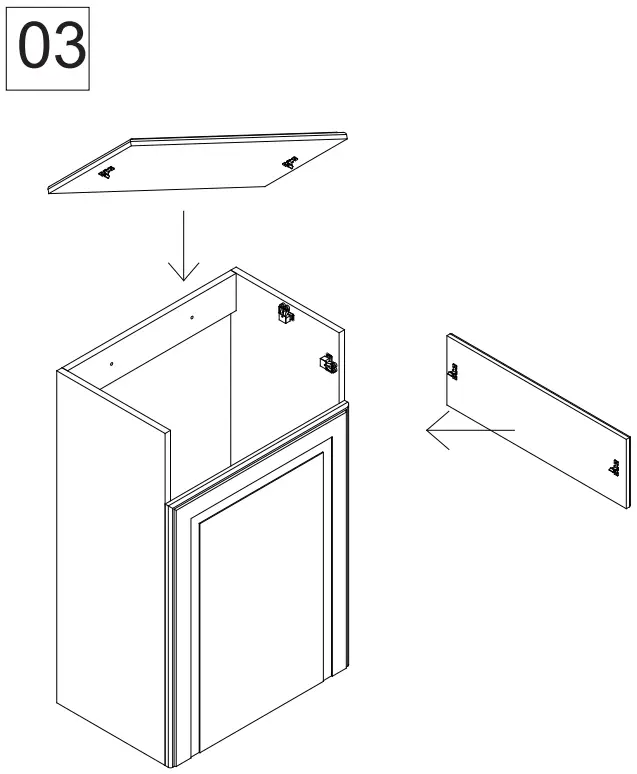

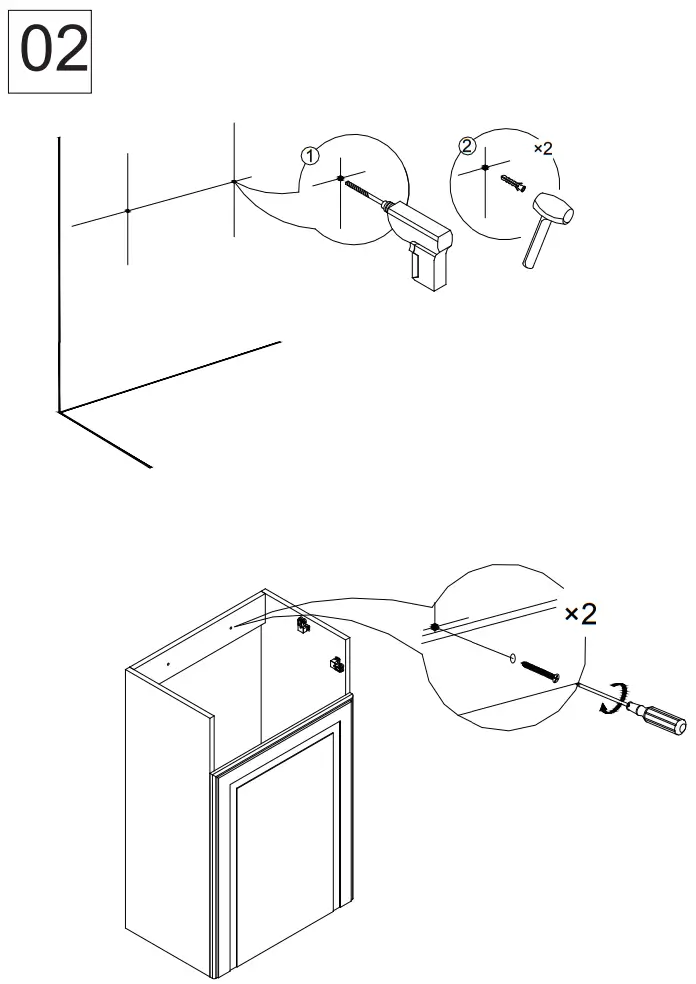

Installation

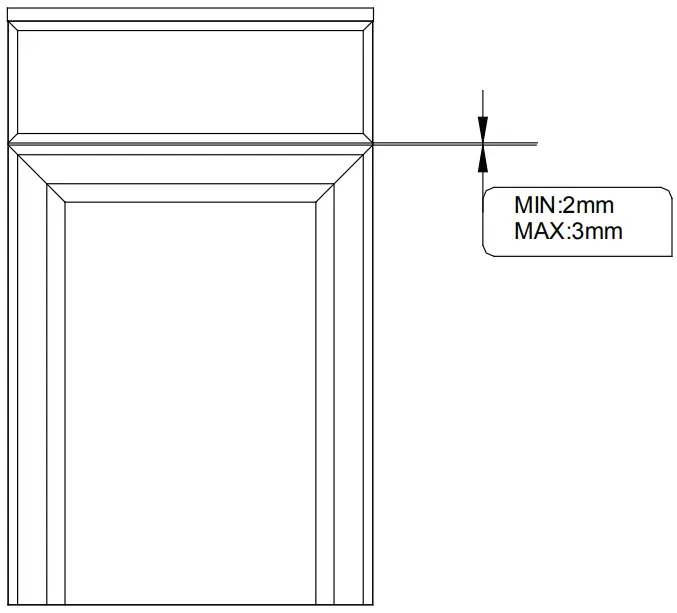

Gap Adjustment
 |  |
Please note – wall fixings are not supplied
These can be purchased from a local DIY store
 |  |

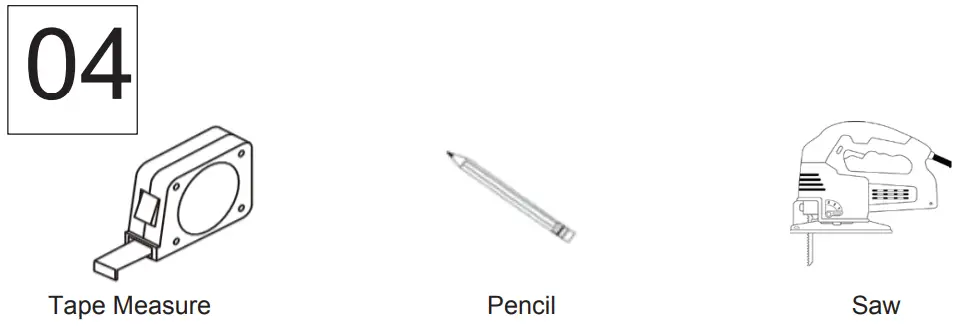

TOOLS REQUIRED
INSTALLATION INSTRUCTIONS

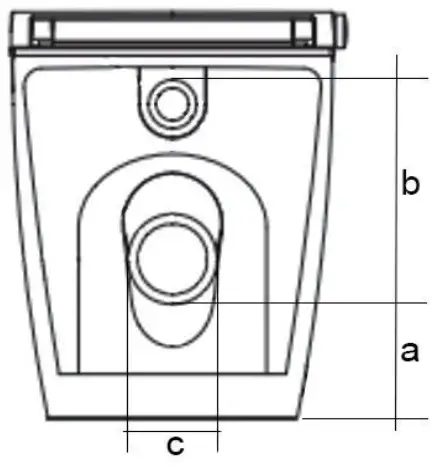

 | Measure the height from the floor to height a then measure height b and allow 5mm tolerance, then measure width c and allow 5mm |

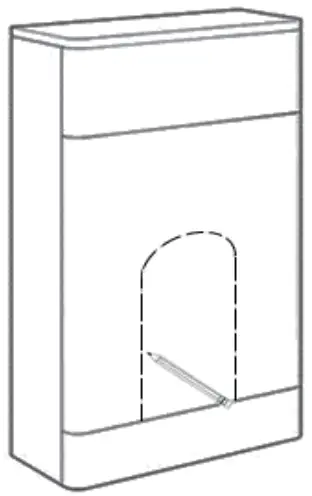

 | Mark these dimensions on to the front panel of the unit using a pencil |

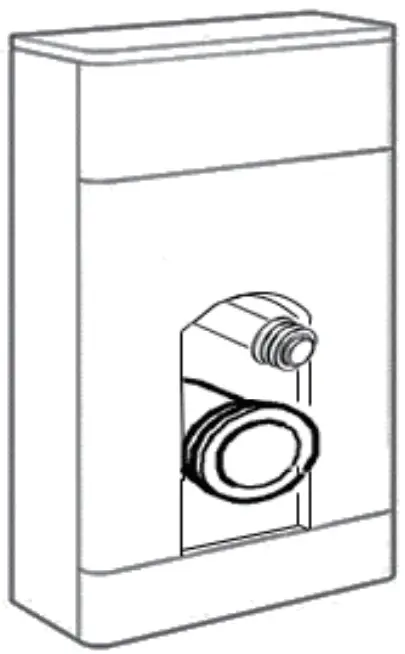

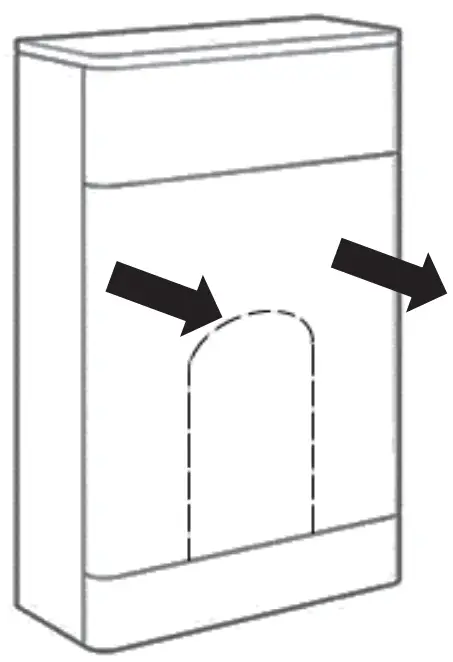

 | Remove the front panel from the unit and cut the hole to allow the waste pipe and flush pipe to pass from the cistern |
 | It is recommended to seal the cut edge and bottom edge of the unit, to protect against moisture ingress |
Furniture should be maintained using a clean cloth with no harsh abrasive cleaning agents/materials
All furniture should be wiped dry if they become wet
Cleaning
Clean with a soft cloth & warm soapy water only- Do not use abrasive cleaning agents
- Dry unit with a cloth after use
Clean with a soft cloth & warm soapy water only
