Commercial Cool CCR45B Door Refrigerator and Freezer

Instruction

• Use this appliance only for its intended purpose as described in this use and care guide.
• This refrigerator must be properly installed in accordance with the installation instructions before it is used. See grounding instructions in the installation section.
• Never unplug your refrigerator by pulling on the power cord. Always grasp the plug firmly and pull straight out from the outlet.
• Do not operate any appliance with a damaged cord or plug. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
• Unplug your refrigerator before cleaning or before making any repairs.
• Do not use any electrical device or any sharp instrument in defrosting your refrigerator.
• Risk of child entrapment. Before you throw away your old refrigerator or freezer, take off the doors and leave the shelves in place to that children may not easily climb inside. 8. After your refrigerator is in operation, do not touch the cold surfaces in the freezer compartment, particularly when hands are damp or wet.
• Skin may adhere to these extremely cold surfaces. Do not refreeze foods that have been thawed completely.
• The United States Department of Agriculture in Home and Garden Bulletin No. 69 reads: “
• You may safely refreeze frozen foods that have thawed if they still contain ice crystals or if they are still cold-below 40˚F. “
• Thawed ground meats, poultry, or fish that have any off-odor or off-color should not be refrozen and should not be eaten.
• Thawed ice cream should be discarded. If the odor or color of any food is poor or questionable, discard it. The food may be dangerous to eat
• Even partial thawing and re-freezing reduce the eating quality of foods, particularly fruits, vegetables, and prepared foods.
• The eating quality of red meats is affected less than that of many other foods. Use refrozen foods as soon as possible, to save as much of its eating quality as you can.”
• This refrigerator should not be recessed or built-in in an enclosed cabinet. It is designed for freestanding installation only.
• Do not operate your refrigerator in the presence of explosive fumes.

GROUNDING INSTRUCTIONS

The electrical requirements are a 115 volt 60 Hz, AC only, 15 amp. It is recommended that a separate circuit serving only the product be provided. The product is equipped with a 3-wire cord having a 3-prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. The cord provided with this appliance is equipped with a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Avoid the use of three prong adapters or cutting off the third grounding prong in order to accommodate a two prong outlet. This is a dangerous practice since it provides no effective grounding for the refrigerator and may result in shock hazard

POWER SUPPLY CORD

Avoid the use of an extension cord because of potential safety hazards under certain conditions. Have a qualified electrician or serviceman to install an outlet near the appliance. If it is absolutely necessary to use longer cord sets or an extension cord, extreme care must be exercised.Use only a grounding type 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the appliance. The marked electrical rating of the cord set or extension cord must equal to or greater than the electrical rating of the appliance. The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over unintentionally.

INSTALLATION GUIDE

• Unpack your refrigerator by removing all packaging materials like carton, base, foams, adhesive tape, etc.
• Remove all accessories, internal packaging material used to hold shelves, ice tray, etc. in place.
• Clean the remains of all adhesive tap used and remove all printed material supplied.
• Install the refrigerator in a convenient location away from extreme heat and cold. Allow sufficient clearance between the refrigerator and side wall so the door(s) will open without obstruction. Refrigerator is not designed for recessed installation.
• The floor on which the refrigerator should be placed must be flat, hard, solid, and even. The refrigerator should not be placed on any soft material such as foam, plastic, etc.
• To level your refrigerator, use the two leveling legs located on the bottom front of your refrigerator. Adjust by turning the legs counter clockwise to raise or clockwise to lower your refrigerator. The door will close easier if the leveling legs are extended.
• The following are recommended minimum clearances around the refrigerator for proper air circulation:
  • Sides: 3/4” (19mm)
  • Top: 2” (50mm)
  • Back: 2” (50mm)
• Proper air circulation will help your refrigerator work at maximum efficiency.

PROTECTION FROM HEAT AND MOISTURE
Do not install your refrigerator in any location where heavy moisture is present or if the location is not properly insulated. This refrigerator is not designed to operate in temperature setting below 55° Fahrenheit. Location for the refrigerator should be on a hard surface and away from direct sunlight and heat source, e.g., radiators, baseboard heaters, cooking appliances, etc.

DOOR ALIGNMENT

• Remove the top hinge cover.
• Loosen the top hinge screws using a Phillips head screwdriver.
• Adjust the door or put a spacer in between and then tighten the screws.

STARTING YOUR NEW REFRIGERATOR

• After cleaning your refrigerator thoroughly. Wipe the outside with a soft dry cloth, the interior with a clean moist cloth.
• Insert the power supply cord into the socket.
• Turn the thermostat dial to an initial setting of “7” for 15-20 minutes.

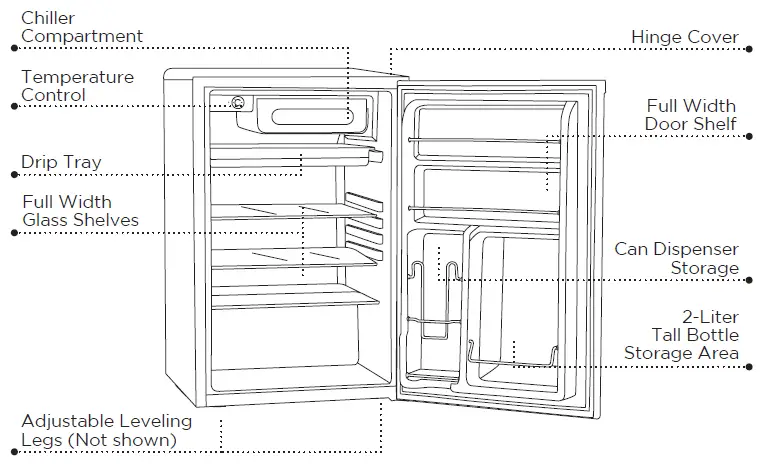

PARTS & FEATURES

OPERATION INSTRUCTIONS

TEMPERATURE CONTROL

• The settings of the temperature control are “0, 1, 2, 3, 4, 5, 6, 7.” Adjust the temperature control to the setting that best suits your needs.
• The setting of “4” should be appropriate for home or office use.
• Turning the temperature to “0” position will shut off the cooling cycle, but does not turn off the electrical power to the unit.
• If the ambient temperature is too high, the refrigerator may not reach the desired target temperature.
• Large amounts of foods will lower the cooling efficiency of the appliance.
• Do not place the foods on the air outlet and leave spaces for airflow.
• If you choose to change the thermostat setting, adjust thermostat control one increment at a time.
• Allow several hours for temperature to stabilize between adjustments.

FOOD STORAGE

• When storing fresh food that is not prepackaged, be sure to wrap or store food in airtight and moisture proof material unless otherwise noted. This will ensure proper shelf life and prevent the transfer of odours and tastes.
• Wipe containers before storing to avoid needless spills.
• Eggs should be stored in an upright position in their original carton to maximize shelf life.
• Fruit should be washed and dried, then stored in sealed plastic bags before storing in the refrigerator.
• Vegetables with skins should be stored in plastic bags or containers
• Leafy vegetables should be washed and drained and then stored in plastic bags or containers.hot food should be allowed to cool before storing in the refrigeration. This will prevent unnecessary energy use.
• Fresh seafoods should be used the same day as purchased
• When storing meats in the fresh food section, keep the original packaging or rewrap as necessary.

FREEZER COMPARTMENT

Follow the suggestions below for safe storage:
Foods frozen in this compartment must be consumed within 5 days after storage. This compartment is not cold enough for long term storage. To release frozen ice cube tray from the bottom of the compartment, pour warm water around it. Boiling water should not be used as it can damaged the interior cabinet. Metal objects, such as, screwdrivers or sharp knives can damage and puncture the cooling system tubing. Do not wash the ice cube tray in a dishwasher; only wash in lukewarm water.

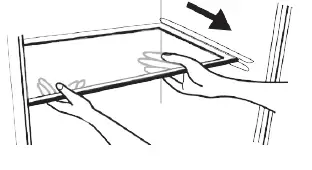

REFRIGERATOR INTERIOR SHELF

• Carefully tilt the shelf up and slide forward until the shelf has been completely removed.
• Slide the shelf back to replace.

USING THE CAN DISPENSER STORAGE
Your refrigerator is equipped with a convenient can storage. The compartment will hold up to four cans. Simply load the cans from the top. To dispense a can, simply draw one out from the bottom.

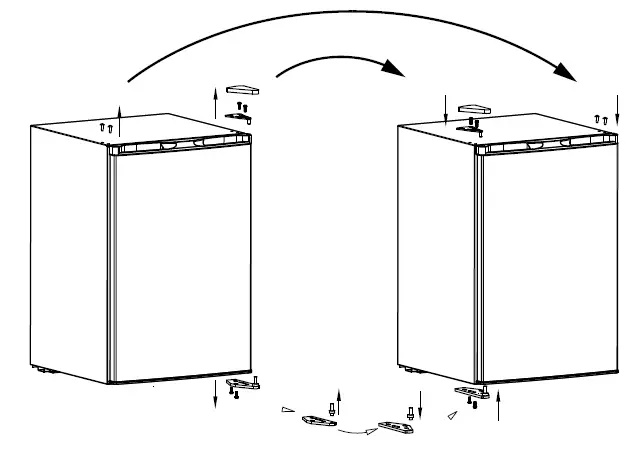

REVERSING THE DOOR HINGE

• Remove the top hinge cover.
• Using Phillips Head Screwdriver, loosen and remove the screws holding the top hinge in place.
• Remove top hinge and carefully lift off the door.
• Remove the screw hole plugs from the opposite side and insert the plugs in the screw hole openings of the just removed screws.
• Remove any loose items in the refrigerator and carefully turn refrigerator on its back and place in a secure area.
• Loosen the screws holding the lower hinge bracket to the refrigerator and remove screws and bracket.
• Remove the screws from the other side and insert in the previously removed screw holes.
• Remove door pin by turning counter clockwise and reinsert to the underside of the bracket and tighten.
• Align bracket and insert (2) remaining screws into the holes provided .
• Align hole in the door with the door pin and washer and gently push down until firm.
• Align upper hinge bracket with screw holes insert screws and partially secure, check that door and cabinet are properly aligned and then secure tightly.
• Replace hinge cap.

CLEANING AND CARE

CLEANING AND MAINTAINING
The refrigerator should be cleaned and maintained once a month. Before doing so, you must unplug the refrigerator

POWER INTERRUPTION
In case of a power interruption/outage, unplug the power cord from the wall outlet. Replug the power cord to the wall outlet once the power has been restored. For long periodof power outage, inspect and discard the spoiled or thawed foods from the refrigerator and freezer compartments. Clean the refrigerator thoroughly before using again.

CLEANING METHOD

Prepare a cleaning solution of 3-4 tablespoons of baking soda mixed with warm water. Use sponge or soft cloth, dampened with the cleaning solution to wipe down your refrigerator. Rinse with clean warm water and dry with a soft cloth, Do not use harsh chemicals, abrasives, ammonia, chlorine bleach, concentrated detergents, solvents or metal scouring pads. Some of these chemicals may dissolve, damage and/or discolor your refrigerator.

DOOR GASKET
Clean door gaskets every three months according to general instructions. Gasket must be kept clean and pliable to assure a proper seal. Petroleum jelly applied lightly on the hinge sides of gaskets will keep the gasket pliable and ensure a good seal.

VACATION AND MOVING CARE

When going on vacation, it is best that you empty all the food from your refrigerator and freezer. Set the temperature dial to “0” and unplug the refrigerator. Clean the unit as per “Cleaning Method” and leave the door open to remove any odors. When travelling or moving the refrigerator, always transport the unit vertically. Moving the unit on its sides may damage the refrigerator and/or its compressor.

ENERGY SAVING TIPS

• The refrigerator should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight.
• Let hot foods cool to room temperature before placing in the refrigerator. Overloading the refrigerator forces the compressor to run longer and thus increase energy consumption. Foods that refrigerate too slowly may lose quality or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing in the refrigerator.
• The shelves should not be lined with aluminium foil, wax paper, or paper towels. This will interfere with cold air circulation, making the refrigerator less efficient.
• Organize food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

TROUBLESHOOTING & WARRANTY

IF THE REFRIGERATOR FAILS TO OPERATE:

• Check to make sure that the refrigerator is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
• Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

CUSTOMER SERVICE

• If you have a problem with this product, please contact the
• W Appliance Co. Customer Satisfaction Center at 1-855-855-0294.
• DATED PROOF OF PURCHASE, MODEL # AND SERIAL # REQUIRED FOR WARRANTY SERVICE

TROUBLESHOOTING

LIMITED WARRANTY

Any repair, replacement, or warranty service, and all questions about this product should be directed to W Appliance Co. at 1 (855) 855-0294 from the USA or Puerto Rico. W Appliance Co. warrants to the original purchaser that the product will be free from defects in material, parts and workmanship for the period designated for this product. The warranty commences the day the product is purchased and covers up to a period of 1 year (12 months) for labor/1 year (12 months) for parts (manufacturing defects only)/carry in service/ and a total of 2 years (24 months) for compressor part only. W Appliance Co. agrees that it will, at its option, replace the defective product with either a new or remanufactured unit equivalent to your original purchase during the warranty period REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CUSTOMER; W Appliance Co. SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW. ANY IMPLIED WARRANTY OF MERCHANTABILITY OF FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED TO THE DURATION OF THE WARRANTY.
Some states do not allow the exclusion or limitations of incidental or consequential damages, or limitations on how long the warranty lasts. In these cases the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Obtaining Service: To obtain service, product literature, supplies or accessories please call 1 (855) 855-0294 to create a ticket for exchange/repair. Please make sure to provide the date of purchase, model number and a brief description of the problem. Our customer service representative will contact you or send detailed return instructions. W Appliance Co. does not warrant that the appliance will work properly in all environmental conditions, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for a particular purpose other than the purpose identified within this user’s manual. W Appliance Co. has made every effort to ensure that this user’s manual is accurate and disclaims liability for any inaccuracies or omissions that may have occurred. Information in this user’s manual is subject to change without notice and does not represent a commitment on the part of W Appliance Co.. W Appliance Co. reserves the right to make improvements to this user’s manual and/or to the products described in this user’s manual at any time without notice. If you find information in this manual that is incorrect, misleading, or incomplete, please contact us at 1- 855-855-0294.
