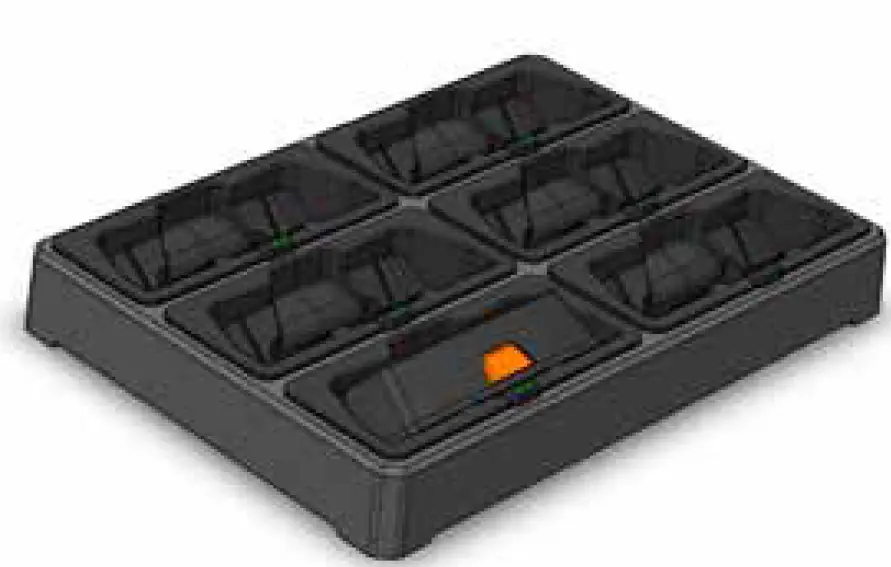

KEMPPI Multi Charger 6
Multi-Charger 6 is a device for charging Kemppi PFU 210e filter unit batteries. Up to 6 batteries can be charged simultaneously with the charger device. The batteries can be either SD or HD batteries.

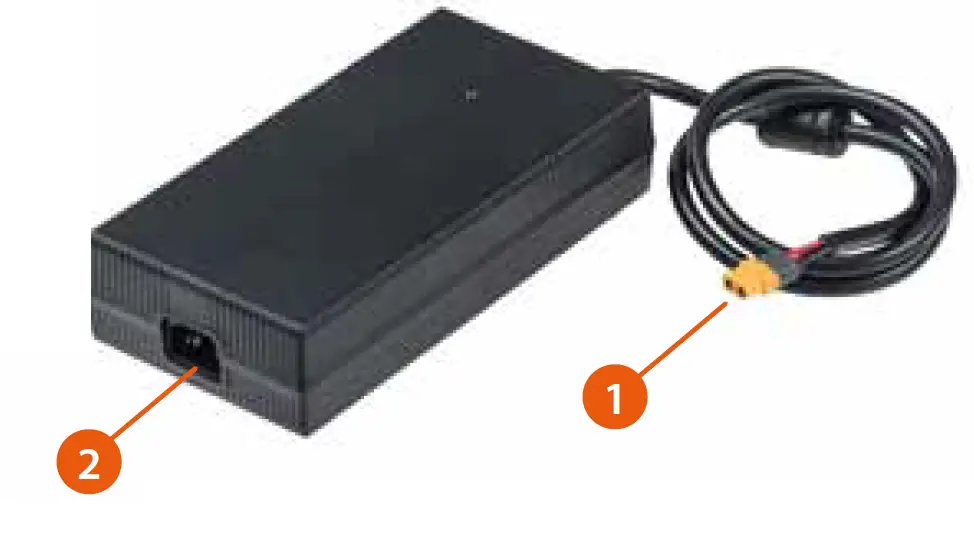

- Connect the power supply cable (1) to the connector on the back of the charger. Use only the power supply included in the package.
- Connect the mains power cord to the connector (2) in the power supply.
- Connect the mains power cord to the mains supply.
- Insert the rechargeable batteries into the charging slots. The locking mechanism on the battery locks the battery into the slot. The device will automatically start charging the battery.
- To remove a charged battery, press the battery release button while pulling the battery out of the charger.
Operating safety
- Note: Use indoors only.
- Note: The unit can be hung on the wall by using the keyholes on the base plate.
- Caution: Do not charge any other type of battery or damaged battery.
- Caution: Do not use if cables are damaged.
- Caution: Be careful not to allow foreign objects or liquids to enter the device.
- Caution: Do not leave the charger unattended when it is plugged in or charging.
- Warnings: Always use the charger with care and read the instructions carefully. Used improperly, the charger can cause serious injury.

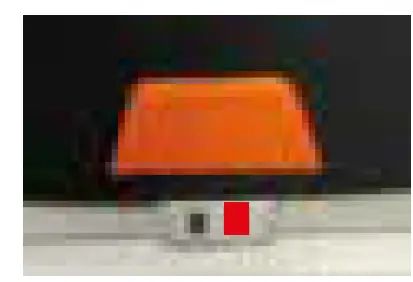

Red LED
The red LED is lit – The battery is charging.

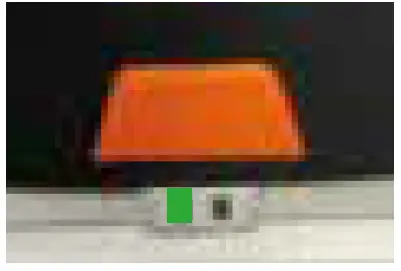

Green LED
The green LED is lit – The battery has been charged. If the battery is inserted into the device and neither LED is lit, the battery may be too cold. Charging starts when the battery temperature exceeds 0° C.
Included in the package
| 1 pcs | Charging station |
| 1 pcs | Power supply |
| 1 pcs | Mains power cord |
| 1 pcs | Operating instructions |
Technical specifications
| Technical specifications | |
| Input voltage | 24 V DC, 12 A DC |
| Output voltage | 12 V – 16.6 V |
| Charging current | 6 x 2.0 A |
| Over current protection | 3.6 A / charger slot |
| Charging power | 6 x 32 W |
| Weight (charger) | 2.5 kg |
| Weight (power supply) | 1.4 kg |
| Dimensions | 500 x 350 x 73 mm |
| Connector type (1) | XT 60 H – F.G. |
Ordering numbers
| Ordering numbers | |
| P0730 | Multi-Charger 6 EU |
| P0731 | Multi-Charger 6 UK |
| P0732 | Multi-Charger 6 DK |
| P0733 | Multi-Charger 6 AS/NZS |
| P0734 | Multi-Charger 6 CH |
Spare parts
| Spare parts | |
| SP9722200 | Mains power cord EU |
| SP9722201 | Mains power cord DK |
| SP9722202 | Mains power cord UK |
| SP9722203 | Mains power cord AS/NZS |
| SP9722204 | Mains power cord CH |
| SP9777650 | Power supply (24 V, 300 W) |
| SP9873700 | Multi-Charger 6 unit |
Disposal of the machine
Do not dispose of electrical equipment with normal waste! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment, and its implementation in accordance with national law, electrical equipment that has reached the end of its life must be collected separately and taken to an appropriate environmentally responsible recycling facility. The owner of the equipment is obliged to deliver a decommissioned unit to a regional collection centre, per the instructions of local authorities or a Kemppi representative. By applying this European Directive you will improve the environment and human health.
