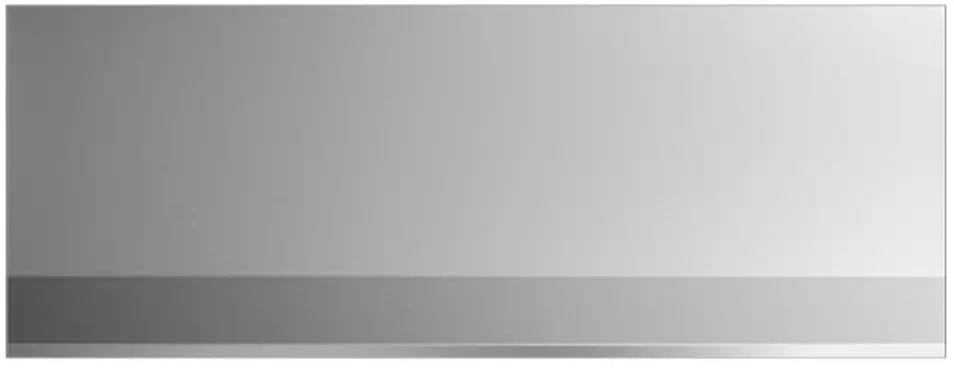

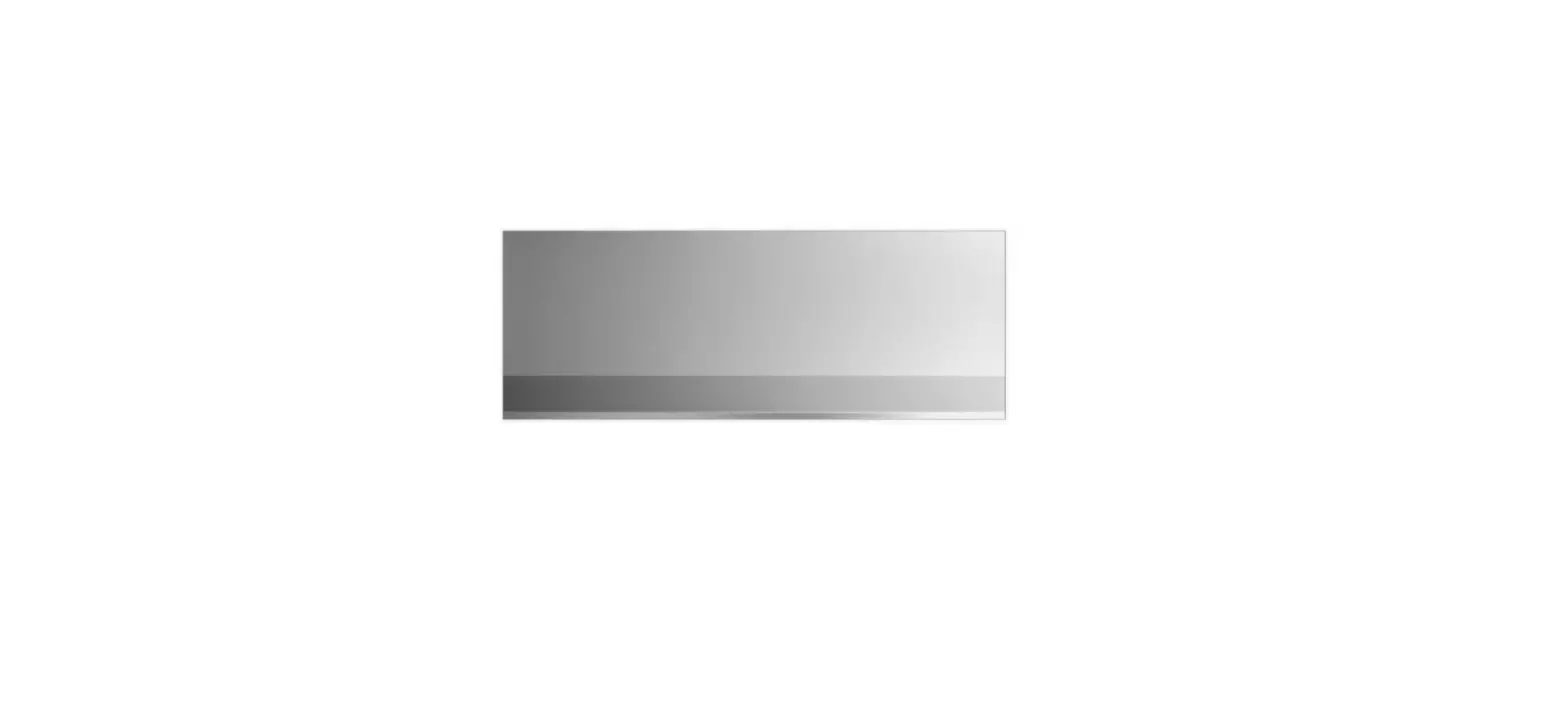

QUICK REFERENCE GUIDE > HCB48-12 N
Wall Range Hood, 48″
Series 9 | Professional
Stainless Steel

A striking design that pairs well with any appliances in our Professional range. With powerful extraction of steam and odors.

With four fan speeds, select the perfect extraction rate for your cooking
Dishwasher-safe filters that are easy to remove and clean
Powerful 1200CFM maximum airflow

Contents hide

1 DIMENSIONS

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

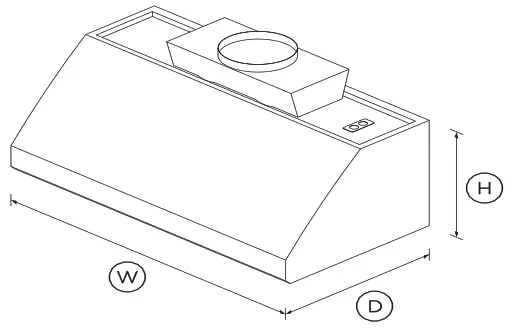

DIMENSIONS

Height	18″
Width	47 7/8″
Depth	25 1/16″

FEATURES & BENEFITS

Simple design
The new stainless steel range hood is tough and hardworking with a style and simplicity to fit seamlessly into your kitchen.
Edge-to-edge filters
We’ve improved our filters to capture and extract more cooking steam, odors, and grease.
Precise control
The Professional Range Hood has been designed to give you better control with sturdy stainless steel dials to set your desired fan speed and light level.
Effective extraction
Our Range Hood filters have been improved to capture more cooking steam, odors, and grease. They’re easy to remove and clean – simply put them in your DishDrawer™ dishwasher.
Heat lamp
Accessorize your kitchen and cook like a pro by adding our contemporary heat lamps to your 36” or 48” range hood.
Your kitchen, your style
Enhance your culinary experience in the kitchen with our Range
Hood accessories from heat lamps through to duct covers.
Choose a range hood to fit your kitchen – there are three different sizes.

SPECIFICATIONS

Accessories

12″ Vertical duct cover	HCC4812
6″ Vertical duct cover	HCC4806
Infrared warming lights	HIR48
Light bulb	104176P

Installation and cleaning

Air outlet size	2 x 8″”
Dishwasher safe filters	3
Ducted	Top extraction
Metal transition to ductwork	Optional – Transition HTRN10
Recirculation	Ducted only

Performance

Extraction type	Surface
Fan speeds	4
Filter type	Stainless Steel Baffle

Power requirements

Lighting power	50W
Motor power	910W
Supply voltage	120V
Total Power	1060W

Product dimensions

Depth	25 1/16″
Height	18″
Width	47 7/8″

Product information

Control type

Rotary switch

Ventilation features

Dimmable lights	•
Light type	Halogen

Warranty

Parts and labor	2 years
SKU	50105

The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
