Jandy FLOPRO SINGLE-AND TWO-SPEED PUMPS

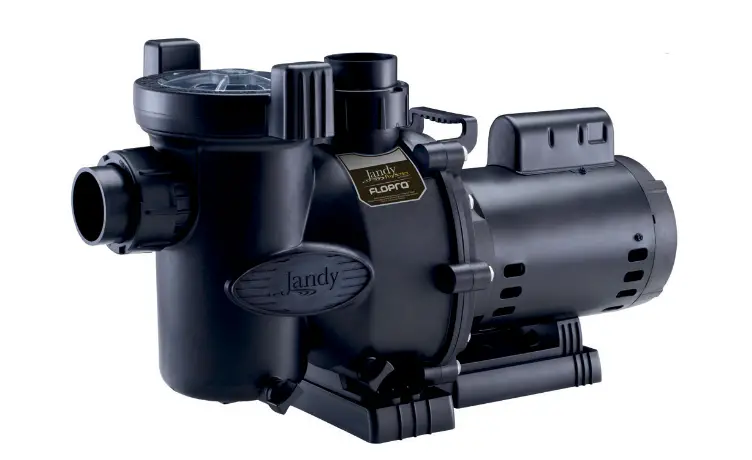

Jandy-FLOPRO-SINGLE-AND-TWO-SPEED-PUMPS-PRODUCT

Compact, Versatile, Powerful

The Jandy® FloPro single- and two-speed pumps are designed with an innovative adjustable base, allowing for simple installation on new construction, or quick and easy replacement of existing pumps. With the FloPro, minimal plumbing adjustments are required, thereby enabling cost-effective pump replacement.

  • Medium-head, high-flow pump in an ultra compact body. Excellent choice for tight equipment areas.
  • Adjustable base options allow for easy replacement of select Hayward®, Pentair®, Sta-Rite®, and Jandy pumps.
  • Ergonomic cam-lock lid with easy alignment indicators.
  • Equipped with 2” unions & 2” internal threads.
  • Quiet operation.

Easy to Use

Innovative pump equipped with ergonomic cam-lock lid for easy alignment and strainer basket cleaning, handle brackets, and 2” pump unions.

Energy and Cost Efficient
DOE-compliant energy-efficient two-speed model provides uncompromising power to filter and recirculate pool and spa water while keeping costs down.

Easy to Install
The included adjustable base, 2” unions and 2” threaded ports enable easy drop-in replacement of most existing pumps. FloPro makes it easy to replace popular pump models including Hayward® Super Pump® or Pentair® WhisperFlo® and SuperFlo® pumps.

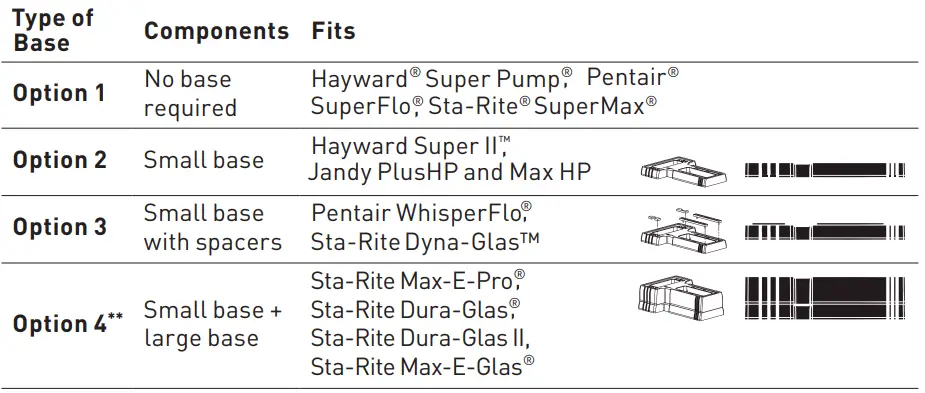

BASE OPTIONS

Jandy-FLOPRO-SINGLE-AND-TWO-SPEED-PUMPS-fig-1

Optional: Part # R0546400

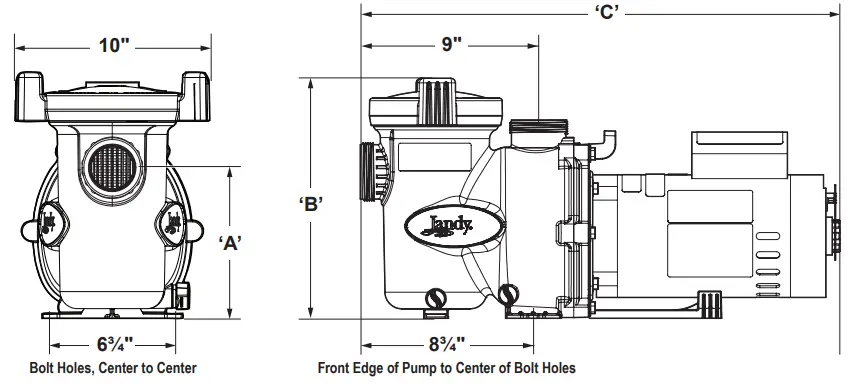

DIMENSIONS

Jandy-FLOPRO-SINGLE-AND-TWO-SPEED-PUMPS-fig-2

SPECIFICATIONS

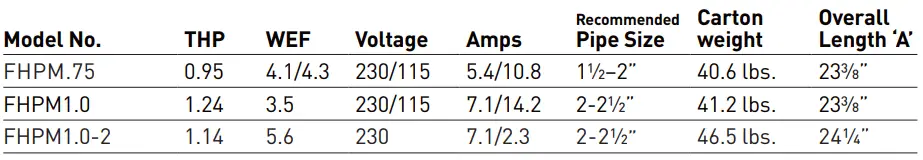

Residential FloPro Pumps, DOE CompliantJandy-FLOPRO-SINGLE-AND-TWO-SPEED-PUMPS-fig-4

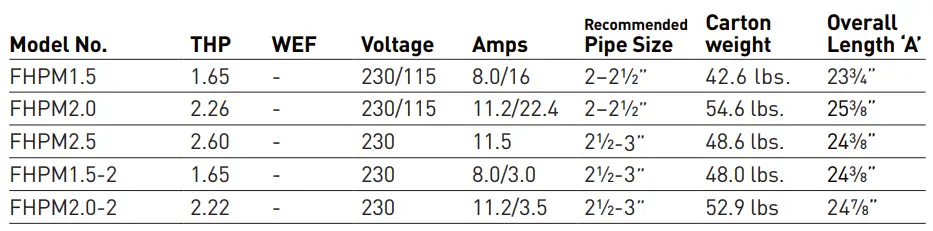

Residential FloPro Pumps, Not DOE CompliantJandy-FLOPRO-SINGLE-AND-TWO-SPEED-PUMPS-fig-5

Pumps not meeting DOE compliance standards will cease manufacturing on or before July 18, 2021. Specifications are being provided for historical reference.

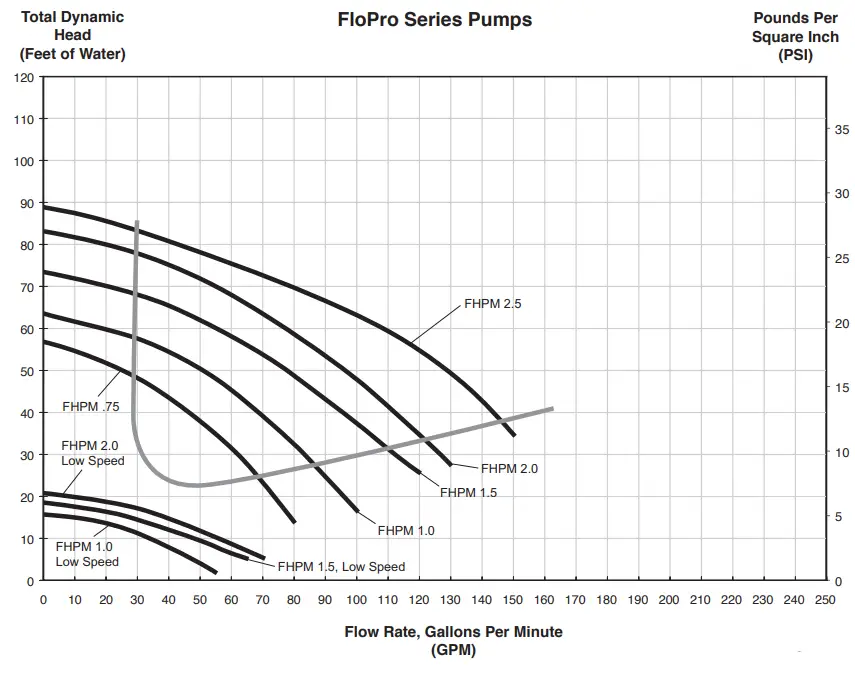

PERFORMANCE

Jandy-FLOPRO-SINGLE-AND-TWO-SPEED-PUMPS-fig-3
