Install the Home Connect app on your mobile devices and follow the instructions.

http://qr.home-connect.com
Scan the QR code using the Home Connect app.

Overview of water hardness settings

You can find an overview of the water hardness values that can be selected here. A table of country-specific units can be found in the instruction manual.

Hardness range	mmol/l	Setting value
Soft	0 – 1.1	0 – 8
Soft	1.2 – 1.4	10-Sep
Medium	1.5 – 1.8	12-Nov
Medium	1.9 – 2.1	13 – 15
Medium	2.2 – 2.9	16 – 20
Hard	3.0 – 3.7	21 – 26
Hard	3.8 – 5.4	27 – 38
Hard	5.5 – 8.9	39 – 62

Setting the water softening system

Press ⁠.
To open the basic settings, press for approx. 3 seconds.
Press > repeatedly until the display shows “Water hardness”.
Press –or + repeatedly until the right water hardness has been set.
To save the settings, press for approx. 3 seconds.

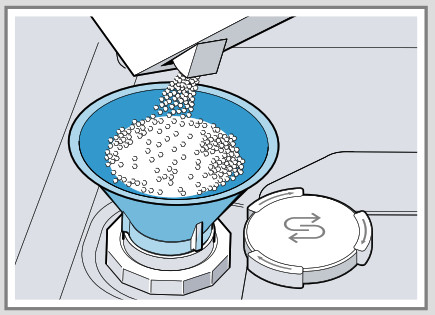

Adding special salt

To avoid damage to the appliance, only add a special salt to the dispenser for special salt just before the program starts.

Unscrew the lid of the dispenser for special salt and remove it.
On initial start-up: Fill the dispenser right up with water.
Add the special salt to the dispenser. The water in the dispenser is displaced and forced out. Never add detergent.
Place the lid back on the dispenser and turn to close.

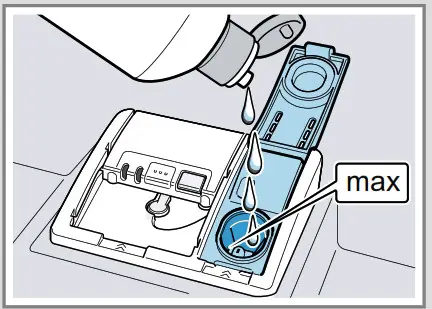

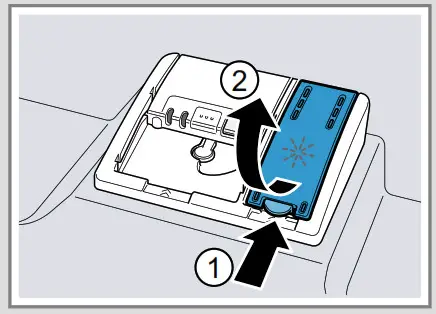

Adding rinse aid

Press the catch on the lid of the dispenser for rinse aid 1 and 2 lift.
Add rinse aid up to the max mark.
Close the lid of the dispenser for rinse aid.
The lid clicks into position.

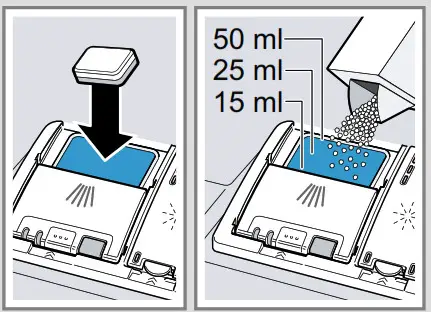

Adding detergent

Add the detergent to the dry detergent dispenser.

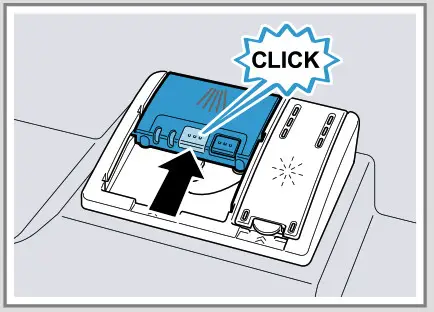

Close the lid of the detergent dispenser.
The lid clicks into position.

Programs

The program data has been measured in the laboratory according to European standard EN 60436. The consumption figures depend on the program and additional function selected. The runtime will change if the rinse aid system is switched off or the rinse aid needs to be added.

Programme	1) Duration [h:min] 2) Energy [kWh] 3) Water [l]
Intensive 70°	1) 2:25 – 2:30 2) 1,150 – 1,250 3) 10,5 – 13,5
Auto Auto 45-65°	1) 1:40 – 2:40 2) 0,680 – 1,300 3) 7,0 – 15,5
Eco Eco 50°	1) 3:55 2) 0,645 3) 9,5
Intelligent	1) 2:25 – 2:30 2) 0,750 – 0,800 3) 11,5 – 12,0
Silence 50	1) 4:00 2) 0,800 3) 10,5
Glass 40°	1) 1:40 – 1:45 2) 0,750 – 0,800 3) 11,1 – 13,7
Express 60°	1) 1:29 2) 1,050 3) 11,0
Machine Care	1) 2:10 2) 1,350 3) 15,0
Favourite	1) 0:15 – 0:15 2) 0,050 – 0,050 3) 4,0 – 4,0
1 Suitable programme for running at night: it takes longer, but is extremely quiet.

How to use your appliance

Load the tableware.
Only clean tableware that is suitable for dishwashers. Remove large remnants of food from the tableware. Check that the spray arms can rotate freely.
Add detergent.
Switch on the appliance
Select the program.
Start the program.
Remove the tableware at the end of the program.
To cancel the program, press Rest $ sec. for approx. 4 seconds.
The program is canceled and ends after approx. 1 minute.

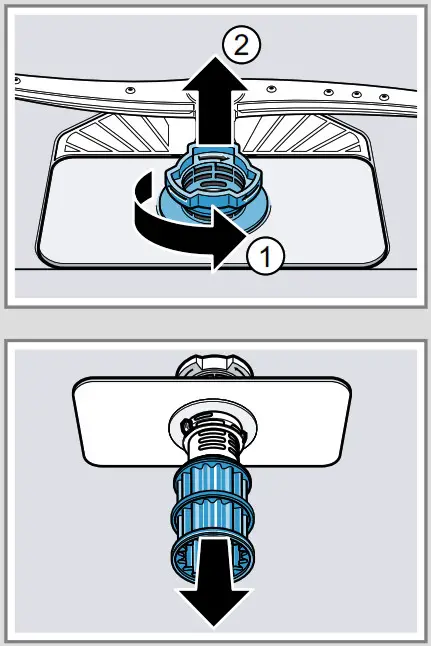

Cleaning filters

After each wash check the filters for residue.
Turn the coarse filter anticlockwise 1 and remove the filter system 2.
Pull down the microfilter to remove it.

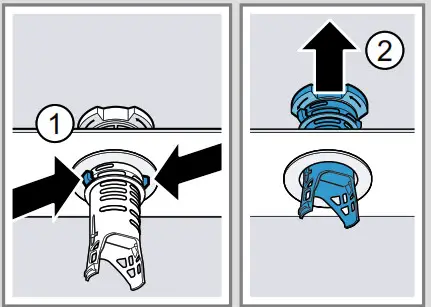

Press the locking catches 1 to- gether and lift the coarse filter out 2⁠.
Clean the filter elements under running water.
Re-assemble the filter system.
Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.

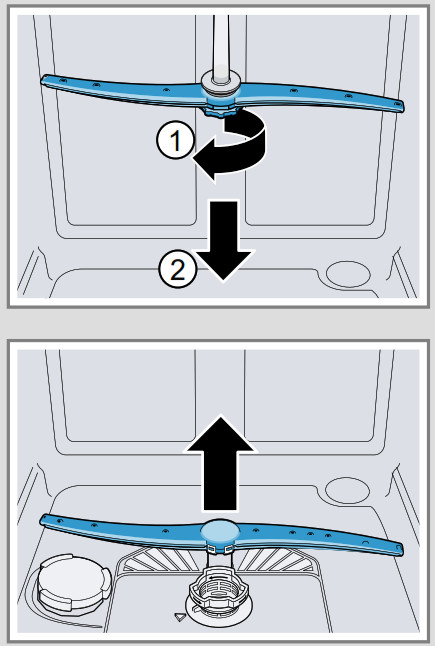

Cleaning spray arms

Unscrew the upper spray arm 1 and pull it down to remove⁠ 2.
Pull up the lower spray arm to remove.
Check the outlet nozzles on the spray arms for blockages under running water and remove any foreign bodies.
Insert the lower spray arm.
The spray arm clicks into position.
Insert the upper spray arm and screw it firmly in place.

Clean wastewater pump

Disconnect the appliance from the power supply.
Remove the filter system.
Scoop out any water.

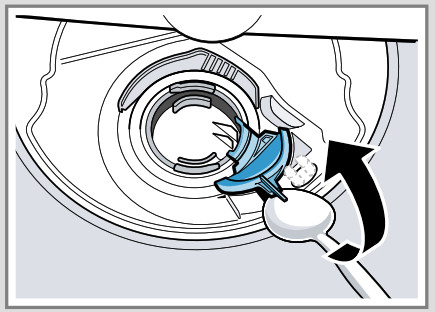

Prise off the pump cover using a spoon and grip it by the crosspiece.
Lift the pump cover inwards at an angle and remove it.
Remove any remnants of food and foreign bodies in the area of the impeller.

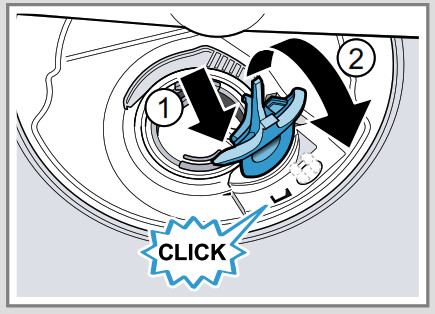

Insert the pump cover and press down ⁠2.
The pump cover clicks into position.
Install the filter system.

Troubleshooting

Fault	Cause and troubleshooting
E:3200 or indicator for water supply lights up.	The supply hose is kinked. Install the supply hose without kinks.
	The water tap is turned off. Turn on the water tap.
	The water tap is jammed or furred up. Turn on the water tap. The flow rate must be at least 10 l/min when the water supply is open.
	The filters in the water connection of the supply or AquaStop hose are blocked.

Switch off the appliance.
Pull out the mains plug.
Turn off the water tap.
Unscrew the water connection.

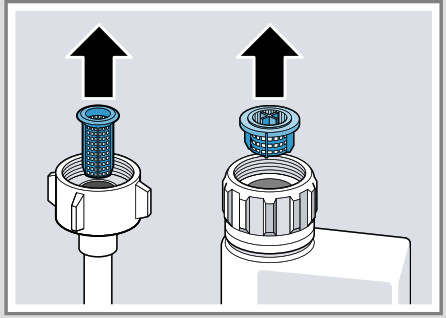

Remove the filter from the supply hose
Clean the filter.
Re-insert the filter in the supply hose.
Screw the water connection back on.
Check the water connection for leaks.
Restore the power supply.
Switch the appliance on.

Fault	Cause and troubleshooting
E:9240 lights up.	Filters are soiled or blocked. Clean the filters.
E:6102 lights up.	The wastewater pump is blocked. Clean the wastewater pump.
E:6102 lights up.	The cover of the wastewater pump is loose Secure the cover of the Wastewater pump so it clicks into position.
Remnants of food on tableware.	Tableware is placed too close together or the basket is overfilled. 1. Arrange tableware with sufficient space in between. The spray jets must reach the surfaces of the tableware. 2. Avoid points of contact.
	Spray arm rotation is blocked. Arrange tableware so that it does not obstruct spray arm rotation.
	Spray arm nozzles are blocked. Clean the spray arms.
	Filters are soiled. Clean the filters.
	Filters are inserted incorrectly and/or not engaged. 1. Insert the filters properly. 2. Engage the filters.
	The washing program selected too weak. Select a more intensive washing program. Adjust the sensitivity of the sensors.
Removable streaks are present on glasses, glassware with a metallic appearance, and cutlery.	The amount of rinse aid to be dispensed is set too high. Set the rinse aid system to a lower setting.
	No rinse aid has been added. Add rinse aid.
Rust spots on cutlery.	Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected. Use rust-resistant tableware.
Rust spots on cutlery.	Cutlery may also rust if washed together with rusting items. Do not wash using items.
Detergent residue is present in the detergent dispenser or the tablet collecting tray.	Spray arms were blocked by tableware so detergent was not rinsed out. Check that the spray arms are not blocked and can rotate freely.
