Bosch Spv2hkx41e Fully Integrated Dishwasher User Guide

Quick reference guide
Dishwasher

Before using for the first time, read the instruction manual and the safety information it contains.

Setting up Home Connect

Tip: Connect your appliance to a mobile device. You can conveniently change all settings using the Home Connect app.

1. Install the Home Connect app on your mobile device and follow the instructions.
2. Scan the QR code with the Home Connect app.

http://qr.home-connect.com

Overview of water hardness settings

You can find an overview of the water hardness values that can be selected here.
A table of country-specific units can be found in the instruction manual.

Hardness range	mmol/l	Level	LED A	LED B	LED C
Soft	0 – 1.1	0
Medium	1.2 – 2.9	1
Hard	3.0 – 3.7	2
Hard	3.8 – 6.2	3

Setting the water softening system

1.  Press.
2. To open the appliance settings, press for 3 seconds. is flashing on the display.
3.  Press repeatedly until the right water hardness has been set. 0, 1, 2 or 3 LEDs will light up accordingly.
4. To save the settings, press for 3 seconds.

Programs

The program data has been measured in the laboratory according to European standard EN 60436.
The consumption figures depend on the program and additional function selected.
The runtime will change if the rinse aid system is switched off or rinse aid needs to be added.

Program	1) Duration [h:min] 2) Energy [kWh] 3) Water [l]
Intensive 70°	1) 1:55 – 2:05 2) 1,090 – 1,200 3) 10,5 – 13,0
Auto Auto 45-65°	1) 1:35 – 2:40 2) 0,650 – 1,100 3) 7,0 – 14,5
Eco Eco 50°	1) 3:40 2) 0,704 3) 8,5
Express 65° – 1h	1) 1:00 2) 1,050 3) 10,0
Machine Care	1) 2:10 2) 1,130 3) 15,0
Favorite	1) 0:15 – 0:15 2) 0,050 – 0,050 3) 4,0 – 4,0

How to use your appliance

1. Load the tableware.
   Only clean tableware that is suitable for dishwashers. Remove large remnants of food from the tableware. Check that the spray arms can rotate freely.

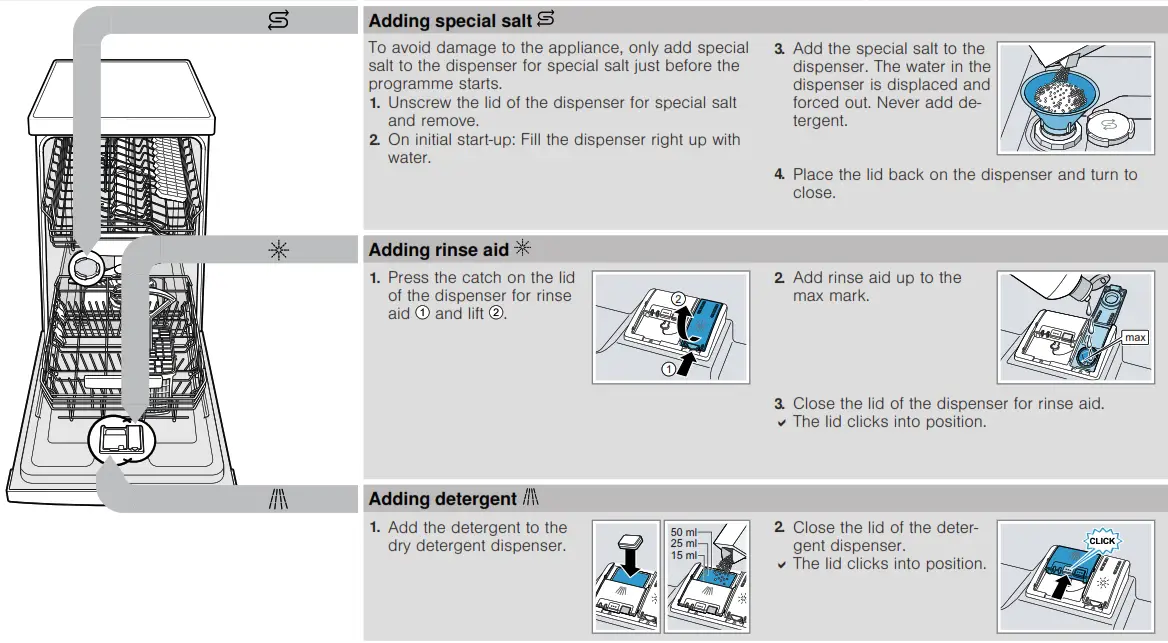

2.  Add detergent.
3. Switch on the appliance
4. Select the program.
5. Start the program .
6. Remove the tableware at the end of the program.
7.  To cancel the program, press for approx. 4 seconds.
   The program is canceled and ends after approx. 1 minute.

Cleaning filters

1.  After each wash check the filters for residue.

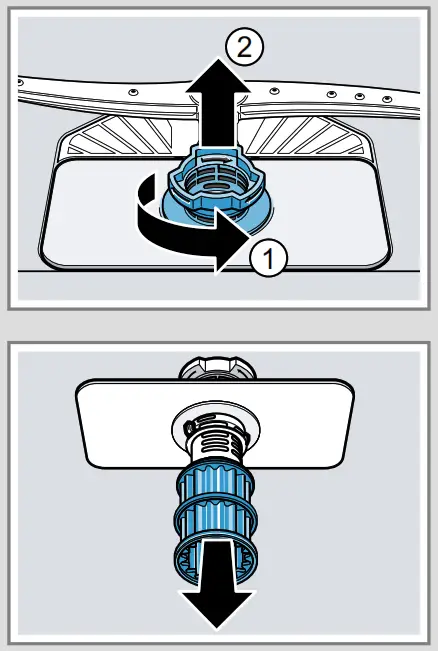

2. Turn the coarse filter anti-clock wise1 and remove the filter system2.

3. Pull down the microfilter to remove it.

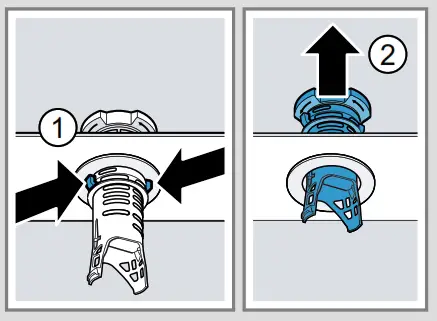

4. Press the locking catches 1 together and lift the coarse filter out2.

5.  Clean the filter elements under running water.
6. Re-assemble the filter system.
7. Insert the filter system into the appliance and turn the coarse filter clockwise. Make sure that the arrow markings match up.

Cleaning spray arms

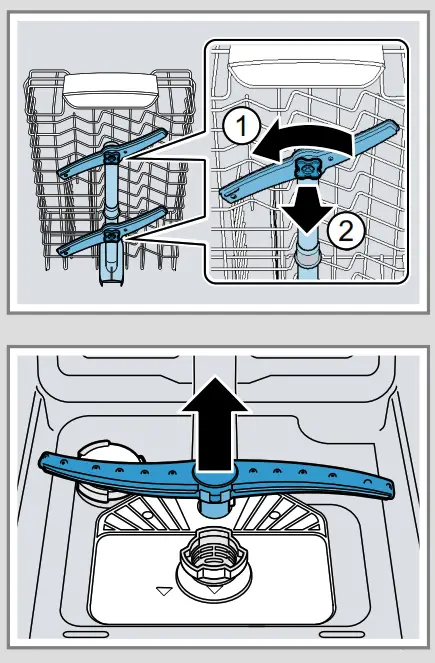

1. Unscrew the upper spray arms 1 and pull down to remove2.

2. Pull up the lower spray arm to remove.
3. Check the outlet nozzles on the spray arms for blockages under running water and remove any foreign bodies.
4. Insert the lower spray arm. The spray arm clicks into position.
5. Insert the upper spray arms and screw them firmly in place.

Clean wastewater pump

1. Disconnect the appliance from the power supply.
2. Remove the filter system.
3. Scoop out any water.

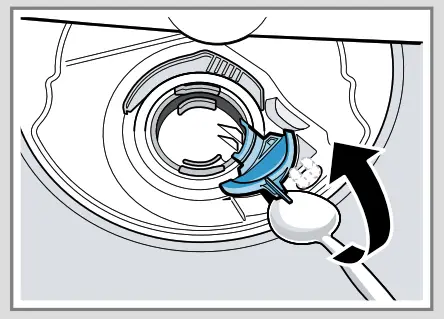

4. Prise off the pump cover using a spoon and grip it by the crosspiece.

5. Lift the pump cover inwards at an angle and remove it.
6. Remove any remnants of food and foreign bodies in the area of the impeller.

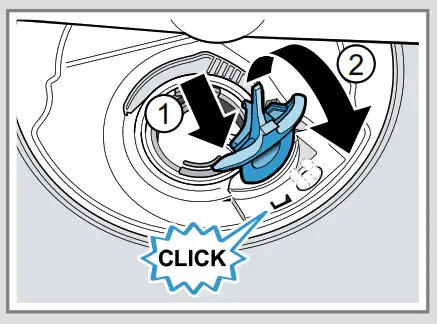

7. Insert the pump cover and press down .√The pump cover clicks into position.

8.  Install the filter system.

Troubleshooting

Fault	Cause and troubleshooting

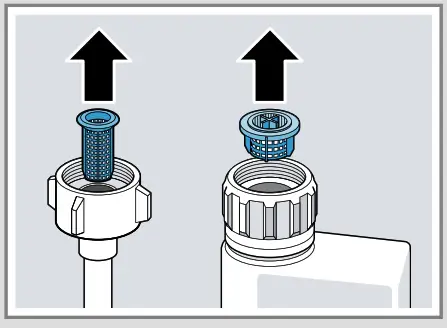

Display for water supply lights up	The supply hose is kinked. ▶ Install the supply hose without kinks. The water tap is turned off. ▶ Turn on the water tap. The water tap is jammed or furred up. ▶ Turn on the water tap. The filters in the water connection of the supply or AquaStop hose are blocked. 1. Switch off the appliance. 2. Pull out the mains plug. 3. Turn off the water tap. 4. Unscrew the water connection. 5. Remove the filter from the supply hose6. Clean the filter. 7. Re-insert the filter in the supply hose. 8. Screw the water connection back on. 9. Check the water connection for leaks. 10. Restore the power supply. 11. Switch the appliance on.
Display for water supply lights up	The wastewater hose is blocked or kinked. 1. Reposition the wastewater hose without kinks. 2. Remove residues. The siphon connection is still sealed. ▶ Check the connection to the siphon and open if necessary. The cover of the wastewater pump is loose. ▶ Secure the cover of the Wastewater pump so it clicks into position.
Remnants of food on tableware.	Tableware is placed too close together or basket is overfilled. 1. Arrange tableware with sufficient space in between. The spray jets must reach the surfaces of the tableware. 2. Avoid points of contact. Spray arm rotation is blocked. ▶ Arrange tableware so that it does not obstruct spray arm rotation. Spray arm nozzles are blocked. ▶ Clean the Spray arms. Filters are soiled. ▶ Clean the filters. Filters are inserted incorrectly and/or not engaged. 1. Insert the filters properly. 2. Engage the filters.
Remnants of food on tableware.	The washing program selected too weak. ▶ Select a more intensive washing program.
Removable streaks are present on glasses, glassware with a metallic appearance and cutlery.	The amount of rinse aid to be dispensed is set too high. ▶ Set the rinse aid system to a lower setting. No rinse aid has been added. ▶ Add rinse aid.
Rust spots on cutlery.	Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected. ▶ Use rust-resistant tableware. Cutlery may also rust if washed together with rusting items. ▶ Do not wash rusting items.
Detergent residue is present in the detergent dispenser or the tablet collecting tray.	Spray arms were blocked by tableware so detergent was not rinsed out. ▶ Check that the spray arms are not blocked and can rotate freely.

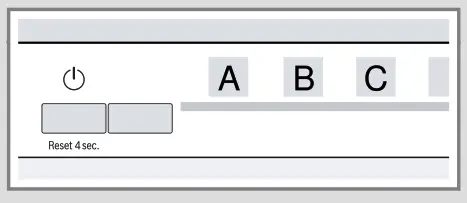

All LEDs light up or flash or the rinse programme does not continue running.	Electronics have detected a fault. ▶ Press the main switch button for approx. 4 seconds. The appliance is reset and restarted.
