NT01101 Star Ceiling Light
Instruction Manual
Technical specifications
- Input voltage: AC 185V-265V 50Hz
- Color temperature: 3000K~6500K
- Power: 24W
- Lumens: up to 2160lm
- Beam angle: 120°
- Lifetime: 15000h
- Wireless frequency: 2.4GHz
- Wi-Fi standard: IEEE 802.11b/g/n
- Security: WPA-PSK / WPA2-PSK / WPA / WPA2 / WEP / WPS2 / WAPI
- Encryption type: WEP/TKIP/AES
- CRI: Ra>80
- Dimmable: Da / Yes
- Waterproof/Dustproof: IP20
- Support system: Android and iOS
- Dimensions: φ365*65mm
- Weight: 690g
- Material: PMMA+IRON

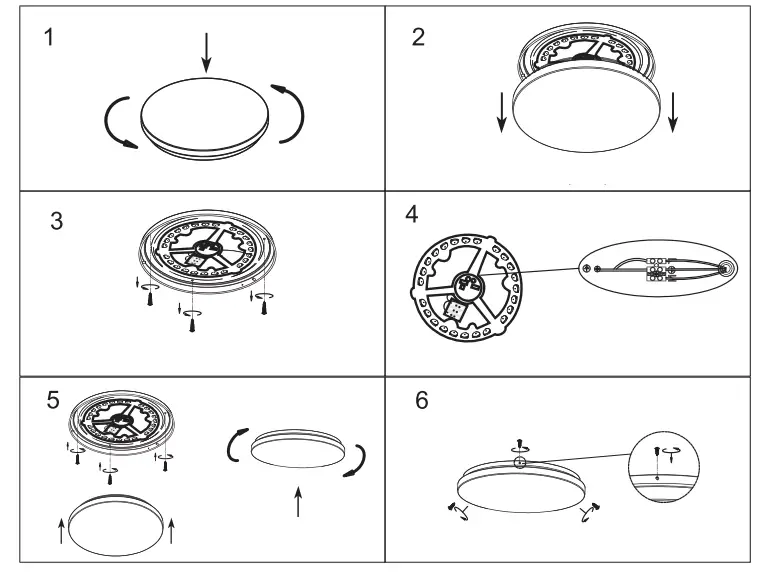

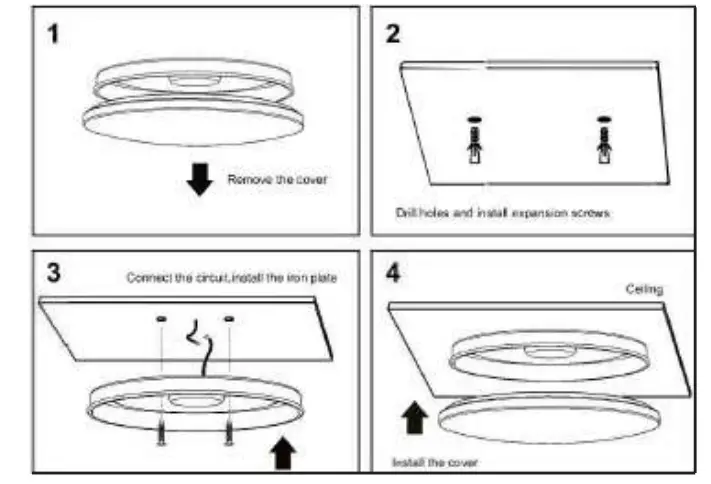

Installation
The light source and/or control gear and/or the external flexible cable contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
DECLARAŢIA DE CONFORMITATE UE
Directiva 2014/30/UE
EN IEC 55015:2019
EN IEC 55015:2019 + A11:2020
EN 61547
EN 61000-3-3: 2013+ A1:2019
EN IEC 61000-3-2:2019
EN 55015:2013 + A1:2015
Directiva 2014/35/UE
EN 62560:2012 + A1:2015+ A11:2019
EN 60598-1:2021
EN 60598-2-1:2021
EN 60598-1:2015 + A1:2018
EN 60598-2-3:2003 + A1:2011
EN 62493:2015
EN 62471:2008
Todor Florin
Alba Iulia, 12.07.2022
Before replacing, turn off power and let lamp cool to avoid electrical shock or burn.
Keep away from liquids and moisture.
This product is not a children’s toy.
All product names, logos and brands are property of their respective owners
