HYUNDAI HHA572201 Electronics – 5 in 1 Staafmixer User Manual

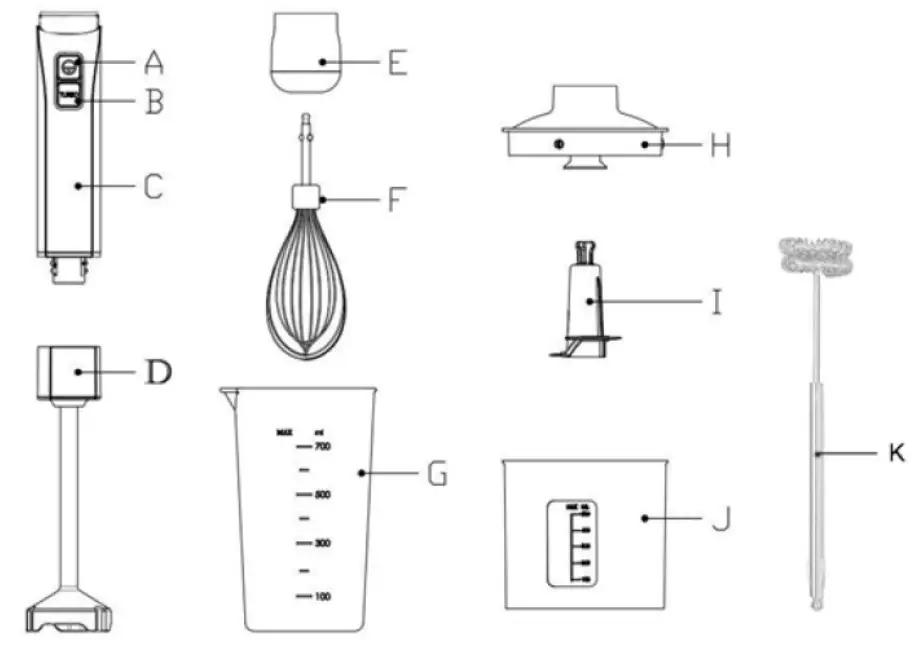

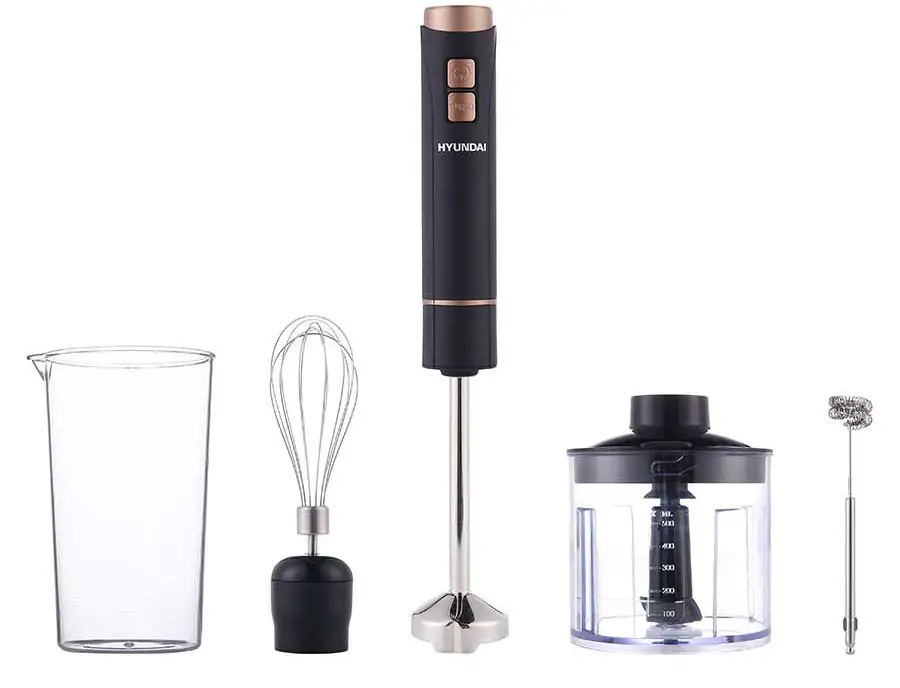

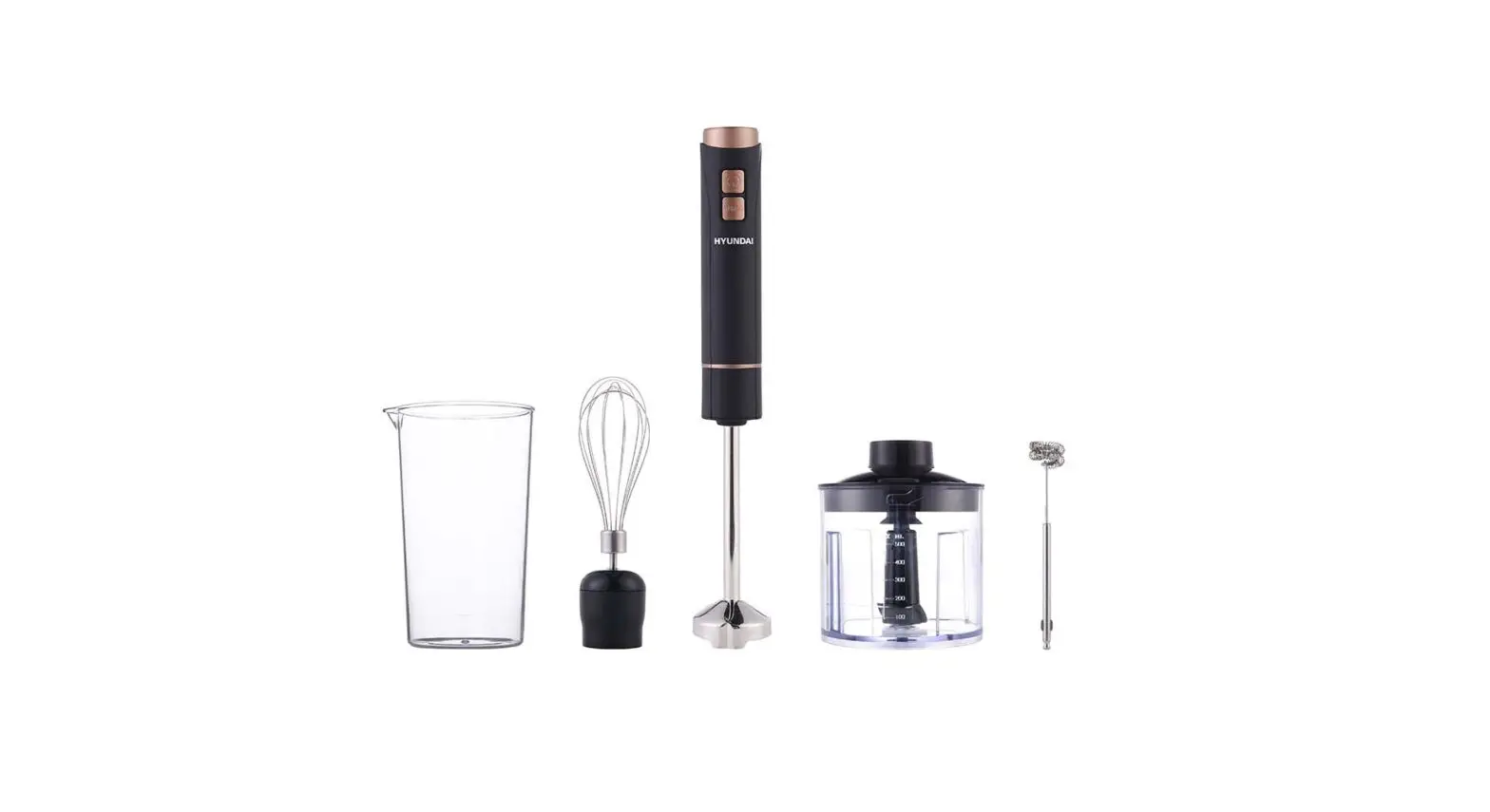

LIST OF PARTS

A. Low speed button
B. High speed button
C. Main unit
D. Blending stick
E. Whisk Component
F. Whisk
G. Beaker
H. chopper lid
I. Chopping blade
J. Bowl
K. Milk frother

WARNING:

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the mains cord, the plug or other parts are damaged.
• If the mains cord is damaged, you must have it replaced by manufacture, or the service centre authorized by the dealer, or similarly qualified person in order to avoid a hazard.
• Always unplug the appliance from the mains before you assemble, disassemble, clean or make adjustments to any of the accessories.
• Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit.
• Never let the appliance run unattended.
• This appliance is intended for household use only.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Never touch the blades when the appliance is plugged in. The blades are very sharp.
• If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades.
• Do not overload the appliance by putting in too much food and do not operate continuously for more than 30 seconds.

PREPARE FOR USE

• Thoroughly clean the parts that come into contact with food before you use the appliance for the first time.
•  Let hot ingredients cool down before you process them (max. temperature 60°C).
• Cut large ingredients into pieces of approximately 2 cm before you process them.
• Always place the motor unit on a level surface.

USING THE APPLIANCE HAND BLENDER

The hand blender is intended for :

• Blending liquids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks and shakes.
• Mixing soft ingredients, e.g.
• Pureeing cooked ingredients, e.g. for making baby food.

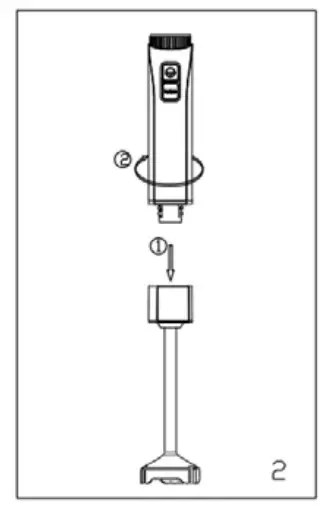

1. Attach the blender bar to the motor unit (Fig.2).

2. Put the ingredients in the beaker.

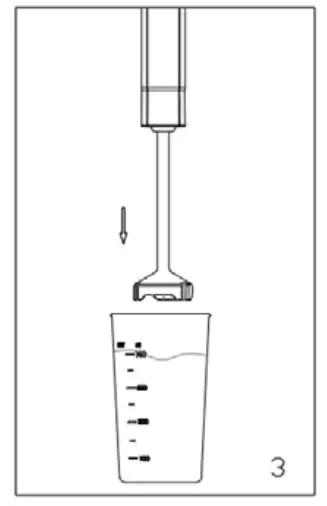

3. Immerse the blade guard completely in the ingredients (Fig.3).

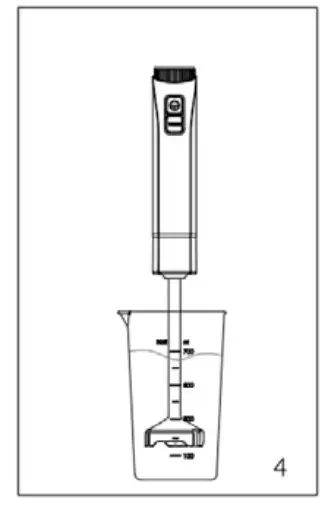

4. Pressing the low or turbo speed button to switch on the appliance (Fig.4).


5. Move the appliance slowly up and down and in circles to blend the ingredient.

CHOPPER

Note: The chopper is intended for chopping ingredients such as nuts, meat, onions, hard cheese, boiled eggs, garlic, herbs, dry bread etc.

Attention: The blades are very sharp! So be very careful when handling the blade unit. Be especially careful when you remove the blade from the chopper bowl, when your empty the chopper bowl and during cleaning.

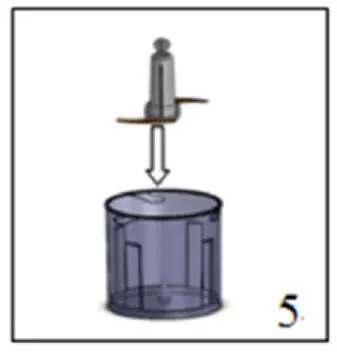

1. Put the chopper blade unit in the chopper bowl (fig.5)

2. Put the ingredients in the chopper bowl.

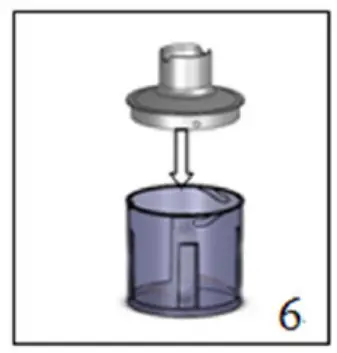

3. Put the coupling unit on the chopper bowl (fig.6).

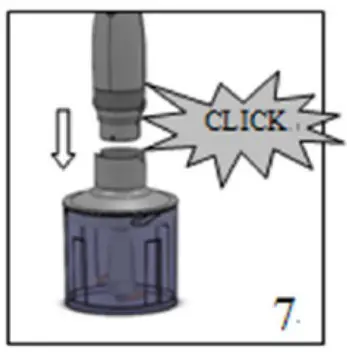

4. Fasten the motor unit onto the chopper bowl (fig.7).

5. Pressing the normal or turbo speed button to switch the appliance.

If the ingredients stick to the wall of the chopper bowl, loosen them by adding liquid or using a spatula. Always let the appliance cool down after chopping meat.

WHISK

Use the whisk only for whipping cream, beating egg whites and mixing sponges and ready-mix desserts.

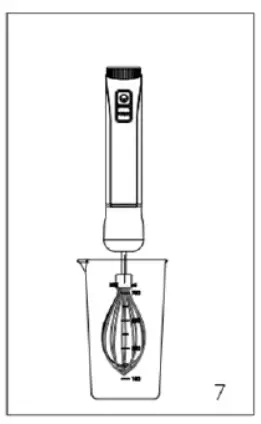

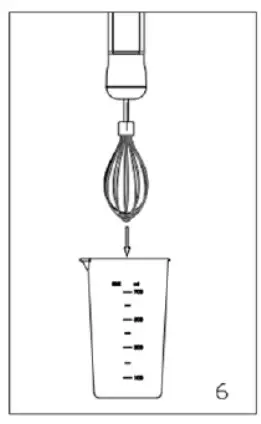

1. Insert the whisk into the whisk gear box, then insert the motor part into the gear box until it locks.

2. Place the whisk in a vessel and only then, press switch to operate it.

3. To release, press buttons and pull off the gear box. Then pull the whisk out of the gear box.


For best results:

• Do not use the beaker, but a wider bowl.
• Start with a low-speed setting.
• Move the whisk by holding it slightly inclined.
• Only whip up to 400 ml chilled cream(min. 30% fat content, 4–8 °C).
• Only whip up to 4 egg whites

CARE AND CLEANING

Do not immerse the motor unit and the whisk coupling unit in water.

• Unplug the appliance before cleaning.
• Dissemble all the parts.
• Do not immerse the motor unit into water.
• Wipe the motor unit with a moist doth.
• Clean the beaker, the chopper bowl, the chopper blade unit and the chopper coupling unit in the dishwasher or in warm water with some washing-up liquid.
• Dry and store them for future use.

ENVIRONMENT

Meaning of crossed –out wheeled dustbin:
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities.

Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in land!lls or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
When replacing old appliances with new ones, the retailer is legally obligated to take back your old appliance for disposals at least free of charge.

BLENDING QUANTITIES AND PREPARATION TIMES

CHOPPING QUANTITIES AND PREPARATION TIMES

TECHNICAL SPECIFICATIONS

• Power supply: 220-240V, 50/60HZ, 400W
• Motor type: DC motor
• Material: Stainless steel and plastic
• Speed: 16.000 RPM
• Function: Powerful motor(400 W)
  with reduced vibration
  Ergonomically designed handle
  Dishwasher safe
• Accessories included: 1x 500ml chopper
  1x 700ml cup
  1x whisk
  1x milk frother
