DEEPCOOL NEPTWIN RGB 6 Heatpipe CPU Cooler

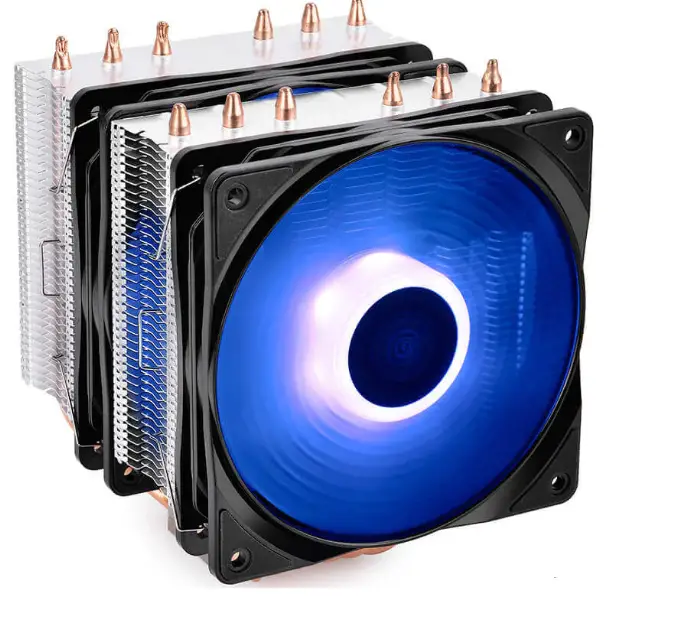

DEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-PRODUCT

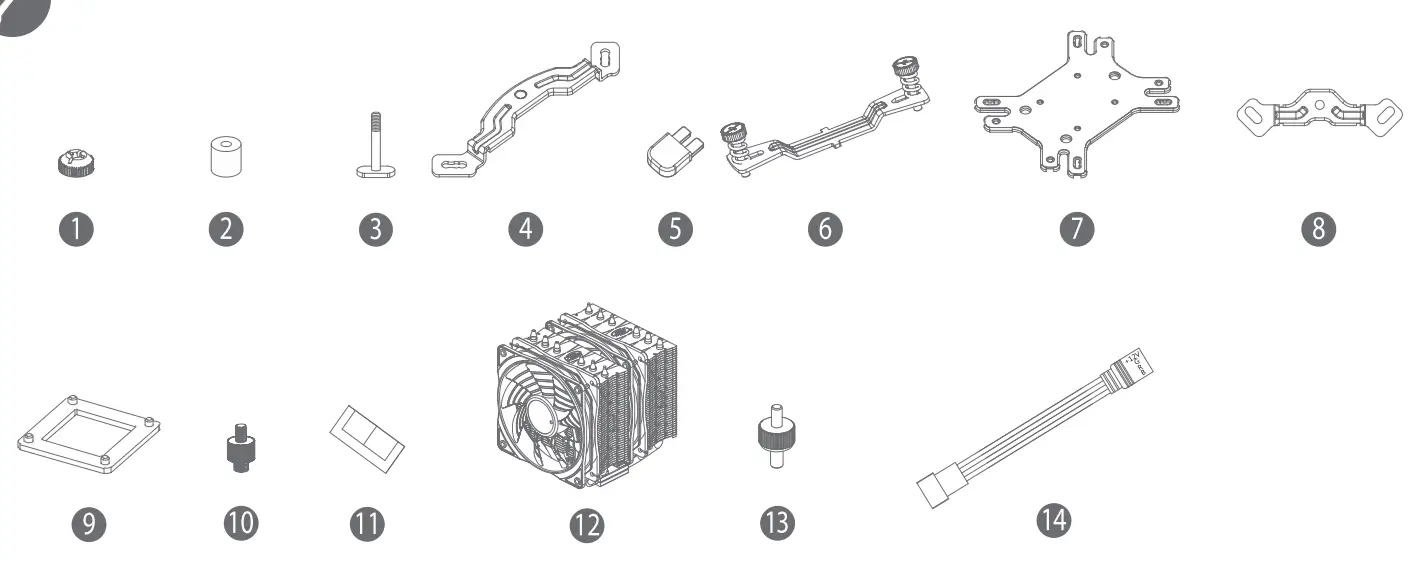

DESCRIPTIONDEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-FIG- (1)

  1. Nut 4 pcs
  2. Insulation Pillar 4 pcs
  3. Screw Bolt
  4. Mounting Bracket(Intel) 2 pcs
  5. De-Vibration Buckle pcs 4pcs
  6. Retention Plate 1 pc
  7. Back Plate
  8. Mounting Bracket (AMD) 2 pcs
  9. Insulating Washer (For LGA775 only) 1 pc
  10. Double-screw Bolt (For LGA20XX only) 4 pcs
  11. Thermal Grease 1 pc
  12. Heatsink set 1 pc
  13. Double-screw Bolt (For AM4 only) 4 pcs
  14. RGB Extension cable 1pc

INSTALLATION

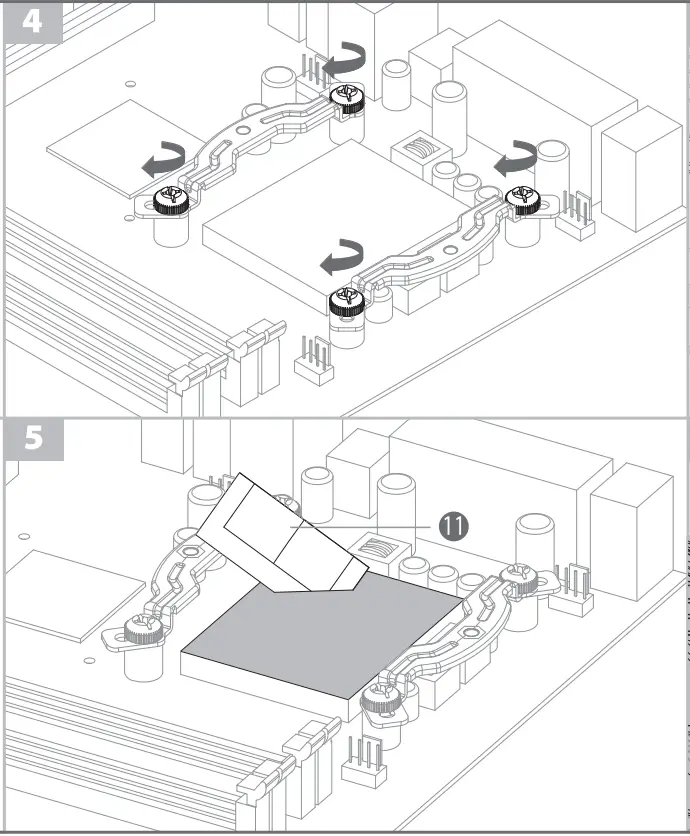

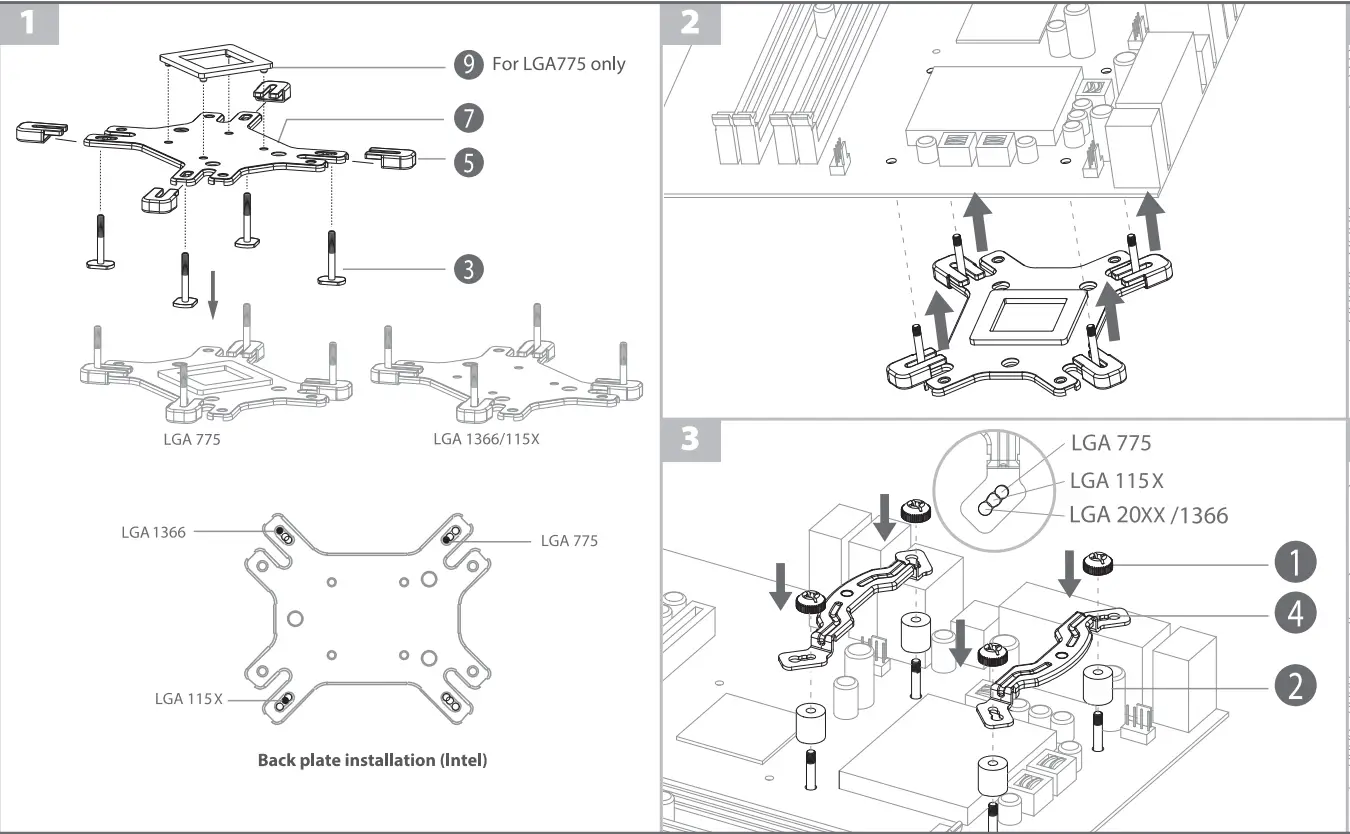

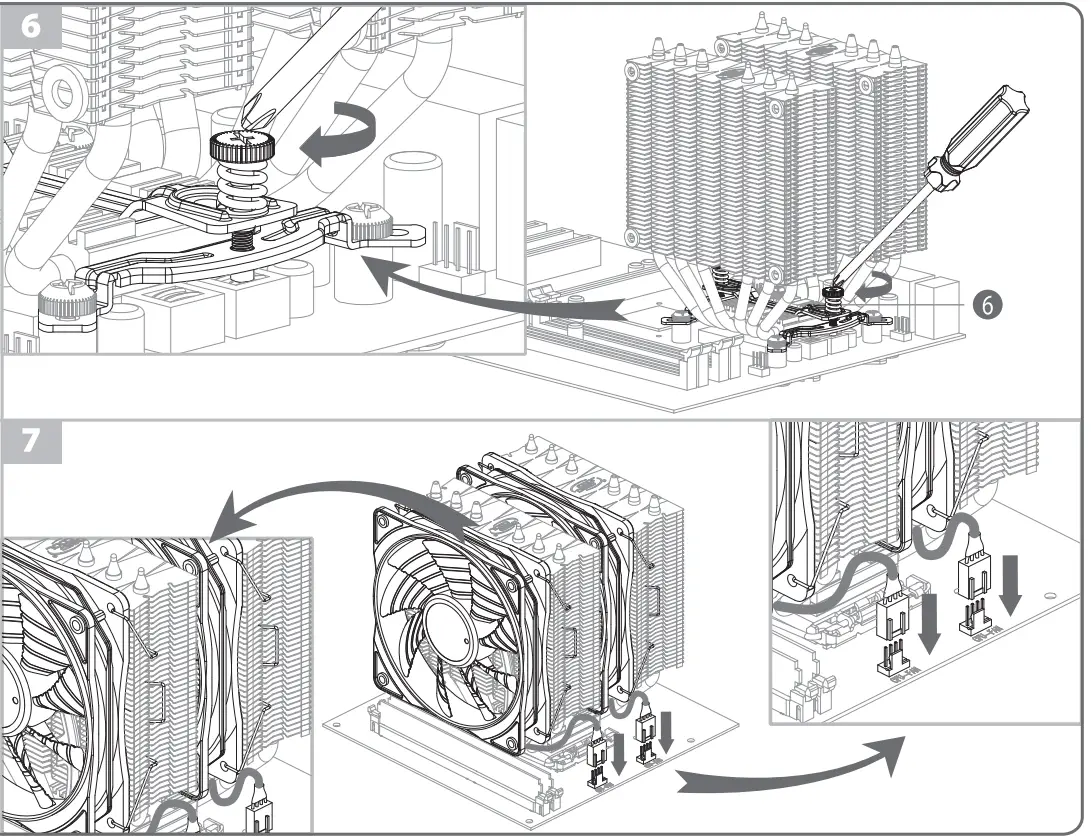

INTELDEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-FIG- (2)DEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-FIG- (3)DEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-FIG- (4)

  • LGA1366
  • LGA1155
  • LGA1151
  • LGA1150
  • LGA775

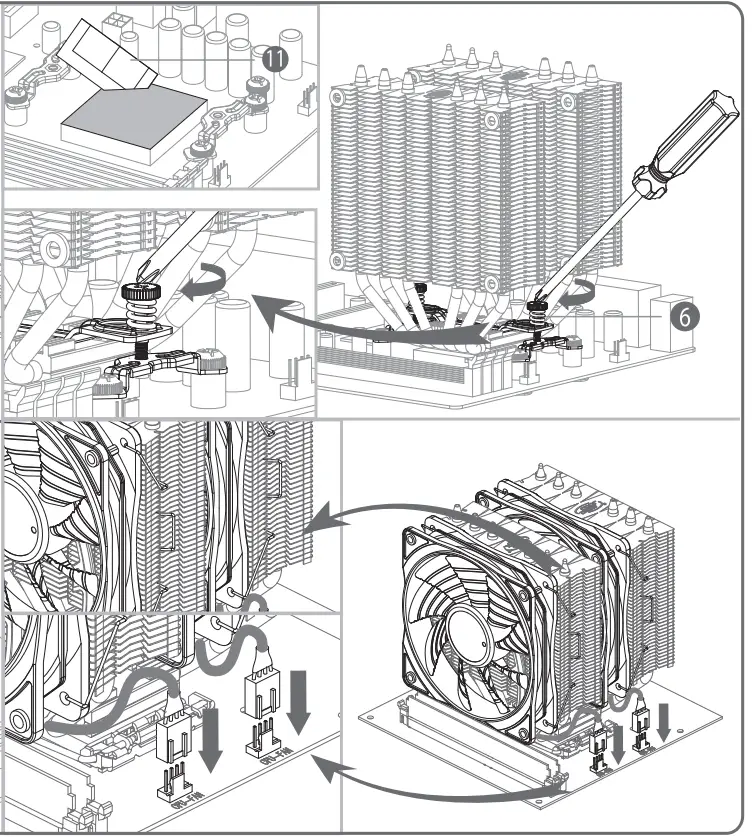

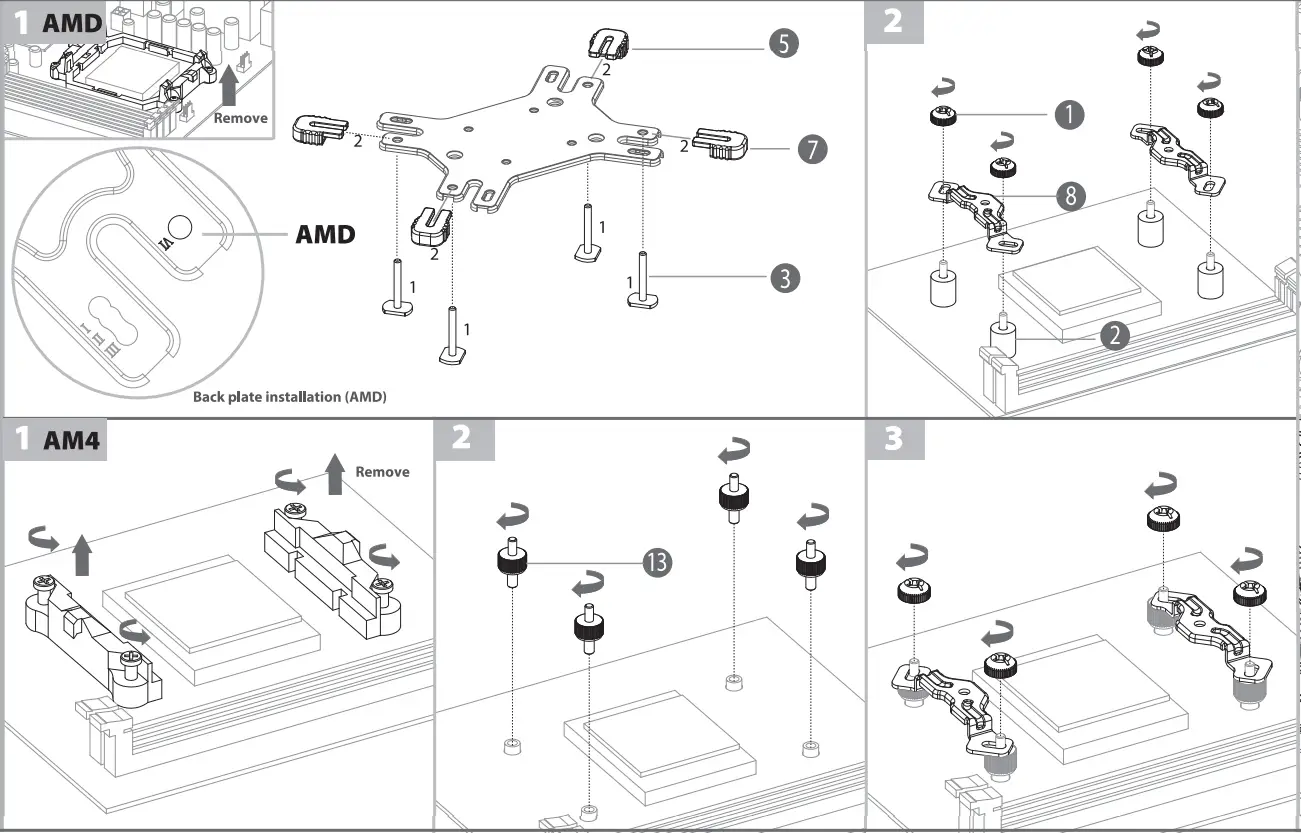

AMDDEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-FIG- (5)DEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-FIG- (6)

  • AM4
  • AM3+
  • AM3
  • AM2+
  • AM2
  • FM2+
  • FM2
  • FM1

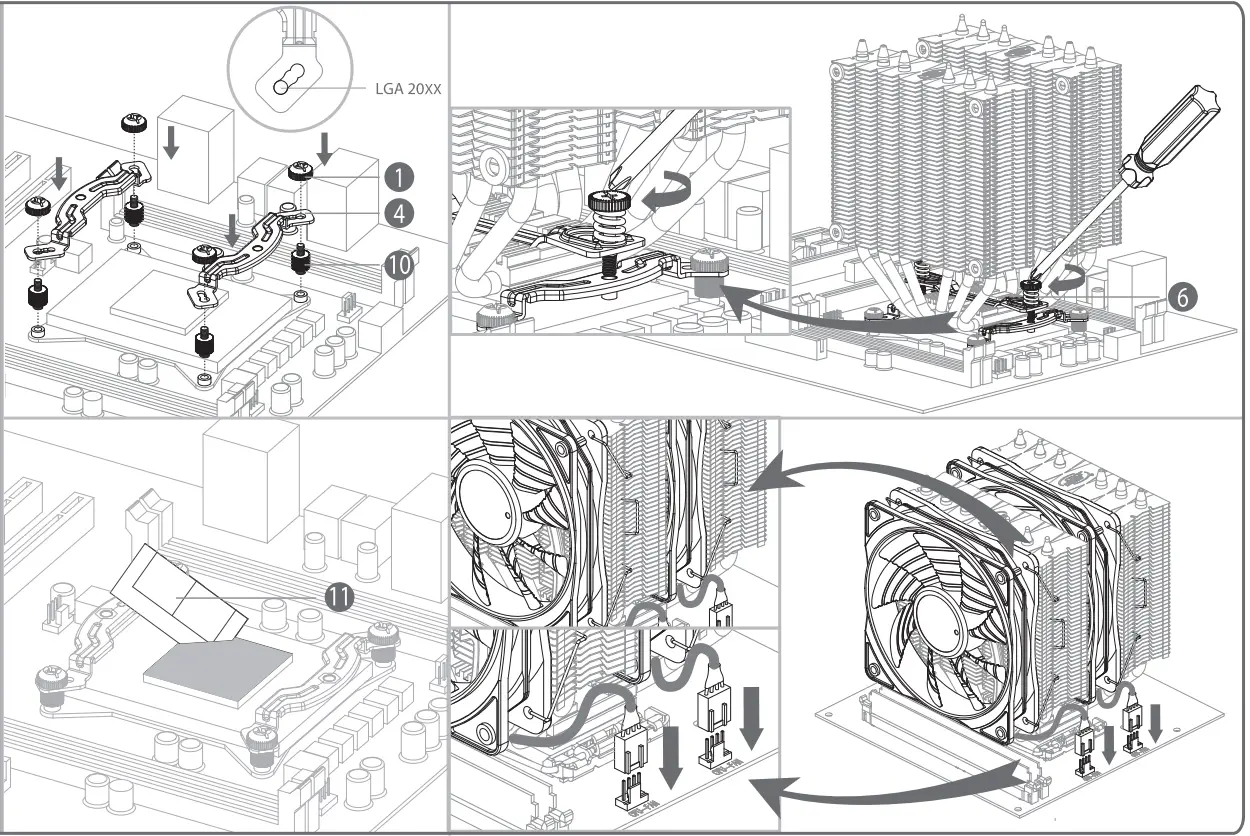

INTELDEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-FIG- (7)

  • LGA2066
  • LGA2011-v3
  • LGA2011

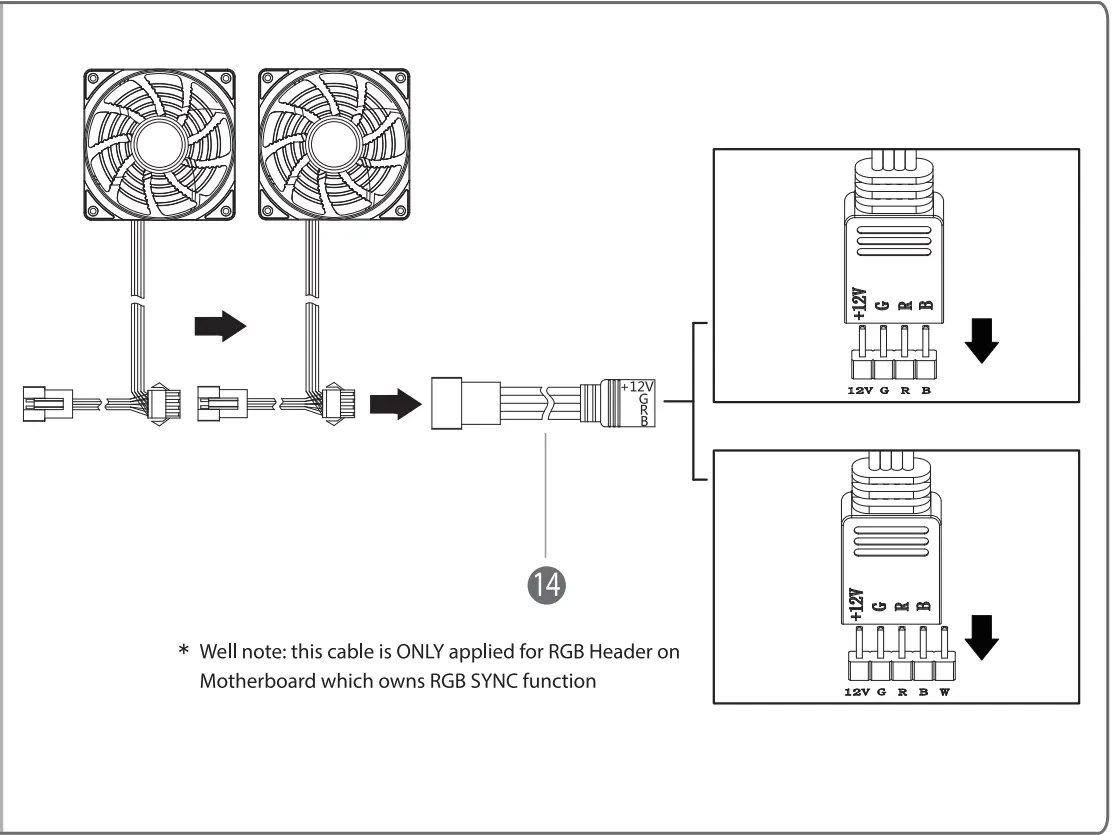

RGB Light Connection & RGB SYNCDEEPCOOL-NEPTWIN-RGB-6-Heatpipe-CPU-Cooler-FIG- (8)
