Mercedes Benz

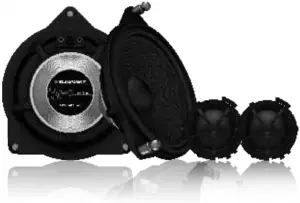

Plug & Play Upgrade Speaker

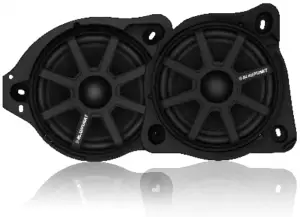

MPS 1402C MB MPW 1801 MB
Enjoy it.
Operating and Installation Instructions
USER MANUAL
Thank you for purchasing the BLAUPUNKT brand speaker, which is a specially designed and developed for your Mercedes-Benz car dedicated series speakers.
Safety instructions:
- Before installing this product, make sure that the installation space is appropriate and read and understand all the instructions. If you do not follow the instructions, you will not be able to enjoy the warranty.
- Use the supplied mounting accessories to ensure safe and secure installation.
- Do not use the loudspeaker beyond maximum power.
- To prevent noise interference, make sure that the wiring is away from the engine, high voltage wires, and other potential noise sources.
- To prevent short circuits, make sure that wiring avoids moving parts and sharp edges.
1
SPEAKER INSTALLATION GUIDE MPS 1402C MB

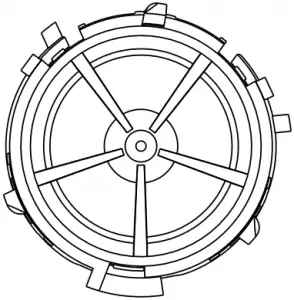

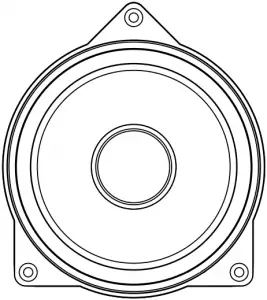

The plug that connects the Midrange and Tweeter output signals.
2
SPEAKER INSTALLATION GUIDE MPW 1801 MB

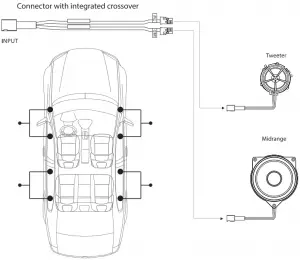

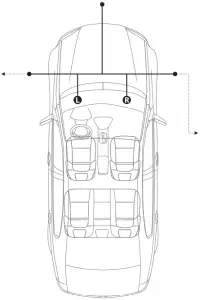

Connector with integrated crossover
Connect the long wire “WE” Connect the short wire “WE”

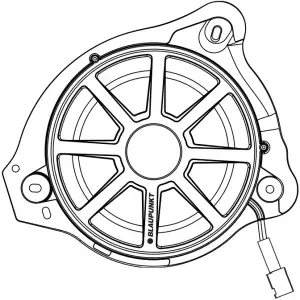

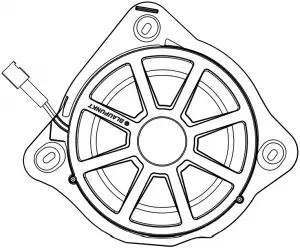

Subwoofer L Subwoofer R
3
TECHNICAL SPECIFICATIONS
Tweeter
Nominal impedance : 5.3Ω
Frequency response : 1500Hz-22KHz
Rated power : 25W
Maximum power : 50W
Sensitivity : 91dB
Midrange
Nominal impedance : 3.6Ω
Frequency response : 90Hz-10KHz
Rated power : 15W
Maximum power : 30W
Sensitivity : 89dB
Subwoofer
Nominal impedance : 2Ω
Frequency response : 55Hz-2KHz
Rated power : 50W
Maximum power : 120W
Sensitivity : 86dB
Subwoofer L Subwoofer R
4
Designed and engineered by Blaupunkt Competence Center
MPS 1402C MB :
PN#1 111 19 017 02 01
MPW 1801 MB :
PN#1 112 19 005 02 01
