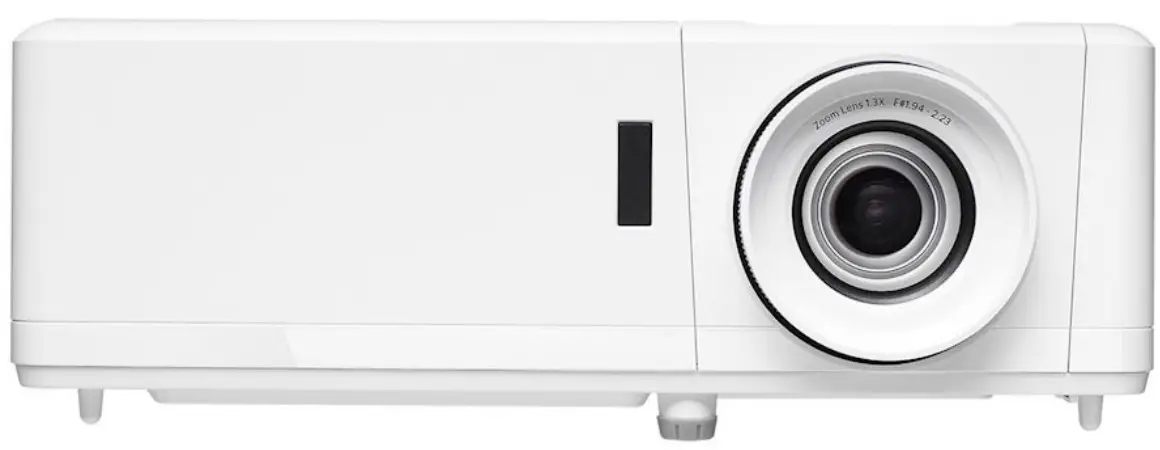

Optoma ZH403 Compact High Brightness Laser Projector
- Bright Full HD 1080p DuraCore laser projector – 4000 ANSI lumens
- Versatile – 1.3x zoom, 360-degree and portrait projection
- Ultimate Control – Crestron, Extron, AMX, PJ-Link and Telnet LAN commands
- 30,000 hours maintenance-free laser light source
The ZH403 is a compact Full HD 1080p DuraCore laser projector. Designed for maintenance free, continuous operation it can be installed in virtually any orientation. Its small and lightweight footprint, 1.3x zoom combined with 360-degree and portrait projection make it a breeze to install.
This feature packed projector is 4K and HDR compatible, has a built-in speaker and its laser technology delivers up to 30,000 hours maintenance-free laser light source. For ultimate control, the projector comes with RJ45 connection allowing you to monitor and control your network in multiple rooms.
Geared for medium-sized exhibition venues, events, tradeshows or meeting rooms, it maintains excellent image quality as brightness and color saturation is preserved for longer compared to lamp systems.
Specifications
| Display/image | |
| Display technology | DLP™ |
| Resolution | 1080p Full HD (1920×1080) |
| Brightness | 4,000 lumens |
| Contrast ratio | 300,000:1 |
| Native aspect ratio | 16:9 |
| Aspect ratio – compatible | 4:3 |
| Keystone correction – vertical | +/-40° |
| Has vertical auto keystone | Yes |
| correction | |
| Displayable colors (millions) | 1073.4 |
| Horizontal scan rate | 15.375 ~ 91.146 Khz |
| Vertical scan rate | 50 ~ 85 Hz (120Hz for 3D)Hz |
| Uniformity | 85% |
| Screen size | 0.71m ~ 7.63m (28″ ~ 300.3″) diagonal |
| Lamp info | |
| Light source type | Laser |
| LASER life | 30,000 hours |
| Optical | |
| Throw ratio | 1.21:1 ~ 1.59:1 |
| Projection distance (m | 1m – 7.9m |
| Zoom | 1.3 |
| Zoom type | Manua |
| Focal length (mm) | 12.81mm~16.74mm/0.504″~0.659″ |
| Native offset | 110% |
| Connectivity | |

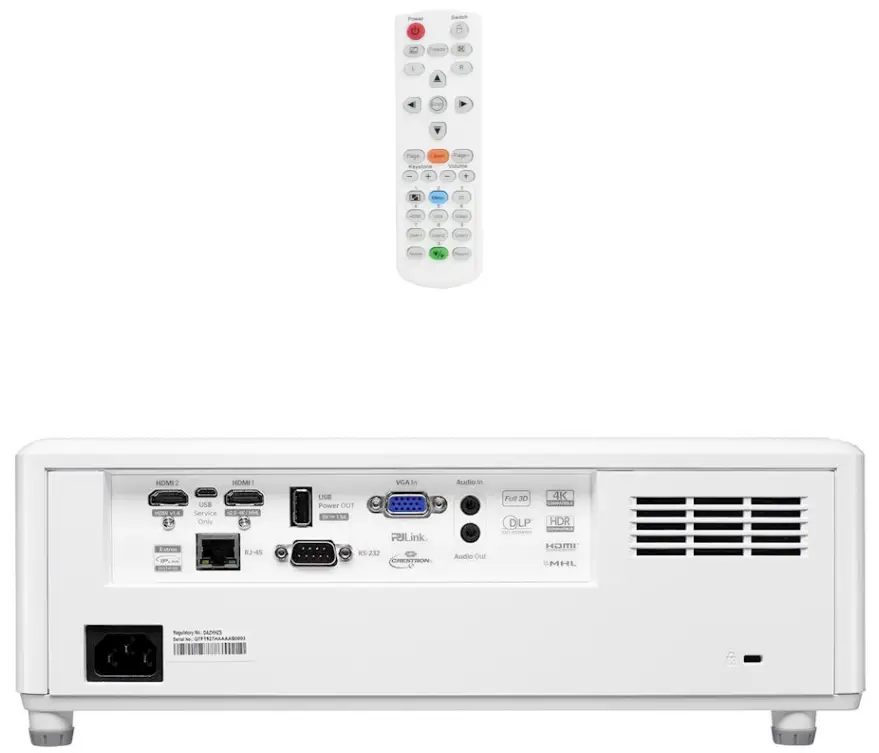

| Connections | Inputs 1 x HDMI 2.0, 1 x HDMI 1.4a 3D support, 1 x VGA (YPbPr/RGB), 1 x Audio 3.5mm Outputs 1 x Audio 3.5mm, 1 x USB-A power 1.5A Control 1 x RS232, 1 x RJ45, 1 x micro USB service |
| General | |
| Noise level (typical) | 30dB |
| Noise level (max) | 32dB |
| PC compatibility | UHD, FHD, UXGA, SXGA, WXGA, HD, XGA, SVGA, VGA, Mac |
| 2D compatibility | NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz) |
| 3D compatibility | Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60 |
| 3D | Full 3D |
| Security | Security bar, Kensington Lock, Password protected interface |
| IP rating | IP6X |
| OSD / display languages | 25 languages: Arabic, Czech, Danish, Dutch, English, Farsi, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Chinese (simplified), Spanish, Swedish, Chinese (traditional), Turkish, Vietnamese |
| 24/7 operation | Yes |
| Operating conditions | 5°C~40°C/41°F~104°F, max altitude 3000M/9843ft, max humidity 85% |
| Remote control | Data remote with laser and mouse function |
| Speaker count | 1 |
| Watts per speaker | 10W |
| In the box | AC power cord Remote control 2x AAA batteries Basic user manual |
| Optional wireless models | HDCast Pro |
| Networking | |
| LAN – control | Yes |
| Power | |
| Power supply | 100V ~ 240V, 50-60Hz |
| Power consumption (standby) | <0.5W |
| Power consumption (min) | 206W |
| Power consumption (max) | 269W |
| Weight and dimensions | |
| Dimensions (W x D x H) mm | 337 x 265 x 122.5 |
| Gross weight | 6.6 kg |
| Net weight | 4.5 kg |
