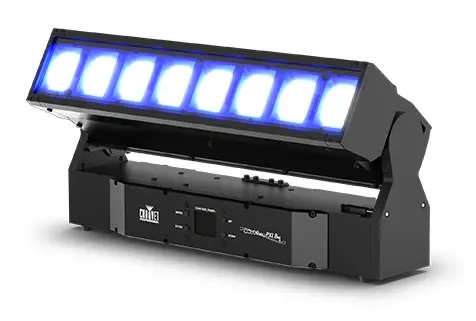

CHAUVET PROFESSIONAL COLORado PXL Bar 8 Outdoor Tilting Batten

About This Guide

The COLORado PXL Bar 8 Quick Reference Guide (QRG) has basic product information such as connection, mounting,
menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.
Disclaimer
The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.
For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.
For Customers in the United Kingdom, the Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.
Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, the United Kingdom, the Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

DO NOT open this product. It contains no user-serviceable parts.
DO NOT look at the light source when the product is on.
DO NOT leave any flammable material within 20 cm of this product while operating or connected to power.
DO NOT operate this product if the housing, lenses, or cables appear damaged.
DO NOT connect this product to a dimmer or rheostat.
DO NOT submerge this product. Temporary outdoor operation is fine (IP65).
Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:
- Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).
- Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
- Locations that are prone to flooding or being buried in snow.
- Other areas where the product will be subject to extreme radiation or caustic substances.
CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
CAUTION: This product’s housing may be hot when lights are operating.
USE a safety cable when mounting this product overhead.
ONLY connect this product to a grounded and protected circuit.
ONLY use the hanging/mounting bracket to carry this product.
Mount this product in a location with adequate ventilation, at least 8 in (20 cm) from adjacent surfaces.
The product is not intended for permanent installation.
To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
In the event of a serious operating problem, stop using immediately.
The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 10 ft (3 m) is not expected.
If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
The luminaire is intended for professional use only.

FCC Compliance

This device complies with Part 15 Part B of the FCC rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or
return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

COLORado PXL Bar 8
Seetronic Powerkon IP65 power cord
1 Omega bracket with mounting hardware
Quick Reference Guide

AC Power
This product has an auto-ranging power supply that can work with an input voltage range of 100–240 V~, 50/60 Hz.
Power Linking
You can link up to 3 COLORado PXL Bar 8 products at 100/120 V, 6 products at 208 V, or 7 products at 230/240 V. Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Signal Connection
The COLORado PXL Bar 8 can be linked to a controller or controller software using a DMX connection, an Ethernet connection, or both. If using other Art-Net™, sACN, or Kling-Net -compatible products with the COLORado PXL Bar 8, you can control each individually on a single network. See the User Manual for information about how to connect and configure the product for these signals.
Control Personalities
The COLORado PXL Bar 8 uses DMX, Art-Net™, sACN, and Kling-Net for its control personalities:

Single Mode	Dual Mode Movement	Dual Mode LED
Basic (19 channels)	Basic (7 channels)	Basic (24 channels)
Standard (51 channels)	Standard (19 channels)	Standard (32 channels)
Advanced (89 channels)	Advanced (25 channels)	Advanced (64 channels)
Tour (105 channels)	Uses DMX, Art-Net™, or sACN	Uses DMX, Art-Net™, sACN, or Kling-Net
Uses DMX, Art-Net™, or sACN	Uses DMX, Art-Net™, or sACN	Uses DMX, Art-Net™, sACN, or Kling-Net

DMX Connection
The COLORado PXL Bar 8 will work with a DMX controller using a 5-pin IP-rated DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.
RDM (Remote Device Management)
Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers have this capability. The COLORado PXL Bar 8 supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.
Art-Net™ Connection
Art-Net™ is an Ethernet protocol that uses TCP/IP, which transfers a large amount of DMX512 data using an Amphenol XLR Net RJ45 connection over a large network. An Art-Net™ protocol document is available from www.chauvetprofessional.com. Chauvet Professional recommends using unicast Art-Net™ for best results. Art-Net™ designed by and copyright Artistic Licence Holdings Ltd.
sACN Connection
Also known as ANSI E1.31, Streaming-ACN is an Ethernet protocol that uses the layering and formatting of Architecture for Control Networks to transport DMX512 data over IP or any other ACN-compatible network.
Kling-Net Connection
Kling-Net is a network protocol that allows the autoconfiguration of display devices using a Neutrik® etherCON® RJ45 Ethernet connection. Refer to the ArKaos software manual for detailed instructions on programming this product.

For smooth-running operation, ArKaos Kling-Net requires a gigabit (1,000 Mbps) Ethernet card and network router.
ArKaos Kling-Net will only run Standard LED or Basic LED mode.

Master/Slave Connection
The COLORado PXL Bar 8 uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

Mounting
Before mounting this product, read the Safety Notes. Use at least two mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/.

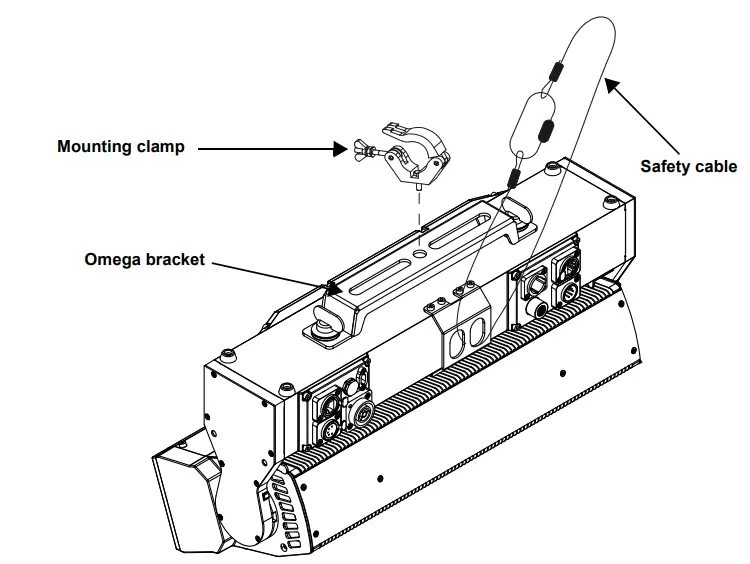

Mounting Diagram

Control Panel Description

Button	Function
<MENU>	Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map
Refer to the COLORado PXL Bar 8 product page on www.chauvetprofessional.com for the latest menu map.

Programming Levels						Description
Control Settings						Control Settings Main Level
Control Settings	Single Control		DMX	Personality	Basic	Sets the DMX personality (see Control Personalities)
					Standard
					Advanced
					Tour
				Start Address	0–512	Sets the DMX starting address
			ArtNet	Personality	Basic	Sets the Art-Net™ personality (see Control Personalities)
					Standard
					Advanced
					Tour
				Start Address	0–512	Sets the Art-Net™ starting address
				Universe	0–255	Sets the Art-Net™ universe
			sACN	Personality	Basic	Sets the sACN personality (see Control Personalities)
					Standard
					Advanced
					Tour
				Start Address	0–512	Sets the sACN starting address
				Universe	0–255	Sets the sACN universe
	Dual Control	Movement	DMX	Personality	Basic	Sets the DMX personality (see Control Personalities)
					Standard
					Advanced
				Start Address	0–512	Sets the DMX starting address
			ArtNet	Personality	Basic	Sets the Art-Net™ personality (see Control Personalities)
					Standard
					Advanced
				Start Address	0–512	Sets the Art-Net™ starting address
				Universe	0–255	Sets the Art-Net™ universe
			sACN	Personality	Basic	Sets the sACN personality (see Control Personalities)
					Standard
					Advanced
				Start Address	0–512	Sets the sACN starting address
				Universe	0–255	Sets the sACN universe
		LED	DMX	Personality	Basic	Sets the DMX personality (see Control Personalities)
					Standard
					Advanced
				Start Address	0–512	Sets the DMX starting address
			ArtNet	Personality	Basic	Sets the Art-Net™ personality (see Control Personalities)
					Standard
					Advanced
				Start Address	0–512	Sets the Art-Net™ starting address
				Universe	0–255	Sets the Art-Net™ universe
			sACN	Personality	Basic	Sets the sACN personality (see Control Personalities)
					Standard
					Advanced
				Start Address	0–512	Sets the sACN starting address
				Universe	0–255	Sets the sACN universe
			KlingNet	Personality	Basic	Sets the Kling-Net personality (see Control Personalities)
					Standard

Main Level	Programming Levels			Description
Run Mode	Auto Test			Auto test all functions
	Manual Test	Tilt P/T Speed Red Green Blue White CTC Color Pattern LED Macro LED Ma. Speed LED Ma. Fade Background Background Dim. Dimmer Shutter Function Zoom1	000–255	Manually control and test all settings through the control panel
Setup	Network Settings	IP Mode	Manual	Manually sets IP address
			DHCP	Network sets IP address
			Static	Product sets IP address
		IP Byte 1–4	000–255	Sets IP address in Manual mode
		SubMask 1–4	000–255	Sets Subnet Mask in Manual mode
	Tilt Reverse	OFF		Normal tilt
		ON		Reversed tilt
	Zoom Reverse	OFF		Normal Zoom
		ON		Reversed Zoom
	Screen Reverse	NO		Normal display
		YES		Inverted display
		AUTO		Automatic display orientation
	Tilt Angle	200		200° tilt range
		180		180° tilt range
		60		60° tilt range
	BL. O. P/T Move	NO		Do not blackout while tilt
		YES		Blackout while tilt
	Backlight Timer	30S		Display turns off after 30 seconds
		1M		Display turns off after 1 minute
		5M		Display turns off after 5 minutes
		ON		Display stays on
	Loss of Data	Hold		Holds last signal received
		Close		Blacks out fixture
	Fans	Auto		Fan speed according to product temperature
		Full		Fan speed set on high
		ECO		Quiet mode
	Defrost Fan	OFF		Activate defrost fan
		ON		Deactivate defrost fan
	C Mixing Mode	RGBW		RGBW mode (additive)
		CMY		CMY mode (subtractive)

Main Level	Programming Levels			Description
Setup	Dimmer Curve	Linear		Set the dimmer curve
		Square
		I Squa
		SCurve
	Dimmer Speed	Smooth		Set the dimmer speed
		Fast
	PWM Option	600Hz 1200Hz 2000Hz 4000Hz 6000Hz 15000Hz		Sets the Pulse Width Modulation frequency
	Cell Order	1–8		Light activates from left to right
		8–1		Light activates from right to left
	Calibrated White	ON		Default light output temperature set to 7500K
		OFF		Deactivates calibrated white setting
		Custom		Adjust light output temperature using White Balance setting
	White Balance	Red	000–255	Sets red LED maximum value
		Green		Sets green LED maximum value
		Blue		Sets blue LED maximum value
		White		Sets white LED maximum value
	Preset Select	PRESET A PRESET B PRESET C		Recorded preset menu options
	Preset Sync	NO		Allows recorded preset menu options to be transferred to other COLORado PXL Bar 8 in the DMX daisy chain
		YES
	USB Update	NO		Enables/disables updating by USB
		YES
	Reset Function	Tilt	NO	Reset individual functions or all functions from startup
			YES
		Zoom	NO
			YES
		All	NO
			YES
	Factory Settings	NO		Reset to factory default settings
		YES
Information	Firmware Version		V_	Shows firmware version
	Running Mode		_ _ _	Shows current running mode
	Address		_ _ _	Shows current starting address
	Temperature		_ _ _	Shows current product temperature in °C
	Fixture Time		_ _ _ _ _	Shows number of hours product has been powered on
	LED Hours			Shows total hours the LED has been powered on
	ArtNet Info	Ip	_ _ _._ _ _._ _ _._ _ _	Shows current IP address
		SubMask	_ _ _._ _ _._ _ _._ _ _	Shows current Subnet Mask
		MAC	_ _._ _._ _._ _._ _._ _	Shows current MAC address
	Device UID		_ _ _ _ _	Shows product UID
	Fan Information	Head Fan 1–5	_ _ _ _	Shows speed of head fans 1–5 in rpm
		Defrost Fan 1	_ _ _ _	Shows speed of defrost fan in rpm
		Base Fan 1	_ _ _ _	Shows speed of base fan in rpm

DMX Values
Single Control: Tour Mode (105CH)

Channel	Function	Value	Percent/Setting
1	Tilt	000 ó 255	0–100%
2	Fine tilt	000 ó 255	0–100%
3	Tilt speed	000 ó 255	0–100%
4	CTC	000 001 ó 255	No function Color temperature, 1900–2700 K
5	Color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow

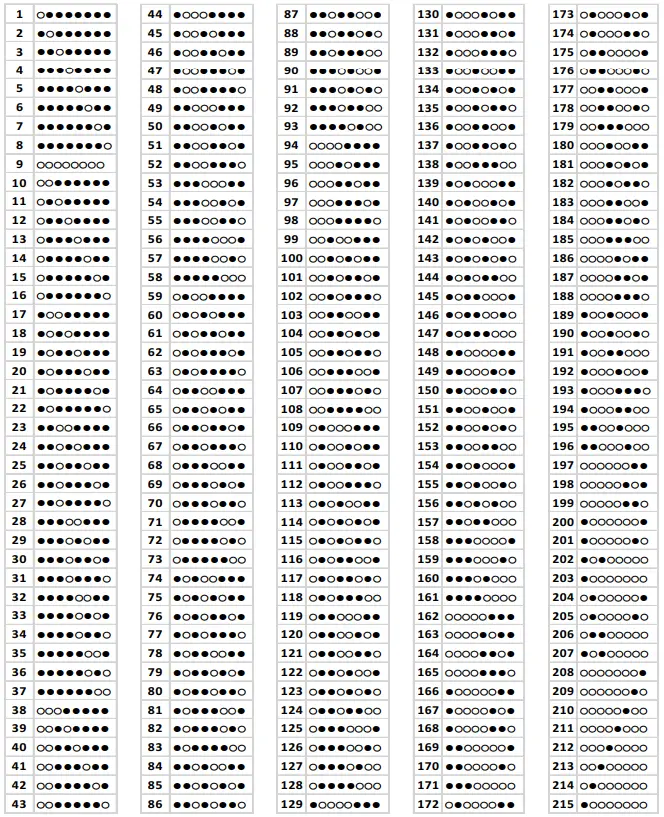

6	Patterns (see Patterns)	000 001 ó 215 216 ó 255	No function Pattern 1–215 No function
7	LED macro	000 ó 255	see LED Macro
8	LED macro speed	000 ó 127 128 129 ó 255	Auto speed, fast to slow clockwise Stop Auto speed, slow to fast counterclockwise
9	LED macro delay	000 ó 255	Fast to slow

Channel	Function	Value	Percent/Setting
10	Background color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
11	Background color dimmer	000 ó 255	0–100%
12	Background color fine dimmer	000 ó 255	0–100%
13	Dimmer	000 ó 255	0–100%
14	Fine dimmer	000 ó 255	0–100%
15	Strobe	000 ó 019 020 ó 024 025 ó 064 065 ó 069 070 ó 084 085 ó 089 090 ó 104 105 ó 109 110 ó 124 125 ó 129 130 ó 144 145 ó 149 150 ó 164 165 ó 169 170 ó 184 185 ó 189 190 ó 204 205 ó 209 210 ó 224 225 ó 229 230 ó 244 245 ó 255	Off On Strobe, fast to slow On Strobe 100–0%, fast to slow On Strobe 0–100%, fast to slow On Random strobe, fast to slow On Random strobe 100–0%, fast to slow On Random strobe 0–100%, fast to slow On Pulse strobe, fast to slow On Random pulse strobe, fast to slow On Strobe 0–100–0%, fast to slow On Random pulse strobe, fast to slow On
16	Zoom	000 ó 255	Zoom in to zoom out

Channel	Function	Value	Percent/Setting
17	Control	000 ó 009 010 ó 014 015 ó 019 020 ó 024 025 ó 029 030 ó 039 040 ó 044 045 ó 049 050 ó 054 055 ó 059 060 ó 064 065 ó 069 070 ó 074 075 ó 089 090 ó 094 095 ó 099 100 ó 104 105 ó 119 120 ó 124 125 ó 129 130 ó 134 135 ó 139 140 ó 144 145 ó 149 150 ó 154 155 ó 159 160 ó 164 165 ó 169 170 ó 174 175 ó 255	No function Blackout on tilt Reserved for future use RGBW (additive) color-mixing mode CMY (subtractive) color-mixing mode Reserved for future use Defrost fan on Defrost fan off Reserved for future use Tilt reset Zoom reset Reserved for future use Reset all Reserved for future use Tilt reverse Reserved for future use Tilt reverse disable Reserved for future use Fan ECO Fan full Fan auto Dimmer fast Dimmer smooth Linear Square i Squa SCurve White mode Full mode Reserved for future use
18	Main red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Main fine red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Main green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Main fine green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Main blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	Main fine blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	Main white	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Main fine white	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
26	Dimmer 1	000 ó 255	0–100%
27	Fine dimmer 1	000 ó 255	0–100%
28	Red 1 Cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
29	Fine red 1 Fine cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
30	Green 1 Magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
31	Fine green 1 Fine magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
32	Blue 1 Yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
33	Fine blue 1 Fine yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
34	White 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
35	Fine white 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
36	Dimmer 2	000 ó 255	0–100%
37	Fine dimmer 2	000 ó 255	0–100%
38	Red 2 Cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
39	Fine red 2 Fine cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
40	Green 2 Magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
41	Fine green 2 Fine magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
42	Blue 2 Yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Channel	Function	Value	Percent/Setting
43	Fine blue 2 Fine yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
44	White 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
45	Fine white 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
46	Dimmer 3	000 ó 255	0–100%
47	Fine dimmer 3	000 ó 255	0–100%
48	Red 3 Cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
49	Fine red 3 Fine cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
50	Green 3 Magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
51	Fine green 3 Fine magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
52	Blue 3 Yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
53	Fine blue 3 Fine yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
54	White 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
55	Fine white 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
56	Dimmer 4	000 ó 255	0–100%
57	Fine dimmer 4	000 ó 255	0–100%
58	Red 4 Cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
59	Fine red 4 Fine cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
60	Green 4 Magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
61	Fine green 4 Fine magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
62	Blue 4 Yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
63	Fine blue 4 Fine yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
64	White 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
65	Fine white 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
66	Dimmer 5	000 ó 255	0–100%
67	Fine dimmer 5	000 ó 255	0–100%
68	Red 5 Cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
69	Fine red 5 Fine cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
70	Green 5 Magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
71	Fine green 5 Fine magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
72	Blue 5 Yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
73	Fine blue 5 Fine yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
74	White 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
75	Fine white 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
76	Dimmer 6	000 ó 255	0–100%
77	Fine dimmer 6	000 ó 255	0–100%
78	Red 6 Cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
79	Fine red 6 Fine cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
80	Green 6 Magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
81	Fine green 6 Fine magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
82	Blue 6 Yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
83	Fine blue 6 Fine yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
84	White 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
85	Fine white 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
86	Dimmer 7	000 ó 255	0–100%
87	Fine dimmer 7	000 ó 255	0–100%
88	Red 7 Cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
89	Fine red 7 Fine cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
90	Green 7 Magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
91	Fine green 7 Fine magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
92	Blue 7 Yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
93	Fine blue 7 Fine yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
94	White 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
95	Fine white 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
96	Dimmer 8	000 ó 255	0–100%
97	Fine dimmer 8	000 ó 255	0–100%

Channel	Function	Value	Percent/Setting
98	Red 8 Cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
99	Fine red 8 Fine cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
100	Green 8 Magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
101	Fine green 8 Fine magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
102	Blue 8 Yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
103	Fine blue 8 Fine yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
104	White 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
105	Fine white 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Single Control: Advanced Mode (89CH)

Channel	Function	Value	Percent/Setting
1	Tilt	000 ó 255	0–100%
2	Fine tilt	000 ó 255	0–100%
3	Tilt speed	000 ó 255	0–100%
4	CTC	000 001 ó 255	No function Color temperature, 1900–2700 K
5	Color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
6	Patterns (see Patterns)	000 001 ó 215 216 ó 255	No function Pattern 1–215 No function
7	LED macro	000 ó 255	see LED Macro
8	LED macro speed	000 ó 127 128 129 ó 255	Auto speed, fast to slow clockwise Stop Auto speed, slow to fast counterclockwise
9	LED macro delay	000 ó 255	Fast to slow

Channel	Function	Value	Percent/Setting
10	Background color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
11	Background color dimmer	000 ó 255	0–100%
12	Background color fine dimmer	000 ó 255	0–100%
13	Dimmer	000 ó 255	0–100%
14	Fine dimmer	000 ó 255	0–100%
15	Strobe	000 ó 019 020 ó 024 025 ó 064 065 ó 069 070 ó 084 085 ó 089 090 ó 104 105 ó 109 110 ó 124 125 ó 129 130 ó 144 145 ó 149 150 ó 164 165 ó 169 170 ó 184 185 ó 189 190 ó 204 205 ó 209 210 ó 224 225 ó 229 230 ó 244 245 ó 255	Off On Strobe, fast to slow On Strobe 100–0%, fast to slow On Strobe 0–100%, fast to slow On Random strobe, fast to slow On Random strobe 100–0%, fast to slow On Random strobe 0–100%, fast to slow On Pulse strobe, fast to slow On Random pulse strobe, fast to slow On Strobe 0–100–0%, fast to slow On Random pulse strobe, fast to slow On
16	Zoom	000 ó 255	Zoom in to zoom out

Channel	Function	Value	Percent/Setting
17	Control	000 ó 009 010 ó 014 015 ó 019 020 ó 024 025 ó 029 030 ó 039 040 ó 044 045 ó 049 050 ó 054 055 ó 059 060 ó 064 065 ó 069 070 ó 074 075 ó 089 090 ó 094 095 ó 099 100 ó 104 105 ó 119 120 ó 124 125 ó 129 130 ó 134 135 ó 139 140 ó 144 145 ó 149 150 ó 154 155 ó 159 160 ó 164 165 ó 169 170 ó 174 175 ó 255	No function Blackout on Pan/Tilt Reserved for future use RGBW (additive) color-mixing mode CMY (subtractive) color-mixing mode Reserved for future use Defrost fan on Defrost fan off Reserved for future use Tilt reset Zoom reset Reserved for future use Reset all Reserved for future use Tilt reverse Reserved for future use Tilt reverse disable Reserved for future use Fan ECO Fan full Fan auto Dimmer fast Dimmer smooth Linear Square i Squa SCurve White mode Full mode Reserved for future use
18	Main red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Main fine red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Main green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Main fine green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Main blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	Main fine blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	Main white	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Main fine white	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
26	Red 1 Cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
27	Fine red 1 Fine cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
28	Green 1 Magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
29	Fine green 1 Fine magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
30	Blue 1 Yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
31	Fine blue 1 Fine yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
32	White 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
33	Fine white 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
34	Red 2 Cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
35	Fine red 2 Fine cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
36	Green 2 Magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
37	Fine green 2 Fine magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
38	Blue 2 Yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
39	Fine blue 2 Fine yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
40	White 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
41	Fine white 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
42	Red 3 Cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Channel	Function	Value	Percent/Setting
43	Fine red 3 Fine cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
44	Green 3 Magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
45	Fine green 3 Fine magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
46	Blue 3 Yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
47	Fine blue 3 Fine yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
48	White 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
49	Fine white 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
50	Red 4 Cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
51	Fine red 4 Fine cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
52	Green 4 Magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
53	Fine green 4 Fine magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
54	Blue 4 Yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
55	Fine blue 4 Fine yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
56	White 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
57	Fine white 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
58	Red 5 Cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
59	Fine red 5 Fine cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
60	Green 5 Magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
61	Fine green 5 Fine magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
62	Blue 5 Yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
63	Fine blue 5 Fine yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
64	White 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
65	Fine white 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
66	Red 6 Cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
67	Fine red 6 Fine cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
68	Green 6 Magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
69	Fine green 6 Fine magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
70	Blue 6 Yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
71	Fine blue 6 Fine yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
72	White 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
73	Fine white 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
74	Red 7 Cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
75	Fine red 7 Fine cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
76	Green 7 Magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
77	Fine green 7 Fine magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
78	Blue 7 Yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
79	Fine blue 7 Fine yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
80	White 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
81	Fine white 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
82	Red 8 Cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
83	Fine red 8 Fine cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
84	Green 8 Magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
85	Fine green 8 Fine magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
86	Blue 8 Yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
87	Fine blue 8 Fine yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
88	White 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
89 Fine white 8		000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Single Control: Standard Mode (51CH)

Channel	Function	Value	Percent/Setting
1	Tilt	000 ó 255	0–100%
2	Fine tilt	000 ó 255	0–100%
3	Tilt speed	000 ó 255	0–100%
4	CTC	000 001 ó 255	No function Color temperature, 1900–2700 K
5	Color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
6	Patterns (see Patterns)	000 001 ó 215 216 ó 255	No function Pattern 1–215 No function
7	LED macro	000 ó 255	see LED Macro
8	LED macro speed	000 ó 127 128 129 ó 255	Auto speed, fast to slow clockwise Stop Auto speed, slow to fast counterclockwise
9	LED macro delay	000 ó 255	Fast to slow
10	Background color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow

Channel	Function	Value	Percent/Setting
11	Background color dimmer	000 ó 255	0–100%
12	Dimmer	000 ó 255	0–100%
13	Strobe	000 ó 019 020 ó 024 025 ó 064 065 ó 069 070 ó 084 085 ó 089 090 ó 104 105 ó 109 110 ó 124 125 ó 129 130 ó 144 145 ó 149 150 ó 164 165 ó 169 170 ó 184 185 ó 189 190 ó 204 205 ó 209 210 ó 224 225 ó 229 230 ó 244 245 ó 255	Off On Strobe, fast to slow On Strobe 100–0%, fast to slow On Strobe 0–100%, fast to slow On Random strobe, fast to slow On Random strobe 100–0%, fast to slow On Random strobe 0–100%, fast to slow On Pulse strobe, fast to slow On Random pulse strobe, fast to slow On Strobe 0–100–0%, fast to slow On Random pulse strobe, fast to slow On
14	Zoom	000 ó 255	Zoom in to zoom out
15	Control	000 ó 009 010 ó 014 015 ó 019 020 ó 024 025 ó 029 030 ó 039 040 ó 044 045 ó 049 050 ó 054 055 ó 059 060 ó 064 065 ó 069 070 ó 074 075 ó 089 090 ó 094 095 ó 099 100 ó 104 105 ó 119 120 ó 124 125 ó 129 130 ó 134 135 ó 139 140 ó 144 145 ó 149 150 ó 154 155 ó 159 160 ó 164 165 ó 169 170 ó 174 175 ó 255	No function Blackout on Pan/Tilt Reserved for future use RGBW (additive) color-mixing mode CMY (subtractive) color-mixing mode Reserved for future use Defrost fan on Defrost fan off Reserved for future use Tilt reset Zoom reset Reserved for future use Reset all Reserved for future use Tilt reverse Reserved for future use Tilt reverse disable Reserved for future use Fan ECO Fan full Fan auto Dimmer fast Dimmer smooth Linear Square i Squa SCurve White mode Full mode Reserved for future use

Channel	Function	Value	Percent/Setting
16	Main red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
17	Main green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Main blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Main white	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Red 1 Cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Green 1 Magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Blue 1 Yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	White 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	Red 2 Cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Green 2 Magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
26	Blue 2 Yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
27	White 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
28	Red 3 Cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
29	Green 3 Magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
30	Blue 3 Yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
31	White 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
32	Red 4 Cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
33	Green 4 Magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
34	Blue 4 Yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
35	White 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
36	Red 5 Cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
37	Green 5 Magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
38	Blue 5 Yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
39	White 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
40	Red 6 Cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
41	Green 6 Magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
42	Blue 6 Yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
43	White 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
44	Red 7 Cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
45	Green 7 Magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
46	Blue 7 Yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
47	White 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
48	Red 8 Cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
49	Green 8 Magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
50	Blue 8 Yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
51	White 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Single Control: Basic Mode (19CH)

Channel	Function	Value	Percent/Setting
1	Tilt	000 ó 255	0–100%
2	Fine tilt	000 ó 255	0–100%
3	Tilt speed	000 ó 255	0–100%
4	CTC	000 001 ó 255	No function Color temperature, 1900–2700 K
5	Color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
6	Patterns (see Patterns)	000 001 ó 215 216 ó 255	No function Pattern 1–215 No function
7	LED macro	000 ó 255	see LED Macro
8	LED macro speed	000 ó 127 128 129 ó 255	Auto speed, fast to slow clockwise Stop Auto speed, slow to fast counterclockwise
9	LED macro delay	000 ó 255	Fast to slow
10	Background color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow

Channel	Function	Value	Percent/Setting
11	Background color dimmer	000 ó 255	0–100%
12	Dimmer	000 ó 255	0–100%
13	Strobe	000 ó 019 020 ó 024 025 ó 064 065 ó 069 070 ó 084 085 ó 089 090 ó 104 105 ó 109 110 ó 124 125 ó 129 130 ó 144 145 ó 149 150 ó 164 165 ó 169 170 ó 184 185 ó 189 190 ó 204 205 ó 209 210 ó 224 225 ó 229 230 ó 244 245 ó 255	Off On Strobe, fast to slow On Strobe 100–0%, fast to slow On Strobe 0–100%, fast to slow On Random strobe, fast to slow On Random strobe 100–0%, fast to slow On Random strobe 0–100%, fast to slow On Pulse strobe, fast to slow On Random pulse strobe, fast to slow On Strobe 0–100–0%, fast to slow On Random pulse strobe, fast to slow On
14	Zoom	000 ó 255	Zoom in to zoom out
15	Control	000 ó 009 010 ó 014 015 ó 019 020 ó 024 025 ó 029 030 ó 039 040 ó 044 045 ó 049 050 ó 054 055 ó 059 060 ó 064 065 ó 069 070 ó 074 075 ó 089 090 ó 094 095 ó 099 100 ó 104 105 ó 119 120 ó 124 125 ó 129 130 ó 134 135 ó 139 140 ó 144 145 ó 149 150 ó 154 155 ó 159 160 ó 164 165 ó 169 170 ó 174 175 ó 255	No function Blackout on Pan/Tilt Reserved for future use RGBW (additive) color-mixing mode CMY (subtractive) color-mixing mode Reserved for future use Defrost fan on Defrost fan off Reserved for future use Tilt reset Zoom reset Reserved for future use Reset all Reserved for future use Tilt reverse Reserved for future use Tilt reverse disable Reserved for future use Fan ECO Fan full Fan auto Dimmer fast Dimmer smooth Linear Square i Squa SCurve White mode Full mode Reserved for future use
16	Red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Channel	Function	Value	Percent/Setting
17	Green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	White	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control Movement: Standard (19CH)

Channel	Function	Value	Percent/Setting
1	Tilt	000 ó 255	0–100%
2	Fine tilt	000 ó 255	0–100%
3	Tilt speed	000 ó 255	0–100%
4	CTC	000 001 ó 255	No function Color temperature, 1900–2700 K
5	Color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
6	Patterns (see Patterns)	000 001 ó 215 216 ó 255	No function Pattern 1–215 No function
7	LED macro	000 ó 255	see LED Macro
8	LED macro speed	000 ó 127 128 129 ó 255	Auto speed, fast to slow clockwise Stop Auto speed, slow to fast counterclockwise
9	LED macro delay	000 ó 255	Fast to slow

Channel	Function	Value	Percent/Setting
10	Background color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
11	Background color dimmer	000 ó 255	0–100%
12	Background color fine dimmer	000 ó 255	0–100%
13	Dimmer	000 ó 255	0–100%
14	Fine dimmer	000 ó 255	0–100%
15	Strobe	000 ó 019 020 ó 024 025 ó 064 065 ó 069 070 ó 084 085 ó 089 090 ó 104 105 ó 109 110 ó 124 125 ó 129 130 ó 144 145 ó 149 150 ó 164 165 ó 169 170 ó 184 185 ó 189 190 ó 204 205 ó 209 210 ó 224 225 ó 229 230 ó 244 245 ó 255	Off On Strobe, fast to slow On Strobe 100–0%, fast to slow On Strobe 0–100%, fast to slow On Random strobe, fast to slow On Random strobe 100–0%, fast to slow On Random strobe 0–100%, fast to slow On Pulse strobe, fast to slow On Random pulse strobe, fast to slow On Strobe 0–100–0%, fast to slow On Random pulse strobe, fast to slow On
16	Zoom	000 ó 255	Zoom in to zoom out

Channel	Function	Value	Percent/Setting
17	Control	000 ó 009 010 ó 014 015 ó 019 020 ó 024 025 ó 029 030 ó 039 040 ó 044 045 ó 049 050 ó 054 055 ó 059 060 ó 064 065 ó 069 070 ó 074 075 ó 089 090 ó 094 095 ó 099 100 ó 104 105 ó 119 120 ó 124 125 ó 129 130 ó 134 135 ó 139 140 ó 144 145 ó 149 150 ó 154 155 ó 159 160 ó 164 165 ó 169 170 ó 174 175 ó 255	No function Blackout on Pan/Tilt Reserved for future use RGBW (additive) color-mixing mode CMY (subtractive) color-mixing mode Reserved for future use Defrost fan on Defrost fan off Reserved for future use Tilt reset Zoom reset Reserved for future use Reset all Reserved for future use Tilt reverse Reserved for future use Tilt reverse disable Reserved for future use Fan ECO Fan full Fan auto Dimmer fast Dimmer smooth Linear Square i Squa SCurve White mode Full mode Reserved for future use
18	Red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Fine red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Fine green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	Fine blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	White	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Fine white	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control Movement: Standard (19CH)

Channel	Function	Value	Percent/Setting
1	Tilt	000 ó 255	0–100%
2	Fine tilt	000 ó 255	0–100%
3	Tilt speed	000 ó 255	0–100%
4	CTC	000 001 ó 255	No function Color temperature, 1900–2700 K
5	Color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
6	Patterns (see Patterns)	000 001 ó 215 216 ó 255	No function Pattern 1–215 No function
7	LED macro	000 ó 255	see LED Macro
8	LED macro speed	000 ó 127 128 129 ó 255	Auto speed, fast to slow clockwise Stop Auto speed, slow to fast counterclockwise
9	LED macro delay	000 ó 255	Fast to slow

Channel	Function	Value	Percent/Setting
10	Background color	000 001 ó 002 003 ó 004 005 ó 006 007 ó 008 009 ó 010 011 012 ó 048 049 050 ó 086 087 088 ó 124 125 126 ó 162 163 164 ó 200 201 202 ó 238 239 240 ó 247 248 ó 255	No function White 2700K R = 156 G = 118 B = 0 W = 63 White 3200K R = 156 G = 141 B = 5 W = 89 White 4200K R = 156 G = 141 B = 14 W = 255 White 5600K R = 156 G = 207 B = 54 W = 255 White 8000K R = 130 G = 255 B = 96 W = 255 Blue R = 0 G = 0 B = 255 W = 0 + Green R = 0 G = 0–255 B = 255 W = 0 Cyan R = 0 G = 255 B = 255 W = 0 – Blue R = 0 G = 255 B = 255–0 W = 0 Green R = 0 G = 255 B = 0 W = 0 + Red R = 0–255 G = 255 B = 0 W = 0 Yellow R = 255 G = 255 B = 0 W = 0 – Green R = 255 G = 255–0 B = 0 W = 0 Red R = 255 G = 0 B = 0 W = 0 + Blue R = 255 G = 0 B = 0–255 W = 0 Magenta R = 255 G = 0 B = 255 W = 0 – Red R = 255–0 G = 0 B = 255 W = 0 Blue R = 0 G = 0 B = 255 W = 0 Color fade, fast to slow Color snap, fast to slow
11	Background color dimmer	000 ó 255	0–100%
12	Dimmer	000 ó 255	0–100%
13	Strobe	000 ó 019 020 ó 024 025 ó 064 065 ó 069 070 ó 084 085 ó 089 090 ó 104 105 ó 109 110 ó 124 125 ó 129 130 ó 144 145 ó 149 150 ó 164 165 ó 169 170 ó 184 185 ó 189 190 ó 204 205 ó 209 210 ó 224 225 ó 229 230 ó 244 245 ó 255	Off On Strobe, fast to slow On Strobe 100–0%, fast to slow On Strobe 0–100%, fast to slow On Random strobe, fast to slow On Random strobe 100–0%, fast to slow On Random strobe 0–100%, fast to slow On Pulse strobe, fast to slow On Random pulse strobe, fast to slow On Strobe 0–100–0%, fast to slow On Random pulse strobe, fast to slow On
14	Zoom	000 ó 255	Zoom in to zoom out

Channel	Function	Value	Percent/Setting
15	Control	000 ó 009 010 ó 014 015 ó 019 020 ó 024 025 ó 029 030 ó 039 040 ó 044 045 ó 049 050 ó 054 055 ó 059 060 ó 064 065 ó 069 070 ó 074 075 ó 089 090 ó 094 095 ó 099 100 ó 104 105 ó 119 120 ó 124 125 ó 129 130 ó 134 135 ó 139 140 ó 144 145 ó 149 150 ó 154 155 ó 159 160 ó 164 165 ó 169 170 ó 174 175 ó 255	No function Blackout on Pan/Tilt Reserved for future use RGBW (additive) color-mixing mode CMY (subtractive) color-mixing mode Reserved for future use Defrost fan on Defrost fan off Reserved for future use Tilt reset Zoom reset Reserved for future use Reset all Reserved for future use Tilt reverse Reserved for future use Tilt reverse disable Reserved for future use Fan ECO Fan full Fan auto Dimmer fast Dimmer smooth Linear Square i Squa SCurve White mode Full mode Reserved for future use
16	Red	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
17	Green	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Blue	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	White	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control Movement: Basic (7CH)

Channel	Function	Value	Percent/Setting
1	Tilt	000 ó 255	0–100%
2	Fine tilt	000 ó 255	0–100%
3	Tilt speed	000 ó 255	0–100%
4	Dimmer	000 ó 255	0–100%
5	Strobe	000 ó 019 020 ó 024 025 ó 064 065 ó 069 070 ó 084 085 ó 089 090 ó 104 105 ó 109 110 ó 124 125 ó 129 130 ó 144 145 ó 149 150 ó 164	Off On Strobe, fast to slow On Strobe 100–0%, fast to slow On Strobe 0–100%, fast to slow On Random strobe, fast to slow On Random strobe 100–0%, fast to slow On Random strobe 0–100%, fast to slow

Channel	Function	Value	Percent/Setting
5	Strobe (cont.)	165 ó 169 170 ó 184 185 ó 189 190 ó 204 205 ó 209 210 ó 224 225 ó 229 230 ó 244 245 ó 255	On Pulse strobe, fast to slow On Random pulse strobe, fast to slow On Strobe 0–100–0%, fast to slow On Random pulse strobe, fast to slow On
6	Zoom	000 ó 255	Zoom in to zoom out
7	Control	000 ó 009 010 ó 014 015 ó 019 020 ó 024 025 ó 029 030 ó 039 040 ó 044 045 ó 049 050 ó 054 055 ó 059 060 ó 064 065 ó 069 070 ó 074 075 ó 089 090 ó 094 095 ó 099 100 ó 104 105 ó 119 120 ó 124 125 ó 129 130 ó 134 135 ó 139 140 ó 144 145 ó 149 150 ó 154 155 ó 159 160 ó 164 165 ó 169 170 ó 174 175 ó 255	No function Blackout on Pan/Tilt Reserved for future use RGBW (additive) color-mixing mode CMY (subtractive) color-mixing mode Reserved for future use Defrost fan on Defrost fan off Reserved for future use Tilt reset Zoom reset Reserved for future use Reset all Reserved for future use Tilt reverse Reserved for future use Tilt reverse disable Reserved for future use Fan ECO Fan full Fan auto Dimmer fast Dimmer smooth Linear Square i Squa SCurve White mode Full mode Reserved for future use

Dual Control LED: Advanced (64CH)

Channel	Function	Value	Percent/Setting
1	Red 1 Cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
2	Fine red 1 Fine cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
3	Green 1 Magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
4	Fine green 1 Fine magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
5	Blue 1 Yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
6	Fine blue 1 Fine yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
7	White 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
8	Fine white 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
9	Red 2 Cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
10	Fine red 2 Fine cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
11	Green 2 Magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
12	Fine green 2 Fine magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
13	Blue 2 Yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
14	Fine blue 2 Fine yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
15	White 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
16	Fine white 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
17	Red 3 Cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Fine red 3 Fine cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Green 3 Magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Fine green 3 Fine magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Blue 3 Yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Fine blue 3 Fine yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	White 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	Fine white 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Red 4 Cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
26	Fine red 4 Fine cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
27	Green 4 Magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
28	Fine green 4 Fine magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
29	Blue 4 Yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
30	Fine blue 4 Fine yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
31	White 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
32	Fine white 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
33	Red 5 Cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
34	Fine red 5 Fine cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
35	Green 5 Magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
36	Fine green 5 Fine magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
37	Blue 5 Yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
38	Fine blue 5 Fine yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
39	White 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
40	Fine white 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
41	Red 6 Cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
42	Fine red 6 Fine cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
43	Green 6 Magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
44	Fine green 6 Fine magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
45	Blue 6 Yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
46	Fine blue 6 Fine yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
47	White 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
48	Fine white 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
49	Red 7 Cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

50	Fine red 7 Fine cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
51	Green 7 Magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
52	Fine green 7 Fine magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
53	Blue 7 Yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
54	Fine blue 7 Fine yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Channel	Function	Value	Percent/Setting
55	White 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
56	Fine white 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
57	Red 8 Cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
58	Fine red 8 Fine cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
59	Green 8 Magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
60	Fine green 8 Fine magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
61	Blue 8 Yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
62	Fine blue 8 Fine yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
63	White 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
64	Fine white 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control LED: Standard (32CH)

Channel	Function	Value	Percent/Setting
1	Red 1 Cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
2	Green 1 Magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
3	Blue 1 Yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
4	White 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
5	Red 2 Cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
6	Green 2 Magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
7	Blue 2 Yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
8	White 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
9	Red 3 Cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
10	Green 3 Magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
11	Blue 3 Yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
12	White 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
13	Red 4 Cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
14	Green 4 Magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
15	Blue 4 Yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
16	White 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
17	Red 5 Cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Green 5 Magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Blue 5 Yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	White 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Red 6 Cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Green 6 Magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	Blue 6 Yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	White 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
25	Red 7 Cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
26	Green 7 Magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
27	Blue 7 Yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
28	White 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
29	Red 8 Cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
30	Green 8 Magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
31	Blue 8 Yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
32	White 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

Dual Control LED: Basic (24CH)

Channel	Function	Value	Percent/Setting
1	Red 1 Cyan 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
2	Green 1 Magenta 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
3	Blue 1 Yellow 1	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
4	Red 2 Cyan 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
5	Green 2 Magenta 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
6	Blue 2 Yellow 2	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
7	Red 3 Cyan 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
8	Green 3 Magenta 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
9	Blue 3 Yellow 3	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
10	Red 4 Cyan 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
11	Green 4 Magenta 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
12	Blue 4 Yellow 4	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
13	Red 5 Cyan 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
14	Green 5 Magenta 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
15	Blue 5 Yellow 5	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
16	Red 6 Cyan 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
17	Green 6 Magenta 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
18	Blue 6 Yellow 6	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
19	Red 7 Cyan 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
20	Green 7 Magenta 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
21	Blue 7 Yellow 7	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
22	Red 8 Cyan 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
23	Green 8 Magenta 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%
24	Blue 8 Yellow 8	000 ó 255	RGBW Mode: 0–100% / CMY Mode: 100–0%

LED Macro

Value	Percent/Setting	Value	Percent/Setting	Value	Percent/Setting
000 ó 015	No function	064 ó 065	Color-controllable macro 25	160 ó 161	Auto color macro 50
016 ó 017	Color-controllable macro 1	066 ó 067	Color-controllable macro 26	162 ó 163	Auto color macro 51
018 ó 019	Color-controllable macro 2	068 ó 069	Color-controllable macro 27	164 ó 165	Auto color macro 52
020 ó 021	Color-controllable macro 3	070 ó 071	Color-controllable macro 28	166 ó 167	Auto color macro 53
022 ó 023	Color-controllable macro 4	072 ó 073	Color-controllable macro 29	168 ó 169	Auto color macro 54
024 ó 025	Color-controllable macro 5	074 ó 075	Color-controllable macro 30	170 ó 171	Auto color macro 55
026 ó 027	Color-controllable macro 6	076 ó 077	Color-controllable macro 31	172 ó 173	Auto color macro 56
028 ó 029	Color-controllable macro 7	078 ó 079	Color-controllable macro 32	174 ó 175	Auto color macro 57
030 ó 031	Color-controllable macro 8	080 ó 081	Color-controllable macro 33	176 ó 177	Auto color macro 58
032 ó 033	Color-controllable macro 9	082 ó 083	Color-controllable macro 34	178 ó 179	Auto color macro 59
034 ó 035	Color-controllable macro 10	084 ó 085	Color-controllable macro 35	180 ó 181	Auto color macro 60
036 ó 037	Color-controllable macro 11	086 ó 087	Color-controllable macro 36	182 ó 183	Auto color macro 61
038 ó 039	Color-controllable macro 12	088 ó 135	Color-controllable macro 37 (main macro)	184 ó 185	Auto color macro 62
040 ó 041	Color-controllable macro 13	136 ó 137	Auto color macro 38	186 ó 187	Auto color macro 63
042 ó 043	Color-controllable macro 14	138 ó 139	Auto color macro 39	188 ó 189	Auto color macro 64
044 ó 045	Color-controllable macro 15	140 ó 141	Auto color macro 40	190 ó 191	Auto color macro 65
046 ó 047	Color-controllable macro 16	142 ó 143	Auto color macro 41	192 ó 193	Auto color macro 66
048 ó 049	Color-controllable macro 17	144 ó 145	Auto color macro 42	194 ó 195	Auto color macro 67
050 ó 051	Color-controllable macro 18	146 ó 147	Auto color macro 43	196 ó 197	Auto color macro 68
052 ó 053	Color-controllable macro 19	148 ó 149	Auto color macro 44	198 ó 199	Auto color macro 69
054 ó 055	Color-controllable macro 20	150 ó 151	Auto color macro 45	200 ó 201	Auto color macro 70
056 ó 057	Color-controllable macro 21	152 ó 153	Auto color macro 46	202 ó 203	Auto color macro 71
058 ó 059	Color-controllable macro 22	154 ó 155	Auto color macro 47	204 ó 205	Auto color macro 72
060 ó 061	Color-controllable macro 23	156 ó 157	Auto color macro 48	206 ó 207	Auto color macro 73
062 ó 063	Color-controllable macro 24	158 ó 159	Auto color macro 49	208 ó 255	Auto color macro 74 (main macro)
