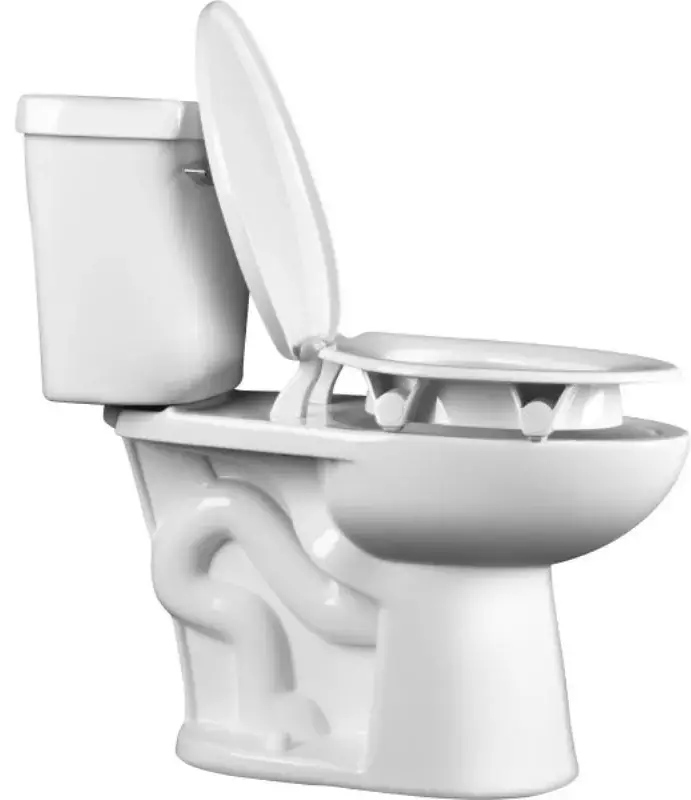

BEMIS R05300TSS Independence Clean Shield Toilet Seat

BEMIS-R05300TSS-Independence-Clean-Shield-Toilet-Seat-PRODUCT

Installation Instructions

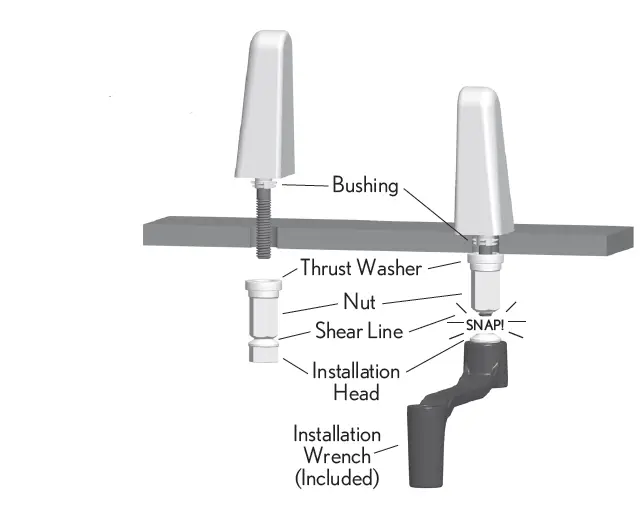

BEMIS-R05300TSS-Independence-Clean-Shield-Toilet-Seat-FIG-5

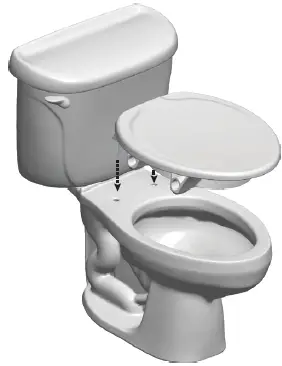

  • Place seat on bowl

BEMIS-R05300TSS-Independence-Clean-Shield-Toilet-Seat-FIG-1

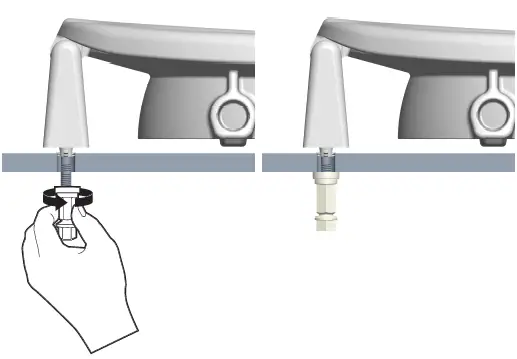

  • Gently finger tighten both Snap 2 Secure nuts

BEMIS-R05300TSS-Independence-Clean-Shield-Toilet-Seat-FIG-2

  • Confirm proper seat alignment on the bowl

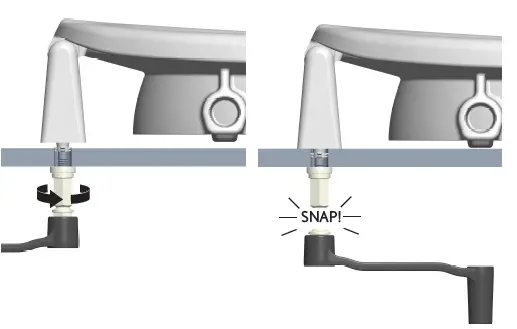

  • Holding the seat in place, use the Installation Tool to tighten both Installation Heads until they “snap off” (Seat Removal: Turn nut clockwise with the installation tool) BEMIS-R05300TSS-Independence-Clean-Shield-Toilet-Seat-FIG-3
  • If you are adding Support Arms, see installation instructions in the Support Arms Package

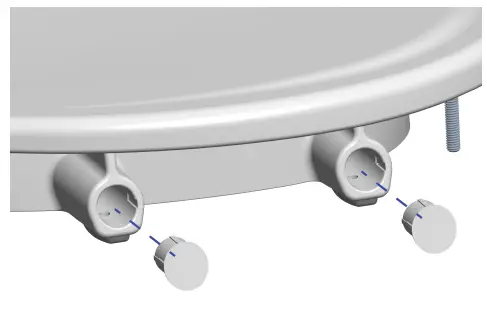

  • If not adding Support Arms, slide Caps into holes BEMIS-R05300TSS-Independence-Clean-Shield-Toilet-Seat-FIG-4

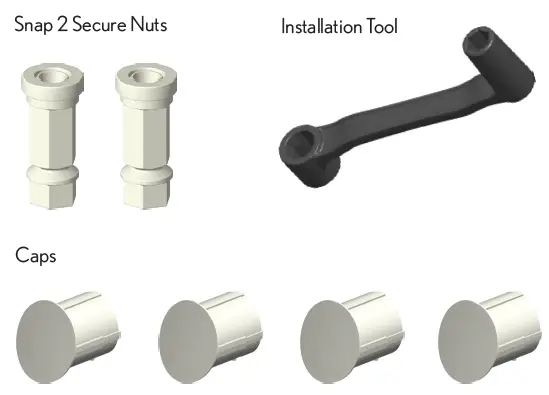

  • Check all parts BEMIS-R05300TSS-Independence-Clean-Shield-Toilet-Seat-FIG-6
