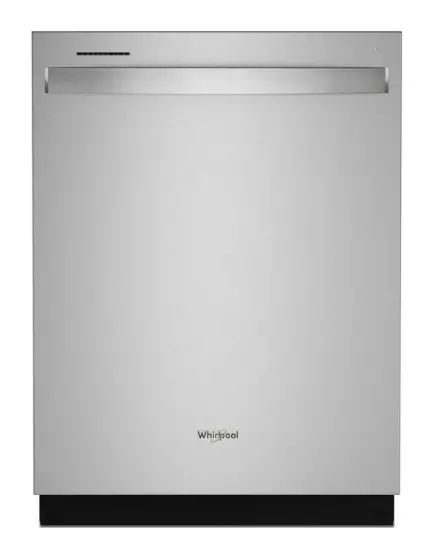

Whirlpool WDT730PAHZ Dishwasher

Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

• This is the safety alert symbol.
• This symbol alerts you to potential hazards that can kill or hurt you and others.
• All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

DANGER You can be killed or seriously injured if you don’t immediately follow instructions.
WARNING You can be killed or seriously injured if you don’t follow instructions.

All safety messages will tell you what potential instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using the dishwasher, follow basic precautions, including the following:

• Read all instructions before using the dishwasher.
• Use the dishwasher only for its intended function.
• Use only detergents or rinse agents recommended for use in a
  dishwasher, and keep them out of the reach of children.
• When loading items to be washed:
  1. Locate sharp items so that they are not likely to damage the door seal; and
  2. Load sharp knives with the handles up to reduce the risk of cut-type injuries.
• Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For plastic items not so marked, check the manufacturer’s recommendations.
• Do not touch the heating element during or immediately after use.
• Do not operate the dishwasher unless all enclosure panels are properly in place.
• Do not tamper with controls.
• Do not abuse, sit on, or stand on the door, lid, or dish racks of the dishwasher.
• To reduce the risk of injury, do not allow children to play in or on the dishwasher.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.
• Remove the door or lid to the washing compartment when removing an old dishwasher from service or discarding it.
  SAVE THESE INSTRUCTIONS
  State of California Proposition 65 Warnings:
• WARNING: This product contains one or more chemicals known to the State of California to cause cancer.
• WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

AWARNING
Tip Over Hazard

• Do not use the dishwasher until completely installed.
• Do not push down on the open door.
• Doing so can result in serious injury or cuts.

GROUNDING INSTRUCTIONS

• For a grounded, cord-connected dishwasher:
  The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. The dishwasher is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local codes and ordinances.
  WARNING: Improper connection of the equipment­grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt about whether the dishwasher is properly grounded. Do not modify the plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
• For a permanently connected dishwasher:
  The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal or lead on the dishwasher.

KEY USAGE TIPS

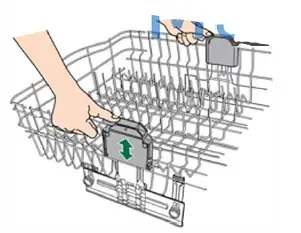

Premium Top Rack Adjuster

You can raise or lower the top rack to fit tall items in eit bottom rack. Adjusters are located on each side of the

To raise the rack:
Press both rack adjuster thumb levers and lift the rack until it is in the up position and level.

To lower the rack:
Press both rack adjuster thumb levers and slide the rack to its down position and level.

NOTE: The top rack must be level.

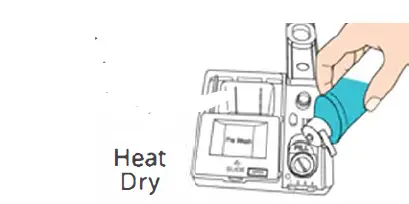

Drying – Rinse aid is essential
You must use a drying agent such as a rinse
aid for good drying performance. Rinse aid along with the Heat Dry option will provide best drying and avoid excessive moisture in the dishwasher interior.

Filtration System and Maintenance
Your dishwasher has the latest technology in dishwasher filtration. tem minimizes

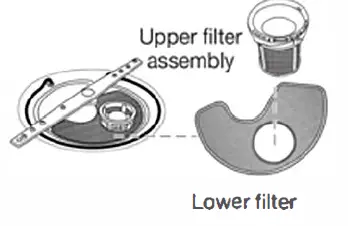

The filter system consists of two parts, an upper filter assembly, and a lower filter.

IMPORTANT: To avoid damage to the dishwasher, do not operate your dishwasher without filters properly installed. Be sure the lower filter is securely in place and upper filter assembly is locked into place. If the upper assembly turns freely, it is not locked into place.
The filters may need to be cleaned when:

• Visible objects or soils are on the upper filter assembly.
• Dishes feel gritty to the touch.

See “Filtration System” in the full User Instructions for the complete removal and maintenance schedule.
IMPORTANT: Do not use a wire brush or a scour ng pad, etc., as they may damage the filters.i

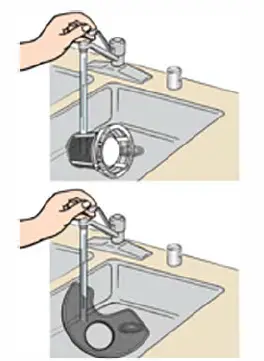

Rinse filter under running water until soils are removed. If you have hard-to-remove soils or calcium deposits because of hard water, a soft brush may be required.

Energy efficiency

Energy efficiency is gained by extending cycle time and reducing the amount of wattage and water used dunng your dishwasher’s cycle. For exceptional cleaning, cycles are longer due to the soak and pauses. Efficient dishwashers run longer to save water and energy, just as
dr ving a car slower saves on gas. Your first cycle will run longer to calibrate the optical water sensor.

Press Start/Resume every time you add a dish
IMPORTANT: If anyone opens the door, such as for adding a dish (even during the Delay option), StarV Resume must be pressed each time.
Push the door firmly c used within 4 seconds of pressing StarVResume. If door is not closed within 4 seconds, the
StarVResume button LED will flash, an audible tone will be heard, and the cycle will not start.

OPERATING YOUR DISHWASHER

1. Prepare and load the dishwasher
   IMPORTANT: Remove leftover food, bones, toothpicks, and other hard items from dishes. Remove labels from containers before washing.
   • Make sure “.”hen dishwasher door is closed, no items are blocking the detergent dispenser.
   • Items should be loaded with soiled surfaces facing and inward to the spray as shown in the graphics abo g
     improve cleaning and drying results. Angle dirties downward, allowing space for water to flow up th ugh c between dishes.
   • Avoid. overlapping . . items, . like bowls or plates, that may trap food.
   • Place plastics ‘ small plates ‘ and glasses in the upper rack.
   • Wash only items marked “dishwasher safe.”
   • To avoid thumping/clattering noises during operation, load dishes so they do not touch one another. Make sure lightweight load items are secured in racks.
   • Use slots in the covers and suggested loading patterns to keep your silverware separated for an optimum wash.
   • If your silverware does not fit into the designated slots, lift and slide covers off to remove them and mix silverware types to keep them separated.

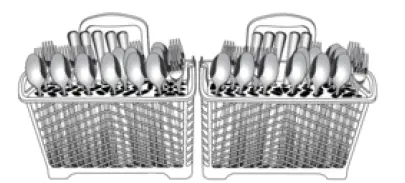

   • When loading silverware, always place sharp items pointing down and avoid “nesting” as shown.
2. Check that all arms spin freely
   Items in the rack can block the spray arms.

3. Add detergent
   Premeasured Detergents
   High-quality premeasured tablets and packs are recommended for improved performance. Quality tablets and packs have been proven better than powder, liquid, or gel detergent at reducing filming on dishes.
   NOTE: Follow the instructions on the package when using other dishwasher detergent types. See the complete User Instructions for more details about powders, liquids, and gels.

   • Use automatic dishwasher detergent only. Add detergent just before starting a cycle.
   • Fresh automatic dishwasher detergent results in better cleaning. Store a tightly closed detergent container in a cool, dry place.

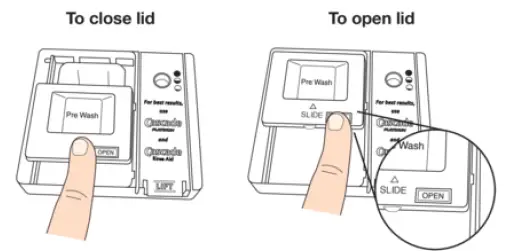

   • Place the selected detergent in the dispenser. Place your finger, as shown, and slide lid closed. Press firmly until it clicks.
   • Push OPEN, as shown, and the lid will slide open.
4. Add rinse aid
   • Your dishwasher is designed to use rinse aid for good drying performance. Without a rinse aid, your dishes and dishwasher interior will have excessive moisture. The heating and drying options will not perform as well without rinse aid.
   • Rinse aid keeps water from forming droplets that can dry as spots or streaks. It also improves drying by allowing water to drain off of dishes after final rinse. Rinse aid does not adhere to dishware, and when used, it is dispensed during each cycle.

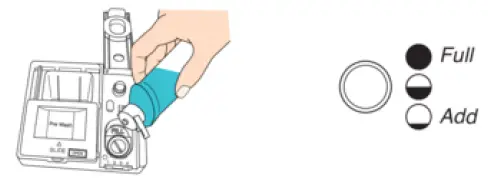

   • To add rinse aid, open the dispenser lid by gently pushing in the center of the lid with your thumb while lifting up on the edge.
   • Pour rinse aid into the opening until the indicator level shows that it is full.
   • Close the dispenser by pushing down gently on the lid.
     NOTE: For most water conditions, the factory setting will give good results.
     If you are experiencing poor drying performance, you may want to try a higher setting. Turn the arrow adjuster to a higher number to increase the amount of rinse aid.
5. Select a cycle
   Efficient dishwashers run longer to save water and energy, just as driving a car slower saves on gas. Typical cycle time is approximately 2’h hours but can take less or more time to complete depending on selections. Select a cycle (or press Start/Resume, to begin the last selected cycle).

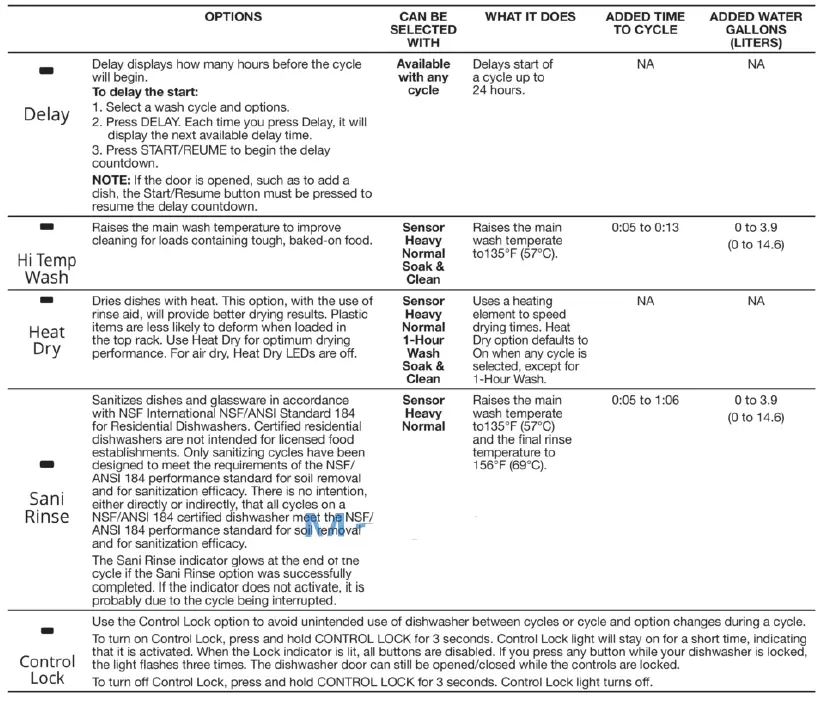

6. Select options
   You can customize your cycles by pressing the options desired. If you change your mind, press the option again to turn off the option. Not all options are available for every cycle. If an invalid option is selected for a given cycle, the lights will flash. Adding options may increase the cycle time.

7. Start or resume a cycle
   NOTE: If needed, run hot water at the sink nearest your dishwasher until the water is hot. Turn off water.
   Push door firmly closed within 4 seconds of pressing Start/Resume. If door is not closed within 4 seconds, the Start/Resume button LED will flash and the cycle will not start.
   IMPORTANT: If the door is opened for any reason after the cycle is started (even during the Delay option), the Start/Resume button must be pressed again.

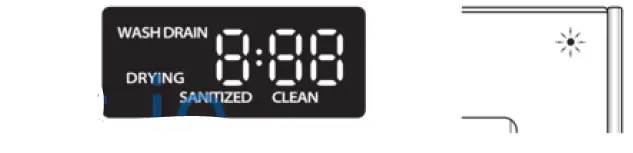

8. Follow the progress of your dishwasher
   The indicator LED on the front right corner of the door panel will glow while running the cycle and will go out when the cycle is
   complete. Also, the LED display on the control panel will light up during the cycle for Wash, draining, Drying, cleaning, and sanitizing.

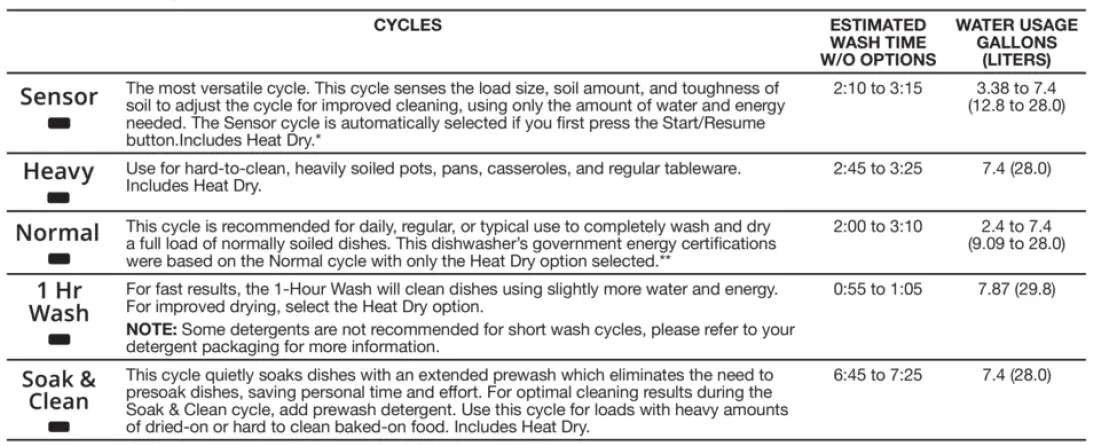

CYCLE GUIDE

This information covers several different models. Your dishwasher may not have all of the cycles and options described.
IMPORTANT: The sensor in your dishwasher monitors the soil level. Cycle time and/or water usage can vary as the sensor adjusts the cycle for the best wash performance. If the incoming water is less than the recommended temperature or food soils are heavy, the cycle will automatically compensate by adding time, heat, and water as needed.

“The government energy certifications are not based on this cycle. See the Normal cycle description for the government energy certification cycle. Using the Sensor cycle may increase your energy usage.
No other washing and drying temperature options were selected, and the dishwasher was not subjected to truncated testing. Rinse aid was not used, and there was no detergent used in the prewash.

DISHWASHER CARE

Cleaning the Exterior
Clean the exterior of the dishwasher with only a soft, damp cloth and mild detergent. If your dishwasher has a stainless steel exterior, it may have a coating that is resistant to fingerprints. Avoid using abrasive cleaning products on the exterior of the dishwasher.

Cleaning and Maintaining the Interior
Many detergents may leave white spots or a white residue on dishware and on the interior of the dishwasher. Over time this residue can become unsightly and could affect dishwasher performance. Use of a dishwasher cleaning product such as affresh• Dishwasher Cleaner can help to remove the residue. Monthly use of an affresh Dishwasher Cleaner is recommended to help maintain the dishwasher.
Follow package directions.

NOTE: Whirlpool recommends the use of high-quality premeasured detergent tablets or packs and the use of rinse aid for dishwasher cleaning and daily care. If you have a drain air gap, check and clean it if the dishwasher isn’t draining well.
To Reduce Risk of Property Damage During Vacation or

Extended Time Without Use:

• When you will not be using the dishwasher during the summer months, turn off the water and power supply to the dishwasher.
• Make sure the water supply lines are protected against freezing conditions. Ice formations in the supply lines can increase water pressure and cause damage to your dishwasher or home. Damage from freezing is not covered by the warranty.
• When storing your dishwasher in the winter, avoid water damage by having your dishwasher winterized by authorized service personnel.

TROUBLESHOOTING

First try the solutions suggested here. If you need further assistance or more recommendations that may help you to avoid a service call, or visit https://www.producthelp.whirlpool.com. In Canada, visit http://www.whirtpool.ca.
Contact us by mail with any questions or concerns at the address below:

In the U.S.A.:
Whirlpool Brand Horne Appliances Customer eXperience Center 553 Benson Road
Benton Harbor, Ml 49022-2692

Please include a daytime phone number in your corremIDr1de1

ACCESSORIES
Whirlpool Corporation also offers a variety of accessories for your dishwasher. In the U.S.A., visit www.whirlpool.com/accessories to order. In Canada, visit www.whirlpoolparts.ca to order.

WHIRLPOOL® MAJOR APPLIANCE LIMITED WARRANTY

ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED TO OBTAIN WARRANTY SERVICE.
Please have the following information available when you call the Customer eXperience Center:

• Name, address, and telephone number
• Model number and serial number
• A clear, detailed description of the problem
• Proof of purchase, including dealer or retailer name and address

IF YOU NEED SERVICE:

1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or vistt producthelp.whirlpool.com.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for warranty service to:

Whirlpool Customer e)(perience Center
In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6m.
If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.

ONE-YEAR LIMITED WARRANTY

WHAT IS COVERED
For one year from the date of purchase, when this major appliance is installed, operated, and maintained according to instructions attached to or furnished with the
product, Whirpool Corporation or Whirpool Canada LP i{hereafter “Whirlpool’1 will ipay
for factory specified replacement parts and repair labor to correct defects in materials or workmanship that existed when this major appliance was purchased or, at its sole discretion, replace the product. In the event of product replacement, your appliance will be warranted for the remaining term of the original unit’s warranty period.

YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. Service must be provided by a Whirlpool-designated service company. This limited warranty is valid only in the United States or Canada and applies only when the major appliance is used in the country in which it was purchased. This limited warranty is effective from the date of the original consumer purchase. Proof of the original purchase date is required to obtain service under this limited warranty.

WHAT IS NOT COVERED

1. Commercial, non-res dential, multiple-family use, or use inconsistent with the published user, operator,
   or installation instructions.i
2. In-home instruction on how to use your product.
3. Service to correct improper product ma maintenance or installation, installation not in accordance with electrical or plumbing codes, or correction i of household electrical or plumbing (e.g., house wiring, fuses, or water inlet hoses).
4. Consumable parts (e.g., light bulbs, batteries, air or water filters, preservation solutions, etc.).
5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.
6. Conversion of products from natural gas or propane gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God, or use with products not approved
   by Whirlpool.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service, alteration, or modification of the appliance.
9. Food or medicine loss due to product failure.
10. Pickup or delivery. This product is intended for in-home repair.
    be3. Travel or transportation expenses for service in remote locations where an authorized Whirlpool servicer is not available.
11. Removal or reinstallation of inaccessible appliances or built-in fixtures (e.g., trim, decorative panels, flooring, cabinetry, islands, countertops, drywall, etc.) that interfere with servicing, removal, or replacement of the product.
12. Service or parts for appliances with original model serial numbers removed, altered, or not easily determined.
    The cost of repair or replacement under these excluded circumstances shall be borne by the customer.

DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.

DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance,
you should ask Whirlpool or your retailer about buying an extended warranty.

LIMITATION OF REMEDIES: EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state or province to province.
