PW11 Series
Type-C Docking Station
User Manual
Thanks for choosing ORICO!
Please read this user’s manual carefully before using the product, or you can download it from www.orico.cn Download a more detailed electronic manual and keep it as a backup.
What is in the box
The Product *1
User Manual *1
The product, accessories and package may optimized for better applicationor performance. We sincerely sorry that they may not exactly match with what showing in manual and appreciate your please adhere to the original products and contact ORICO customer care team if any further concern. Thank you very much.
Product Introduction
This Type-C hub – PW11 is made of aluminum alloy + ABS material, expanding connectivity for your laptop, phone, and tablet PC. It satisfies your data transmission or audio output needs. The endowed USB-A ports can connect the keyboard, mouse, USB flash drive, PSSD, etc. The USB 3.0 ports support 5Gbps speed while the USB 2.0 only reaches 480Mbps.
- The USB-C interface supports current electronic devices that have USB-C data cables and supports 5Gbps transfer bandwidth.
- HDMI port only supports 4K@60Hz (varies from different models) video output, and mirroring screens with downward compatibility.
- VGA port only supports 1920*1080P@60Hz video output and mirroring screens.
- RJ45 reaches 2.5G bandwidth transmission speed (varies from different models) with downward compatibility.
- SD and TF slots reach 480Mbps transmission speed and cards are read in order.
- 3.5mm audio port can connect headphones and speakers.
- PD 3.0 protocol supports PD 100W power output maximumly. (Power varies from different models.)
- Support Windows, Mac OS, Linux, iPad and Android systems.(Non-compatibility may happens due to different system versions.)
Specifications
| Name | Type-C 5 in 1 Docking Station |
| Model | PW11-5P |
| Input | Type-C |
| Output | USB-A×1 （5Gbps） USB-A×2（480Mbps） HDMI×1 (4K@30Hz) PD 60W×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 95(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 6 in 1 Docking Station |
| Model | PW11-6P |
| Input | Type-C |
| Output | USB-A×3 (5Gbps) USB-C×1（5Gbps) HDMI×1 (4K@30Hz) PD 100W×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 95(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 6 in 1 Docking Station |
| Model | PW11-6PR |
| Input | Type-C |
| Output | USB-A×3 (5Gbps) HDMI×1 (4K@30Hz) PD 100W×1 1 GigE×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 95(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 6 in 1 Docking Station |
| Model | PW11-6P25R |
| Input | Type-C |
| Output | USB-A×3 (5Gbps) HDMI×1(4K@30Hz) PD 100W×1 2.5 GigE×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 95(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 6 in 1 Docking Station |
| Model | PW11-6PCR |
| Input | Type-C |
| Output | USB-A×2 (5Gbps)， USB-C×1 (5Gbps) HDMI×1 (4K@60Hz) PD 100W×1 1 GigE×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 95(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 6 in 1 Docking Station |
| Model | PW11-6PC25R |
| Input | Type-C |
| Output | USB-A×2 (5Gbps)， USB-C×1 (5Gbps) HDMI×1(4K@60Hz) PD 100W×1 2.5 GigE×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 95(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 8 in 1 Docking Station |
| Model | PW11-8P |
| Input | Type-C |
| Output | USB-A×3（5Gbps)， SD & Micro SD×1， HDMI×1（4K@60Hz），PD 100W×1 1 GigE×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 115(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 8 in 1 Docking Station |
| Model | PW11-8PC |
| Input | Type-C |
| Output | USB-A×2（5Gbps)， USB-A×1（480Mbps) USB-C×1（5Gbps)， HDMI×1（4K@60Hz） PD 100W×1，1 GigE×1， VGA×1（1080P@60Hz） |
| Transmission Rate | 5Gbps |
| Dimensions | 115(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 8 in 1 Docking Station |
| Model | PW11-8PM |
| Input | Type-C |
| Output | USB-A×2（5Gbps)， SD & Micro SD×1， HDMI×1（4K@60Hz）， PD 100W×1 1 GigE×1 3.5mm Audio Port×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 115(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 9 in 1 Docking Station |
| Model | PW11-9P |
| Input | Type-C |
| Output | USB-A×3（5Gbps)， SD & Micro SD×1， HDMI×1（4K@30Hz），VGA×1 （1080P@60Hz）， 1 GigE×1，PD 100W×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 135(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 9 in 1 Docking Station |
| Model | PW11-9P25R |
| Input | Type-C |
| Output | USB-C×1(5Gbps），USB-A×2（5Gbps)， SD & Micro SD×1， HDMI×1（4K@60Hz） 3.5mm Audio Port×1，2.5G GigE×1，PD 100W×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 135(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |
| Name | Type-C 10 in 1 Docking Station |
| Model | PW11-10P |
| Input | Type-C |
| Output | USB-A×3（5Gbps)， SD & Micro SD×1， HDMI×1（4K@30Hz），VGA×1（1080P@ 60Hz)， 3.5mm Audio Port×1， 1 GigE×1，PD 100W×1 |
| Transmission Rate | 5Gbps |
| Dimensions | 135(L)×44.5(W)×17(H)mm |
| Material | Aluminum Alloy + ABS |
| Data Cable Length | Siamese data cable 0.2M |
| Supported System | Windows/Linux/Mac OS/iPad/Android |
| Colour | Dark Grey/Silver/Rose Gold |

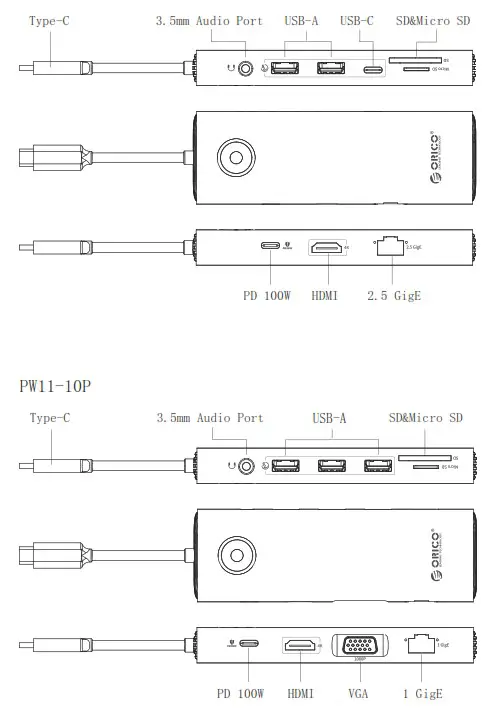

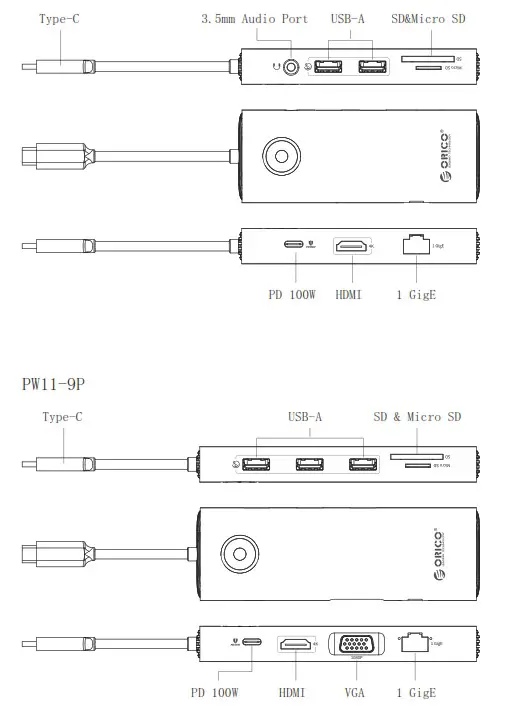

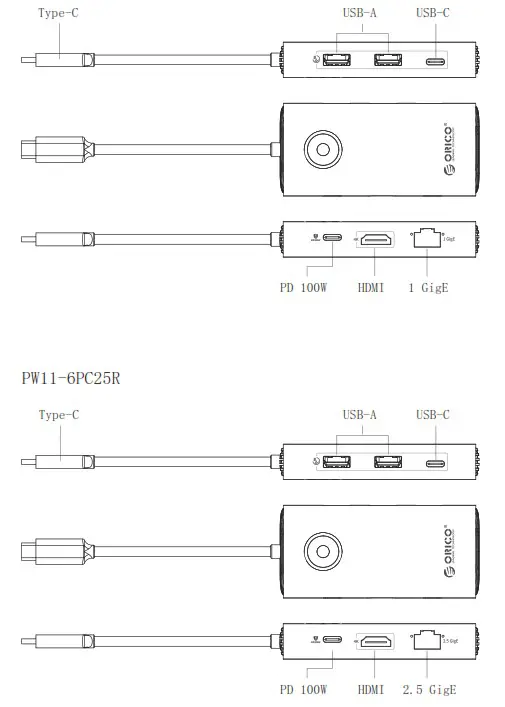

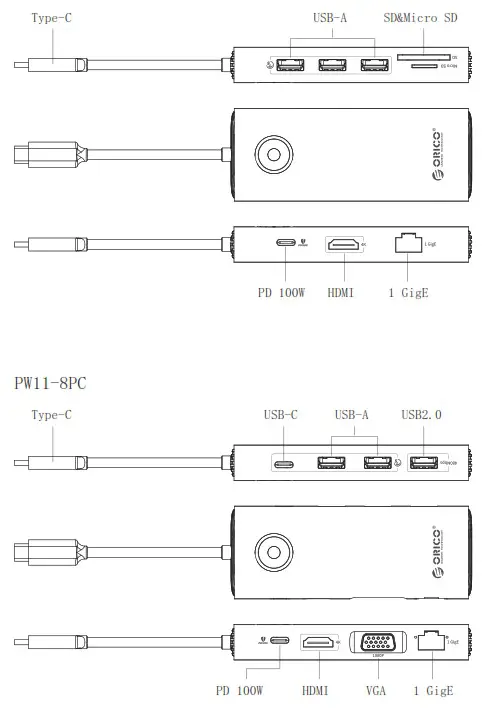

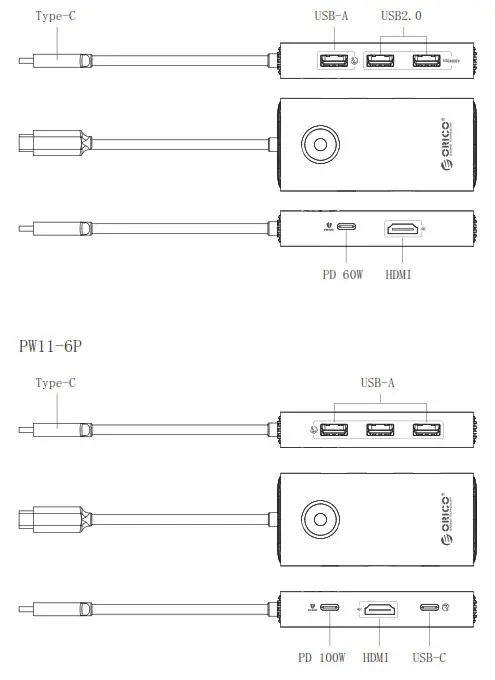

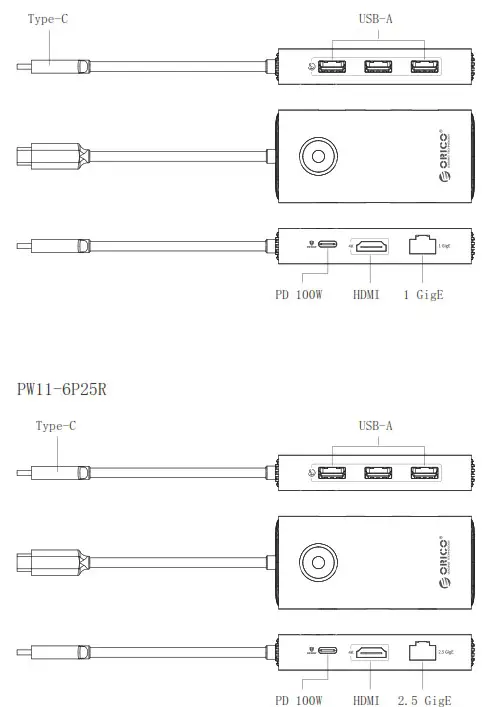

Illustration
PW11-5P
PW11-6PR
PW11-6PCR
PW11-8P
PW11-8PM
PW11-9P25R
Notices
- This hub support PD 100W power output maximumly(PW11-5P only support PD 60W maximumly). There will be power loss during the charging.
- Please remember to eject the USB flash drive, PSSD, and HDD on the computer before unplugging them.
- Please remember to unplug the connected devices after use because it may lead to malfunction when reconnected to power. If not, please unplug all devices and plug them in again.
- Please avoid connecting multiple high-power devices simultaneously, otherwise, it may lead to malfunction.
- If the WIFI or Bluetooth disconnection happens regularly, please connect the Bluetooth adapter to the USB 2.0 port or connect the devices to farther USB 3.0 ports considering their similar working frequencies.
- HDMI and VGA ports only support mirroring or expanding screens.
